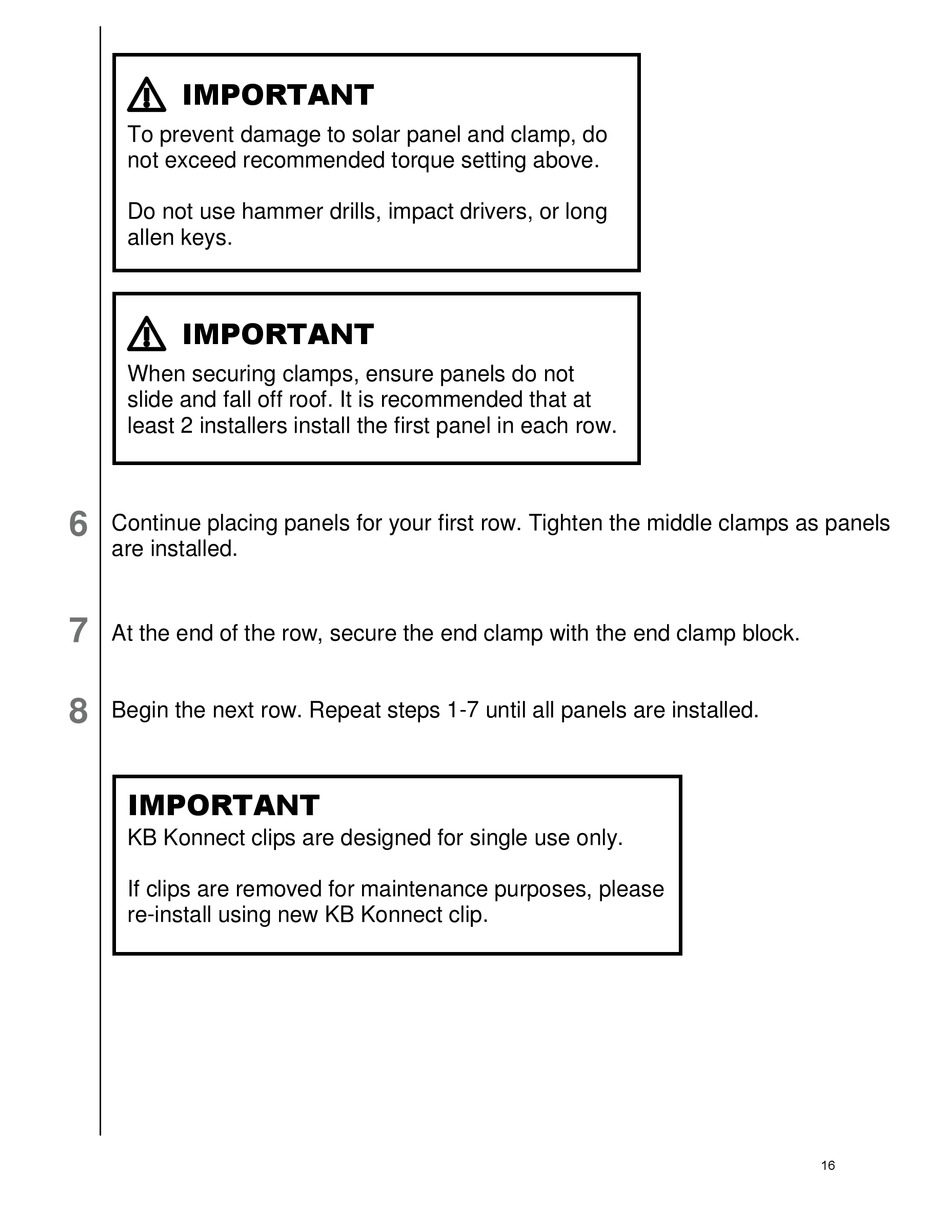

IMPORTANT
To prevent damage to solar panel and clamp, do
not exceed recommended torque setting above.
Do not use hammer drills, impact drivers, or long
allen keys.
⚠
IMPORTANT
When securing clamps, ensure panels do not
slide and fall off roof. It is recommended that at
least 2 installers install the first panel in each row.
6
Continue placing panels for your first row. Tighten the middle clamps as panels
are installed.
7
At the end of the row, secure the end clamp with the end clamp block.
8
Begin the next row. Repeat steps 1-7 until all panels are installed.
IMPORTANT
KB Konnect clips are designed for single use only.
If clips are removed for maintenance purposes, please
re-install using new KB Konnect clip.
16
