4.10 Installation of the Lamp House

W
ARNING
C
AUTION
handled.
Necessary tools
10mm nut driver or flat screw driver.
How to install the Lamp House in the projector?
1. Check if the six quarter turn screws turning wires (reference 1image 4-49) are flush with the cover or interference will occur while
inserting the Lamp House into the projector.
1

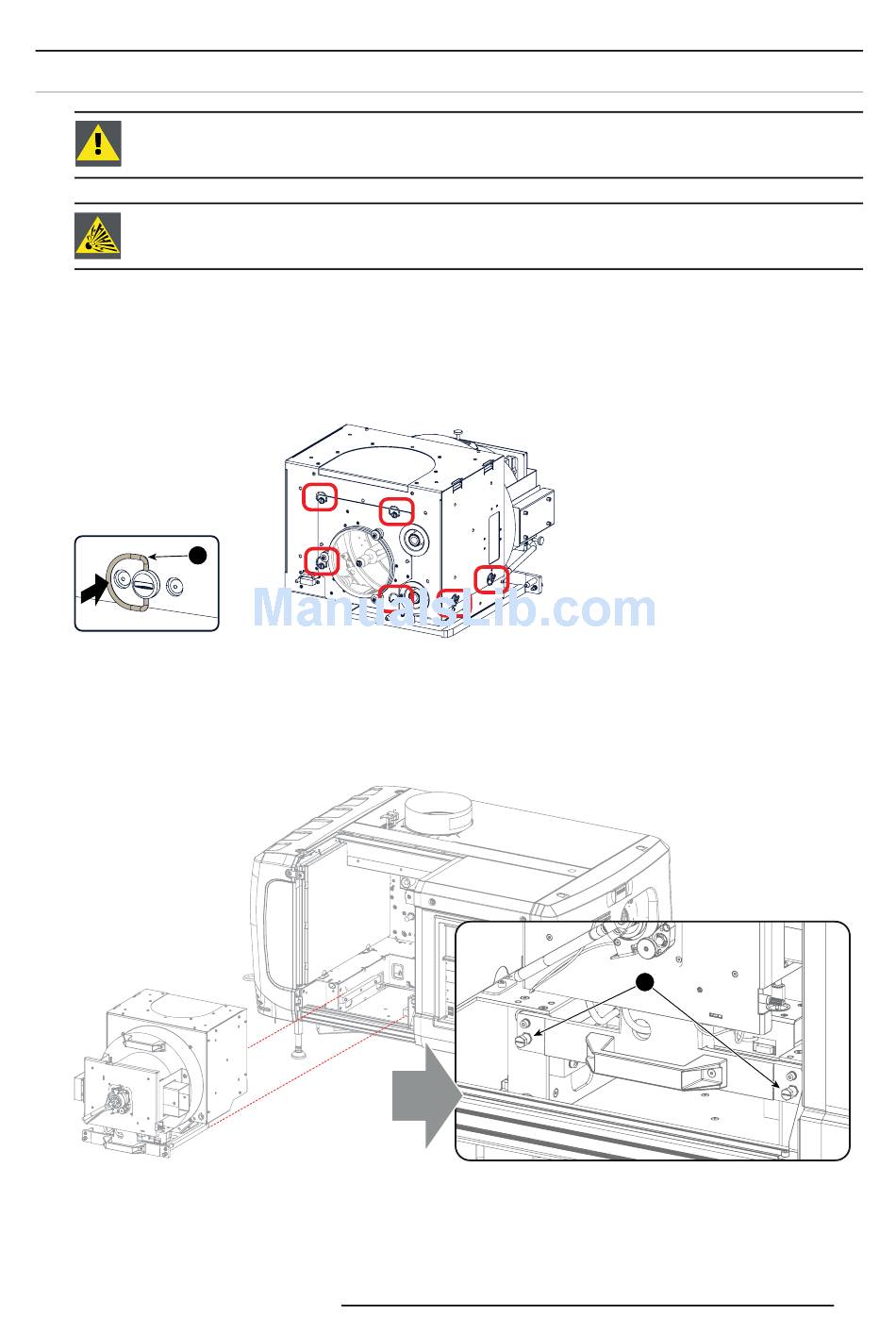

Image 4-49
2. Grip the Lamp House by both handles and place the front of the Lamp House on the base plate inside the lamp compartment of
the projector, lining up the foot of the Lamp House with the slots on the base.
3. Push the Lamp House fully into the slots.
4. Secure the Lamp House by fastening the two retaining screws (reference 1 image 4-50) at the base of the Lamp House.
5. Reinstall the cover of the Lamp House compartment.
Image 4-50
