7. ICMP
7.9

Installing a HDD into the ICMP

This procedure assumes that the HDD slot of the ICMP is empty. If not, see procedure "Removing a HDD form
the ICMP", page 117.
C
AUTION
HDD from another ICMP HDD set.
How to install a HDD ?
1. Ensure that the projector is switched off.
2. Prepare the HDD for insertion by moving the latch towards the left and push the unlock button to open the handle.

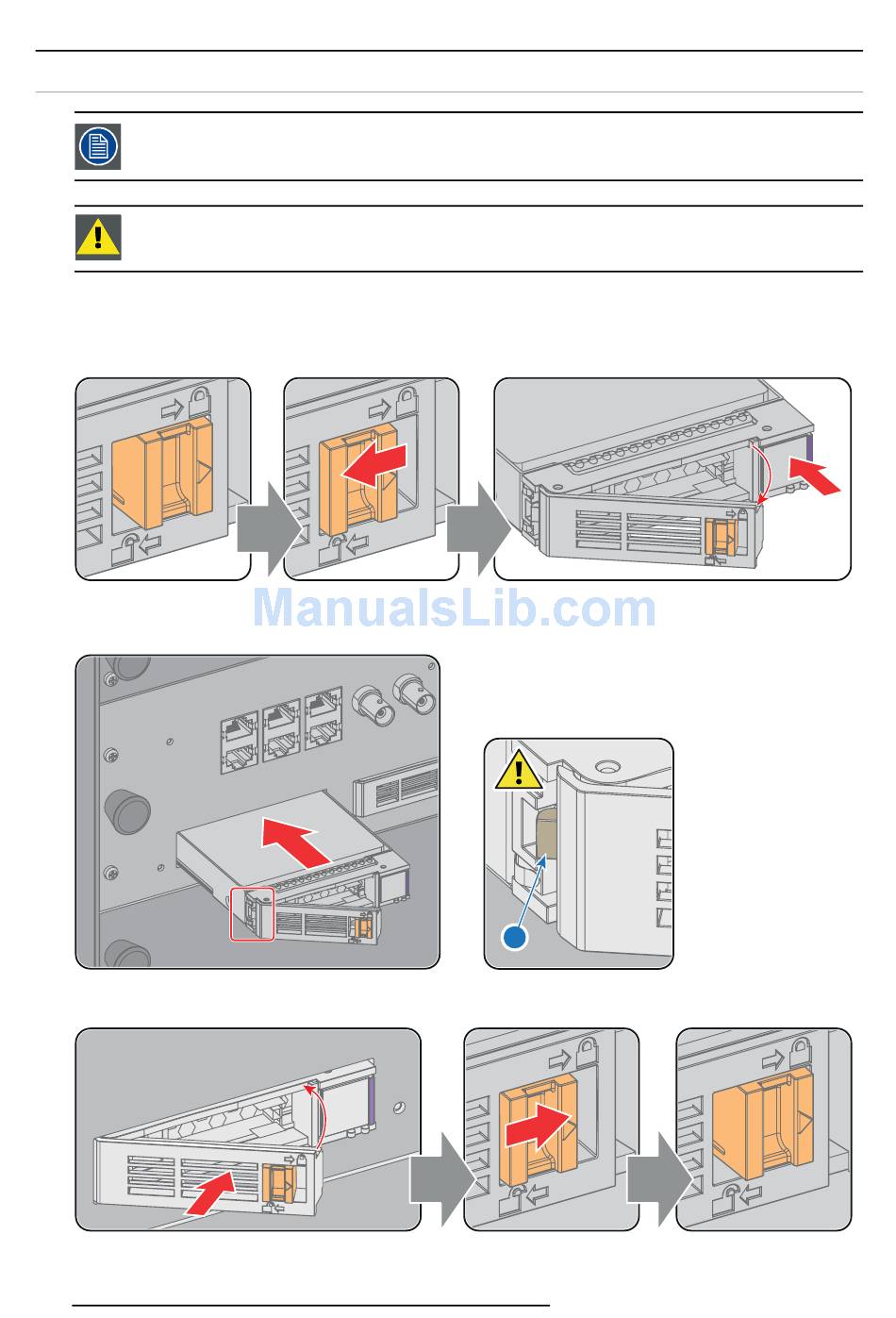

Image 7-12
3. Insert the HDD into the HDD slot. Ensure that the handle is sufficiently open so that the hook (reference 1) of the handle can
pass the front plate of the ICMP.
Image 7-13
4. Push the HDD completely and firmly inside its slot, close the handle, and move the latch towards the right.
Image 7-14
5. Switch on the projector.
118
:
Always use a new empty spare part HDD from Barco to replace a malfunction HDD. Do not use a
1
R5905963 PROMETHEUS SERIES 09/03/2015
