4. Lamp & Lamp House
4.2

Supported xenon lamps for the S/M Lamp House

Cathode adaptor
A cathode adaptor is required to mount the xenon lamp in the Lamp House. The cathode adapter has to be mounted on the cathode
side of the xenon lamp prior to mounting the lamp in to the Lamp House. The purpose of the cathode adapter is to position the arc
of the xenon lamp in the middle of the reflector inside the Lamp House.

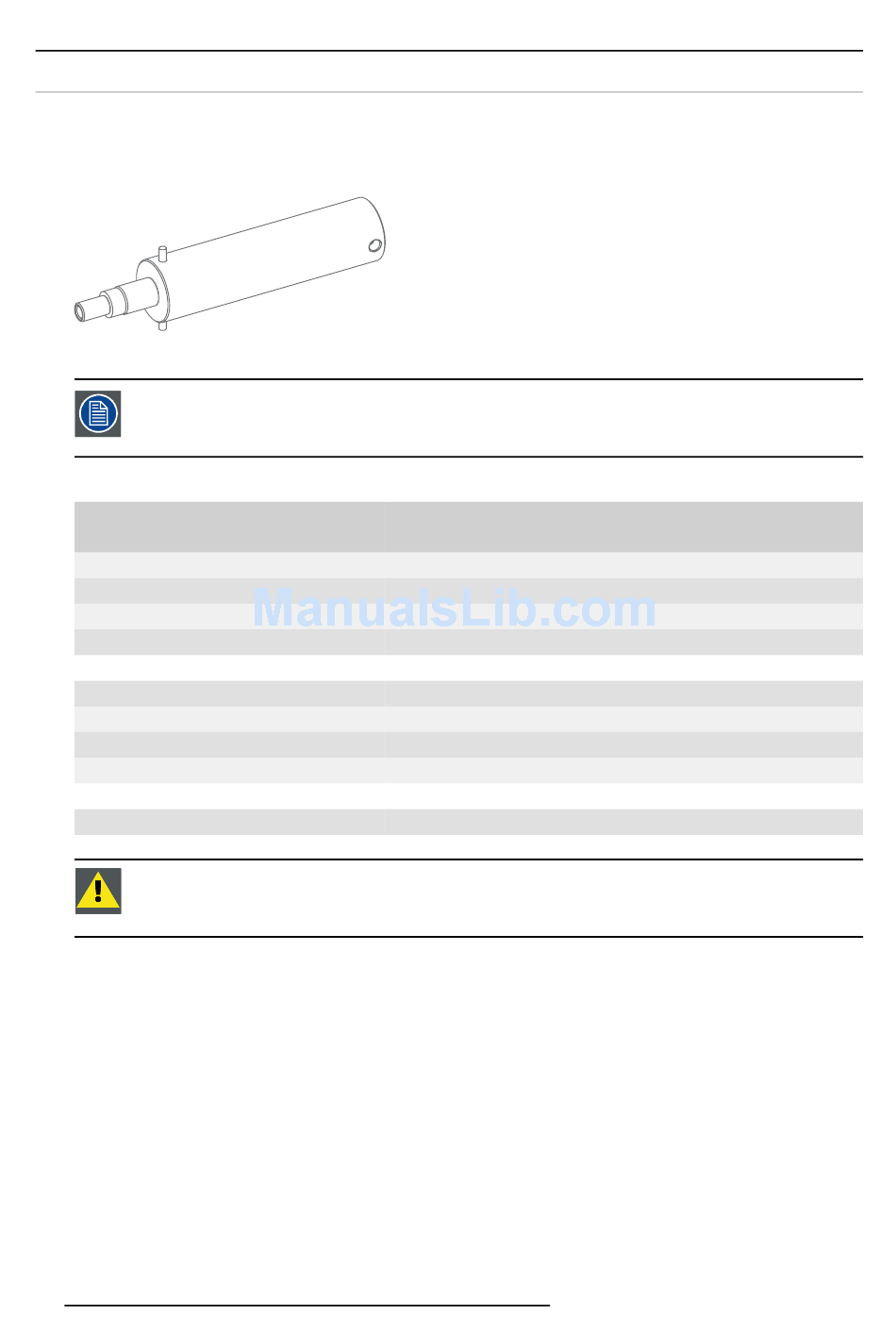

Image 4-4
1 Cathode adapter manual Lamp House (R865555K)
All lamps and adapters in the table below must be used with the S/M Lamp House (either manual or motorized).
Note that the maximum lamp power the projector delivers depends on the type of projector and the installed
lamp. Prior to install the lamp it's important to check with the Communicator software if the lamp is listed in
the list of supported lamps for this projector.
Supported lamp types and their respective anode/cathode adapters for the S/M Lamp House:
Lamp type
Supplier
4kW DHP OSRAM XBO
3kW DHP OSRAM XBO
2kW DHP OSRAM XBO
1200W DHP OSRAM XBO
DXL40BAF USHIO
DXL30BAF USHIO
DXL20BAF USHIO
DXL12BAF USHIO
XDC-4000B PHILIPS
W
ARNING
may result in poor performance of the lamp and damage to the xenon lamp and Lamp House. Some adapters
looks the same, therefore check the engraved item number upon the adapter to ensure you use the right
adapter.
40
:
Always use the correct Cathode adapter for the xenon lamp in the Lamp House. Neglecting this
Cathode adapter S/M Lamp House
R865555K
R865555K
R865555K
R865555K
R865555K
R865555K
R865555K
R865555K
R865555K
R5905963 PROMETHEUS SERIES 09/03/2015
