10. Removal and installation of the projector covers

10.9 Installation of the rear cover

Necessary tools
Flat screwdriver
How to install
1. Install the rear cover of the projector doing the following:
a) Bring the rear cover towards its final position.
b) Gently push the locking studs into the receivers (1).

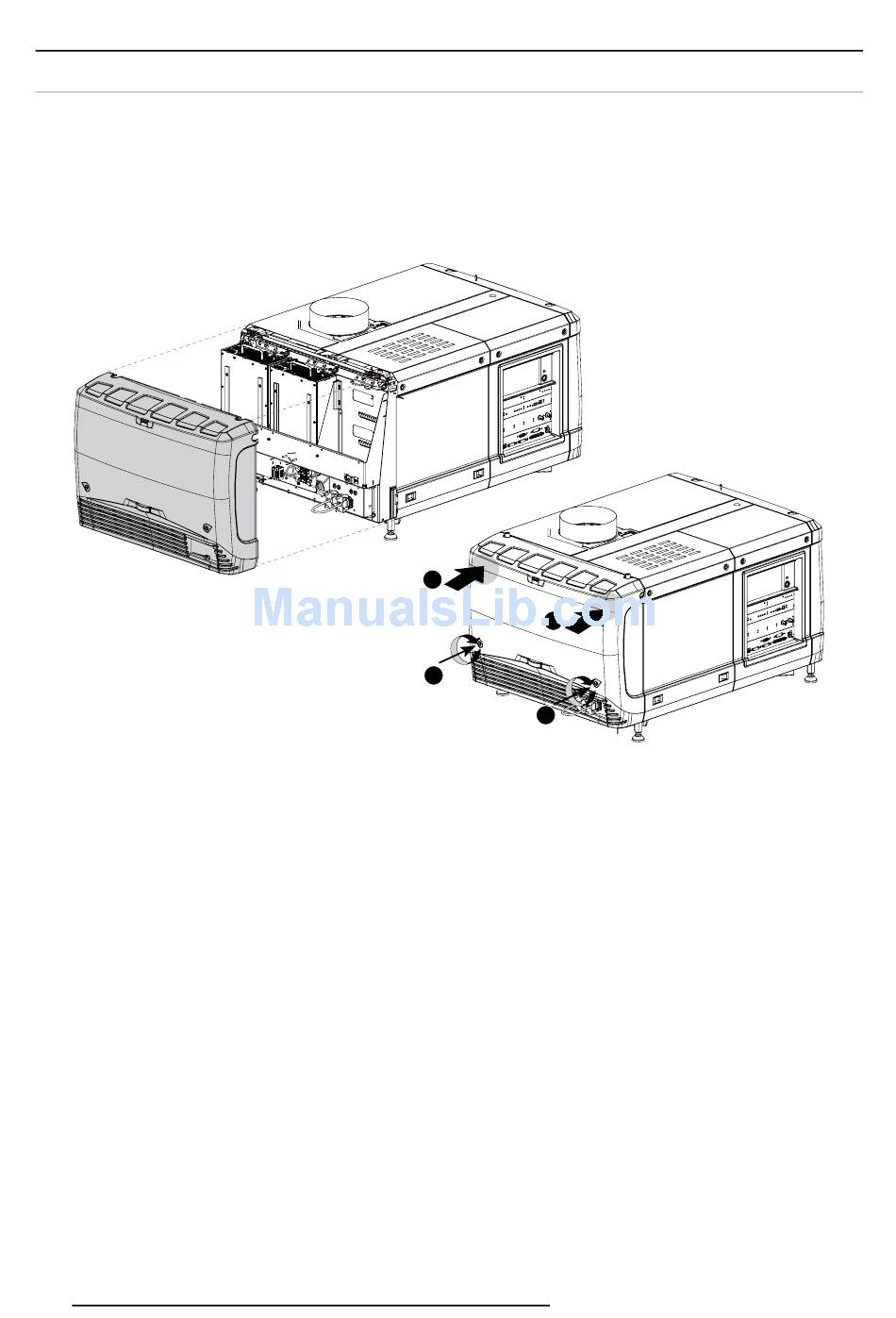

Image 10-19
Mount rear cover
2. Secure the cover by fastening the captive screw at the bottom of the rear cover (2).
146
1
1
2
2
