ICMP HDD

About ICMP HDD
The three HDDs (local storage) in the ICMP, are set up in a RAID 5 configuration. This storage technique, that combines multiple
HDD components into a logical unit, manages enough redundancy information to continue to operate properly after the loss of one
HDD.

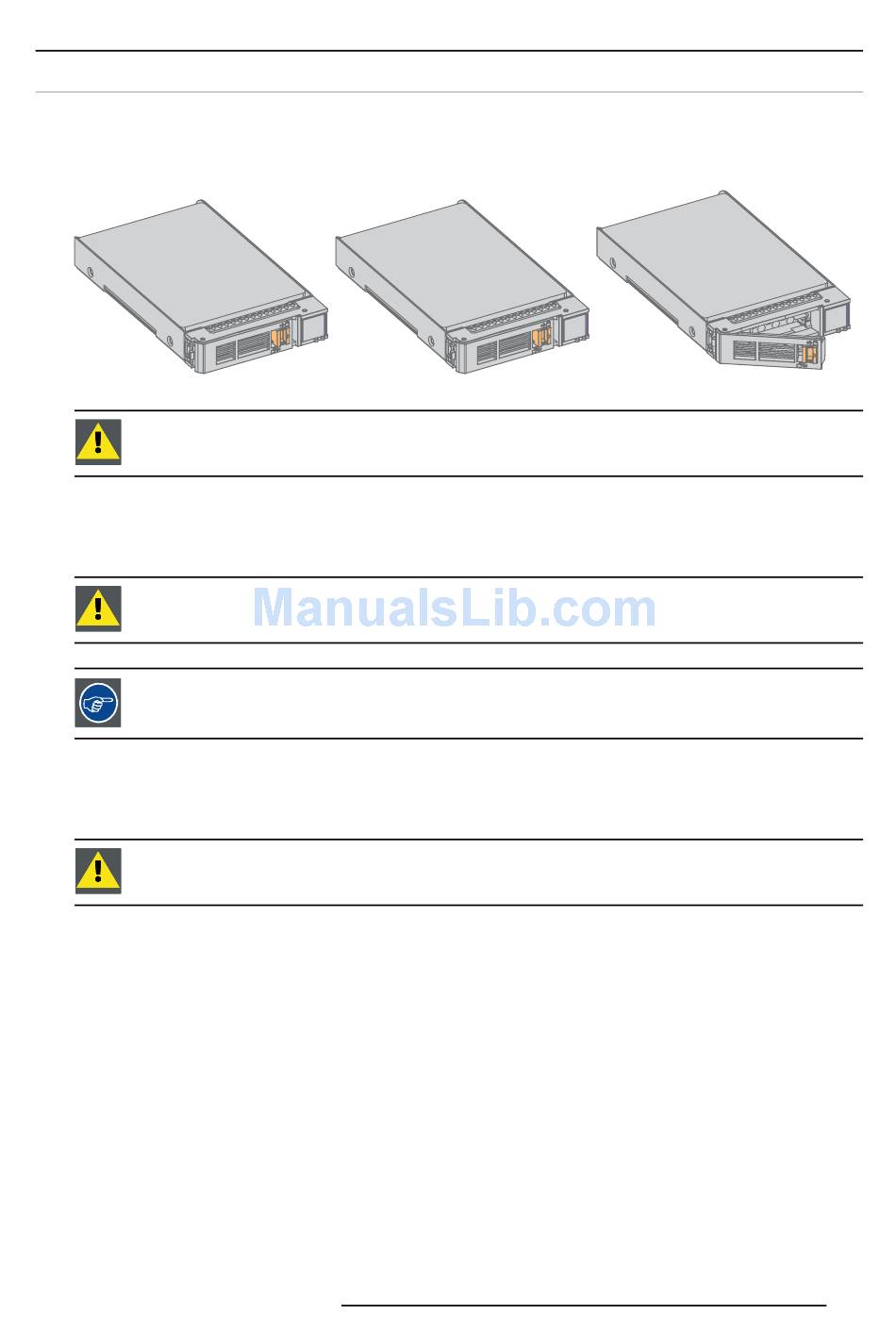

Image 7-4
C
AUTION
loss of more than one HDDs, data is lost and the RAID must be completely initialized again after replacement
of the defect HDDs with new HDDs!
About degraded mode
When a RAID array experiences the failure of one disk, it enters in degraded mode. Content storage and playback remains available
on the ICMP.
C
AUTION
quickly because the loss of a second disk will make the RAID system broken. The main cause of the total loss
of RAID is due in most cases to the loss of the second disk while the first has not been rebuilt!
A failed drive should be replaced as soon as possible.
About "RAID recovery" process
The restoration from degraded to normal condition of the RAID 5 system is done automatically. When the RAID controller detects a
new HDD to replace the failed disk the recovery procedure starts automatically.
C
AUTION
completely initialized again!
About RAID destruction
When more than one HDD is out of order, the RAID is considered as 'broken' and the content is lost. The failed HDDs must be
changed and a new RAID must be created.
Exchange or re-use of a disk set
It's possible to have several sets of disks with one ICMP or to reuse a complete set of disks coming from another projector with
ICMP. It is sufficient to insert the three HDDs, from a valid RAID array, and let the system explore the new RAID. The mounting order
of the HDDs and the HDD slots do not matter. Of course, when using HDDs from another ICMP it is necessary to retrieve from the
content distributor the KDMs corresponding to the content and the new ICMP.
HDD storage
The maximum recommended storage period for the drive in a non-operational environment is 90 days. Drives should be stored in the
original unopened shipping packaging whenever possible. Once the drive is removed from the original packaging the recommended
maximum period between drive operation cycles is 30 days. During any storage period the drive non-operational temperature,
humidity, wet bulb, atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.
