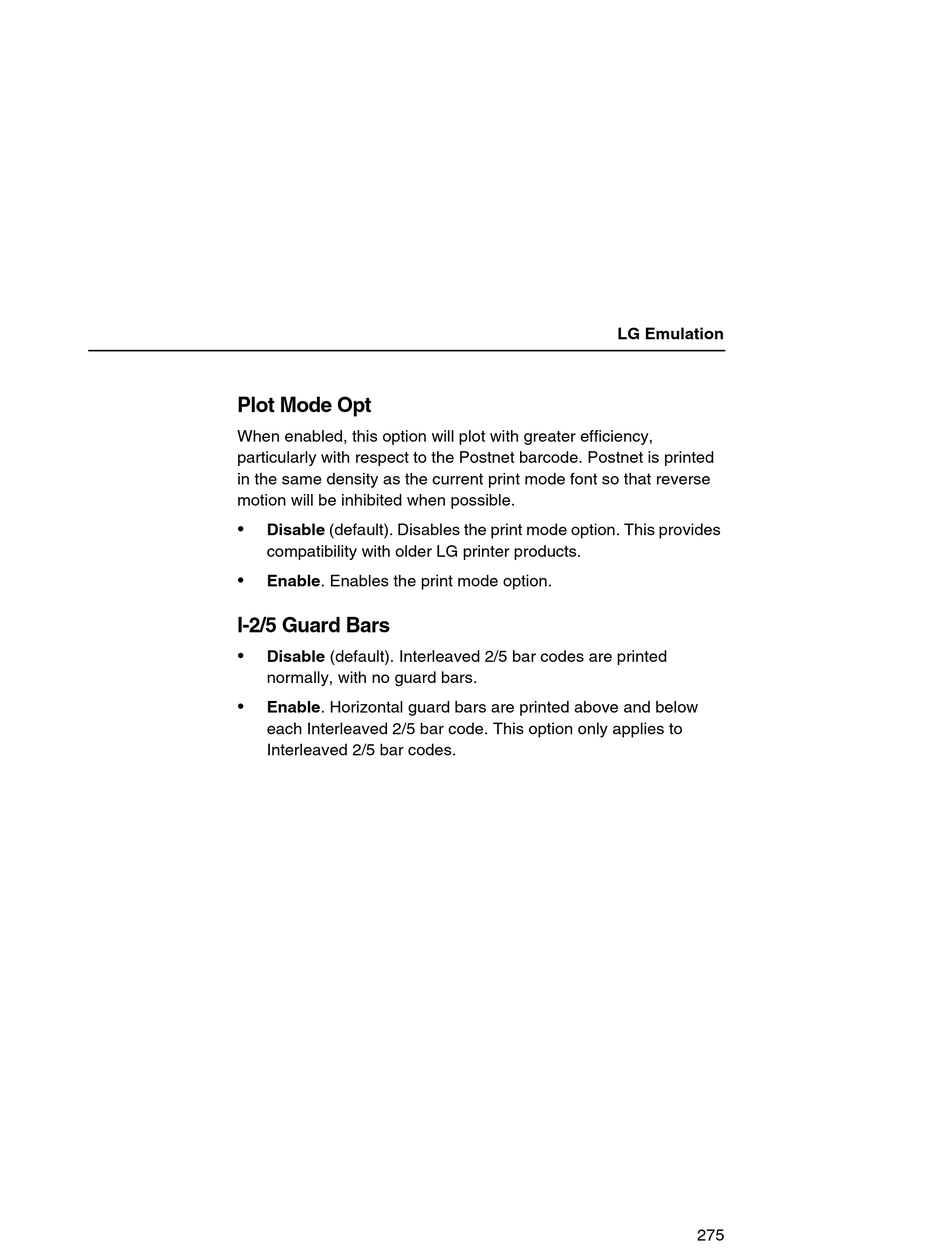

Plot Mode Opt

When enabled, this option will plot with greater efficiency,

particularly with respect to the Postnet barcode. Postnet is printed

in the same density as the current print mode font so that reverse

motion will be inhibited when possible.

Disable (default). Disables the print mode option. This provides

compatibility with older LG printer products.

Enable. Enables the print mode option.

I-2/5 Guard Bars

Disable (default). Interleaved 2/5 bar codes are printed

normally, with no guard bars.

Enable. Horizontal guard bars are printed above and below

each Interleaved 2/5 bar code. This option only applies to

Interleaved 2/5 bar codes.
