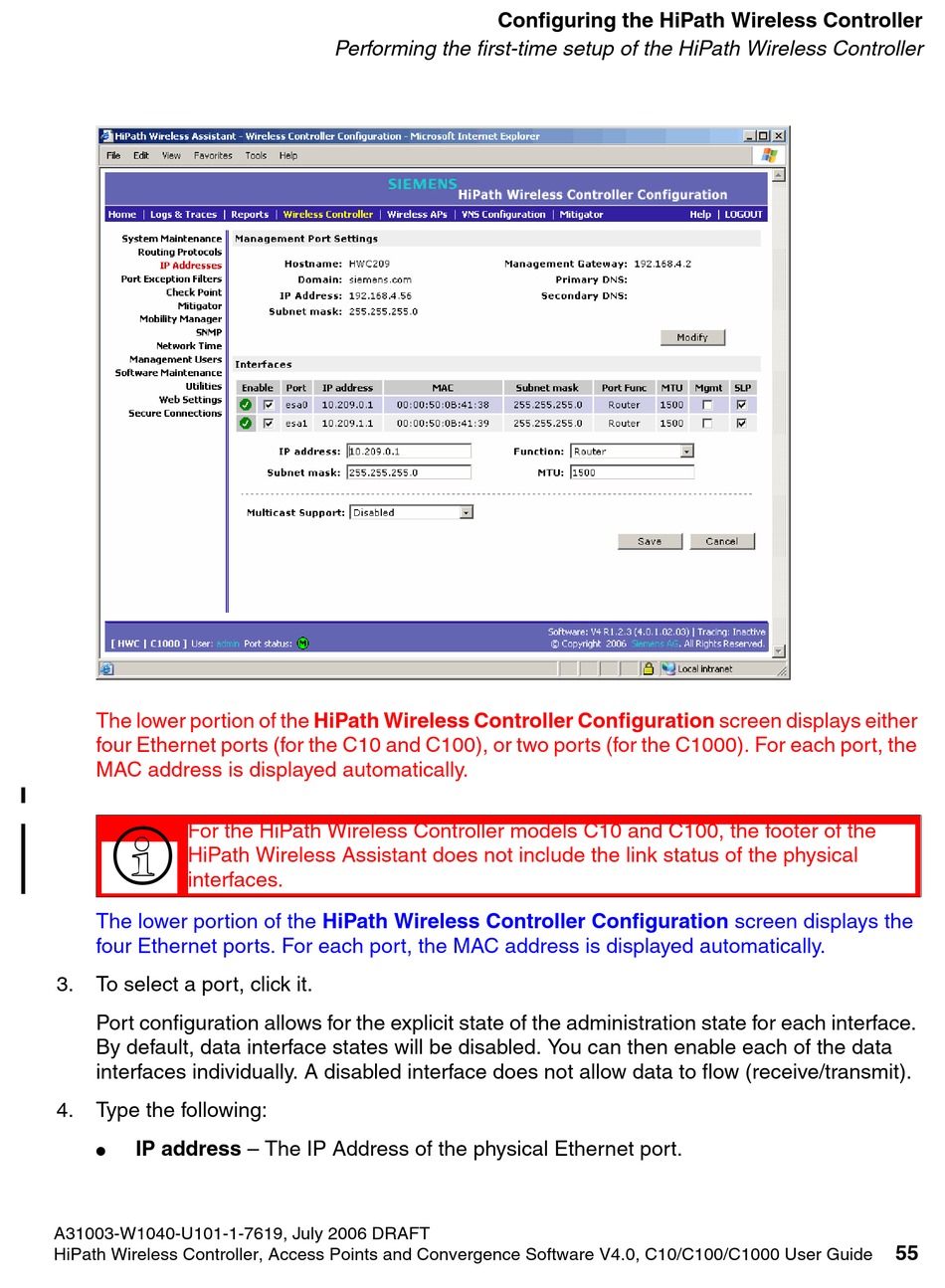

The lower portion of the HiPath Wireless Controller Configuration screen displays either
four Ethernet ports (for the C10 and C100), or two ports (for the C1000). For each port, the
MAC address is displayed automatically.
For the HiPath Wireless Controller models C10 and C100, the footer of the
>
HiPath Wireless Assistant does not include the link status of the physical
interfaces.
The lower portion of the HiPath Wireless Controller Configuration screen displays the
four Ethernet ports. For each port, the MAC address is displayed automatically.
3. To select a port, click it.
Port configuration allows for the explicit state of the administration state for each interface.
By default, data interface states will be disabled. You can then enable each of the data
interfaces individually. A disabled interface does not allow data to flow (receive/transmit).
4. Type the following:
IP address – The IP Address of the physical Ethernet port.
●
A31003-W1040-U101-1-7619, July 2006 DRAFT
HiPath Wireless Controller, Access Points and Convergence Software V4.0, C10/C100/C1000 User Guide
Configuring the HiPath Wireless Controller
Performing the first-time setup of the HiPath Wireless Controller
hwc_startup.fm
55
