To define filtering rules for a non-authenticated filter:
1.

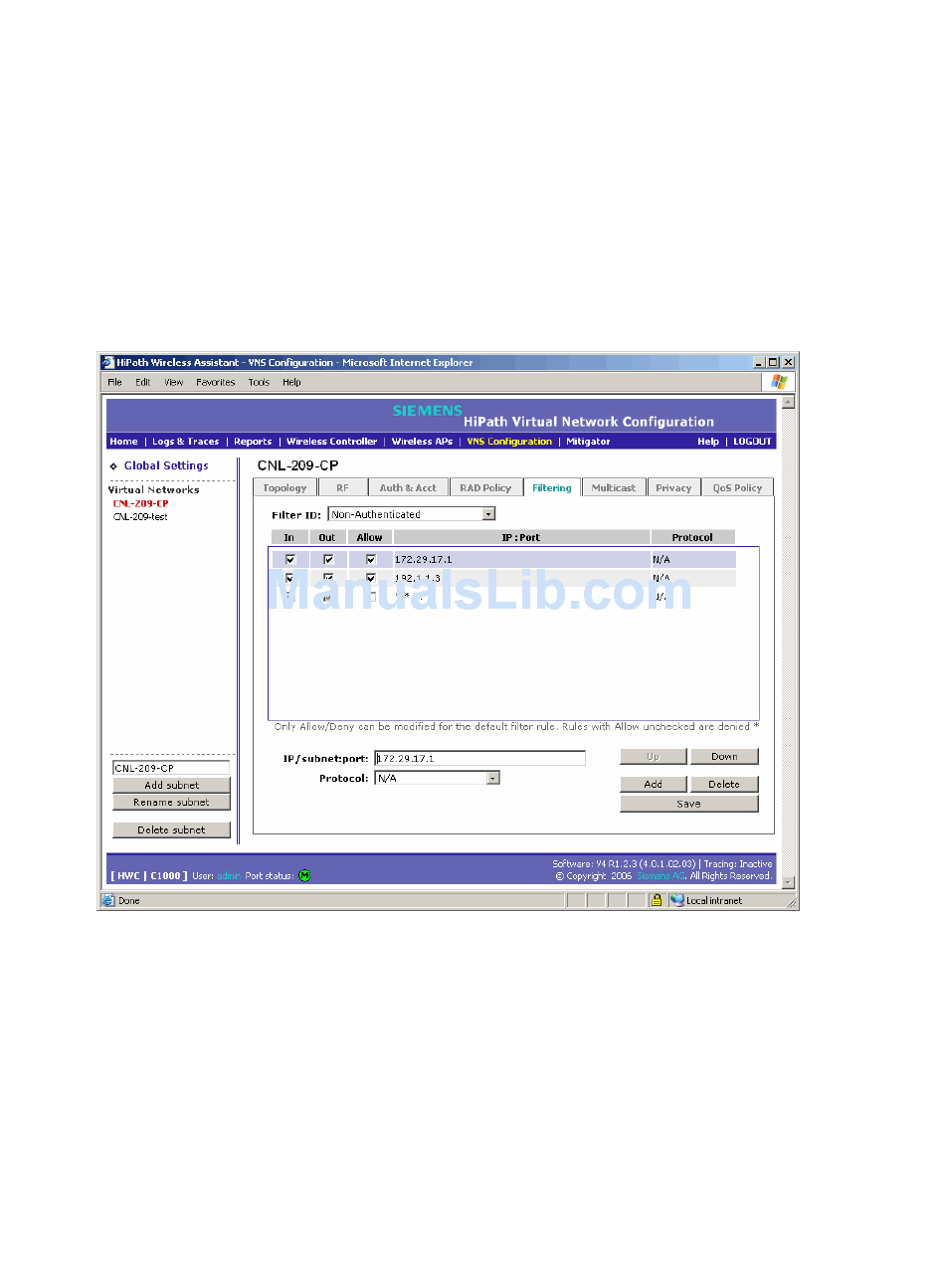

From the main menu, click Virtual Network Configuration. The Virtual Network
Configuration screen appears.
2.
In the left pane Virtual Networks list, click the VNS you want to define filter ID values for.
The Topology tab is displayed.
3.
Click the Filtering tab.
4.
From the Filter ID drop-down list, select Non-Authenticated.
The Filtering tab automatically provides a Deny All rule already in place. Use this rule as
the final rule in the non-authenticated filter for Captive Portal.
5.
For each filtering rule you are defining, do the following:
In the IP/subnet:port box, type the destination IP address. You can also specify an IP
●
range, a port designation, or a port range on that IP address.
In the Protocol drop-down list, select the applicable protocol. The default is N/A.
●
6.
For Captive Portal assignment, define a rule to allow access to the default gateway for this
VNS:
A31003-W1040-U101-1-7619, July 2006 DRAFT
HiPath Wireless Controller, Access Points and Convergence Software V4.0, C10/C100/C1000 User Guide
hwc_vnsconfiguration.fm
Virtual Network configuration
Configuring filtering rules for a VNS
157
