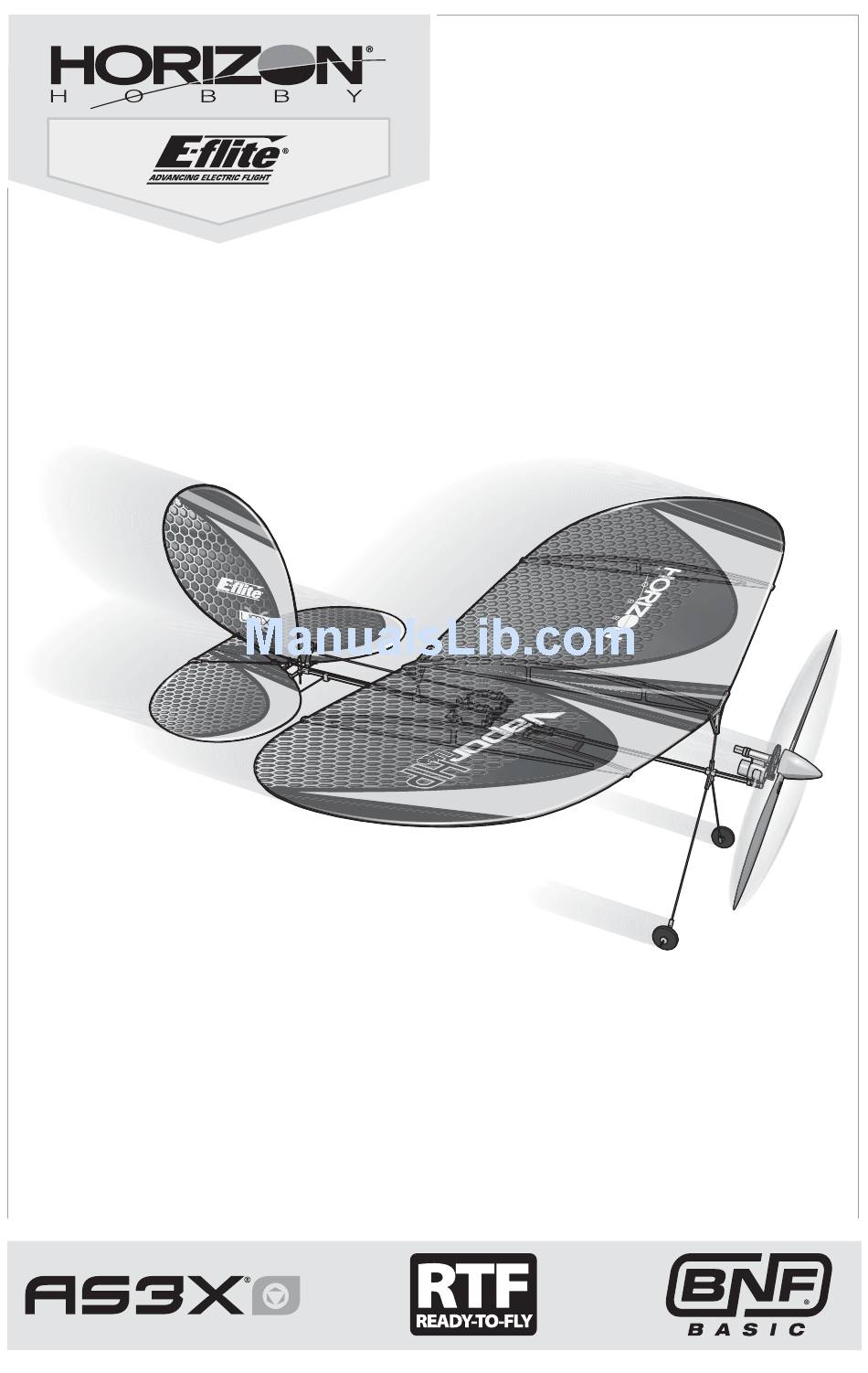

- Page 1 ™ ® Vapor Lite HP Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Box Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage and serious injury OR create a high probability of superfi... -
Page 3: Table Of Contents
Super Lite DSMX ® RX/ESC/Servos (PKZU1252) Installed Installed Needed to Battery: 70mAh 1S 3.7V 14C Li-Po (EFLB0701S) Included Complete Needed to ® Charger: E-Flite 1S 3.7V Li-Po USB (EFLC1008) Included Complete Needed to ® ® E-fl ite MLP4 DSM Transmitter (EFLR1064) Included Complete To register your product online, go to www.e-fl... -
Page 4: Charging Warnings
Charging Warnings The USB battery charger (EFLC1008) included with • Always charge batteries away from your aircraft has been designed to safely charge the fl ammable materials. Li-Po battery. • Always inspect the battery before charging. • Always disconnect the battery after charging, CAUTION: All instructions and warnings and let the charger cool between charges. -
Page 5: Charging The Battery
Charging the Battery NOTICE: Charge only batteries that are cool to the 3. Always disconnect the fl ight battery from touch and are not damaged. Look at the battery to the charger immediately upon completion of make sure it is not damaged e.g., swollen, bent, charging. -
Page 6: Installing Transmitter Batteries
Installing Transmitter Batteries ® ® Your MLP4 4-channel DSM2 /DSMX RTF transmitter comes pre-bound to the aircraft. Remove the cover, install four of the included batteries (noting proper polarity) and reinstall the cover. CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging nonrechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property. -
Page 7: Installing The Flight Battery And Arming The Esc
Installing the Flight Battery and Arming the ESC Arming the ESC also occurs after binding Lower throttle and as previously described, but subsequent throttle trim to connection of a fl ight battery requires the lowest settings. following steps. Power ON the CAUTION: Always keep hands Transmitter, away from propeller. -
Page 8: Digital Trims
Digital Trims ® ® ® The E-Flite 4-channel DSM2 /DSMX transmitter features digital trim buttons on all controls to make fi ne adjustments. The digital trims are used to fi ne-tune the model’s fl ight path when in fl ight. -
Page 9: Control Direction Test
Control Direction Test Bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure aircraft control surfaces move correctly. Always keep throttle at the low position during testing. Down Elevator Up Elevator Left Rudder Right Rudder... -
Page 10: Reverse Controls
Elevator Reversed Elevator Normal The transmitter included with the aircraft is the 4. Hold the digital trim buttons down for ® same transmitter included in other E-Flite approximately 5 seconds until you hear a tone ® ParkZone Ultra Micro RTF models. -
Page 11: Control Rates
Control Rates We recommend using a DSM2/DSMX aircraft High Rate Low Rate transmitter capable of dual rates. Adjust according to individual preferences after initial fl ight. Elevator 100% It is normal for linear servos to make noise. Noise is Rudder 100% not an indication of a faulty servo. -
Page 12: Motor Service
Motor Service CAUTION: DO NOT handle propeller parts Remove while the fl ight battery is connected. Personal injury could result. Disassembly 1. Disconnect the battery from the ESC/receiver. 2. Hold the spur gear and turn the propeller Install counterclockwise (looking from the front of the model) to remove. -
Page 13: Flying Tips And Repairs
Flying Tips and Repairs We recommend fl ying your aircraft indoors with a designed for a slow and relaxing fl ight experience. fl oor area of 15 ft x 15 ft and a minimum ceiling Fly at a slow, controlled speed appropriate for the height of 8 ft;... -
Page 14: Troubleshooting Guide
Troubleshooting Guide Possible Cause Solution Problem Aircraft will Throttle stick and/or throttle trim is too Reset controls with throttle stick and not respond to high throttle trim at lowest setting throttle but re- Throttle channel is reversed Reverse throttle channel on transmitter sponds to other controls Extra propeller... -
Page 15: Post Flight Checklist
Troubleshooting Guide (continued) Possible Cause Solution Problem Controls Transmitter settings reversed Do the Control Direction Test and adjust reversed controls on transmitter appropriately Motor loses Damage to motor or power components Do a check of motor and power compo- power nents for damage (replace as needed) Nut on prop shaft is too tight Loosen prop shaft nut until propeller shaft... -
Page 16: Limited Warranty
Limited Warranty What this Warranty Covers – Horizon Hobby, LLC, If you as the purchaser or user are not prepared to (Horizon) warrants to the original purchaser that the accept the liability associated with the use of the product purchased (the “Product”) will be free from Product, purchaser is advised to return the Product defects in materials and workmanship at the date of immediately in new and unused condition to the... -
Page 17: Warranty And Service Information
NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support offi ce. Warranty Requirements – For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. -
Page 18: Fcc Information
FCC Information FCC ID: BRWEFLU6807 (EFLU6800 and EFLU6850) FCC ID: BRWDXE (EFLU6800) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 19: Replacement Parts
Sender MLP4 DSM E-fl ite MLP4 ™ ™ E-Flite 1S 3.7V E-Flite 1S 3,7V LiPo Chargeur de Caricabatterie Li-Po USB Battery USB-Ladegerät batterie USB USB per Charger E-Flite™ 1 S batterie ai EFLR1008 3,7 V Li-Po polimeri di litio ™ E-Flite 3,7V... -
Page 20: Optional Parts And Accessories
Optional Parts and Accessories • Optionale Bauteile und Zubehör • Pièces et accessoires optionnels • Componenti e accessori opzionali Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice AC to 6V DC 1.5 AC zu 6V DC 1,5 Alimentation CA Alimentatore da CA amp Power Supply... - Page 21 Lite HP © 2017 Horizon Hobby, LLC. E-flite, Vapor, AS3X, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
