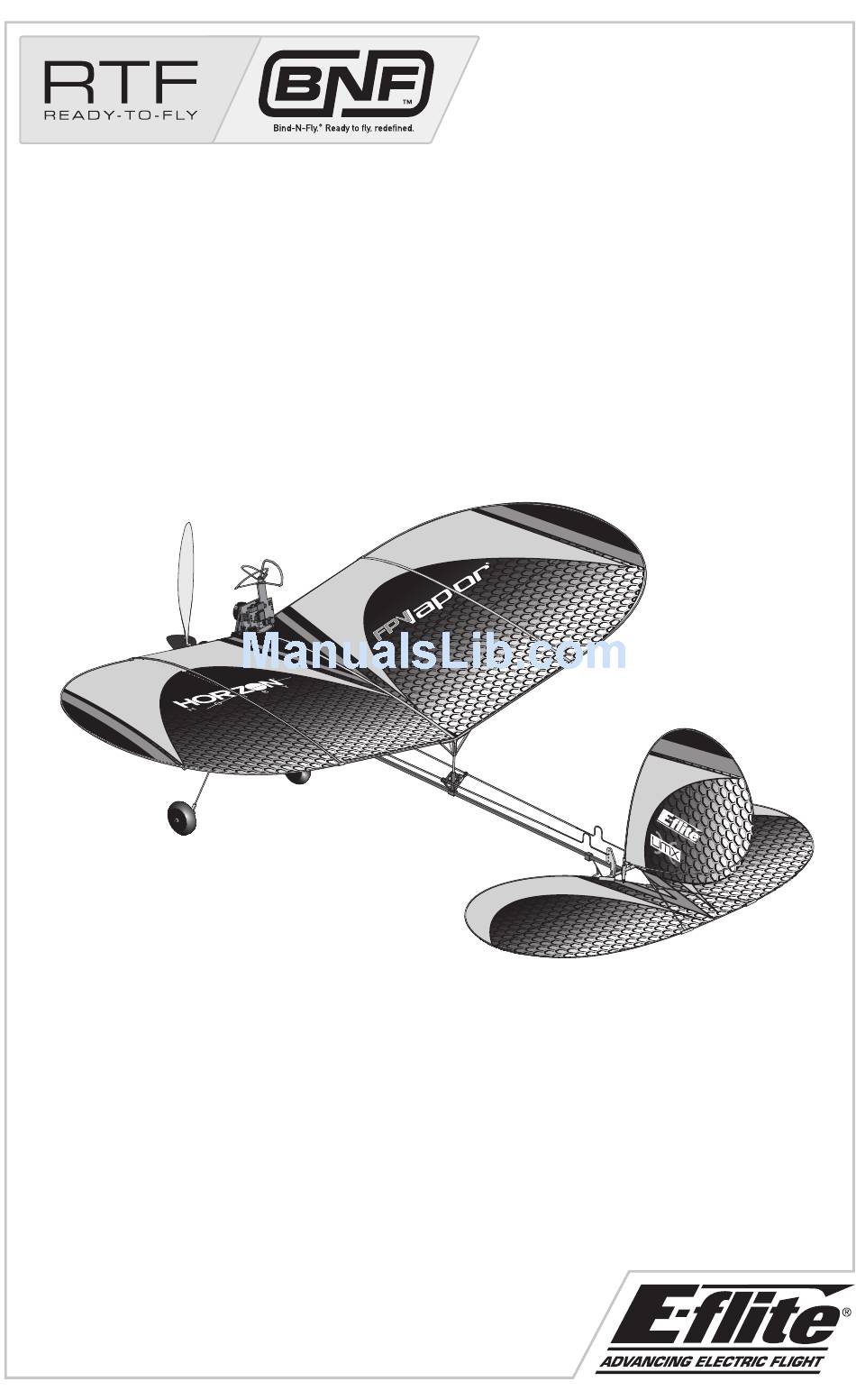

- Page 1 Ultra Micro FPV Vapor ® Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Specifications
Box Contents Includes Includes Installed Motor: 6mm Brushed Receiver: 3-Ch Rx/ESC DSMX (PKZU1152) Ultra Micro FPV camera: wide angle lens, Integrated Recommended Transmitter: CP antenna, Compatible Spektrum DSM2 /DSMX full with 5.8GHz Fat Shark ™ ® ® range (DX4e and up) systems Li-Po BATTERY PACK 7.4V 760mAh Specifications The CG location is 47mm back from the leading 14.8 in (376mm) edge at the wing root. -
Page 4: Preflight Checklist
Preflight Checklist 1. Charge flight battery. 7. A djust center of gravity. 2. Install flight battery in aircraft (once it 8. P erform a radio system Range Check. has been fully charged). 9. Find a safe and open area. 3. Bind aircraft to transmitter. 10. Plan flight for flying field conditions. 4. Make sure linkages move freely. -
Page 5: Transmitter And Receiver Binding
Flight Battery Charger Warnings The battery charger (EFLC1008) included with your • Always inspect the battery before charging. aircraft has been designed to safely charge the • Always disconnect the battery after charging, and Li-Po battery. let the charger cool between charges. • Always constantly monitor the temperature of the CAUTION: All instructions and warnings must battery pack while charging. be followed exactly. Mishandling of Li-Po batteries can result in a fire, personal injury and/or • ONLY USE A CHARGER SPECIFICALLY DESIGNED property damage. TO CHARGE LI-PO BATTERIES. Failure to charge the battery with a compatible charger may cause • By handling, charging or using the included Li-Po a fire resulting in personal injury and/or property battery, you assume all risks associated with... -
Page 6: The Transmitter
The Transmitter Installing the Transmitter Batteries Your ParkZone 4-channel ® DSM2/DSMX RTF transmitter comes pre-bound to the aircraft. Transmitter Control Mode 2 Mode 1 Transmitter Type Mode 2 Mode 1 Elevator/ Throttle/ Throttle/ Elevator/ Rudder Rudder Aileron Aileron Aileron Aileron Rudder Rudder Trim Trim Trim Trim... -
Page 7: Flight Battery Installation And Esc Arming
Flight Battery Installation and ESC Arming Arming the ESC also occurs after binding as previously described, but subsequent connection Lower throttle and of a flight battery requires the following steps. throttle trim to lowest settings. It is normal for linear servos to make noise. Noise is not an indication of a faulty servo. Power ON the transmitter, then wait 5 seconds. -
Page 8: Control Direction Test
Control Direction Test Bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure aircraft control surfaces move correctly. Always keep throttle at the low position during testing. Down Elevator Elevator Left Rudder Right Rudder... -
Page 9: First Person View (Fpv) System Instructions
First Person View (FPV) System Instructions Headset Charger Warnings The battery charger included with your product has • Always inspect the battery before charging. been designed to safely charge the Li-Po battery. • Always disconnect the battery after charging, and let the charger cool between charges. CAUTION: All instructions and warnings must • Always constantly monitor the temperature of the be followed exactly. Mishandling of Li-Po battery pack while charging. batteries can result in a fire, personal injury and/or property damage. -
Page 10: Setting Up The Headset
First Person View (FPV) System Instructions (continued) Setting up the headset CAUTION: Do not power the headset or downlink kit without the antenna attached. Doing so will damage the transmitter and receiver amplifiers. Amplifier damage is not covered by warranty. NOTICE: Do not leave the headset exposed to direct sunlight. Sunlight is magnified by the optics and will burn holes in the LCD color filter (appears as white open areas). This is not covered by warranty. -
Page 11: Caring For The Video Transmitter Antenna
First Person View (FPV) System Instructions (continued) Using the Ultra Micro FPV System NOTICE: We do not recommend using the ultra micro FPV system in low light. Consult local laws and ordinances before operating FPV equipment. In some areas, FPV operation may be limited or prohibited. You are responsible for operating this product in a legal and responsible manner. 1. -
Page 12: Flying Tips And Repairs
Flying Tips and Repairs Low Voltage Cutoff (LVC) We recommend flying your aircraft inside a large gymnasium or outdoors in calm or light winds. The Low Voltage Cutoff (LVC) pulses the power to the aircraft is extremely light and can be easily blown motor when the voltage gets low. When the motor away. power pulses, land the aircraft immediately and Hand Launching recharge the flight battery. -
Page 13: Power Components Service
Power Components Service CAUTION: DO NOT handle propeller parts while the flight battery is connected. Personal injury could result. Disassembly 1. Disconnect the battery from the E SC/receiver. 2. Hold the spur gear and turn the propeller counterclockwise (looking from the front of the model) to remove. Turn the propeller clockwise to install. Make sure the propeller size numbers (140 x 45) face away from the motor (see illustration). -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Aircraft will not respond Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle to throttle but responds trim at lowest setting to other controls Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from receiver Make sure motor is properly connected to the receiver Extra propeller noise or Damaged propeller, prop shaft, spinner or Replace damaged parts extra vibration motor... -
Page 15: Limited Warranty
Troubleshooting Guide (Continued) Problem Possible Cause Solution Motor loses power Damage to motor or power components Do a check of motor and power components for damage (replace as needed) Flight battery charge is too low Fully recharge flight battery Motor power quickly Battery power is down to the point of Recharge flight battery or replace battery that decreases and receiver/ESC Low Voltage Cutoff (LVC) is no longer performing... -
Page 16: Warranty And Service Information
Non-Warranty Service is available at http://www.horizonhobby.com/content/_ service-center_render-service-center. If you do not have Should your service not be covered by warranty, internet access, please contact Horizon Product Support service will be completed and payment will be to obtain a RMA number along with instructions for required without notification or estimate of the submitting your product for service. When calling Horizon, expense unless the expense exceeds 50% of the retail you will be asked to provide your complete name, street purchase cost. -
Page 17: Icc Information
ICC Information This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) (in accordance with ISO/IEC 17050-1) No. HH2014100204 No. HH2014100205U1 Product(s): FPV Vapor BNF without Headset Product(s): FPV Vapor RTF with Headset Item Number(s): EFLU6680 Item Number(s): EFLU6600 Equipment class: Equipment class: The object of declaration described above is in The object of declaration described above is conformity with the requirements of the spec-...
