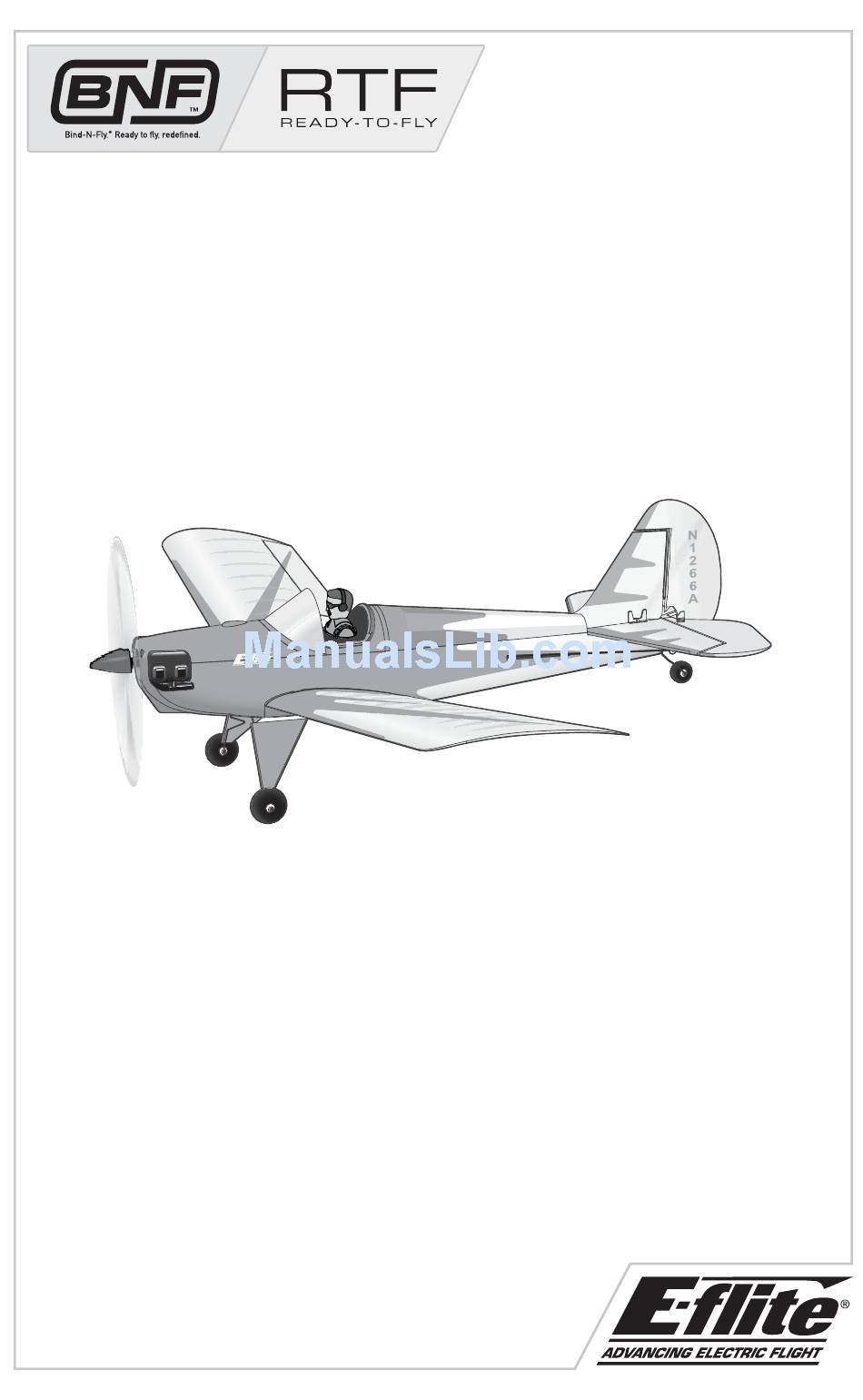

- Page 1 ™ Spacewalker Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
Table of Contents Prefl ight Checklist ..........4 Low Voltage Cutoff (LVC) ........10 Charging Warnings..........4 Flying Tips and Repairs ........11 Battery Charging ............5 Post Flight Checklist ..........11 Transmitter Batteries Installation ......6 Power Components Service .........12 Transmitter and Receiver Binding ......6 Troubleshooting Guide .........13 Digital Trims ............7 Troubleshooting Guide (Continued) .......14 Dual Rate Function ..........7... -
Page 4: Prefl Ight Checklist
Prefl ight Checklist 1. Charge fl ight battery. 6. Set dual rates and expos. 2. Install fl ight battery in aircraft (once it 7. Adjust center of gravity. has been fully charged). 8. Perform a radio system Range Check. 3. -
Page 5: Battery Charging
Battery Charging Your aircraft comes with a 1S 3.7V DC Li-Po battery charger and 1S 3.7V 70mAh 14C Li-Po battery. Refer to the charging warnings. It is recommended to charge the battery pack while you are inspecting the aircraft. The fl ight battery will be required to confi... -
Page 6: Transmitter Batteries Installation
Transmitter Batteries Installation ® ® Your E-fl ite 4-channel DSM2 ® DSMX RTF transmitter comes pre-bound to the aircraft. Remove the cover, install four of the included batteries (noting proper polarity) and reinstall the cover. Transmitter and Receiver Binding Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) code ®... -
Page 7: Digital Trims
Transmitter Control Mode 2 Elevator/ Throttle Rudder Rudder Trim Throttle Trim Elevator Trim Mode 1 Throttle/ Elevator Rudder Rudder Trim Elevator Trim Throttle Trim Digital Trims The E-fl ite 4-channel DSM2/DSMX transmitter features digital trim buttons on all controls to make fi ne ®... -
Page 8: Flight Battery Installation And Esc Arming
Flight Battery Installation and ESC Arming Arming the ESC also occurs after binding as previously described, but subsequent connection Lower throttle and of a fl ight battery requires the following steps. throttle trim to lowest settings. It is normal for linear servos to make noise. Noise is not an indication of a faulty servo. -
Page 9: Control Direction Test
Control Direction Test Bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure aircraft control surfaces move correctly. Always keep throttle at the low position during testing. Down Elevator Elevator Left Rudder Right Rudder Control Centering... -
Page 10: Control Horn Settings
Control Horn Settings The table to the right shows the factory settings for the control horns. Fly the aircraft at factory settings Elevator Rudder before making changes. After fl ying, you may choose to adjust the linkage positions for the desired control response. CAUTION: When these are incorrectly connected for the pilot’s skill level, unexpected aircraft response to controls can result. -
Page 11: Flying Tips And Repairs
Flying Tips and Repairs We recommend fl ying your aircraft inside a the throttle on until the aircraft is ready to fl are. large gymnasium. We do not recommend fl ying During fl are, keep the wings level and the airplane the aircraft outdoors unless the conditions are pointed into the wind. -
Page 12: Power Components Service
Power Components Service CAUTION: DO NOT handle propeller parts while the fl ight battery is connected. Personal injury could result. Disassembly 1. Disconnect the battery from the ESC/receiver. 2. Carefully cut the tape and/or decals on the side of the fuselage to remove the top of the fuselage. -
Page 13: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Aircraft will not respond Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle to throttle but responds trim at lowest setting to other controls Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from receiver Open fuselage and make sure motor is properly connected to the receiver... -
Page 14: Troubleshooting Guide (Continued)
Troubleshooting Guide (Continued) Problem Possible Cause Solution Motor loses power Damage to motor or power components Do a check of motor and power components for damage (replace as needed) Flight battery charge is too low Fully recharge fl ight battery Motor power quickly Battery power is down to the point of Recharge fl... -
Page 15: Warranty And Service Information
Return Merchandise Authorization (RMA) number. Pack Non-Warranty Service the Product securely using a shipping carton. Please Should your service not be covered by warranty, note that original boxes may be included, but are not service will be completed and payment will be designed to withstand the rigors of shipping without required without notifi... -
Page 16: Fcc Information
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) (in accordance with ISO/IEC 17050-1) No. HH2014062203 No. HH2014062202 Product(s): UMX Spacewalker BNF Product(s): UMX Spacewalker RTF Item Number(s): EFLU2780 Item Number(s): EFLU2700, EFLU2700M1 Equipment class:... -
Page 17: Replacement Parts
Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Decal Sheet: Dekorbogen: Planche de décal- Foglio con decal- EFLU2702 UMX Spacewalker UMX Spacewalker comanies : UMX comanie: UMX Spacewalker Spacewalker Landing Gear Set: Fahrgestellsatz: Jeu de train Set carrello di atter- EFLU2703... -
Page 18: Optional Parts And Accessories
– Optional Parts and Accessories – – Optionale Bauteile und Zubehörteile – – Pièces optionnelles et accessoires – – Pezzi opzionali e accessori – Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Hook and Loop Set Parkzone: Klettband Ultras Micros - Bande Set fascette a strappo PKZ1039... - Page 19 © 2014 Horizon Hobby, LLC. E-fl ite, Celectra, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, the BNF logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
