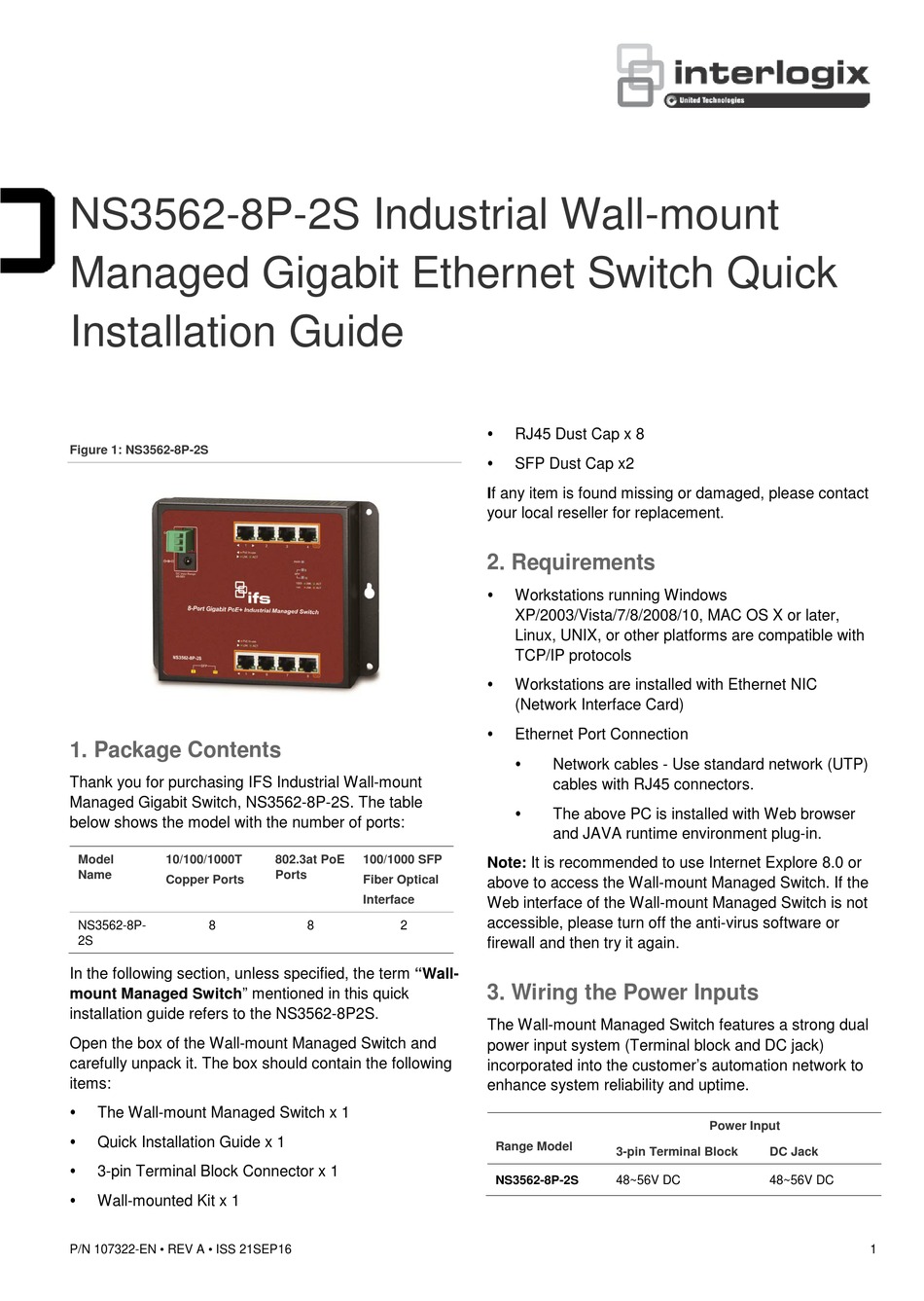

Interlogix NS3562-8P-2S Quick Installation Manual

NS3562-8P-2S Industrial Wall-mount
Managed Gigabit Ethernet Switch Quick

Installation Guide

Figure 1: NS3562-8P-2S

1. Package Contents

Thank you for purchasing IFS Industrial Wall-mount
Managed Gigabit Switch, NS3562-8P-2S. The table
below shows the model with the number of ports:
Model 10/100/1000T
Name
Copper Ports
NS3562-8P- 8
2S
In the following section, unless specified, the term "Wall-
mount Managed Switch" mentioned in this quick
installation guide refers to the NS3562-8P2S.
Open the box of the Wall-mount Managed Switch and
carefully unpack it. The box should contain the following
items:

The Wall-mount Managed Switch x 1

Quick Installation Guide x 1

3-pin Terminal Block Connector x 1

Wall-mounted Kit x 1
P/N 107322-EN • REV A • ISS 21SEP16
802.3at PoE 100/1000 SFP
Ports
Fiber Optical
Interface
8 2

RJ45 Dust Cap x 8

SFP Dust Cap x2
If any item is found missing or damaged, please contact
your local reseller for replacement.
2. Requirements

Workstations running Windows
XP/2003/Vista/7/8/2008/10, MAC OS X or later,
Linux, UNIX, or other platforms are compatible with
TCP/IP protocols

Workstations are installed with Ethernet NIC
(Network Interface Card)

Ethernet Port Connection

Network cables - Use standard network (UTP)
cables with RJ45 connectors.

The above PC is installed with Web browser
and JAVA runtime environment plug-in.
Note: It is recommended to use Internet Explore 8.0 or
above to access the Wall-mount Managed Switch. If the
Web interface of the Wall-mount Managed Switch is not
accessible, please turn off the anti-virus software or
firewall and then try it again.

3. Wiring the Power Inputs

The Wall-mount Managed Switch features a strong dual
power input system (Terminal block and DC jack)
incorporated into the customer's automation network to
enhance system reliability and uptime.
Range Model
3-pin Terminal Block
NS3562-8P-2S 48~56V DC
Power Input
DC Jack
48~56V DC
1
