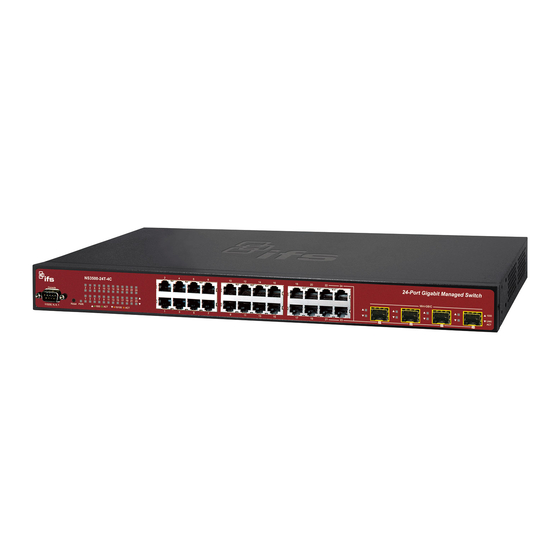

Interlogix NS3500-24T-4C Command Manual
  1. Manuals
  2. Brands
  3. Interlogix Manuals
  4. Switch
  5. NS3500-24T-4C
  6. Command manual

Interlogix NS3500-24T-4C Command Manual

Managed switch
Hide thumbs Also See for NS3500-24T-4C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
NS3500-24T-4C Managed
Switch Command Guide
P/N 1073459-EN • REV A • ISS 06MAR18

Advertisement

Table of Contents
loading

Related Manuals for Interlogix NS3500-24T-4C

Summary of Contents for Interlogix NS3500-24T-4C

  • Page 1 NS3500-24T-4C Managed Switch Command Guide P/N 1073459-EN • REV A • ISS 06MAR18...
  • Page 2 Copyright © 2018 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and patents Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    242 dir 242 disable 243 do 243 dot1x 244 enable 244 erps 245 exit 245 firmware 246 ip 247 logout 247 more 248 no 248 ping 249 reload 250 send 251 show 252 terminal 322 NS3500-24T-4C Managed Switch Command Guide...

  • Page 4: Command Line Interface

    To exit to the User Mode, the enable command. enter exit or Logout. Global config mode From the Privileged Mode, Switch (Config)# To exit to the Privileged enter the configuration Mode, enter the exit command. command. NS3500-24T-4C Managed Switch Command Guide...

  • Page 5: User Mode

    Many features are enabled for a particular interface. The Interface commands enable or modify the operation of an interface. In this mode, a physical port is set up for a specific logical connection operation. The command prompt at this level is: Command prompt: Switch(Interface <port#>)# NS3500-24T-4C Managed Switch Command Guide...

  • Page 6: Requirements

    Managed Switch. • Ethernet Port Connection • Network cables -- Use standard network (UTP) cables with RJ-45 connectors. • The above PC is installed with Web Browser and JAVA runtime environment plug-in. NS3500-24T-4C Managed Switch Command Guide...

  • Page 7: Console Cli Management

    Windows' Hyper Terminal program may be a good choice. The Hyper Terminal can be accessed from the Start menu. 1. Click Start > Programs > Accessories, and then click Hyper Terminal. 2. When the following screen appears, make sure that the COM port is configured as shown: NS3500-24T-4C Managed Switch Command Guide...

  • Page 8: Log On To The Console

    “running testing procedures”. Then, the following message asks to log-in user name and password. The factory default user name and password are shown as follows and the login screen appears. Username: admin Password: admin NS3500-24T-4C Managed Switch Command Guide...

  • Page 9: Configuring The Ip Address

    To check the current IP address or modify a new IP address for the switch, follow these procedures: Show the current IP address At the “#” prompt, enter “show ip interface brief”. The screen displays the current IP address and Subnet Mask as shown: NS3500-24T-4C Managed Switch Command Guide...
  • Page 10 The previous command would apply the following settings for the managed switch. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 At the “#” prompt, enter “show ip interface brief” to check if the IP address has changed. NS3500-24T-4C Managed Switch Command Guide...
  • Page 11 You can access the web interface of the managed switch through the new IP address. Note: If you are not familiar with the console command or the related parameter, enter “ ?” at any time in the console to get the help description. NS3500-24T-4C Managed Switch Command Guide...

  • Page 12: Telnet Cli Management

    The managed switch also supports telnet for remote management. The switch asks for a user name and password for remote login when using telnet. Use “admin” for the both the username and password. Default IP address: 192.168.0.100 Username: admin Password: admin NS3500-24T-4C Managed Switch Command Guide...

  • Page 13: Commands For Cli Configuration

    Switch# clear access management statistics clear access-list ace statistics Command: clear access-list ace statistics Default: Usage Guide: To clear the Access list entry statistics. Example: To clear the Switch’s Access list entry statistics. Switch# clear access-list ace statistics NS3500-24T-4C Managed Switch Command Guide...

  • Page 14: Clear Dot1X Statistics Interface

    < ERPS group numbers > statistics Default: Usage Guide: To clear the ERPS group numbers statistics. Example: To clear the Switch’s ERPS group 1 statistics. Switch# # clear erps 1 statistics clear erps statistics Command: clear erps statistics NS3500-24T-4C Managed Switch Command Guide...
  • Page 15 Default: Usage Guide: To clear the ARP cache. Example: To clear the Switch’s ARP cache. Switch# clear ip arp clear ip dhcp detailed statistics all Command: clear ip dhcp detailed statistics all Default: Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 16 Switch# clear ip dhcp detailed statistics helper clear ip dhcp detailed statistics server Command: clear ip dhcp detailed statistics server Default: Usage Guide: To clear the DHCP server statistics. Example: To clear the Switch’s DHCP server statistics. NS3500-24T-4C Managed Switch Command Guide...

  • Page 17: Clear Ip Dhcp Server Binding

    Switch# clear ip dhcp relay statistics clear ip dhcp server binding Command: clear ip dhcp server binding <IP> <IP> A.B.C.D Default: Usage Guide: To clear the DHCP server binding cache. Example: To clear the Switch’s DHCP server(192.168.0.100) binding cache. NS3500-24T-4C Managed Switch Command Guide...
  • Page 18 Command: clear ip dhcp server binding manual Default: Usage Guide: To clear the DHCP server manual binding cache. Example: To clear the Switch’s DHCP server manual binding cache. Switch# clear ip dhcp server binding manual NS3500-24T-4C Managed Switch Command Guide...
  • Page 19 ICMP message type ranges from 0 to 255 Default: Usage Guide: To clear the IPv4 ICMP traffic for designated message type. Example: To clear the Switch’s IPv4 ICMP traffic for designated message type 0. Switch# clear ip statistics icmp icmp-msg 0 NS3500-24T-4C Managed Switch Command Guide...
  • Page 20 Default: Usage Guide: To clear the IPv4 ICMP interface statistics for specific VLAN. Example: To clear the Switch’s IPv4 ICMP interface statistics for specific VLAN 1. Switch# clear ip statistics system icmp interface vlan 1 NS3500-24T-4C Managed Switch Command Guide...

  • Page 21: Clear Ipv6 Mld Snooping Statistics

    To clear the Switch’s ipv6 mld snooping statistics for specific VLAN 1. Switch# clear ipv6 mld snooping vlan 1 statistics clear ipv6 neighbors Command: clear ipv6 neighbors Default: Usage Guide: To clear the ipv6 neighbors. Example: To clear the Switch’s ipv6 neighbors. Switch# clear ipv6 neighbors NS3500-24T-4C Managed Switch Command Guide...
  • Page 22 Usage Guide: To clear the IPv6 ICMP statistics for specific ICMP message type. Example: To clear the Switch’s IPv6 ICMP statistics for specific ICMP message type 0. Switch# clear ipv6 statistics system icmp icmp-msg 0 NS3500-24T-4C Managed Switch Command Guide...

  • Page 23: Clear Lldp Statistics

    To clear the Switch’s lacp statistics. Switch# clear lacp statistics clear lldp statistics Command: clear lldp statistics Default: Usage Guide: To clear the lldp statistics. Example: To clear the Switch’s lldp statistics. Switch# clear lldp statistics NS3500-24T-4C Managed Switch Command Guide...
  • Page 24 Switch# clear logging error warning clear logging info error Command: clear logging info error Default: Usage Guide: To clear the logging info error. Example: To clear the Switch’s logging info error. Switch# clear logging info error NS3500-24T-4C Managed Switch Command Guide...
  • Page 25 Switch# clear logging warning error clear logging warning info Command: clear logging warning info Default: Usage Guide: To clear the logging warning info. Example: To clear the Switch’s logging warning info. Switch# clear logging warning info NS3500-24T-4C Managed Switch Command Guide...
  • Page 26 MVR multicast VLAN name Default: Usage Guide: To clear the mvr name profiles. clear mvr statistics Command: clear mvr statistics Default: Usage Guide: To clear the mvr statistics. Example: To clear the Switch’s mvr statistics. NS3500-24T-4C Managed Switch Command Guide...
  • Page 27 Switch# clear network-clock clk-source 1 clear spanning-tree detected-protocols interface * Command: clear spanning-tree detected-protocols interface * Default: Usage Guide: To clear the spanning-tree detected-protocols for all. Example: To clear the Switch’s spanning-tree detected-protocols for all. NS3500-24T-4C Managed Switch Command Guide...
  • Page 28 To clear the Switch’s spanning-tree detected-protocols for specific GigabitEthernet 1/1. Switch# clear spanning-tree detected-protocols interface GigabitEthernet 1/1 clear spanning-tree detected-protocols interface 10GigabitEthernet Command: clear spanning-tree detected-protocols interface 10GigabitEthernet <PORT_LIST> <PORT_LIST> Port list in X/X-XX Default: Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 29 Example: To clear the Switch’s spanning-tree statistics for specific GigabitEthernet 1/1. Switch# clear spanning-tree statistics interface GigabitEthernet clear spanning-tree statistics interface 10GigabitEthernet Command: clear spanning-tree statistics interface 10GigabitEthernet <PORT_LIST> <PORT_LIST> Port list in X/X-XX Default: NS3500-24T-4C Managed Switch Command Guide...

  • Page 30: Clear Statistics

    To clear the statistics for specific GigabitEthernet port. Example: To clear the Switch’s statistics for specific GigabitEthernet 1/1. Switch# clear statistics GigabitEthernet 1/1 clear statistics 10GigabitEthernet Command: clear statistics 10GigabitEthernet <PORT_LIST> <PORT_LIST> Port list in X/X-XX Default: NS3500-24T-4C Managed Switch Command Guide...

  • Page 31: Configure Terminal

    To authenticate the radius account via console only. Example: To authenticate the local and radius account via console. Switch# configure terminal Switch (config)# aaa authentication login console local radius aaa authentication login console tacacs Command: aaa authentication login console tacacs NS3500-24T-4C Managed Switch Command Guide...
  • Page 32 To authenticate the radius account via http only. Example: To authenticate the local and radius account via http. Switch# configure terminal Switch (config)# aaa authentication login http local radius aaa authentication login http tacacs Command: aaa authentication login http tacacs NS3500-24T-4C Managed Switch Command Guide...
  • Page 33 To authenticate the radius account via ssh only. Example: To authenticate the local and radius account via ssh. Switch# configure terminal Switch (config)# aaa authentication login ssh local radius aaa authentication login ssh tacacs Command: aaa authentication login ssh tacacs NS3500-24T-4C Managed Switch Command Guide...
  • Page 34 To authenticate the radius account via telnet only. Example: To authenticate the local and radius account via telnet. Switch# configure terminal Switch (config)# aaa authentication login telnet local radius aaa authentication login telnet tacacs Command: aaa authentication login telnet tacacs NS3500-24T-4C Managed Switch Command Guide...

  • Page 35: Access Management

    To enable the access management profile to allow SNMP / Telnet / HTTP services. Example: To create a Profile 1 enabling all services for VLAN 1 (IPv6 address 2001::7788) . Switch# configure terminal Switch (config)# access management 1 1 2001::7788 all NS3500-24T-4C Managed Switch Command Guide...
  • Page 36 1, rate-limiter: 1, tag-priority: 1. vid: 1). Switch# configure terminal Switch (config)# access-list ace 1 action permit dmac-type unicast frametype ipv4-icmp ingress any logging disable policy 1 rate- limiter 1 tag-priority 1 vid 1 NS3500-24T-4C Managed Switch Command Guide...
  • Page 37 1, rate-limiter: 1, tag-priority: 1. vid: 1). Updated: Profile 1 (action: deny, dmac-type: any, frametype: ipv4-icmp, ingress: any, logging: disable, policy: 1, rate-limiter: 1, tag-priority: 1. vid: 1). Switch# configure terminal Switch (config)# access-list ace update 1 action deny dmac-type NS3500-24T-4C Managed Switch Command Guide...

  • Page 38: Aggregation Mode

    Destination MAC affects the distribution IP address affects the distribution port IP port affects the distribution smac Source MAC affects the distribution Default: SMAC : Enabled DMAC : Disabled : Enabled Port : Enabled NS3500-24T-4C Managed Switch Command Guide...
  • Page 39 'c' is a delimiting character Default: Usage Guide: To configure banner-text. Example: To configure banner-text with word “ddddd”. Switch# configure terminal Switch (config)# banner 1 Enter TEXT message. End with the character '1'. NS3500-24T-4C Managed Switch Command Guide...

  • Page 40: Banner Exec

    Enter TEXT message. End with the character '1'. gggggg Telnet 192.168.0.100: Username: admin Password: gggggg banner login Command: banner login <LINE> <LINE> c banner-text c, where 'c' is a delimiting character Default: Usage Guide: To configure login banner-text. Example: NS3500-24T-4C Managed Switch Command Guide...

  • Page 41: Banner Motd

    To configure motd banner-text. Example: To configure motd banner-text with word “ffffff”. Switch# configure terminal Switch (config)# banner motd 1 Enter TEXT message. End with the character '1'. ffffff Console: ffffff Press ENTER to get started Username: NS3500-24T-4C Managed Switch Command Guide...

  • Page 42: Clock Timezone

    Switch (config)# clock timezone 1 -15 default access-list rate-limiter Command: default access-list rate-limiter <RateLimiterId : 1-16> <RateLimiterId : 1-16> Rate limiter ID Default: Usage Guide: To default the Rate limiter. Example: To default the Rate limiter ID 1. NS3500-24T-4C Managed Switch Command Guide...
  • Page 43 Command: dot1x feature guest-vlan | radius-qos | radius-vlan Default: Disable Usage Guide: To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server Example: To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server. NS3500-24T-4C Managed Switch Command Guide...
  • Page 44 To allow all frames automatically entering guest-vlan for Network Access Server Example: To allow all frames automatically entering guest-vlan for Network Access Server Switch# configure terminal Switch (config)# dot1x guest-vlan supplicant dot1x max-reauth-req Command: dot1x max-reauth-req <1-255> Default: Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 45 Example: To configure 802.1X hold time(12 seconds) for Network Access Server Switch# configure terminal Switch (config)# dot1x timeout quiet-period 12 dot1x timeout tx-period Command: dot1x timeout tx-period <1-65535> tx-period The time between EAPOL retransmissions. Default: NS3500-24T-4C Managed Switch Command Guide...

  • Page 46: Enable Password

    Password: > enable Password: ***** enable password level Command: enable password level <1-15> <WORD> <1-15> Level number <WORD> The UNENCRYPTED (cleartext) password. Default: Disable Usage Guide: To configure enable password and specific level for user NS3500-24T-4C Managed Switch Command Guide...
  • Page 47 Switch# configure terminal Switch (config)# enable secret 0 level 15 cisco # show running-config Building configuration... enable secret 5 level 15 FC89368B9513DE0760290BCE9A1DA90A …………… Press ENTER to get started Username: Password: > enable Password: cisco NS3500-24T-4C Managed Switch Command Guide...
  • Page 48 <1-64> holdoff < 0-10000> <1-64> ERPS group number < 0-10000> Holdoff time in ms Default: Usage Guide: To configure the Hold Off Time for ERPS Example: To configure the Hold Off Time (178 ms) for ERPS(Profile 1) NS3500-24T-4C Managed Switch Command Guide...
  • Page 49 To configure ERPS Instance Data(Port0: SF MEP = 2, APS MEP = 1. Port1: SF MEP = 4, APS MEP = 3) for specific ERPS profile(1). Switch# configure terminal Switch (config)# erps 1 mep port0 sf 2 aps 1 port1 sf 4 aps 3 NS3500-24T-4C Managed Switch Command Guide...
  • Page 50 ERPS Port 0 interface port1 ERPS Port 1 interface Default: Usage Guide: To configure Ring Protection Link Owner Role for specific ERPS interface. Example: To configure Ring Protection Link Owner Role for specific ERPS interface.. NS3500-24T-4C Managed Switch Command Guide...
  • Page 51 Major RIng group 1 and virtual-channel Switch# configure terminal Switch (config)# erps 1 sub port0 interface GigabitEthernet 1/3 interconnect 1 virtual-channel erps <1-64> topology-change propagate Command: erps <1-64> topology-change propagate <1-64> ERPS group number topology-change Topology Change propagate Propagate Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 52 Remove from set of included VLANs Default: Usage Guide: To configure ERPS VLANs for the specific profile. Example: To configure ERPS VLANs(VLAN5 - VLAN8) for the specific profile 1. Switch# configure terminal Switch (config)# erps 1 vlan add 5-8 NS3500-24T-4C Managed Switch Command Guide...
  • Page 53 0-1> | any]| pcp [<MatchPcp : pcp> | any] | mode [disable | enable] | vid [<Vid : 0-4095> | any] } policer {<PolicerId : 1- 2048> | discard | evc | none} policy <PolicyNo : 0-255> pop <Pop : 0-2> NS3500-24T-4C Managed Switch Command Guide...
  • Page 54 Setup matched VLAN ID <Vid : 0-4095> Matched VLAN ID value/range Match any VLAN ID interface Setup UNI next Setup the ECE ID of the next entry <EceId : 1-4096> Select ECE ID of an existing entry NS3500-24T-4C Managed Switch Command Guide...
  • Page 55 Setup ACL policy <PolicyNo : 0-255> ACL policy Setup tag popping <Pop : 0-2> Number of tags popped Default: Usage Guide: To configure EVC Control Entry. Example: To configure EVC Control Entry as tabled below. NS3500-24T-4C Managed Switch Command Guide...
  • Page 56 Setup inner tag add properties. Setup added tag DEI <AddDei : 0-1> Added tag DEI Setup added tag PCP <AddPcp : 0-7> Added tag PCP preserve Setup tag PCP/DEI preservation type Setup added tag type NS3500-24T-4C Managed Switch Command Guide...
  • Page 57 Policer (ingress bandwidth profile) <PolicerId : 1-2048> Policer ID discard Map to policer discarding all frames Use policer setup for EVC none Map to policer allowing all frames policy Setup ACL policy <PolicyNo : 0-255> ACL policy NS3500-24T-4C Managed Switch Command Guide...
  • Page 58 Setup policer type MEF ingress bandwidth profile single Single bucket policer Default: Usage Guide: To configure a profile for EVC Policer (Ingress Bandwidth Profile) . Example: To configure EVC Policer (Ingress Bandwidth Profile) as tabled below. NS3500-24T-4C Managed Switch Command Guide...
  • Page 59 To update a profile for EVC Policer (Ingress Bandwidth Profile). Example: To update EVC Policer (Ingress Bandwidth Profile) with EIR 1000 for policer 1 Switch# configure terminal Switch (config)# evc policer update 1 eir 1000 NS3500-24T-4C Managed Switch Command Guide...
  • Page 60 To update Ethernet Virtual Circuits (EVC identifier: 1, EVC VLAN ID: 10). Switch# configure terminal Switch (config)# evc update 1 vid 10 exit Command: exit Default: Usage Guide: To exit configure terminal mode. Example: To exit configure terminal mode. Switch# configure terminal Switch (config)# exit NS3500-24T-4C Managed Switch Command Guide...
  • Page 61 Number of seconds to set LEDs intensity at 100% at link change. Default: Usage Guide: To configure LED Power on-event to trigger LED light Example: To configure LED Power on-event as tabled below: Switch# configure terminal Switch (config)# green-ethernet led on-event error link-change NS3500-24T-4C Managed Switch Command Guide...
  • Page 62 Range is 1000-5000. Default is 1000. leave-time Set GARP protocol parameter LeaveTime. See IEEE 802.1D-2004, clause 12.11 <Leavetime : 60-300> leave-time in units of centi seconds. Range is 60-300. Default is 60. Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 63 To configure Join-time, Leave-time, Leave all-time for GVRP as tabled below. Switch# configure terminal Switch (config)# gvrp time join-time 5 leave-all-time 1200 leave- time 150 help Command: help Default: Usage Guide: To explain how to use commands. NS3500-24T-4C Managed Switch Command Guide...
  • Page 64 Switch (config)# hostname IFSbestswitch IFSbestswitch(config)# interface * | 10GigabitEthernet | GigabitEthernet Command: interface * | 10GigabitEthernet <port_type_list> | GigabitEthernet <port_type_list> All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 65 Switch (config)# interface GigabitEthernet X/X Switch (config-if) # access-list action deny access-list logging Command: access-list logging logging Logging frame information. Note: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the NS3500-24T-4C Managed Switch Command Guide...
  • Page 66 Re-enable shutdown port that was shutdown by access-list module Default: Enable Usage Guide: To enable Port-state function for the ACL. Example: To configure ACL Port-state function for the GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # access-list port-state NS3500-24T-4C Managed Switch Command Guide...
  • Page 67 Shut down incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags). Default: Disable Usage Guide: To enable Shutdown function for the ACL. Example: To enable ACL Shutdown function for the GigabitEthernet X/X. NS3500-24T-4C Managed Switch Command Guide...
  • Page 68 To configure port description (IPTV_Port) for the GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # description IPTV_Port Command: do < exec commands > To run exec commands in config mode NS3500-24T-4C Managed Switch Command Guide...
  • Page 69 Port-based 802.1X Authentication force-authorized Port access is allowed force-unauthorized Port access is not allowed mac-based Switch authenticates on behalf of the client multi Multiple Host 802.1X Authentication single Single Host 802.1X Authentication Default: Force-authorized Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 70 To enable RADIUS-assigned VLAN for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # dot1x radius-vlan dot1x re-authenticate Command: dot1x re-authenticate dot1x IEEE Standard for port-based Network Access Control re-authenticate Refresh (restart) 802.1X authentication process. NS3500-24T-4C Managed Switch Command Guide...
  • Page 71 Switch (config-if) # duplex auto Command: Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # end Switch# NS3500-24T-4C Managed Switch Command Guide...
  • Page 72 Switch (config)# flowcontrol Command: flowcontrol off | on flowcontrol Traffic flow control. Disable flow control. Enable flow control. Default: Disable Usage Guide: To enable Flow-control for specific interface Example: To enable Flow-control for GigabitEthernet X/X NS3500-24T-4C Managed Switch Command Guide...
  • Page 73 To configure Logging type into ARP inspection for specific interface Example: To configure Logging type (All) into ARP inspection for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip arp inspection logging all NS3500-24T-4C Managed Switch Command Guide...
  • Page 74 Switch (config-if) # ip dhcp snooping trust ip igmp snooping filter Command: ip igmp snooping filter <ProfileName : word16> <ProfileName : word16> Profile name in 16 words Default: Usage Guide: To apply the IGMP Snooping filter ID for specific interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 75 Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip igmp snooping max-groups 5 ip igmp snooping mrouter Command: ip igmp snooping mrouter [ automatic | fix | none ] mrouter Multicast router port configuration automatic auto mode fix mode NS3500-24T-4C Managed Switch Command Guide...
  • Page 76 To limit numbers of Dynamic Client for specific interface Example: To limit 2 numbers of Dynamic Client for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip verify source limit 2 NS3500-24T-4C Managed Switch Command Guide...
  • Page 77 IGMP group throttling configuration <Throttling : 1-10> Maximum number of IGMP group registration Default: Unlimited Usage Guide: To limit maximum number of MLD group for specific interface Example: To limit 5 groups of MLD for GigabitEthernet X/X NS3500-24T-4C Managed Switch Command Guide...
  • Page 78 Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lacp lacp key Command: lacp key <1-65535> | auto lacp Enable LACP on this interface Key of the LACP aggregation <1-65535> Key value auto Choose a key based on port speed NS3500-24T-4C Managed Switch Command Guide...
  • Page 79 Enable LACP on this interface role Active / Passive (speak if spoken to) role active Transmit LACP BPDUs continously passive Wait for neighbour LACP BPDUs before transmitting Default: Active Usage Guide: To configure LACP role for specific interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 80 To configure MIB variable retrieve local info or remote info of LLDP for specific interface Example: To configure MIB variable retrieve (local info) of LLDP for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lldp cdp-aware NS3500-24T-4C Managed Switch Command Guide...
  • Page 81 To enable LLDP-MED TLV (capabilities and location) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lldp med transmit-tlv capabilities location lldp receive Command: lldp receive lldp LLDP configurations receive Enable/Disable decoding of received LLDP frames. NS3500-24T-4C Managed Switch Command Guide...
  • Page 82 Usage Guide: To enable port-description of LLDP TLV for specific interface Example: To enable port-description of LLDP TLV for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lldp tlv-select port-description NS3500-24T-4C Managed Switch Command Guide...
  • Page 83 Command: lldp tlv-select system-name lldp LLDP configurations tlv-select To transmit which optional TLVs. system-name Enable/Disable transmission of system name. Default: Enabled Usage Guide: To enable system-name of LLDP TLV for specific interface Example: NS3500-24T-4C Managed Switch Command Guide...
  • Page 84 To enable loop-protect for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # loop-protect loop-protect action Command: loop-protect action [log] [shutdown] loop-protect Loop protection configuration action Action if loop detected Generate log shutdown Shutdown port NS3500-24T-4C Managed Switch Command Guide...
  • Page 85 To enable tx-mode of Loop protection for specific interface Example: To enable tx-mode of Loop protection for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # loop-protect tx-mode mac address-table learning Command: NS3500-24T-4C Managed Switch Command Guide...
  • Page 86 Switch (config-if) # media-type rj45 Command: mtu <1518-10056> Maximum transmission unit <1518-10056> Maximum frame size in bytes. Default: 10056 Usage Guide: To configure MTU sizes for specific interface Example: To configure MTU sizes (9000) for GigabitEthernet X/X NS3500-24T-4C Managed Switch Command Guide...
  • Page 87 Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # mvr name 111 type source mvr vlan Command: mvr vlan <v_vlan_list> type [source | receiver ] Multicast VLAN Registration configuration vlan MVR multicast vlan NS3500-24T-4C Managed Switch Command Guide...
  • Page 88 To enable SSM of SyncE for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # network-clock synchronization ssm Command: Negate a command or set its defaults Default: Usage Guide: To default the function for specific interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 89 Set mode to PoE (Maximum power 15.4 W) Default: Usage Guide: To configure 802.3at/af mode for specific interface Example: To configure 802.3at mode for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe mode plus NS3500-24T-4C Managed Switch Command Guide...
  • Page 90 To configure PD Ping Alive Check Action (Alarm) of PoE for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe pdcheck action alarm poe pdcheck enable Command: poe pdcheck enable Power Over Ethernet. NS3500-24T-4C Managed Switch Command Guide...
  • Page 91 PoE device rebooting time. <30-180> reboot-time <30-180> Default: Usage Guide: To configure PD Ping Alive Check rebooting time of PoE for specific interface. Example: To configure PD Ping Alive Check rebooting time (100 seconds) of PoE for NS3500-24T-4C Managed Switch Command Guide...
  • Page 92 To configure maximum power of PoE for specific interface. Example: To configure maximum power (29 watts) of PoE for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe power limit 29 NS3500-24T-4C Managed Switch Command Guide...
  • Page 93 To configure time-range profile (Profile 3) of PoE for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe time-range profile3 port-security Command: port-security port-security Enable/disable port security per interface. Default: Disabled Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 94 Usage Guide: To configure protected mode of Port-security for specific interface Example: To configure protected mode (trap-shutdown) of Port-security for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # port-security violation trap-shutdown NS3500-24T-4C Managed Switch Command Guide...
  • Page 95 Example: To create PVLAN ID (5) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # pvlan 5 pvlan isolation Command: pvlan isolation pvlan Private VLAN isolation Port isolation Default: None NS3500-24T-4C Managed Switch Command Guide...
  • Page 96 To configure DEI of QoS for specific interface Example: To configure DEI (1) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos dei 1 qos dpl Command: qos dpl <Dei : 0-1> NS3500-24T-4C Managed Switch Command Guide...
  • Page 97 Rewrite DSCP field using classified DSCP remapped through global dscp-egress-translation map rewrite Rewrite DSCP field with classified DSCP value (no translation) Default: Disabled Usage Guide: To configure DSCP egress remarking of QoS for specific interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 98 Usage Guide: To configure (QoS class, DP level) to (PCP, DEI) Mapping of QoS for specific interface Example: To configure (QoS class, DP level) to (PCP, DEI) Mapping of QoS as below table for GigabitEthernet X/X NS3500-24T-4C Managed Switch Command Guide...
  • Page 99 Switch (config-if) # qos map tag-cos pcp 4 dei 0 cos 5 dpl 1 qos pcp Command: qos pcp <Pcp : 0-7> Quality of Service Priority Code Point configuration <Pcp : 0-7> Specific Priority Code Point Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 100 Usage Guide: To configure Ingress Queue Policers Rate of QoS for specific interface Example: To configure Ingress Queue (4) Policers Rate (9999 Kbps) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X NS3500-24T-4C Managed Switch Command Guide...
  • Page 101 To configure Egress Port (4) Shapers Rate (9999 Kbps) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos queue-shaper queue 4 9999 qos storm broadcast Command: qos storm broadcast <Rate : 100-13200000> [fps] NS3500-24T-4C Managed Switch Command Guide...
  • Page 102 Switch (config-if) # qos storm unicast 999 qos storm unknown Command: qos storm unknown <Rate : 100-13200000> [fps] Quality of Service storm Storm policer unknown Police unknown (flooded) frames <Rate : 100-13200000> Policer rate (default kbps) Rate is fps Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 103 Command: qos tag-remark mapped Quality of Service tag-remark Tag remarking configuration mapped Used mapped values (cos,dpl -> pcp,dei) Default: Classified Usage Guide: To enable Tag-remark mapped mode of QoS for specific interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 104 To enable VLAN tag Classification of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos trust tag rmon collection history Command: rmon collection history <1-65535> buckets <1-65535> interval <1-3600> rmon Configure Remote Monitoring on an interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 105 To configure RMON Statistics Configuration for specific interface Example: To configure RMON Statistics Configuration (2) as below table for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # rmon collection stats 2 shutdown Command: shutdown NS3500-24T-4C Managed Switch Command Guide...
  • Page 106 To enable Auto Edge of CIST Normal Port Configuration for specific interface Example: To enable Auto Edge of CIST Normal Port Configuration for GigabitEthernet Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # spanning-tree auto-edge NS3500-24T-4C Managed Switch Command Guide...
  • Page 107 Spanning Tree protocol link-type Port link-type auto Auto detect point-to-point Forced to point-to-point shared Forced to Shared Default: Auto Usage Guide: To configure point to point mode of CIST Normal Port Configuration for specific NS3500-24T-4C Managed Switch Command Guide...
  • Page 108 STP priority of this port <Prio : 0-240> Range (lower higher priority) auto Use auto cost Default: Auto Usage Guide: To configure Path Cost of CIST / MST Normal Port Configuration for specific interface Example: NS3500-24T-4C Managed Switch Command Guide...
  • Page 109 To enable Restrict topology change notifications of CIST Normal Port Configuration for specific interface Example: To enable Restrict topology change notifications of CIST Normal Port Configuration for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # spanning-tree restricted-tcn speed Command: NS3500-24T-4C Managed Switch Command Guide...
  • Page 110 <vlan_list> switchport Switching mode characteristics forbidden Adds or removes forbidden VLANs from the current list of forbidden VLANs vlan Add or modify VLAN entry in forbidden table. Add to existing list. <vlan_list> VLAN IDs NS3500-24T-4C Managed Switch Command Guide...
  • Page 111 Change PVID for hybrid port acceptable-frame-type Set acceptable frame type on a port. Allow all frames tagged Allow only tagged frames untagged Allow only untagged frames Default: Usage Guide: To configure acceptable-frame-type of Hybrid VLAN for specific interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 112 Tag all frames none No egress tagging except-native Tag all frames except frames classified to native VLAN of the hybrid port Default: Untagged Port VLAN Usage Guide: To configure Egress Tagging VLAN mode for specific interface NS3500-24T-4C Managed Switch Command Guide...
  • Page 113 To configure PVID in Hybrid VLAN mode for specific interface Example: To enable PVID (5) in Hybrid VLAN mode for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport hybrid native vlan 5 NS3500-24T-4C Managed Switch Command Guide...
  • Page 114 Example: To configure VLAN mode (trunk) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport mode trunk switchport vlan ip-subnet Command: switchport vlan ip-subnet id <1-128> <ipv4_subnet> vlan <vlan_id> NS3500-24T-4C Managed Switch Command Guide...
  • Page 115 To configure MAC-based VLAN for specific interface Example: To configure MAC-based VLAN as below table for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport vlan mac 00:55:44:33:22:11 vlan 5 NS3500-24T-4C Managed Switch Command Guide...
  • Page 116 Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport vlan protocol group 8081 vlan 5 switchport voice vlan discovery-protocol Command: switchport voice vlan discovery-protocol both | lldp | oui switchport Switching mode characteristics NS3500-24T-4C Managed Switch Command Guide...
  • Page 117 Switch (config-if) # switchport voice vlan mode auto switchport voice vlan security Command: switchport voice vlan security switchport Switching mode characteristics voice Voice appliance attributes vlan Vlan for voice traffic security Enable Voice VLAN port security mode NS3500-24T-4C Managed Switch Command Guide...

  • Page 118: Interface Vlan

    To run exec commands in configure terminal mode Example: To run “show aaa” in configure terminal mode. Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# do show aaa console : local telnet : local : local NS3500-24T-4C Managed Switch Command Guide...
  • Page 119 Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# exit Switch (config)# ip address Command: ip address <ipv4_addr> <ipv4_netmask> Interface Internet Protocol config commands address Address configuraton <ipv4_addr> IP address <ipv4_netmask> IP netmask Default: None NS3500-24T-4C Managed Switch Command Guide...
  • Page 120 To configure DHCP fallback IP address for specific VLAN Example: To configure DHCP fallback IP address (192.168.1.10/24) for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip address dhcp fallback 192.168.1.10 NS3500-24T-4C Managed Switch Command Guide...
  • Page 121 Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping ip igmp snooping compatibility Command: ip igmp snooping compatibility auto | v1 | v2 | v3 Interface Internet Protocol config commands igmp Internet Group Management Protocol NS3500-24T-4C Managed Switch Command Guide...
  • Page 122 Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping last-member-query- interval 1000 ip igmp snooping priority Command: ip igmp snooping priority <CosPriority : 0-7> Interface Internet Protocol config commands igmp Internet Group Management Protocol snooping Snooping IGMP NS3500-24T-4C Managed Switch Command Guide...
  • Page 123 Interface Internet Protocol config commands igmp Internet Group Management Protocol snooping Snooping IGMP querier IGMP Querier configuration election Act as an IGMP Querier to join Querier-Election Default: Enabled Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 124 To configure Querier-interval of IGMP snooping for specific VLAN Example: To configure Querier-interval (60 seconds) of IGMP snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping query-max-response-time 600 NS3500-24T-4C Managed Switch Command Guide...
  • Page 125 To configure Unsolicited-Report-Interval (99 seconds) of IGMP snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping unsolicited-report- interval 99 ipv6 address Command: Ipv6 address X:X:X:X::X/<0-128> ipv6 IPv6 configuration commands NS3500-24T-4C Managed Switch Command Guide...
  • Page 126 | v1 | v2 ipv6 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD compatibility Interface compatibility auto Compatible with MLDv1/MLDv2 Forced MLDv1 Forced MLDv2 Default: Auto Usage Guide: To configure MLD snooping version for specific VLAN Example: NS3500-24T-4C Managed Switch Command Guide...
  • Page 127 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD priority Interface CoS priority <CosPriority : 0-7> CoS priority ranges from 0 to 7 Default: Usage Guide: To configure CoS priority of MLD snooping for specific VLAN NS3500-24T-4C Managed Switch Command Guide...
  • Page 128 To configure Querier-interval of MLD snooping for specific VLAN Example: To configure Querier-interval (600 seconds) of MLD snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ipv6 mld snooping query-interval 600 NS3500-24T-4C Managed Switch Command Guide...
  • Page 129 To configure Robustness Variable (88) of MLD snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ipv6 mld snooping robustness-variable ipv6 mld snooping unsolicited-report-interval Command: ipv6 mld snooping unsolicited-report-interval <IpmcUri : 0-31744> ipv6 IPv6 configuration commands Multicast Listener Discovery NS3500-24T-4C Managed Switch Command Guide...

  • Page 130: Ip Arp Inspection

    Switch (config)# interface vlan X Switch (config-if-vlan)# no ip address dhcp ip arp inspection Command: ip arp inspection Internet Protocol Address Resolution Protocol inspection ARP inspection Default: Usage Guide: To enable ARP inspection Example: To enable ARP inspection NS3500-24T-4C Managed Switch Command Guide...
  • Page 131 Internet Protocol Address Resolution Protocol inspection ARP inspection translate arp inspection translate all entries Default: Usage Guide: To translate dynamic entries into static ARP inspection table. Example: To translate dynamic entries into static ARP inspection table. NS3500-24T-4C Managed Switch Command Guide...

  • Page 132: Ip Arp Inspection Vlan

    <vlan_list> logging all | deny | permit Internet Protocol Address Resolution Protocol inspection ARP inspection vlan arp inspection vlan setting <vlan_list> arp inspection vlan list logging ARP inspection vlan logging mode config log all entries deny log denied entries NS3500-24T-4C Managed Switch Command Guide...

  • Page 133: Ip Dhcp Pool

    <WORD> Internet Protocol dhcp Dynamic Host Configuration Protocol pool Configure DHCP address pools <WORD> Pool name in 32 characters Default: Usage Guide: To create a DHCP pool. Example: To create a DHCP pool (Name: IFSbestswitch). NS3500-24T-4C Managed Switch Command Guide...
  • Page 134 Switch# configure terminal Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# client-identifier fqdn 123 client-identifier mac-address Command: client-identifier mac-address <MAC> client-identifier Client identifier mac-address MAC address type of client identifier <MAC> MAC address of client NS3500-24T-4C Managed Switch Command Guide...
  • Page 135 None Usage Guide: To configure Default Gateway of DHCP Server Example: To configure Default Gateway (192.168.0.1) of DHCP Server for pool “IFSbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# default-router 192.168.0.1 NS3500-24T-4C Managed Switch Command Guide...
  • Page 136 Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# do show aaa console : local telnet : local : local http : local domain-name Command: domain-name <word128> domain-name Domain name <word128> Domain name Default: None Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 137 Chapter 4: Commands for CLI configuration To configure Domain Name of DHCP Server Example: To configure Domain Name (interlogix.com) of DHCP Server for pool “IFSbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# domain-name interlogix.com Command: Go back to EXEC mode...
  • Page 138 Switch (config-dhcp-pool)# host 192.168.1.10 255.255.255.0 lease Command: lease <0-365> <0-23> <0-59> | infinite lease Address lease time <0-365> Days <0-23> Hours <0-59> Minutes infinite Infinite lease Default: 1 day Usage Guide: To configure Lease Time of DHCP Server. NS3500-24T-4C Managed Switch Command Guide...
  • Page 139 Usage Guide: To configure NetBIOS node type of DHCP Server. Example: To configure NetBIOS node type (B-node) of DHCP Server for pool “IFSbestswitch”. Switch# configure terminal Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# netbios-node-type b-node NS3500-24T-4C Managed Switch Command Guide...
  • Page 140 To configure Network IP address (192.168.1.11/24) of DHCP Server for pool “IFSbestswitch”. Switch# configure terminal Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# network 192.168.0.11 255.255.255.0 nis-domain-name Command: nis-domain-name <word128> nis-domain-name NIS domain name <word128> Domain name Default: None NS3500-24T-4C Managed Switch Command Guide...
  • Page 141 Chapter 4: Commands for CLI configuration Usage Guide: To configure NIS Domain Name of DHCP Server Example: To configure NIS Domain Name (interlogix.com) of DHCP Server for pool “IFSbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# nis-domain-name interlogix.com...

  • Page 142: Ip Dns Proxy

    “IFSbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool IFSbestswitch Switch (config-dhcp-pool)# vendor class-identifier "0x8" specific-info 0x8 ip dns proxy Command: ip dns proxy Internet Protocol Domain Name System proxy DNS proxy service Default: Disabled NS3500-24T-4C Managed Switch Command Guide...
  • Page 143 Hypertext Transfer Protocol secure-redirect Secure HTTP web redirection Default: Disabled Usage Guide: To redirect WebUI from HTTP to HTTPs Example: To redirect WebUI from HTTP to HTTPs Switch# configure terminal Switch (config)# ip http secure-redirect NS3500-24T-4C Managed Switch Command Guide...
  • Page 144 Switch# configure terminal Switch (config)# ip igmp host-proxy ip igmp host-proxy leave-proxy Command: ip igmp host-proxy leave-proxy Internet Protocol igmp Internet Group Management Protocol host-proxy IGMP proxy configuration leave-proxy IGMP proxy for leave configuration Default: NS3500-24T-4C Managed Switch Command Guide...

  • Page 145: Ip Igmp Snooping

    IGMP VLAN <vlan_list> VLAN identifier(s): VID Default: Disabled Usage Guide: To enable IGMP Snooping for specific VLAN. Example: To enable IGMP Snooping for VLAN 1. Switch# configure terminal Switch (config)# ip igmp snooping vlan 1 NS3500-24T-4C Managed Switch Command Guide...
  • Page 146 To flood unregistered IPv4 multicast traffic. Example: To flood unregistered IPv4 multicast traffic. Switch# configure terminal Switch (config)# ip igmp unknown-flooding ip name-server Command: ip name-server <ipv4_ucast> Internet Protocol name-server Domain Name System <ipv4_ucast> A valid IPv4 unicast address Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 147 Usage Guide: To configure DNS IP address via specific VLAN DHCP Server. Example: To configure DNS IP address via specific VLAN 5 DHCP Server. Switch# configure terminal Switch (config)# ip name-server dhcp interface vlan 5 NS3500-24T-4C Managed Switch Command Guide...
  • Page 148 To enable IP routing Example: To enable IP routing Switch# configure terminal Switch (config)# ip routing ip source binding interface Command: ip source binding interface 10GigabitEthernet | GigabitEthernet <port_type_id> <ipv4_ucast> <ipv4_netmask> Internet Protocol source source command NS3500-24T-4C Managed Switch Command Guide...

  • Page 149: Ip Verify Source

    To enable SSH service Switch# configure terminal Switch (config)# ip ssh ip verify source Command: ip verify source Internet Protocol verify verify command source verify source Default: Disabled Usage Guide: To enable IP Source Guard Example: NS3500-24T-4C Managed Switch Command Guide...

  • Page 150: Ipmc Profile

    IPMC profile configuration Default: Disabled Usage Guide: To enable IPMC profile Example: To enable IPMC profile Switch# configure terminal Switch (config)# ipmc profile ipmc profile <word16> Command: ipmc profile <word16> ipmc IPv4/IPv6 multicast configuration NS3500-24T-4C Managed Switch Command Guide...
  • Page 151 Description for the designated IPMC filtering profile Default: None Usage Guide: To configure description for specific IPMC Profile Example: To configure description (999) for specific IPMC Profile (IFS) Switch# configure terminal Switch (config)# ipmc profile IFS Switch (config-ipmc-profile)# description 999 NS3500-24T-4C Managed Switch Command Guide...
  • Page 152 To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# ipmc profile IFS Switch (config-ipmc-profile)#end Switch# exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: NS3500-24T-4C Managed Switch Command Guide...
  • Page 153 To configure action (permit) of entry (1) for specific IPMC Profile (IFS) Switch# configure terminal Switch (config)# ipmc profile IFS Switch (config-ipmc-profile)# range 1 permit ipv6 mld host-proxy Command: ipv6 mld host-proxy ipv6 IPv6 configuration commands NS3500-24T-4C Managed Switch Command Guide...

  • Page 154: Ipv6 Mld Snooping

    Switch (config)# ipv6 mld host-proxy leave-proxy ipv6 mld snooping Command: ipv6 mld snooping ipv6 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD Default: Disabled Usage Guide: To enable MLD Snooping. Example: To enable MLD Snooping. NS3500-24T-4C Managed Switch Command Guide...

  • Page 155: Ipv6 Mld Snooping Vlan

    Prefix length ranges from 8 to 128 Default: ff3e:: /96 Usage Guide: To enable SSM Range of MLD. Example: To enable SSM Range (ff3e::7788/128) of MLD. Switch# configure terminal Switch (config)# ipv6 mld ssm-range ff3e::7788 128 NS3500-24T-4C Managed Switch Command Guide...

  • Page 156: Ipv6 Route

    To configure static route for IPv6 Example 1: To configure static route as below table for IPv6. Switch# configure terminal Switch (config)# ipv6 route 2001::7788/128 2002::1 Example 2: To configure static route as below table for IPv6. NS3500-24T-4C Managed Switch Command Guide...
  • Page 157 Virtual terminal Default: Usage Guide: To enter line mode Example: To enter line mode (vty 1) Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# Command: do < exec commands > To run exec commands. NS3500-24T-4C Managed Switch Command Guide...
  • Page 158 Switch (config-line)# editing Command: Go back to EXEC mode Default: None Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)#end Switch# NS3500-24T-4C Managed Switch Command Guide...
  • Page 159 Switch (config)# line vty 1 Switch (config-line)# exec-timeout 10 exec-timeout Command: exec-timeout <0-1440> exec-timeout Set the EXEC timeout <0-1440> Timeout in minutes Default: Usage Guide: To configure EXEC timeout Example: To configure EXEC timeout (10 minutes) Switch# configure terminal NS3500-24T-4C Managed Switch Command Guide...
  • Page 160 Switch (config)# line vty 1 Switch (config-line)# history size 1 length Command: length <0 or 3-512> length Set number of lines on a screen <0 or 3-512> Number of lines on screen (0 for no pausing) Default: None NS3500-24T-4C Managed Switch Command Guide...
  • Page 161 Enable the display of the MOTD banner Default: Enabled Usage Guide: To enable MOTD banner. Example: To enable MOTD banner.. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# motd-banner Command: Negate a command or set its defaults NS3500-24T-4C Managed Switch Command Guide...
  • Page 162 Number of characters on a screen line (0 for unlimited width) Default: Usage Guide: To configure width of the display terminal. Example: To configure width (50) of the display terminal for vty 1. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# width 50 NS3500-24T-4C Managed Switch Command Guide...

  • Page 163: Lldp Holdtime

    Switch# configure terminal Switch (config)# lldp med datum nad83-mllw lldp med fast Command: lldp med fast <1-10> lldp LLDP configurations. Media Endpoint Discovery fast Number of times to repeat LLDP frame transmission at fast start. NS3500-24T-4C Managed Switch Command Guide...
  • Page 164 LLDP-MED Location Type Length Value parameter elin-addr Emergency Location Identification Number, (e.g. E911 and others), such as defined by TIA or NENA. <ELIN number> ELIN value Default: Usage Guide: To configure Emergency Location Identification Number of LLDP-MED NS3500-24T-4C Managed Switch Command Guide...
  • Page 165 <Degrees> Longitude degrees (0.0000-180.0000) Default: North, 0 Usage Guide: To configure longitude direction of LLDP-MED Example: To configure longitude direction (east, 5) of LLDP-MED Switch# configure terminal Switch (config)# lldp med location-tlv longitude east 5 NS3500-24T-4C Managed Switch Command Guide...

  • Page 166: Lldp Reinit

    Switch# configure terminal Switch (config)# lldp med media-vlan-policy 1 guest-voice tagged 1 dscp 45 l2-priority 5 lldp reinit Command: lldp reinit <1-10> lldp LLDP configurations. reinit LLDP tx reinitialization delay in seconds <1-10> 1-10 seconds. NS3500-24T-4C Managed Switch Command Guide...

  • Page 167: Lldp Timer

    (the amount of time that the transmission of LLDP frames will delayed after LLDP configuration has changed) in seconds.) <1-8192> 1-8192 seconds. Default: Usage Guide: To configure Tx transmission-delay time of LLDP Example: To configure Tx transmission-delay time (88) of LLDP NS3500-24T-4C Managed Switch Command Guide...

  • Page 168: Logging Host

    Information warning Warning Default: Info Usage Guide: To configure level of log server Example: To configure level of log server Switch# configure terminal Switch (config)# logging level error logging on Command: logging on logging Syslog NS3500-24T-4C Managed Switch Command Guide...
  • Page 169 Loop protection shutdown time interval <0-604800> Shutdown time in second Default: Usage Guide: To configure shutdown time interval of Loop Protection Example: To configure shutdown time interval (888) of Loop Protection Switch# configure terminal Switch (config)# loop-protect shutdown-time 888 NS3500-24T-4C Managed Switch Command Guide...
  • Page 170 <mac_addr> vlan <vlan_id> interface * | 10GigabitEthernet <port_type_list> | GigabitEthernet <port_type_list> MAC table entries/configuration address-table MAC table entries/configuration static Static MAC address <mac_addr> 48 bit MAC address: xx:xx:xx:xx:xx:xx vlan VLAN keyword <vlan_id> VLAN IDs 1-4095 NS3500-24T-4C Managed Switch Command Guide...
  • Page 171 Switch# configure terminal Switch (config)# mep 1 ais fr1s mep <Instance> aps Command: mep <Instance> aps <prio> [ multi | uni ] { laps | { raps [ octet <octet> ] } } Maintenance Entity Point NS3500-24T-4C Managed Switch Command Guide...
  • Page 172 Frame rate is 1 f/min. fr1s Frame rate is 1 f/s. fr300s Frame rate is 300 f/s. fr6h Frame rate is 6 f/hour. fr6m Frame rate is 6 f/min. Default: Usage Guide: To configure CC of MEP NS3500-24T-4C Managed Switch Command Guide...
  • Page 173 <Aisprio : 0-7> AIS injection priority value ais-highest Request the highest possible AIS priority lck-prio LCK injection priority <Lckprio : 0-7> LCK injection priority value. lck-highest Request the highest possible LCK priority. Default: Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 174 The last N dalays used for average last N calculation. Min value is 10. <Lastn : uint> The last N value Default: Usage Guide: To configure Delay Measurement of MEP Example: To configure Delay Measurement of MEP 1 as below table. NS3500-24T-4C Managed Switch Command Guide...
  • Page 175 Delay Measurement overflow-reset Reset all Delay Measurement results on total delay counter overflow. Default: Keep Usage Guide: To reset Delay Measurement of MEP while overflowing Example: To reset Delay Measurement of MEP 1 while overflowing NS3500-24T-4C Managed Switch Command Guide...
  • Page 176 Switch (config)# mep 1 dm syncronized mep <Instance> down Command: mep <Instance> [ mip ] down domain { port | evc | vlan } [ vid <vid> ] flow <flow> level <level> interface <port_type> <port> Maintenance Entity Point NS3500-24T-4C Managed Switch Command Guide...
  • Page 177 + SMAC(6) + TYPE(2) + LBM PDU LENGTH(46) + CRC(4) = 64 interval The number of bytes in the LBM PDU Data Pattern TLV <interval> The interval between transmitting LBM PDU. in case 'count' != 0 this NS3500-24T-4C Managed Switch Command Guide...
  • Page 178 1 frame/sec Usage Guide: To configure Locked Frame Rate of MEP. Example: To configure Locked Frame Rate (1 frame/sec) of MEP 2. Switch# configure terminal Switch (config)# mep 2 lck Switch (config)# mep 2 lck fr1s NS3500-24T-4C Managed Switch Command Guide...
  • Page 179 MEP MAC database. In case of LM there is only one peer MEP. The Frame Loss Ratio interval. <Flr : uint> The Frame Loss Ratio interval value. Default: Usage Guide: To configure Loss Measurement of MEP. Example: To configure Loss Measurement of MEP 2 as below table NS3500-24T-4C Managed Switch Command Guide...
  • Page 180 The ITU/IEEE MEG-ID <Megid : word> The MEG-ID string. This is either the ITU MEG-ID or the IEEE Short MA, depending on the selected MEG-ID format. The ITU max. is 13 characters. The ITU-CC max. is 15 NS3500-24T-4C Managed Switch Command Guide...
  • Page 181 The MEP-ID <Mepid : uint> The MEP-ID value. Default: None Usage Guide: To configure MEP-ID of MEP. Example: To configure MEP-ID (5) of MEP 1. Switch# configure terminal Switch (config)# mep 1 mep-id 5 NS3500-24T-4C Managed Switch Command Guide...
  • Page 182 Switch (config)# mep 1 performance-monitoring mep <Instance> tst Command: mep <Instance> tst <prio> [ dei ] mep-id <mepid> [ sequence ] [ all-zero | all-one | one-zero ] rate <rate> size <size> Maintenance Entity Point NS3500-24T-4C Managed Switch Command Guide...
  • Page 183 The MEP instance number. This MEP instance is a half-MIP This MEP is a Up-MEP domain The domain of the MEP This MEP is a EVC domain MEP. port This MEP is a Port domain MEP. NS3500-24T-4C Managed Switch Command Guide...
  • Page 184 To set VID (8) of MEP 1. Switch# configure terminal Switch (config)# mep 1 vid 8 mep <Instance> voe Command: mep <Instance> voe Maintenance Entity Point <Instance> The MEP instance number. MEP is VOE based NS3500-24T-4C Managed Switch Command Guide...
  • Page 185 The source port(s). That is the ports to be mirrored to the destination port. Default: Disabled Usage Guide: To configure Mirrored Port Example: To set Mirrored Port (GigabitEthernet 1/1, Tx + Rx) Switch# configure terminal Switch (config)# monitor source interface GigabitEthernet 1/1 both NS3500-24T-4C Managed Switch Command Guide...
  • Page 186 Multicast VLAN Registration configuration name MVR multicast name <MvrName : word16> MVR multicast VLAN name frame MVR control frame in TX priority Interface CoS priority <CosPriority : 0-7> CoS priority ranges from 0 to 7 Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 187 A valid IPv4 unicast address Default: 0.0.0.0 Usage Guide: To configure the MVR address of MVR profile Example: To configure the MVR address (192.168.0.55) of MVR profile (123) Switch# configure terminal Switch (config)# mvr name 123 igmp-address 192.168.0.55 NS3500-24T-4C Managed Switch Command Guide...
  • Page 188 To configure the mode (compatible) of MVR profile (123) Switch# configure terminal Switch (config)# mvr name 123 mode compatible mvr vlan <vlan_list> Command: mvr vlan <vlan_list> Multicast VLAN Registration configuration vlan MVR multicast vlan <vlan_list> MVR multicast VLAN list NS3500-24T-4C Managed Switch Command Guide...
  • Page 189 Interface CoS priority <CosPriority : 0-7> CoS priority ranges from 0 to 7 Default: Usage Guide: To configure the frame priority of MVR VLAN Example: To configure the frame priority (5) of MVR VLAN (123) NS3500-24T-4C Managed Switch Command Guide...
  • Page 190 A valid IPv4 unicast address Default: 0.0.0.0 Usage Guide: To configure the MVR address of MVR VLAN Example: To configure the MVR address (192.168.0.55) of of MVR VLAN (123) Switch# configure terminal Switch (config)# mvr vlan 123 igmp-address 192.168.0.55 NS3500-24T-4C Managed Switch Command Guide...
  • Page 191 To configure the mode (compatible) of MVR VLAN (123) Switch# configure terminal Switch (config)# mvr vlan 123 mode compatible mvr vlan <vlan_list> name Command: mvr vlan <vlan_list> name Multicast VLAN Registration configuration vlan MVR multicast vlan NS3500-24T-4C Managed Switch Command Guide...
  • Page 192 To configure preferred negotiation (slave) of network-clock (source 1) Switch# configure terminal Switch (config)# network-clock clk-source 1 aneg-mode slave Command: Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (loop-protect) NS3500-24T-4C Managed Switch Command Guide...

  • Page 193: Ntp Server

    To configure the IP address (9.9.9.9) of NTP Server for index 1 Switch# configure terminal Switch (config)# ntp server 1 ip-address 9.9.9.9 poe admin-mode enable Command: poe admin-mode enable Power Over Ethernet admin-mode Enable or disable global PoE management function. NS3500-24T-4C Managed Switch Command Guide...

  • Page 194: Poe Management Mode

    Default: Allocation-consumption Usage Guide: To configure PoE Management Mode. Example: To configure PoE Management Mode as LLDP-consumption mode. Switch# configure terminal Switch (config)# poe management mode lldp-consumption poe sequential enable Command: poe sequential enable NS3500-24T-4C Managed Switch Command Guide...
  • Page 195 PoE sequential is to delay power feeding when the switch is completely booted. port System sequential feeding power the PoE interfaces based port number. priority Use priority command to configure sequential feeding power to PoE interfaces based on port PoE priority. Default: Port NS3500-24T-4C Managed Switch Command Guide...
  • Page 196 Configure PoE over temperature protection to enable or disable. enable poe temperature-protection enable Default: Enabled Usage Guide: To enable PoE Temperature Protection. Example: To enable PoE Temperature Protection. Switch# configure terminal Switch (config)# poe temperature-protection enable NS3500-24T-4C Managed Switch Command Guide...
  • Page 197 Used to create PoE time-range for the switch and enter Power Time-range Create Configuration Mode. profile1 The PoE time-range profile name, ranging from Profile 1 profile2 The PoE time-range profile name, ranging from Profile 2 NS3500-24T-4C Managed Switch Command Guide...
  • Page 198 Switch# configure terminal Switch (config)# poe-time-range profile1 Switch (config-poe-time-range)#do show aaa console : local telnet : local : local http : local Command: Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode NS3500-24T-4C Managed Switch Command Guide...
  • Page 199 { Mon | Tue | Wed | Thu | Fri | Sat | Sun } <start_h> <start_m> to <end_h> <end_m> [ reboot <reboot_h> <reboot_m> ] periodic To create a periodic mode time-range for the PoE time-range of the switch. Periodic Mode, with Friday. NS3500-24T-4C Managed Switch Command Guide...
  • Page 200 Periodic Mode, with Monday. Periodic Mode, with Saturday. Periodic Mode, with Sunday. Periodic Mode, with Thursday. Periodic Mode, with Tuesday. Periodic Mode, with Wednesday. < reboot_h: 0-23> <0-23> reboot hour < reboot_m:0-59> <0-59> reboot minute Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 201 Enable/disable port security globally aging Enable/disable port security aging Default: Disabled Usage Guide: To enable the Port Aging Example: To enable the Port Aging Switch# configure terminal Switch (config)# port-security port-security aging NS3500-24T-4C Managed Switch Command Guide...
  • Page 202 Initial valid words and literals of the command to modify Default: None Usage Guide: To configure the Privilege Level for Command Line Example: To configure the Privilege Level (DHCP Pool mode, Level 12, Command: host) for Command Line NS3500-24T-4C Managed Switch Command Guide...
  • Page 203 Expedited Forwarding PHB(DSCP 46) Voice Admit PHB(DSCP 44) Default: Usage Guide: To configure the DSCP Classification Example: To configure the DSCP Classification (QoS Class 3: DSCP CS1) Switch# configure terminal Switch (config)# qos map cos-dscp 3 dscp cs1 NS3500-24T-4C Managed Switch Command Guide...
  • Page 204 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } cos <cos> dpl <dpl> Quality of Service NS3500-24T-4C Managed Switch Command Guide...
  • Page 205 { <dscp_num_tr> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } NS3500-24T-4C Managed Switch Command Guide...
  • Page 206 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } Quality of Service Global QoS Map/Table dscp-ingress-translation Map for dscp ingress translation <DscpNum : 0-63> Specific DSCP NS3500-24T-4C Managed Switch Command Guide...
  • Page 207 Voice Admit PHB(DSCP 44) Default: None Usage Guide: To configure the DSCP Ingress Translation Example: To configure the DSCP Ingress Translation (AF11 to AF12) Switch# configure terminal Switch (config)# qos map dscp-ingress-translation af11 to af12 NS3500-24T-4C Managed Switch Command Guide...
  • Page 208 Place QCE before the next QCE ID smac Setup matched SMAC Setup tag options Default: None Usage Guide: To configure the QCE Example: To configure the QCE 1 (below table) for interface GigabitEthernet 1/1-2 NS3500-24T-4C Managed Switch Command Guide...
  • Page 209 Switch (config)# qos qce 1 interface GigabitEthernet 1/1-2 tag type tagged vid 5 pcp 3 dei 1 dmac unicast frame-type ipv4 proto udp dscp 19 frag no sport 55 action cos 0 dpl 1 dscp 4 NS3500-24T-4C Managed Switch Command Guide...
  • Page 210 Place QCE at the end next Place QCE before the next QCE ID smac Setup matched SMAC Setup tag options Default: None Usage Guide: To update the QCE Example: To update the QCE 1 (DMAC: Unicast, Action: Cos 0). NS3500-24T-4C Managed Switch Command Guide...

  • Page 211: Qos Wred

    Specify drop probability for drop precedence level 2 <Mdp2 : 0-100> Specific drop probability in percent mdp-3 Specify drop probability for drop precedence level 3 <Mdp3 : 0-100> Specific drop probability in percent Default: NS3500-24T-4C Managed Switch Command Guide...
  • Page 212 Switch# configure terminal Switch (config)# radius-server attribute 32 IFS radius-server attribute 4 Command: radius-server attribute 4 <Ipv4 : ipv4_ucast> radius-server Configure RADIUS NAS-IP-Address Default: None Usage Guide: To configure the NAS-IP-Address Example: To configure the NAS-IP-Address (7.7.7.7) NS3500-24T-4C Managed Switch Command Guide...
  • Page 213 Switch (config)# radius-server deadtime 15 radius-server host Command: radius-server host <host_name> [ auth-port <auth_port> ] [ acct-port <acct_port> ] [ timeout <seconds> ] [ retransmit <retries> ] [ key <key> ] radius-server Configure RADIUS host Specify a RADIUS server NS3500-24T-4C Managed Switch Command Guide...
  • Page 214 Usage Guide: To configure the Host of Radius-Server Example: To configure the Host (below table) of Radius-Server Switch# configure terminal Switch (config)# radius-server host interlogix.com timeout 10 retransmit 6 key 123456789 radius-server key Command: radius-server key <Key : line1-63> radius-server...

  • Page 215: Rmon Alarm

    Remote Monitoring alarm Configure an RMON alarm <oid_str> MIB object to monitor ifInDiscards The number of inbound packets that are discarded even the packets are normal ifInErrors The number of inbound packets that contained errors preventing NS3500-24T-4C Managed Switch Command Guide...

  • Page 216: Rmon Event

    Switch (config)# rmon alarm 1 .1.3.6.1.2.1.2.2.1.10.15 50 absolute rising-threshold 1000 1 falling-threshold 520 1 falling rmon event Command: rmon event <id: 1-65535> [ log ] [ trap <community> ] { [ description <description> ] } NS3500-24T-4C Managed Switch Command Guide...
  • Page 217 To configure the agent IP address (10.10.10.10) of sFlow Switch# configure terminal Switch (config)# sflow agent-ip ipv4 10.10.10.10 sflow collector-address Command: sflow collector-address <hostname> sflow Statistics flow collector-address Collector address <hostname> IPv4 address or IPv6 address or hostname identifying the collector receiver NS3500-24T-4C Managed Switch Command Guide...
  • Page 218 <DatagramSize : 200-1468> bytes Default: None Usage Guide: To configure the Collector Maximum datagram size of sFlow Example: To configure the Collector Maximum datagram size (555 bytes) of sFlow Switch# configure terminal Switch (config)# sflow max-datagram-size 555 NS3500-24T-4C Managed Switch Command Guide...

  • Page 219: Sflow Timeout

    To configure the SFP temperature-threshold of sFlow Example: To configure the SFP temperature-threshold (55 degrees C) of sFlow Switch# configure terminal Switch (config)# sfp temperature-threshold 55 snmp-server Command: snmp-server snmp-server Set SNMP server's configurations Default: Enabled NS3500-24T-4C Managed Switch Command Guide...
  • Page 220 Switch# configure terminal Switch (config)# snmp-server access default_rw_group model v2c level priv read default_view write default_view snmp-server community Command: snmp-server community { v2c <comm> [ ro | rw ] | v3 <v3_comm> [ <v_ipv4_addr> <v_ipv4_netmask> ] } NS3500-24T-4C Managed Switch Command Guide...
  • Page 221 Set the SNMP server's contact string <line255> contact string Default: None Usage Guide: To configure the sysContact string of SNMP Example: To configure the sysContact string (Server123) of SNMP Switch# configure terminal Switch (config)# snmp-server contact Server123 snmp-server engine-id Command: NS3500-24T-4C Managed Switch Command Guide...
  • Page 222 To enter the SNMP host mode (IFS) Switch# configure terminal Switch (config)# snmp-server host IFS Switch (config-snmps-host)# Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”. NS3500-24T-4C Managed Switch Command Guide...
  • Page 223 Switch# configure terminal Switch (config)# snmp-server host IFS Switch (config-snmps-host)#exit Switch (config)# host Command: host [<hostname> | <ipv4_ucast> | <ipv6_ucast>] <UdpPort : 1-65535> { informs | traps } host host configuration <hostname> hostname of SNMP trap host NS3500-24T-4C Managed Switch Command Guide...
  • Page 224 Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (host interlogix.com 66 informs) Switch# configure terminal Switch (config)# snmp-server host IFS Switch (config-snmps-host)# no ip address dhcp informs Command: informs retries <retries>...
  • Page 225 System event group coldstart Cold start event warmstart Warm start event rmon RMON event STP event Default: Disabled Usage Guide: To configure Trap event of SNMP Example: To configure Trap event (STP, RMON) of SNMP NS3500-24T-4C Managed Switch Command Guide...
  • Page 226 Spanning Tree protocol aggregation Aggregation mode Default: None Usage Guide: To enter aggregation mode of STP Example: To enter aggregation mode of STP Switch# configure terminal Switch (config)# spanning-tree aggregation Switch (config-stp-aggr)# NS3500-24T-4C Managed Switch Command Guide...
  • Page 227 To back to EXEC mode Switch# configure terminal Switch (config)# spanning-tree aggregation Switch (config-stp-aggr)#end Switch# exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode. NS3500-24T-4C Managed Switch Command Guide...
  • Page 228 To enable the Auto Edge of CIST Aggregated Port Switch# configure terminal Switch (config)# snmp-server host IFS Switch (config-snmps-host)# spanning-tree auto-edge spanning-tree bpdu-guard Command: spanning-tree bpdu-guard spanning-tree Spanning Tree protocol bpdu-guard Enable/disable BPDU guard Default: Disabled NS3500-24T-4C Managed Switch Command Guide...
  • Page 229 To configure the Point to Point mode (Shared) of CIST Aggregated Port Example: To configure the Point to Point mode (Shared) of CIST Aggregated Port Switch# configure terminal Switch (config)# snmp-server host IFS Switch (config-snmps-host)# spanning-tree link-type shared NS3500-24T-4C Managed Switch Command Guide...
  • Page 230 To configure the Port Priority (96) of MSTI Port (MST 2) Switch# configure terminal Switch (config)# snmp-server host IFS Switch (config-snmps-host)# spanning-tree mst 2 port-priority spanning-tree restricted-role Command: spanning-tree restricted-role spanning-tree Spanning Tree protocol restricted-role Port role is restricted (never root port) NS3500-24T-4C Managed Switch Command Guide...

  • Page 231: Switchport Vlan Mapping

    Add VLAN translation entry into a group <group id : 1-29> Group id <vlan_list> VLAN list < translation_vlan > translation VLAN ID Default: None Usage Guide: To configure the VLAN Translation Example: To enable the VLAN Translation (below table) NS3500-24T-4C Managed Switch Command Guide...
  • Page 232 Default: None Usage Guide: To configure the Host of TACACS+ Server Example: To enable the Host (below table) of TACACS+ Server Switch# configure terminal Switch (config)# tacacs-server host interlogix.com port 55 timeout 6 key 7788 NS3500-24T-4C Managed Switch Command Guide...
  • Page 233 Default: Usage Guide: To configure SMTP sender's email address and title of the email Example: To configure SMTP sender's email address (sys@interlogix.com) and title of the email (syserror) Switch# configure terminal Switch (config)# transport email from sys@interlogix.com subject syserror...
  • Page 234 65535. The default port number is 25. Default: Usage Guide: To configure SMTP Server address and port number. Example: To configure SMTP Server address (mail.interlogix.com) and port number (123) Switch# configure terminal Switch (config)# transport email smtp-server mail.interlogix.com port 123 transport email to Command: transport email to <1 | 2>...

  • Page 235: Upnp Ttl

    Set UPnP's configurations Set TTL value <1-255> TTL value Default: Usage Guide: To configure the TTL of UPnP Example: To configure the TTL (8) of UPnP Switch# configure terminal Switch (config)# upnp ttl 8 NS3500-24T-4C Managed Switch Command Guide...
  • Page 236 Press ENTER to get started Username: 1234 Password: 1234 vlan Command: vlan <vlist> vlan VLAN commands <vlan_list> VLAN IDs 1~4095 Default: None Usage Guide: To create the VLAN Profiles Example: To create the VLAN Profiles (VLAN 5) NS3500-24T-4C Managed Switch Command Guide...
  • Page 237 Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# vlan 5 Switch (config-vlan)#end Switch# exit Command: exit exit Exit from current mode NS3500-24T-4C Managed Switch Command Guide...
  • Page 238 Switch (config-vlan)# name FAE Command: Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (name FAE) Switch# configure terminal Switch (config)# vlan 5 Switch (config-vlan)# no name FAE NS3500-24T-4C Managed Switch Command Guide...

  • Page 239: Vlan Protocol

    SNAP OUI is 8021h group Protocol-based VLAN group commands <grp_id> Group Name (Range: 1 - 16 characters) Default: None Usage Guide: To configure the Protocol-based VLAN Example: To configure the Protocol-based VLAN (below table) NS3500-24T-4C Managed Switch Command Guide...

  • Page 240: Voice Vlan

    Usage Guide: To configure the Aging Time of Voice VLAN Example: To configure the Aging Time of Voice VLAN Switch# configure terminal Switch (config)# voice vlan aging-time 8888 voice vlan class Command: voice vlan class <traffic_class> NS3500-24T-4C Managed Switch Command Guide...

  • Page 241: Voice Vlan Oui

    Switch# configure terminal Switch (config)# voice vlan oui 00:45:89 description qwe voice vlan vid Command: voice vlan vid <vlan_id> voice Voice appliance attributes vlan Vlan for voice traffic Set VLAN ID <vlan_id> VLAN ID, 1-4095 Default: 1000 NS3500-24T-4C Managed Switch Command Guide...
  • Page 242 Status/Statistics Read-write level Default: Usage Guide: To configure the Privilege Level Example: To configure the Privilege Level (below table) Switch# configure terminal Switch (config)# web privilege group Aggregation level cro 3 crw 4 sro 3 srw 5 NS3500-24T-4C Managed Switch Command Guide...

  • Page 243: Copy

    Debugging functions prompt Set prompt for testing <debug_prompt> Word for prompt Default: None Usage Guide: To configure Description of Debug Prompt Example: To configure Description (1233) of Debug Prompt Switch # debug prompt 1233 1233# NS3500-24T-4C Managed Switch Command Guide...

  • Page 244: Delete

    Switch # delete flash:222 Switch # dir Directory of flash: r- 1970-01-01 00:00:00 648 default-config rw 1970-01-01 07:26:26 1833 startup-config 2 files, 2481 bytes total. Command: Directory of all files in flash: file system Default: None NS3500-24T-4C Managed Switch Command Guide...

  • Page 245: Disable

    To exit enable mode Example: To exit enable mode Switch # disable Switch > Command: do < exec commands > do To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”. NS3500-24T-4C Managed Switch Command Guide...

  • Page 246: Dot1X

    To re-authenticate specific interface (GigabitEthernet 1/1) immediately. Switch# dot1x initialize interface GigabitEthernet 1/1 enable enable Command: enable enable Turn on privileged commands Default: None Usage Guide: To enter enable mode Example: To enter enable mode Switch > enable Switch # NS3500-24T-4C Managed Switch Command Guide...

  • Page 247: Erps

    To configure Instance Command of Group Example: To configure Instance Command (below table) of Group (1) Switch # erps 1 command force port0 exit exit Command: exit exit Exit from EXEC mode Default: None Usage Guide: To exit EXEC mode NS3500-24T-4C Managed Switch Command Guide...

  • Page 248: Firmware

    TFTP Server IP address, path and file name for the server containing the new image. Default: None Usage Guide: To upgrade firmware via TFTP Server Example: To upgrade firmware via TFTP Server (File: tftp://192.168.0.11/switch.bin) Switch # firmware upgrade tftp://192.168.0.11/switch.bin NS3500-24T-4C Managed Switch Command Guide...

  • Page 249: Logout

    Switch # ip dhcp retry interface vlan 6 logout logout Command: logout logout Exit from EXEC mode Default: None Usage Guide: To exit EXEC mode Example: To exit EXEC mode Switch # logout Press ENTER to get started NS3500-24T-4C Managed Switch Command Guide...

  • Page 250: More

    15 password none vlan 1 vlan 5 Command: Negate a command or set its defaults Default: Usage Guide: To default the function Example: To disable the function (erps 1 command force port0) NS3500-24T-4C Managed Switch Command Guide...

  • Page 251: Ping

    [ interval <seconds> ] [ interface vlan <v_vlan_id> ] ping Send ICMP echo messages ipv6 IPv6 (ICMPv6) echo interface Select an interface to configure vlan VLAN Interface <v_vlan_id> VLAN identifier(s): VID interval Specify repeat interval NS3500-24T-4C Managed Switch Command Guide...

  • Page 252: Reload

    Reload system cold Reload cold. Default: Usage Guide: To restart the device. Example: To restart the device. Switch# reload cold reload defaults Command: reload defaults [ keep-ip ] reload Reload system defaults Reload defaults without rebooting. NS3500-24T-4C Managed Switch Command Guide...

  • Page 253: Send

    (All). Switch # send * 1 Enter TEXT message. End with the character '1'. hi, I will upgrade the firmware, OK? ----------------------------------------- *** Message from line 0: hi, I will upgrade the firmware, OK? ----------------------------------------- NS3500-24T-4C Managed Switch Command Guide...

  • Page 254: Show

    Example: To display Access Management Statistics. Switch # show access management statistics Access Management Statistics: ----------------------------- HTTP Receive: Allow: Discard: HTTPS Receive: Allow: Discard: SNMP Receive: Allow: Discard: TELNET Receive: Allow: Discard: Receive: Allow: Discard: NS3500-24T-4C Managed Switch Command Guide...
  • Page 255 GigabitEthernet 1/1 access-list rate limiter ID is disabled GigabitEthernet 1/1 access-list redirect is disabled GigabitEthernet 1/1 access-list logging is disabled GigabitEthernet 1/1 access-list shutdown is disabled GigabitEthernet 1/1 access-list port-state is enabled GigabitEthernet 1/1 access-list counter is 0 NS3500-24T-4C Managed Switch Command Guide...
  • Page 256 GigabitEthernet 1/1 access-list rate limiter ID is disabled GigabitEthernet 1/1 access-list redirect is disabled GigabitEthernet 1/1 access-list logging is disabled GigabitEthernet 1/1 access-list shutdown is disabled GigabitEthernet 1/1 access-list port-state is enabled GigabitEthernet 1/1 access-list counter is 0 NS3500-24T-4C Managed Switch Command Guide...
  • Page 257 DHCP 1 Deny Disabled Yes 0 No DHCP 2 Deny Disabled Yes 0 No PTP 1 EType Deny Disabled Yes 0 No PTP 2 EType Deny Disabled Yes 0 No Switch 1 access-list ace number: 4 NS3500-24T-4C Managed Switch Command Guide...

  • Page 258: Show Clock

    Example: To display the Aggregation mode status. Switch # show aggregation mode Aggregation Mode: SMAC : Enabled DMAC : Disabled : Enabled Port : Enabled show clock Command: show clock show Show running system information NS3500-24T-4C Managed Switch Command Guide...
  • Page 259 Daylight Saving Time Start Time Settings : Week: 0 Day: 0 Month: 0 Date: 0 Year: 0 Hour: 0 Minute: 0 Daylight Saving Time End Time Settings : Week: 0 Day: 0 Month: 0 Date: 0 Year: 0 Hour: 0 NS3500-24T-4C Managed Switch Command Guide...

  • Page 260: Show Dot1X Statistics

    Tx Request/Id: Rx Response: Tx Request: Rx Start: Rx Logoff: Rx Invalid Type: Rx Invalid Length: GigabitEthernet 1/1 Backend Server Statistics: Rx Access Challenges: Tx Responses: Rx Other Requests: Rx Auth. Successes: Rx Auth. Failures: NS3500-24T-4C Managed Switch Command Guide...
  • Page 261 Force Authorized Globally Disabled Current Radius QOS Current Radius VLAN Current Guest VLAN -------------------- -------------------- -------------------- show eps Command: show eps [ <inst> ] [ detail ] show Show running system information Ethernet Protection Switching NS3500-24T-4C Managed Switch Command Guide...
  • Page 262 [ <groups> ] [ detail | statistics ] show Show running system information erps Ethernet Ring Protection Switching <groups> Zero or more ERPS group numbers detail Show detailed information statistics Show statistics Default: Usage Guide: To display the ERPS group information. NS3500-24T-4C Managed Switch Command Guide...
  • Page 263 Ethernet Virtual Connections <EvcId : 1-4096> EVC identifier Process all EVCs EVC Control Entry <EceId : 1-4096> ECE idenfifier Default: Usage Guide: To display the EVC status. Example: To display the All of EVC status. NS3500-24T-4C Managed Switch Command Guide...
  • Page 264 Shows green ethernet status for a specific port or ports. Default: Usage Guide: To display the Green Ethernet status. Example: To display the Green Ethernet status for all. Switch # show green-ethernet interface * NS3500-24T-4C Managed Switch Command Guide...

  • Page 265: Show History

    To display the short-reach of Green Ethernet for all. Switch # show green-ethernet short-reach interface * show history Command: show history show Show running system information history Display the session command history Default: Usage Guide: NS3500-24T-4C Managed Switch Command Guide...
  • Page 266 [ <priority_v_0_to_7> ] } } ] [ { up | down } ] show Show running system information interface Interface status and configuration statistics Display statistics counters bytes Show byte statistics. discards Show discard statistics. NS3500-24T-4C Managed Switch Command Guide...
  • Page 267 --------------- --------- --------- --- ----- GigabitEthernet 1/1 enabled Auto 10056 Discard Down show interface <port_type> <port_list> switchport Command: show interface <port_type> <port_list> switchport [ access | trunk | hybrid ] show Show running system information NS3500-24T-4C Managed Switch Command Guide...
  • Page 268 <port_type> <port_type_list> veriphy Command: show interface <port_type> <port_type_list> veriphy show Show running system information interface Interface status and configuration veriphy Run cable diagnostics and show result. Default: Usage Guide: To display the result of Cable Diagnostics. NS3500-24T-4C Managed Switch Command Guide...

  • Page 269: Show Interface Vlan

    GigabitEthernet 1/1 Pair C Length Pair D Length ------ ------ ------ ------- show interface vlan Command: show interface vlan [ <vlist> ] show Show running system information interface Interface status and configuration vlan VLAN status Default: NS3500-24T-4C Managed Switch Command Guide...

  • Page 270: Show Ip Arp

    Command: show ip arp inspection show Show running system information Internet Protocol arp Address Resolution Protocol inspection ARP inspection Default: Usage Guide: To display the ARP Inspection Configuration. Example: To display the ARP Inspection Configuration. NS3500-24T-4C Managed Switch Command Guide...
  • Page 271 [ interface ( <port_type> [ <port_type_list> ] ) ] show Show running system information Internet Protocol Address Resolution Protocol inspection ARP inspection entry arp inspection entries dhcp-snooping learn from dhcp snooping static setting from static entries interface arp inspection entry interface config NS3500-24T-4C Managed Switch Command Guide...
  • Page 272 Switch # show ip dhcp detailed statistics client interface GigabitEthernet 1/1 GigabitEthernet 1/1 Statistics: ------------------------------- Rx Discover: Tx Discover: Rx Offer: Tx Offer: Rx Request: Tx Request: Rx Decline: Tx Decline: Rx ACK: Tx ACK: NS3500-24T-4C Managed Switch Command Guide...

  • Page 273: Show Ip Dhcp Pool

    High Address --------------- --------------- 01 192.168.0.100 192.168.0.101 show ip dhcp pool Command: show ip dhcp pool [ <pool_name> ] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol pool DHCP pools information NS3500-24T-4C Managed Switch Command Guide...

  • Page 274: Show Ip Dhcp Relay

    [ statistics ] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol relay DHCP relay agent configuration statistics Traffic statistics Default: Usage Guide: To display the DHCP relay information. NS3500-24T-4C Managed Switch Command Guide...

  • Page 275: Show Ip Dhcp Server

    Committed state expired Expired state type Type of binding automatic Automatic binding with infinite lease time expired Expired binding that is aged out manual Manual binding for a specific host <ip> IP address in dotted-decimal notation NS3500-24T-4C Managed Switch Command Guide...

  • Page 276: Show Ip Dhcp Server Statistics

    Command: show ip dhcp server statistics show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol server DHCP server information statistics DHCP server statistics Default: Usage Guide: To display the DHCP Server statistics. NS3500-24T-4C Managed Switch Command Guide...

  • Page 277: Show Ip Dhcp Snooping

    [interface ( <port_type> [ <port_list> ] )] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol snooping DHCP snooping interface Select an interface to configure Default: Usage Guide: To display the DHCP Snooping configuration. NS3500-24T-4C Managed Switch Command Guide...

  • Page 278: Show Ip Http Server Secure Status

    To display the DHCP Snooping table. Example: To display the DHCP Snooping table. Switch # show ip http server secure status Switch secure HTTP web server is disabled Switch secure HTTP web redirection is disabled NS3500-24T-4C Managed Switch Command Guide...

  • Page 279: Show Ip Igmp Snooping

    Default: Usage Guide: To display the IGMP Router Port information. Example: To display the IGMP Router Port information. Switch # show ip igmp snooping mrouter IGMP Snooping is disabled to stop snooping IGMP control plane. NS3500-24T-4C Managed Switch Command Guide...

  • Page 280: Show Ip Interface Brief

    Internet Protocol name-server Domain Name System Default: Usage Guide: To display the DNS Server information. Example: To display the DNS Server information. Switch # show ip name-server Current DNS server is 8.8.8.8 set by STATIC. NS3500-24T-4C Managed Switch Command Guide...

  • Page 281: Show Ip Route

    To display the Static IP Source Guard Table. Switch # show ip source binding interface GigabitEthernet 1/1 Type Port VLAN IP Address IP Mask ---- ---- ---- ---------- ------- Static GigabitEthernet 1/1 1 192.168.0.22 255.255.255.0 NS3500-24T-4C Managed Switch Command Guide...

  • Page 282: Show Ip Ssh

    8087 generated, 0 forwarded 0 no route, 0 discarded Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble) 0 fragment (0 fragmented, 0 couldn't fragment) 0 fragment created Mcast: 913 received in 99661 bytes 0 sent in 0 byte NS3500-24T-4C Managed Switch Command Guide...

  • Page 283: Show Ip Verify Source

    Internet Protocol verify verify command source verify source interface ip verify source interface config Default: Usage Guide: To display the IP Source Guard configuration. Example: To display the IP Source Guard configuration for GigabitEthernet 1/1. NS3500-24T-4C Managed Switch Command Guide...
  • Page 284 IPv4/IPv6 multicast configuration range A range of IPv4/IPv6 multicast addresses for the profile <EntryName : word16> Range entry name Default: Usage Guide: To display the IP Multicast Range. Example: To display the IP Multicast Range. NS3500-24T-4C Managed Switch Command Guide...

  • Page 285: Show Ipv6 Interface

    0 discarded Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble) 0 fragment (0 fragmented, 0 couldn't fragment) 0 fragment created Mcast: 3 received in 168 bytes 17 sent in 1104 bytes Bcast: 0 received, 0 sent NS3500-24T-4C Managed Switch Command Guide...

  • Page 286: Show Ipv6 Mld Snooping

    Default: Usage Guide: To display the MLD Router Port information. Example: To display the MLD Router Port information. Switch # show ipv6 mld snooping mrouter MLD Snooping is enabled to start snooping MLD control plane. NS3500-24T-4C Managed Switch Command Guide...

  • Page 287: Show Ipv6 Neighbor

    [ interface vlan <vlan_list> ] show Show running system information ipv6 IPv6 configuration commands route IPv6 routes interface Select an interface to configure vlan VLAN of IPv6 interface Default: Usage Guide: To display the IPv6 Routing table. NS3500-24T-4C Managed Switch Command Guide...
  • Page 288 Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble) 0 fragment (0 fragmented, 0 couldn't fragment) 0 fragment created Mcast: 24 received in 2064 bytes 34 sent in 2208 bytes Bcast: 0 received, 0 sent IP interface statistics: NS3500-24T-4C Managed Switch Command Guide...

  • Page 289: Show Lacp

    LACP configuration/status internal Internal LACP configuration neighbour Neighbour LACP status statistics Internal LACP statistics system-id LACP system id Default: Usage Guide: To display the LACP mode information. Example: To display the LACP mode information. NS3500-24T-4C Managed Switch Command Guide...

  • Page 290: Show Line

    Idle time is 0 day 0 hour 0 min 0 sec. show lldp med media-vlan-policy Command: show lldp med media-vlan-policy [<0~31>] show Show running system information lldp Display LLDP neighbors information Display LLDP-MED neighbors information media-vlan-policy Display media vlan policies NS3500-24T-4C Managed Switch Command Guide...

  • Page 291: Show Lldp Neighbors

    [ interface ( <port_type> [ <port_type_list> ] ) ] show Show running system information lldp Display LLDP neighbors information neighbors Display LLDP neighbors information interface Interface to display Default: Usage Guide: To display the LLDP neighbors information. Example: NS3500-24T-4C Managed Switch Command Guide...

  • Page 292: Show Lldp Statistics

    {<log_id> | error | info | warning } [ switch <switch_list> ] show Show running system information logging Syslog <logging_id: 1-4294967295> Logging ID switch Switch <switch_list> Switch ID list in 1 Default: Usage Guide: To display the Syslog information. Example: NS3500-24T-4C Managed Switch Command Guide...
  • Page 293 ------------------------------ Loop protect mode is enabled. Actions are both of shutdown and log. Transmit mode is enabled. No loop. The number of loops is 12390. Time of last loop is at 1970-01-01T14:58:28+00:00 Status is down. NS3500-24T-4C Managed Switch Command Guide...
  • Page 294 [ <instance> ] [ peer | cc | lm | dm | lt | lb | tst | aps | client | ais | lck ] [ detail ] show Show running system information Maintenance Entity Point <instance> The range of MEP instances Show AIS state Show APS state Show CC state NS3500-24T-4C Managed Switch Command Guide...

  • Page 295: Show Mvr

    Detail information/statistics of MVR group database Default: Usage Guide: To display the MVR information. Example: To display the MVR information. Switch # show mvr MVR is now enabled to start group registration. Switch-1 MVR-IGMP Interface Status NS3500-24T-4C Managed Switch Command Guide...
  • Page 296 Selector State is: Free Run Alarm State is: Clk: LOCS: FALSE FALSE SSM: FALSE FALSE WTR: FALSE FALSE LOL: FALSE DHOLD: TRUE SSM State is: Interface Tx SSM Rx SSM Mode GigabitEthernet 1/1 QL_NONE QL_LINK Master NS3500-24T-4C Managed Switch Command Guide...

  • Page 297: Show Ntp Status

    To display the PHY information. Example: To display the PHY information for GigabitEthernet 1/1. Switch # show platform phy interface GigabitEthernet 1/1 Port API Inst WAN/LAN/1G Mode Duplex Speed Link ---- --------- --------- ---- ------ ----- ---- Default ANEG NS3500-24T-4C Managed Switch Command Guide...
  • Page 298 API Base Phy Id Phy Rev. ---- ------- -------- ------- ------ 0 (1g) 8634 show platform phy status Command: show platform phy status [ interface ( <port_type> [ <v_port_type_list> ] ) ] show Show running system information NS3500-24T-4C Managed Switch Command Guide...
  • Page 299 To display the MAC Addresses of Port Security. Example: To display the MAC Addresses of Port Security. Switch # show port-security port interface GigabitEthernet 1/1 GigabitEthernet 1/1 ------------------- MAC Address VID State Added Age/Hold Time ----------------- ---- ---------- ------------------------- ------ ------- <none> NS3500-24T-4C Managed Switch Command Guide...

  • Page 300: Show Privilege

    Show running system information privilege Display command privilege Default: Usage Guide: To display the Privilege information. Example: To display the Privilege information. Switch # show privilege show pvlan Command: show pvlan [ <pvlan_list> ] NS3500-24T-4C Managed Switch Command Guide...

  • Page 301: Show Qos

    { maps [ dscp-cos ] [ dscp-ingress-translation ] [ dscp- classify ] [ cos-dscp ] [ dscp-egress-translation ] } | { qce [ <qce> ] } ] show Show running system information Quality of Service NS3500-24T-4C Managed Switch Command Guide...
  • Page 302 4 mode: disabled, rate: 500 kbps qos queue-policer queue 5 mode: disabled, rate: 500 kbps qos queue-policer queue 6 mode: disabled, rate: 500 kbps qos queue-policer queue 7 mode: disabled, rate: 500 kbps qos shaper mode: disabled, rate: 500 kbps NS3500-24T-4C Managed Switch Command Guide...
  • Page 303 500 kbps qos storm unknown mode: disabled, rate: 500 kbps show radius-server Command: show radius-server [ statistics ] show Show running system information radius-server RADIUS configuration statistics RADIUS statistics NS3500-24T-4C Managed Switch Command Guide...

  • Page 304: Show Rmon Alarm

    To display the RMON Alarm ID 1 configuration. Switch # show rmon alarm 1 Alarm ID : ---------------- Interval : 30 Variable : .1.3.6.1.2.1.2.2.1.20.1 SampleType : deltaValue Value Startup : risingOrFallingAlarm RisingThrld FallingThrld RisingEventIndex : 2 FallingEventIndex : 1 NS3500-24T-4C Managed Switch Command Guide...

  • Page 305: Show Rmon Event

    To display the RMON History ID 1 configuration. Switch # show rmon history 1 History ID : ------------------ Data Source : .1.3.6.1.2.1.2.2.1.1.5 Data Bucket Request : 50 Data Bucket Granted : 50 Data Interval : 1800 NS3500-24T-4C Managed Switch Command Guide...

  • Page 306: Show Rmon Statistics

    { console | vty } <list> [ all-defaults ]] [vlan <list> [ all- defaults ]] show Show running system information running-config Show running system information all-defaults Include most/all default values feature Show configuration for specific feature <feature_name> Valid words are 'GVRP' 'access' 'access-list' 'aggregation' 'arp- NS3500-24T-4C Managed Switch Command Guide...
  • Page 307 15 password none loop-protect loop-protect transmit-time 2 loop-protect shutdown-time 2 vlan 1 Example 2: To display the running-config with filtered MVR function Switch # show running-config feature mvr Building configuration... vlan 1 mvr vlan 1 name 1 NS3500-24T-4C Managed Switch Command Guide...

  • Page 308: Show Snmp

    Authentication Protocol : None Privacy Protocol : None SNMPv3 Groups Table; Security Model : v1 Security Name : public Group Name : default_ro_group Security Model : v1 Security Name : private Group Name : default_rw_group NS3500-24T-4C Managed Switch Command Guide...

  • Page 309: Show Snmp Access

    Display SNMP configurations access access configuration <GroupName : word32> group name any security model v1 security model v2c security model v3 security model auth authNoPriv Security Level noauth noAuthNoPriv Security Level priv authPriv Security Level NS3500-24T-4C Managed Switch Command Guide...
  • Page 310 Example: To display the SNMPv3 Community information Switch # show snmp community v3 Community : public Source IP : 0.0.0.0 Source Mask : 0.0.0.0 Community : private Source IP : 0.0.0.0 Source Mask : 0.0.0.0 NS3500-24T-4C Managed Switch Command Guide...

  • Page 311: Show Snmp Host

    To display the SNMP MIB contexts. Switch # show snmp mib context BRIDGE-MIB : - dot1dBase (.1.3.6.1.2.1.17.1) - dot1dTp (.1.3.6.1.2.1.17.4) Dot3-OAM-MIB : - dot3OamMIB (.1.3.6.1.2.1.158) ENTITY-MIB : - entityMIBObjects (.1.3.6.1.2.1.47.1) EtherLike-MIB : - transmission (.1.3.6.1.2.1.10) NS3500-24T-4C Managed Switch Command Guide...
  • Page 312 RFC1213-MIB : - system (.1.3.6.1.2.1.1) - interfaces (.1.3.6.1.2.1.2) - ip (.1.3.6.1.2.1.4) - snmp (.1.3.6.1.2.1.5) - tcp (.1.3.6.1.2.1.6) - udp (.1.3.6.1.2.1.7) RMON-MIB : - statistics (.1.3.6.1.2.1.16.1) - history (.1.3.6.1.2.1.16.2) - alarm (.1.3.6.1.2.1.16.3) - event (.1.3.6.1.2.1.16.9) SMON-MIB : NS3500-24T-4C Managed Switch Command Guide...
  • Page 313 10 Switch 1 - Port 10 GigabitEthernet 1/10 11 Switch 1 - Port 11 GigabitEthernet 1/11 12 Switch 1 - Port 12 GigabitEthernet 1/12 13 Switch 1 - Port 13 GigabitEthernet 1/13 14 Switch 1 - Port 14 GigabitEthernet 1/14 NS3500-24T-4C Managed Switch Command Guide...
  • Page 314 Security Model : v1 Security Name : public Group Name : default_ro_group Security Model : v1 Security Name : private Group Name : default_rw_group Security Model : v2c Security Name : public Group Name : default_ro_group NS3500-24T-4C Managed Switch Command Guide...

  • Page 315: Show Snmp User

    Show running system information snmp Display SNMP configurations view MIB view configuration <ViewName : word32> MIB view name <OidSubtree : word255> MIB view OID Default: Usage Guide: To display the SNMP viewer information. Example: NS3500-24T-4C Managed Switch Command Guide...
  • Page 316 Regional Root: 32768. 00-30-4F-00-99-00 Int. PathCost: 0 Max Hops : 20 TC Flag : Steady TC Count TC Last Port Port Role State Pri PathCost Edge P2P Uptime --------- -------------- ---------- --- -------- ---- --- ------------- NS3500-24T-4C Managed Switch Command Guide...

  • Page 317: Show Terminal

    Global TACACS+ Server Timeout : 5 seconds Global TACACS+ Server Deadtime : 0 minutes Global TACACS+ Server Key No hosts configured! show terminal Command: show terminal show Show running system information terminal Display terminal configuration parameters NS3500-24T-4C Managed Switch Command Guide...

  • Page 318: Show Upnp

    Usage Guide: To display the UPnP information. Example: To display the UPnP information. Switch # show upnp UPnP Mode : Disabled UPnP TTL UPnP Advertising Duration : 100 show users Command: show users [ myself ] NS3500-24T-4C Managed Switch Command Guide...

  • Page 319: Show Version

    To display the software and system information. Example: To display the software and system information. Switch # show verison MAC Address : 00-30-4f-00-99-00 System Contact : System Name System Location : System Time : 1970-01-01T22:56:08+00:00 System Uptime : 22:56:08 NS3500-24T-4C Managed Switch Command Guide...

  • Page 320: Show Vlan

    To display the VLAN information. Switch # show vlan VLAN Name Interfaces ---- -------------------------------- ---------- default Gi 1/1-25 10G 1/1-4 show vlan ip-subnet Command: show vlan ip-subnet [ id <subnet_id> ] show Show running system information vlan VLAN status NS3500-24T-4C Managed Switch Command Guide...
  • Page 321 VLAN status protocol Protocol-based VLAN status eth2 Ethernet protocol based VLAN status <etype> Ether Type(Range: 0x600 - 0xFFFF) Ether Type is ARP Ether Type is AppleTalk Ether Type is IP Ether Type is IPX NS3500-24T-4C Managed Switch Command Guide...

  • Page 322: Show Voice Vlan

    [ <port_list> ] ) ] show Show running system information voice Voice appliance attributes vlan Vlan for voice traffic interface Select an interface to configure OUI configuration <oui> OUI value Default: Usage Guide: To display the Voice VLAN information. NS3500-24T-4C Managed Switch Command Guide...
  • Page 323 5 10 5 10 Dhcp_Client 5 10 5 10 Diagnostics 5 10 5 10 5 10 5 10 ERPS 5 10 5 10 ETH_LINK_OAM 5 10 5 10 5 10 5 10 Green_Ethernet 5 10 5 10 NS3500-24T-4C Managed Switch Command Guide...

  • Page 324: Terminal

    Set terminal line parameters editing Enable command line editing Default: Enabled Usage Guide: To enable editing mode for current terminal session. Example: To enable editing mode for current terminal session. Switch # terminal editing NS3500-24T-4C Managed Switch Command Guide...

  • Page 325: Terminal History Size

    Command: terminal length <lines> terminal Set terminal line parameters length Set number of lines on a screen <lines: 0 or 3-512> Number of lines on screen (0 for no pausing) Default: Usage Guide: NS3500-24T-4C Managed Switch Command Guide...

  • Page 326: Terminal Width

    Number of characters on a screen line (0 for unlimited width) Default: Usage Guide: To configure width of command display for current terminal session. Example: To configure width of command display with 40 characters per line for current terminal session. Switch # terminal width 40 NS3500-24T-4C Managed Switch Command Guide...

Table of Contents
