Summary of Contents for Interlogix NS3500-28T-4S
-
Page 1: Quick Start Guide
NS3500-28T-4S Quick Start Guide P/N 1072836 • REV 00.01 • ISS 14JUL14... - Page 2 © 2014 United Technologies Corporation Copyright Interlogix is part of UTC Building & Industrial Systems, Inc. a unit of United Technologies Corporation. All rights reserved. The NS3702-24P-4S name and logo are trademarks of United Technologies. Trademarks and patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Table of Contents 1. PACKAGE CONTENTS..............................4 2. REQUIREMENTS ................................5 3. TERMINAL SETUP................................6 4. LOGON TO THE CONSOLE .............................. 7 5. CONFIGURING IP ADDRESS VIA THE CONSOLE......................8 6. SAVING THE CONFIGURATION VIA THE CONSOLE ..................... 9 ... -
Page 4: Package Contents

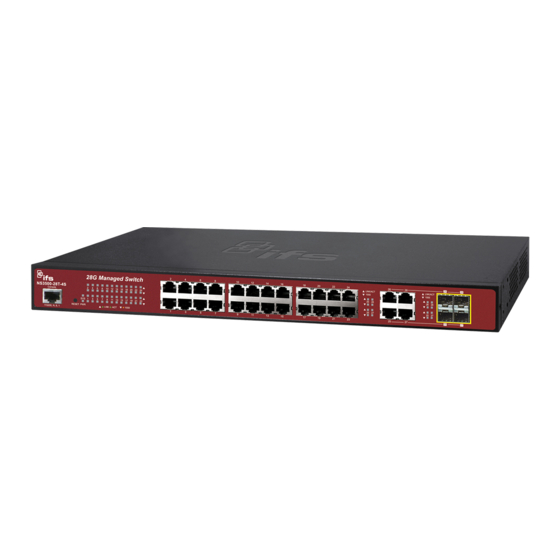

1. Package Contents Thank you for purchasing NS3500-28T-4S - 28-Port 10/100/1000Mbps + 4-Port Shared SFP Managed Gigabit Switch. The “Managed Switch” mentioned in this Guide refers to the NS3500-28T-4S. Open the box of the Managed Switch and carefully unpack it. The box should contain the following items: ... -
Page 5: Requirements
2. Requirements Workstations running Windows XP/2003/Vista/7/8/2008, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. Workstations are installed with Ethernet NIC (Network Interface Card) Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS-232 converter. ... -
Page 6: Terminal Setup
3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ-45 type of console port of the Managed Switch. Figure 3-1 Managed Switch Console Connectivity A terminal program is required to make the software connection to the Managed Switch. Run terminal program on the OS. -
Page 7: Logon To The Console
4. Logon to the Console Once the terminal is connected to the device, power on the Managed Switch and the terminal will display “running testing procedures”. Then, the following message asks to log-in user name and password. The factory default user name and password are shown as follows and the login screen in Figure 4-1 appears. -
Page 8: Configuring Ip Address Via The Console
Figure 5-1: IP Information Screen Configuration of the IP address 3. On” NS3500-28T-4S#” prompt, enter “configure”. 4. On“ NS3500-28T-4S(config) #” prompt, enter the following command and press <Enter> as shown in Figure 5-2. NS3500-28T-4S(config) # ip address 192.168.1.100 mask 255.255.255.0 NS3500-28T-4S(config) # ip default-gateway 192.168.1.254... -
Page 9: Saving The Configuration Via The Console
1. On “NS3500-28T-4S#” prompt, enter “copy running-config startup-config” as shown in Figure 6-1. Figure 6-1: Saving the Configuration Screen... -
Page 10: Starting Web Management
7. Starting Web Management The following shows how to st art up the Web Management of the Managed Switch. Note th Managed Switch is c onfigured through an Ethernet connection. Please make sure the manager PC must be set on the same IP subnet address. For example, the default IP address of the Managed Switch is 192.168.0.100;... - Page 11 7.2 Logging in the Managed Switch 1. Use Internet Explorer 8.0 or above W eb browser and enter IP address http://192.168.0.100 access the Web interface. 2. When the following dialog box appears, please enter the default user name and password “admin”.
- Page 12 3. After entering the password, the main screen appears as Figure 3-3 shows Figure 7-3: Web Main Screen of Managed Switch - 12 -...
- Page 13 The Switch Menu on the left of the Web page lets you access all the commands and statistics the Managed Switch provides. Figure 7-4: Switch Menu Now, you can use the Web management interface to continue the Switch management. Please refer to the user’s manual for more. - 13 -...
-
Page 14: Saving Configuration Via The Web
8. Saving Configuration via the Web In the Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence of running-config can be saved from the RAM to FLASH by ”Save Configurations to FLASH” function, so that the running configuration sequence becomes the startup configuration file, which is called configuration save. -
Page 15: Recovering Back To Default Configuration
To reset the IP address to the default IP Address “192.168.0.100” or reset the login p assword to default value, press the reset button on the front p anel for about 10 seconds. Af ter the device is rebooted, you can login the Web interface management within the same subnet of 192.168.0.xx. Figure 9-1: NS3500-28T-4S Reset Button... -
Page 16: Customer Support
10. Customer Support Thank you for purchasing INTERLOGIX products. You can browse our online FAQ resource on the INTERLOGIX website first to check if it could solve your issue. If you need more support information, please contact INTERLOGIX.com/support for the support team.
