NS3562-8P-2S Quick Installation Guide

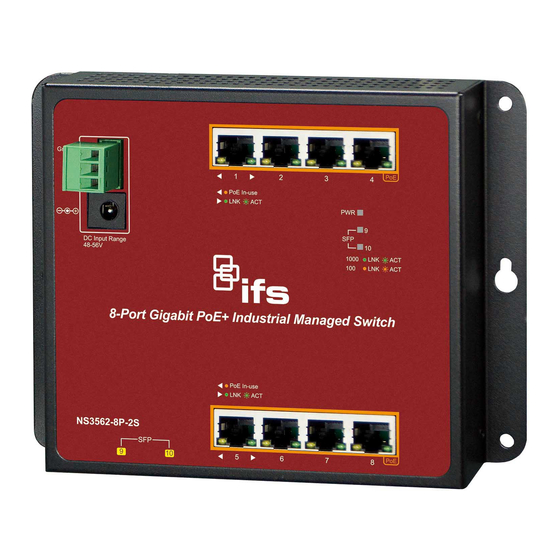

Figure 1: NS3562-8P-2S

Package contents

Thank you for purchasing the IFS NS3562-8P-2S
Industrial Wall-mount Managed Gigabit Switch. The
table below shows the model with the number of ports:
Model Name 10/100/1000T
Copper Ports
NS3562-8P-2S 8
Unless specified, the term "wall-mount managed switch"
mentioned in this quick installation guide refers to the
NS3562-8P-2S.
Open the box of the wall-mount managed switch and
carefully unpack it. The box should contain the following
items:

The wall-mount managed switch × 1

Quick installation guide × 1

3-pin terminal block connector × 1

Wall-mounted kit × 1

RJ45 dust cap × 8

SFP dust cap × 2
If any item is found missing or damaged, please contact
your local reseller for replacement.
P/N 1073224-EN • REV C • ISS 01FEB19
802.3at 100/1000 SFP
PoE Ports
Fiber Optical
Interface
8 2
Requirements

Workstations running Windows
XP/2003/Vista/7/8/2008/10, MAC OS X or later,
Linux, UNIX, or other platforms are compatible with
TCP/IP protocols

Workstations are installed with Ethernet NIC
(Network Interface Card)

Ethernet Port Connection
 Network cables - Use standard network (UTP)
cables with RJ45 connectors.
 The above workstation has a Web browser and
JAVA runtime environment plug-in installed.
Note: We recommend using Internet Explorer 11.0 or
later to access the wall-mount managed switch. If the
Web interface of the wall-mount managed switch is not
accessible, turn off the anti-virus software or firewall and
then try it again.
Wiring the power inputs
The wall-mount managed switch features a strong dual
power input system (terminal block and DC jack) to
enhance system reliability and uptime.
Range model
3-pin terminal block
NS3562-8P-2S 48~56 VDC
®
Power Input
DC jack
48~56 VDC
1
