Operating Instructions

Micropilot M FMR231
Level-Radar
8
BA226F/00/en/08.06
52009947
Valid as of software version:
01.04.00

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot M FMR231

Summary of Contents for Endress+Hauser Micropilot M FMR231

  • Page 1: Operating Instructions

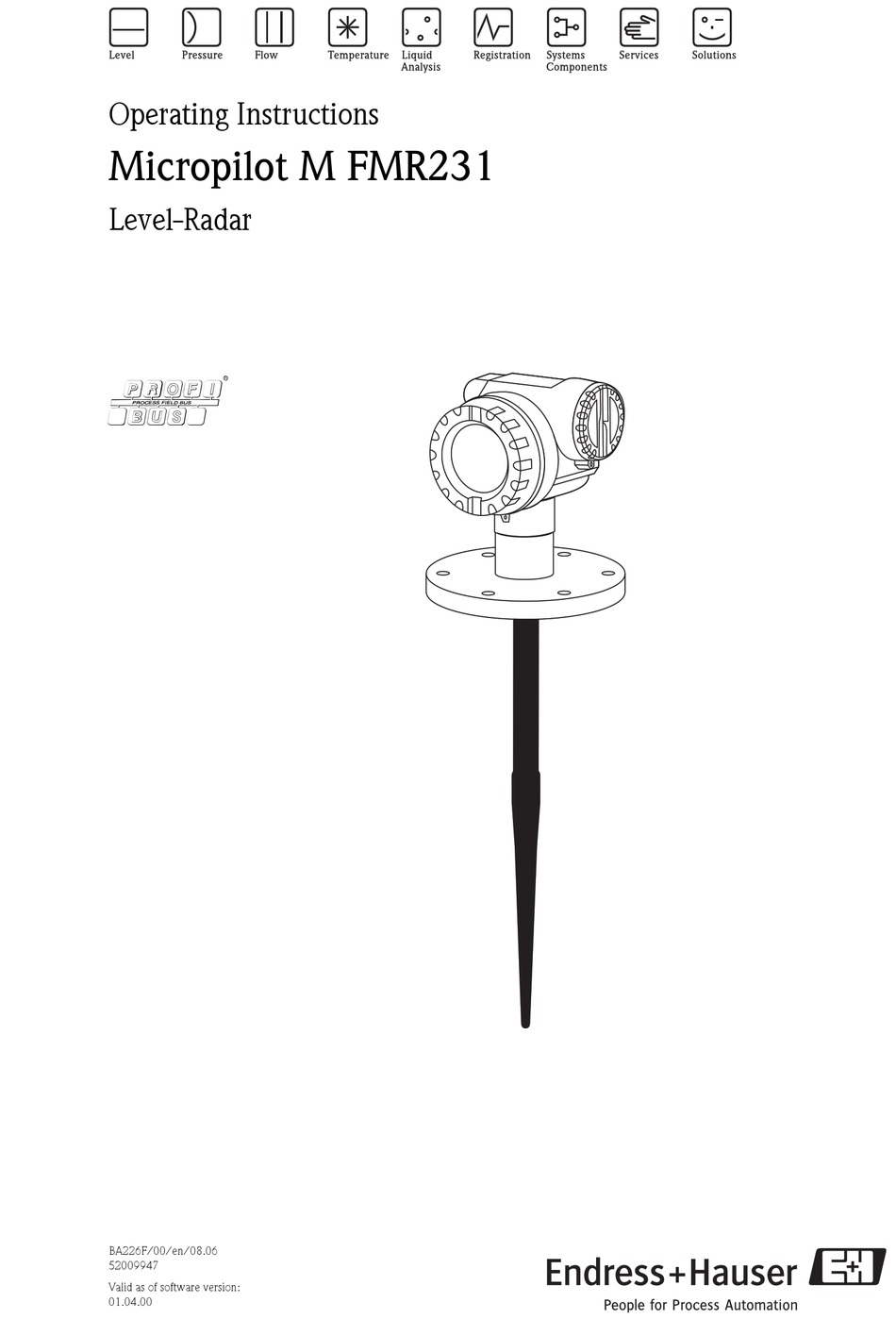

    Operating Instructions Micropilot M FMR231 Level-Radar BA226F/00/en/08.06 52009947 Valid as of software version: 01.04.00...
  • Page 2 Brief operating instructions Micropilot M FMR231 with PROFIBUS PA Brief operating instructions KA159F/00/a2/08.06 Micropilot M FMR230, FMR231 - Brief operating instructions 52006292 Contrast: measured value dist./ meas value Group selection basic setup tank shape medium process empty full pipe dist./...

  • Page 3: Table Of Contents

    Installation, commissioning and operation ..4 Contact addresses of Endress+Hauser ... 90 Operational safety ......4 Notes on safety conventions and symbols .

  • Page 4: Safety Instructions

    Safety instructions Micropilot M FMR231 with PROFIBUS PA Safety instructions Designated use The Micropilot M FMR 231 is a compact radar level transmitter for the continuous, contactless measurement of liquids, pastes and sludge. The device can also be freely mounted outside closed metal vessels because of its operating frequency of about 6 GHz and a maximum radiated pulsed energy of 1mW (average power output 1 µW).

  • Page 5: Notes On Safety Conventions And Symbols

    Micropilot M FMR231 with PROFIBUS PA Safety instructions Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin.

  • Page 6: Identification

    Identification Micropilot M FMR231 with PROFIBUS PA Identification Device designation 2.1.1 Nameplate The following technical data are given on the instrument nameplate: L00-FMR2xxxx-18-00-00-en-002 Fig. 1: Information on the nameplate of the Micropilot M with PROFIBUS PA (example) 2.1.2 Ordering structure...
  • Page 7 Micropilot M FMR231 with PROFIBUS PA Identification Ordering structure Micropilot M FMR 231 (continued) Antenna; Inactive length: A PPS antistatic 360mm/14", Viton, 316L; nozzle height max 100mm/4" PPS antistatic 510mm/20", Viton, 316L; nozzle height max 250mm/10" PTFE 390mm/15", fully insulated; nozzle height max 100mm/4"...
  • Page 8 Identification Micropilot M FMR231 with PROFIBUS PA Ordering structure Micropilot M FMR 231 (continued) Output; Operation: A 4-20mA SIL HART; 4-line display VU331, envelope curve display on site 4-20mA SIL HART; w/o display, via communication K 4-20mA SIL HART; Prepared for FHX40, remote display (Accessory) C PROFIBUS PA;...

  • Page 9: Scope Of Delivery

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 10: Mounting

    Mounting Micropilot M FMR231 with PROFIBUS PA Mounting Quick installation guide Observe orientation when installing! Installation in tank (free space): Mark on process connector facing the nearest tank wall! Turn housing The housing can be turned 350° in order to simplify access to the...

  • Page 11: Incoming Acceptance, Transport, Storage

    Micropilot M FMR231 with PROFIBUS PA Mounting Incoming acceptance, transport, storage 3.2.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 12: Installation Conditions

    Mounting Micropilot M FMR231 with PROFIBUS PA Installation conditions 3.3.1 Dimensions Housing dimensions max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing (Aluminium) L00-T12xxxx-06-00-00-en-001 max. 94 F23 housing (316L) L00-F23xxxx-06-00-00-en-001 Endress+Hauser...
  • Page 13 Micropilot M FMR231 with PROFIBUS PA Mounting Micropilot M FMR 231 - process connection, type of antenna F12 / T12 / F23 housing Threaded connection 1 ½” BSPT 1 ½”) Flange DN 50…150 DN 50 aseptic or 1 ½ NPT...
  • Page 14 Mounting Micropilot M FMR231 with PROFIBUS PA 3.3.2 Engineering hints Orientation • Recommended distance (1) wall – outer edge of nozzle: ~1/6 of tank diameter. Nevertheless the device should not be installed closer than 30 cm (12“) to the tankwall.
  • Page 15 Micropilot M FMR231 with PROFIBUS PA Mounting Measurement in a plastic tank If the outer wall of the tank is made of a non-conductive material (e.g. GRP), microwaves can also be reflected off interfering installations outside the signal beam (e.g. metallic pipes (1), ladders (2), grates (3), …).
  • Page 16 Mounting Micropilot M FMR231 with PROFIBUS PA Beam angle The beam angle is defined as the angle a where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 17 Micropilot M FMR231 with PROFIBUS PA Mounting Measuring conditions Note! • In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231. Depending on its consistence, foam can either absorb microwaves or reflect them off the foam surface.
  • Page 18 Mounting Micropilot M FMR231 with PROFIBUS PA Measuring range The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the mounting location and eventual interference reflections. The maximum configurable range is: • 20 m (65 ft) for Micropilot M FMR23x, •...
  • Page 19 Micropilot M FMR231 with PROFIBUS PA Mounting Measuring range depending on vessel type, conditions and product for Micropilot M FMR231 Storage tank Buffer tank Process tank with agitator Calm product surface Moving surfaces (e.g. continuous Turbulent surface. (e.g. intermittent filling, filling filling, from above, mixing jets).

  • Page 20: Installation Instructions

    Mounting Micropilot M FMR231 with PROFIBUS PA Installation instructions 3.4.1 Mounting kit In addition to the tool needed for flange mounting, you will require the following tool: • 4 mm/0.1" Allen wrench for turning the housing. 3.4.2 Installation in tank (free space)
  • Page 21 Micropilot M FMR231 with PROFIBUS PA Mounting spring washers inactive length beam launched inactive length here beam launched here L00-FMR231xx-17-00-00-en-002 Material PTFE Antenna length [mm / inch] 360 / 14 510 / 20 390 / 15 540 / 21 H [mm/inch] <...

  • Page 22: Post-Installation Check

    Mounting Micropilot M FMR231 with PROFIBUS PA 3.4.3 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...

  • Page 23: Wiring

    Micropilot M FMR231 with PROFIBUS PA Wiring Wiring Quick wiring guide Wiring in F12/F23 housing Before connection please note the following: " ENDRESS+HAUSER PROFIBUS devices are marked on the nameplate (1). The MICROPILOT M IP65 voltage is determined by the PROFIBUS standard and the...
  • Page 24 Wiring Micropilot M FMR231 with PROFIBUS PA Wiring in T12 housing Before connection please note the following: " ENDRESS+HAUSER MICROPILOT M PROFIBUS devices are marked on the nameplate (1). The IP65 voltage is determined by the PROFIBUS standard and the...
  • Page 25 Micropilot M FMR231 with PROFIBUS PA Wiring Wiring with M12 connector Before connection please note the following: " ENDRESS+HAUSER ● PROFIBUS devices are marked on the nameplate (1). The MICROPILOT M voltage is determined by the PROFIBUS PA standard and the...

  • Page 26: Connecting The Measuring Unit

    Wiring Micropilot M FMR231 with PROFIBUS PA Connecting the measuring unit Cable entry • Cable gland: M20x1.5 • Cable entry: G ½ or ½ NPT • PROFIBUS-PA M12 plug Supply voltage The following values are the voltages across the terminals directly at the instrument:...

  • Page 27: Recommended Connection

    Micropilot M FMR231 with PROFIBUS PA Wiring Recommended connection For maximum EMC protection please observe the following points: • The external ground terminal on the transmitter must be connected to ground. • The continuity of the cable screening between tapping points must be ensured.

  • Page 28: Operation

    Operation Micropilot M FMR231 with PROFIBUS PA Operation Quick operation guide ENDRESS + HAUSER – >3 s Return to basic setup tank shape medium property Group Selection dome ceiling unknown safety settings horizontal cyl DC: < 1.9 linearisation bypass DC: 1.9 ... 4 stilling well DC: 4 ...
  • Page 29 Micropilot M FMR231 with PROFIBUS PA Operation 5.1.1 General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups. The function groups that are available include, e.g.: "basic setup", "safety settings", "output", "display", etc.

  • Page 30: Display And Operating Elements

    Operation Micropilot M FMR231 with PROFIBUS PA Display and operating elements (liquid crystal display) Orde Orde Ser.- Ser.- r Cod r Cod No.: No.: sber surin sber surin eich eich g rang g rang U 16... U 16..20 .
  • Page 31 Micropilot M FMR231 with PROFIBUS PA Operation 5.2.1 Display Liquid crystal display (LCD): Four lines with 20 characters each. Display contrast adjustable through key combination. Headline Position indicator ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Function groups -> Functions HOME F000 F001 F002 F003 F004 ...
  • Page 32 Operation Micropilot M FMR231 with PROFIBUS PA 5.2.3 Key assignment The operating elements are located inside the housing and are accessible for operation by opening the lid of the housing. Function of the keys Key(s) Meaning Navigate upwards in the selection list...

  • Page 33: Local Operation

    Micropilot M FMR231 with PROFIBUS PA Operation Local operation 5.3.1 Locking of the configuration mode The Micropilot can be protected in two ways against unauthorised changing of instrument data, numerical values or factory settings: "unlock parameter" (0A4): A value <> 2457 (e.g. 2450) must be entered in "unlock parameter" (0A4) in the "diagnostics"...
  • Page 34 There is no need to change these parameters under normal circumstances and consequently, they are protected by a special code known only to the E+H service organization. Please contact Endress+Hauser if you have any questions.
  • Page 35 Micropilot M FMR231 with PROFIBUS PA Operation 5.3.3 Factory settings (Reset) " Caution! A reset sets the instrument back to the factory settings. This can lead to an impairment of the measurement. Generally, you should perform a basic setup again following a reset.

  • Page 36: Display And Acknowledging Error Messages

    Operation Micropilot M FMR231 with PROFIBUS PA Display and acknowledging error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local display. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 37: Profibus Pa Communication

    Micropilot M FMR231 with PROFIBUS PA Operation PROFIBUS PA communication 5.5.1 Synopsis personal computer e.g. with Commuwin II or ToF Tool and Profiboard resp. Proficard segment coupler PROFIBUS DP ENDRESS + HAUSER PROFIBUS PA operating and display module VU 331 ENDRESS + HAUSER –...
  • Page 38 Operation Micropilot M FMR231 with PROFIBUS PA 5.5.2 Device address Selecting the device address • Every PROFIBUS-PA device must be given an address. If the address is not set correctly, the device will not be recognised by the process control system.
  • Page 39 Micropilot M FMR231 with PROFIBUS PA Operation 5.5.3 Device database and type files (GSD) A device database file (GSD) contains a description of the properties of the PROFIBUS-PA device, e.g. the supported transmission rates and the type and format of the digital information output to the PLC.
  • Page 40 Operation Micropilot M FMR231 with PROFIBUS PA 5.5.4 Cyclic data exchange Block model of the Micropilot M L00-FMR230xx-02-00-00-en-001 The block model shows, which data are exchanged continously (i.e. by cyclic data transfer) between the Micropilot M and the PLC. The numbers refer to the function groups and functions: •...
  • Page 41 Micropilot M FMR231 with PROFIBUS PA Operation Configuration of the cyclic data telegram Use the configuration software of your PLC in order to compose the data telegram from these modules in one of the following ways: Main value In order to transmit the main measured value, selct the module "Main Process Value".
  • Page 42 Operation Micropilot M FMR231 with PROFIBUS PA IEEE-745 Floating Point Number The measured value is transmitted as a IEEE 754 floating point number, whereby (E-127) Measured value = (-1) x (1+F) Byte 1 Byte 2 Bit 7 Bit 6 Bit 5...
  • Page 43 Micropilot M FMR231 with PROFIBUS PA Operation Status codes The status codes comprise one byte and have got the following meaning: Status- Device status Significance Primary value Secondary value Code 0C Hex device error 0F Hex device error 1F Hex...
  • Page 44 Operation Micropilot M FMR231 with PROFIBUS PA 5.5.5 Acyclic data exchange Acyclic data exchange allows device parameters to be changed independently of the communication between the device and a PLC. Acyclic data exchange is used • to transmit device parameters during commissioning and maintenance;...
  • Page 45 Micropilot M FMR231 with PROFIBUS PA Operation 5.5.6 Slot/index tables The device parameters are listed in the following tables. The parameters are accessed via the slot and index number. The Analog-Input and physical blocks contain standard parameters, block parameters and manufacturer-specific parameters.
  • Page 46 Operation Micropilot M FMR231 with PROFIBUS PA Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class HI HI Limit FLOAT static HI Limit FLOAT static LO Limit FLOAT static LO LO Limit FLOAT static 44-45...
  • Page 47 Micropilot M FMR231 with PROFIBUS PA Operation Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Device certification OSTRING constant Security locking V9H9 UNSIGNED16 non-vol. Factory reset V9H5 UNSIGNED16 non-vol. Descriptor OSTRING static Device message...
  • Page 48 Operation Micropilot M FMR231 with PROFIBUS PA E+H specific level transducer block Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Standard parameters Block data DS-32* constant Static revision UNSIGNED16 non-vol. Device tag OSTRING static...
  • Page 49 Micropilot M FMR231 with PROFIBUS PA Operation Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class start mapping V4H3 UNSIGNED8 static pres. map. dist. V4H4 FLOAT dynamic cust. Tank map V4H5 UNSIGNED8 static echo quality...
  • Page 50 • FOUNDATION Fieldbus, PROFIBUS PA and HART via the FXA193/FXA291 service interface Note! You can use the ToF Tool to configure the Endress+Hauser parameters for devices with "FOUNDATION Fieldbus signal". You need an FF configuration program to be able to configure all the FF-specific parameters and to integrate the device into an FF network.
  • Page 51 Micropilot M FMR231 with PROFIBUS PA Operation FieldCare supports the following functions: • Configuration of transmitters in online operation • Singal analysis via envelope curve • Tank linearisation • Loading and saving device data (upload/download) • Documentation of the measuring point Connection options: •...
  • Page 52 Operation Micropilot M FMR231 with PROFIBUS PA Tank linearisation MicropilotM-en-307 Endress+Hauser...

  • Page 53: Commissioning

    Micropilot M FMR231 with PROFIBUS PA Commissioning Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist “Post installation check” (see Page 22). • Checklist “Post connection check” (see Page 27).

  • Page 54: Basic Setup

    Commissioning Micropilot M FMR231 with PROFIBUS PA Basic Setup tank shape flange: dome ceiling reference point of measurement measuring cond. Unknown measuring cond. Standard empty calibr. full calibr. pipe diameter (for bypass/stilling well) mapping E = empty calibr. (= zero point) setting in 005 F = full calibr.
  • Page 55 Micropilot M FMR231 with PROFIBUS PA Commissioning The basic setup is sufficient for successful commissioning in most applications. Complex measuring operations necessitate additional functions that the user can use to customise the Micropilot as necessary to suit his specific requirements. The functions available to do this are described in detail in the BA 221F.

  • Page 56: Basic Setup With The Vu 331

    Commissioning Micropilot M FMR231 with PROFIBUS PA Basic Setup with the VU 331 Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit" (042) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 57 Micropilot M FMR231 with PROFIBUS PA Commissioning Function "medium property" (003) ⇒ ENDRESS + HAUSER – This function is used to select the dielectric constant. Selection: • unknown • DC: < 1.9 • DC: 1.9 ... 4 • DC: 4 ... 10 •...
  • Page 58 Commissioning Micropilot M FMR231 with PROFIBUS PA Function "process cond." (004) ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • calm surface • turb. surface • agitator • fast change • test:no filter...
  • Page 59 Micropilot M FMR231 with PROFIBUS PA Commissioning Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero). L00-FMR2xxxx-14-00-06-en-008 " Caution! For dish bottoms or conical outlets, the zero point should be no lower than the point at which the radar beam hits the bottom of the tank.
  • Page 60 Commissioning Micropilot M FMR231 with PROFIBUS PA Function "full calibr." (006) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the minimum level to the maximum level (=span). L00-FMR2xxxx-14-00-06-en-009 Note! If bypass or stilling well was selected in the "tank shape" (002) function, the pipe diameter is requested in the following step.
  • Page 61 Micropilot M FMR231 with PROFIBUS PA Commissioning Function "pipe diameter" (007) ⇒ ENDRESS + HAUSER – This function is used to enter the pipe diameter of the stilling well or bypass pipe. 100% 100% ø ø L00-FMR2xxxx-14-00-00-en-011 Microwaves propagate more slowly in pipes than in free space. This effect depends on the inside diameter of the pipe and is automatically taken into account by the Micropilot.
  • Page 62 Commissioning Micropilot M FMR231 with PROFIBUS PA display (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
  • Page 63 Micropilot M FMR231 with PROFIBUS PA Commissioning dist. too big • This error cannot be remedied by interference echo mapping • Check the application parameters (002), (003), (004) and "empty calibr." (005) dist. unknown If the actual distance is not known, no mapping can be carried out.
  • Page 64 Commissioning Micropilot M FMR231 with PROFIBUS PA display (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
  • Page 65 Micropilot M FMR231 with PROFIBUS PA Commissioning 6.4.2 Envelope curve with VU 331 After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) is recommended. Function "plot settings" (0E1) ⇒...
  • Page 66 Commissioning Micropilot M FMR231 with PROFIBUS PA Function "envelope curve display" (0E3) The envelope curve is displayed in this function. You can use it to obtain the following information: quality of evaluated echo full calibr. evaluated echo is marked empty calibr.
  • Page 67 Micropilot M FMR231 with PROFIBUS PA Commissioning Move mode Then press to switch to Move mode. Either is displayed. • shifts the curve to the right. • shifts the curve to the left. L00-FMxxxxxx-07-00-00-yy-008 Vertical Zoom mode Press once more to switch to Vertical Zoom mode.

  • Page 68: Basic Setup With The Endress+Hauser Oprating Program

    Commissioning Micropilot M FMR231 with PROFIBUS PA Basic Setup with the Endress+Hauser oprating program To carry out the basic setup with the operating program, proceed as follows: • Start the operating program and establish a connection. • Select the "basic setup" function group in the navigation window.
  • Page 69 Micropilot M FMR231 with PROFIBUS PA Commissioning Basic Setup step 2/4: • Enter the application parameters: – tank shape – medium property – process cond. MicropilotM-en-302 Basic Setup step 3/4: If "dome ceiling", "horizontal cyl", "..." is selected in the "tank shape" function, the following display appears on the screen: •...
  • Page 70 Commissioning Micropilot M FMR231 with PROFIBUS PA Basic Setup step 4/4: • This step starts the tank mapping • The measured distance and the current measured value are always displayed in the header MicropilotM-en-304 6.5.1 Signal analysis via envelope curve After the basic setup, an evaluation of the measurement using the envelope curve is recommended.
  • Page 71 Micropilot M FMR231 with PROFIBUS PA Commissioning 6.5.2 User-specific applications (operation) For details of setting the parameters of user-specific applications, see separate documentation BA221F/00/en "Description of the instrument functions for Micropilot M" on the enclosed CD- ROM. Endress+Hauser...

  • Page 72: Maintenance

    They contain the related replacement instructions. All the spare parts kits which you can order from Endress+Hauser for repairs to the Micropilot M are listed with their order numbers on and . Please contact Endress+Hauser Service for further information on service and spare parts.

  • Page 73: Accessories

    L00-FMR2xxxx-00-00-06-en-001 Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or a notebook. For details refer to TI405C/07/en. Note! For the following Endress+Hauser instruments you need the "ToF Adapter FXA291" as an additional accessory: •...
  • Page 74 Micropilot M FMR231 with PROFIBUS PA ToF Adapter FXA291 The ToF Adapter FXA291 connects the Commubox FXA291 via the USB interface of a personal computer or a notebook to the following Endress+Hauser instruments: • Cerabar S PMC71, PMP7x • Deltabar S PMD7x, FMD7x •...
  • Page 75 Micropilot M FMR231 with PROFIBUS PA Accessories Remote display FHX40 Wall-mounting Pipe-mounting (without mounting bracket) (mounting bracket and plate supplied optionally, s. product structure) Separate housing FHX 40 (IP 65) Micropilot M Levelflex M Prosonic M O rd O rd...

  • Page 76: Trouble-Shooting

    Trouble-shooting Micropilot M FMR231 with PROFIBUS PA Trouble-shooting Trouble-shooting instructions Micropilot M FMR 2xx -Trouble Shooting Check voltage and Not ok Instrument does compare it with the Connect the Instrument works? Ready not respond specifications on the correct voltage nameplate.

  • Page 77: System Error Messages

    Micropilot M FMR231 with PROFIBUS PA Trouble-shooting System error messages Code Description Possible cause Remedy A102 checksum error device has been powered off before data reset; general reset & new could be stored; avoid emc problem; calibr.required emc problem; if alarm prevails after reset,...
  • Page 78 Trouble-shooting Micropilot M FMR231 with PROFIBUS PA Code Description Possible cause Remedy E641 no usable echo echo lost due to application conditions or check installation; channel 1 built up on antenna optimize orientation of antenna; check calibr. clean antenna (cf. OM)

  • Page 79: Application Errors

    Micropilot M FMR231 with PROFIBUS PA Trouble-shooting Application errors Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error mes- 1. See table of error messages has occurred. sages (see Page 77) (see Page 77) →...
  • Page 80 Trouble-shooting Micropilot M FMR231 with PROFIBUS PA Error Output Possible cause Remedy → If the surface is not Signal is weakened by 1. Carry out tank mapping basic calm (e.g. filling, the rough surface – the setup emptying, agitator 100% interference echoes are 2.

  • Page 81: Orientation Of The Micropilot

    Micropilot M FMR231 with PROFIBUS PA Trouble-shooting Orientation of the Micropilot For orientation a marker is found on the flange or threaded boss of the Micropilot. During installation this must be oriented as follows (see Page 10): • In tanks: to the vessel wall •...
  • Page 82 Trouble-shooting Micropilot M FMR231 with PROFIBUS PA L00-FMRxxxxx-19-00-00-en-004 Fig. 6: Vessel empty, no interference echo L00-FMRxxxxx-19-00-00-en-005 Fig. 7: Vessel empty, interference echo obtained Fix the flange or threaded boss in this position. If necessary, replace the seal. Carry out tank mapping, see Page 62.

  • Page 83: Spare Parts

    (see Page 6s. Seite 6 ff.). The corresponding spare part number also appears on each spare part. Installation instructions are given on the instruction card that is also delivered. Spare parts Micropilot M FMR231, F12 housing with combined wiring and electronics compartment O rd d e : r.

  • Page 84: Endress+Hauser

    Trouble-shooting Micropilot M FMR231 with PROFIBUS PA 10 Housing 543120-0022 Housing F12, Aluminium, G1/2 543120-0023 Housing F12, Aluminium, NPT1/2 543120-0024 Housing F12, Aluminium, M20 52001992 Housing F12, Aluminium, M20, PA-plug 52008556 Housing F12, Aluminium, M20, FF-plug 11 Hood for terminal compartment...

  • Page 85: Endress+Hauser

    Micropilot M FMR231 with PROFIBUS PA Trouble-shooting 55 Rod antenna 543109-0000 Rod antenna, PPS, + Viton O-ring 65 Sealing kit 535720-9010 consists of: 2 x gasket Pg13.5 FA 2 x O-ring 17.0x2.0 EPDM 1 x O-ring 49.21x3.53 EPDM 2 x O-ring 17.12x2.62 FKM 1 x O-ring 113.9x3.63 EPDM...

  • Page 86: Endress+Hauser

    Trouble-shooting Micropilot M FMR231 with PROFIBUS PA Spare parts Micropilot M FMR231, T12 housing with separate wiring and electronics compartment O rd d e : r. -N I L O o .: s s b e re a s u...

  • Page 87: Endress+Hauser

    Micropilot M FMR231 with PROFIBUS PA Trouble-shooting 10 Housing 543180-0022 Housing T12, Aluminium, coated, G1/2, PAL 543180-0023 Housing T12, Aluminium, coated, NPT1/2, PAL 543180-0024 Housing T12, Aluminium, coated, M20, PAL 543180-1023 Housing T12, Aluminium, NPT1/2, PAL, cover, EEx d 52006204...

  • Page 88: Endress+Hauser

    Trouble-shooting Micropilot M FMR231 with PROFIBUS PA 55 Rod antenna 543109-0000 Rod antenna, PPS, + Viton O-ring 65 Sealing kit 535720-9010 consists of: 2 x gasket Pg13.5 FA 2 x O-ring 17.0x2.0 EPDM 1 x O-ring 49.21x3.53 EPDM 2 x O-ring 17.12x2.62 FKM 1 x O-ring 113.9x3.63 EPDM...

  • Page 89: Endress+Hauser

    Spare parts Micropilot M FMR231, F23 housing with combined wiring and electrinics compartment Stainless steel housing on request! 20 Cover 52018670 Cover F23, 316L, sight glass, gasket 52018671 DeCoverckel F23, 316L, gasket Note! Further spare parts please find on the pages of Micropilot M FMR231, F12 housing. Endress+Hauser...

  • Page 90: Return

    Micropilot M FMR231 with PROFIBUS PA Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present.

  • Page 91: Technical Data

    Micropilot M FMR231 with PROFIBUS PA Technical data Technical data 10.1 Additional technical data 10.1.1 Input Measured variable The measured variable is the distance between a reference point and a reflective surface (i.e. medium surface). The level is calculated based on the tank height entered.
  • Page 92 Technical data Micropilot M FMR231 with PROFIBUS PA Resolution Digital / analog in % 4…20 mA • FMR 231: 1mm / 0.03 % of measuring range Reaction time The reaction time depends on the parameter settings (min. 1 s). In case of fast level changes, the instrument needs the reaction time to indicate the new value.
  • Page 93 Micropilot M FMR231 with PROFIBUS PA Technical data 10.1.4 Operating conditions: Environment Ambient temperature range Ambient temperature for the transmitter: -40 °C ... +80 °C (-40 °F … +176 °F), -50 °C (-58 °F) on request. The functionality of the LCD display may be limited for temperatures Ta<-20 °C and Ta>+60 °C.
  • Page 94 • F23 housing: approx 7.4 kg + weight of flange 10.1.7 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. RF approvals R&TTE, FCC Overspill protection german WHG, see ZE 244F/00/de.
  • Page 95 Micropilot M FMR231 with PROFIBUS PA Technical data External standards and EN 60529 guidelines Protection class of housing (IP-code) EN 61010 Safety regulations for electrical devices for measurement, control, regulation and laboratory use. EN 61326 Emissions (equipment class B), compatibility (appendix A - industrial area)
  • Page 96 Technical data Micropilot M FMR231 with PROFIBUS PA 10.1.8 Supplementary Documentation Note! This supplementary documentation can be found on our product pages on www.endress.com. Supplementary • Technical Information (TI345F/00/en) Documentation • Operating Instructions "Description of instrument functions" (BA221F/00/en) • Safety Manual "Functional Safety Manual" (SD150F/00/en).
  • Page 97 Micropilot M FMR231 with PROFIBUS PA Technical data Endress+Hauser...

  • Page 98: Appendix

    Appendix Micropilot M FMR231 with PROFIBUS PA Appendix 11.1 Operating menu PA (display modul), ToF Tool basic setup tank shape medium cond. process cond. empty calibr. full calibr. dome ceiling unknown standard enter value enter value horizontal cyl. DK: < 1.9 calm surface DK: 1.9 …...
  • Page 99 Micropilot M FMR231 with PROFIBUS PA Appendix dist./meas.value check distance range of mapping start mapping dist./meas.value distance = ok input of D and L dist. too small mapping range are displayed D and L manual are displayed dist. unknown dist. too big safety distance in safety dist.

  • Page 100: Description Of Functions

    Appendix Micropilot M FMR231 with PROFIBUS PA 11.2 Description of functions Note! A detailed description of the function groups, functions and parameters is given in the documentation BA 221F/00/en - a description of the instrument functions of the Micropilot M.

  • Page 101: Function And System Design

    Micropilot M FMR231 with PROFIBUS PA Appendix 11.3 Function and system design 11.3.1 Function (Measuring principle) The Micropilot is a "downward-looking" measuring system, operating based on the time-of-flight method. It measures the distance from the reference point (process connection) to the product surface.
  • Page 102 Appendix Micropilot M FMR231 with PROFIBUS PA Output The Micropilot is commissioned by entering an empty distance E (=zero), a full distance F (=span) and an application parameter. The application parameter automatically adapts the instrument to the process cond.. The data points “E” and “F” correspond with 4mA and 20mA for instruments with current output.
  • Page 103 • with display and operating module VU 331, • with a Personal Computer, FXA 193 and the operating software ToF Tool. The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle (radar, ultrasonic, guided micro-impulse). It assists with commissioning, securing data, signal analysis and documentation of the measuring point.

  • Page 104: Index

    Micropilot M FMR231 with PROFIBUS PA Index Index accessories ........73 key assignment .
  • Page 105 Micropilot M FMR231 with PROFIBUS PA Index tank shape........56 technical data .
  • Page 106 Micropilot M FMR231 with PROFIBUS PA Index Endress+Hauser...
  • Page 108 www.endress.com/worldwide BA226F/00/en/08.06 52009947 CCS/FM+SGML 6.0 ProMoDo 52008594...
