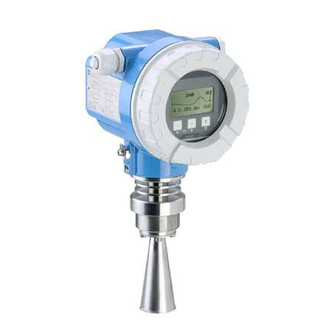

Endress+Hauser Micropilot M FMR240 Operating Instructions Manual

Level-radar
Hide thumbs Also See for Micropilot M FMR240:

Advertisement

Quick Links

Download this manual
Operating Instructions
Micropilot M FMR240
Level-Radar
9
BA230F/00/en/06.07
71030733
Valid as of software version:
01.05.00

Advertisement

loading

Related Manuals for Endress+Hauser Micropilot M FMR240

Summary of Contents for Endress+Hauser Micropilot M FMR240

  • Page 1 Operating Instructions Micropilot M FMR240 Level-Radar BA230F/00/en/06.07 71030733 Valid as of software version: 01.05.00...
  • Page 2 Brief operating instructions Micropilot M FMR240 with FOUNDATION Fieldbus Brief operating instructions Micropilot M FMR240/244/245/250 - Brief operating instructions KA235F/00/a2/08.06 52025245 Contrast: measured dist./ value meas value Group selection media tank tank medium process empty full pipe dist./ check range of...
  • Page 3 Quick installation guide ..... 10 9.10 Contact addresses of Endress+Hauser ... 99 Incoming acceptance, transport, storage .
  • Page 4 Safety instructions Micropilot M FMR240 with FOUNDATION Fieldbus Safety instructions Designated use The Micropilot M FMR 240 is a compact radar level transmitter for the continuous, contactless measurement of liquids, pastes and sludge. The device can also be freely mounted outside closed metal vessels because of its operating frequency of about 26 GHz and a maximum radiated pulsed energy of 1mW (average power output 1 μW).
  • Page 5 Micropilot M FMR240 with FOUNDATION Fieldbus Safety instructions Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin.
  • Page 6 Identification Micropilot M FMR240 with FOUNDATION Fieldbus Identification Device designation 2.1.1 Nameplate The following technical data are given on the instrument nameplate: L00-FMR2xxxx-18-00-00-en-003 Fig. 1: Information on the nameplate of the Micropilot M with Foundation Fieldbus (example) 2.1.2 Ordering structure...
  • Page 7 Micropilot M FMR240 with FOUNDATION Fieldbus Identification Ordering structure Micropilot M FMR 240 (continued) Antenna seal; Temperature: V FKM Viton; -20°C…150°C/-4°F…302°F FKM Viton GLT; -40°C…150°C/-40°F…302°F K Kalrez; -20°C…150°C/-4°F…302°F Antenna extension without antenna extension 100 mm / 4" antenna extension Special version...
  • Page 8 Identification Micropilot M FMR240 with FOUNDATION Fieldbus Ordering structure Micropilot M FMR 240 (continued) Output; Operation: A 4-20mA SIL HART; 4-line display VU331, envelope curve display on site 4-20mA SIL HART; w/o display, via communication K 4-20mA SIL HART; Prepared for FHX40, remote display (Accessory) C PROFIBUS PA;...
  • Page 9 The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.
  • Page 10 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus Mounting Quick installation guide Observe orientation when installing! Turn housing Installation in tank (free space): The housing can be turned 350° in order to simplify access to the Mark on process connector facing the nearest tank wall!
  • Page 11 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting Incoming acceptance, transport, storage 3.2.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
  • Page 12 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus Installation conditions 3.3.1 Dimensions Housing dimensions max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing (Aluminium) L00-T12xxxx-06-00-00-en-001 max. 94 F23 housing (316L) L00-F23xxxx-06-00-00-en-001 Endress+Hauser...
  • Page 13 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting Micropilot M FMR 240 - process connection, type of antenna F12 / T12 / F23 housing Threaded connection Flange DN 50…150 1 ½” BSPT (R 1 ½”) 3" Tri-Clamp or equivalent or 1 ½ NPT ISO 2852 Ø...
  • Page 14 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus 3.3.2 Engineering hints Orientation • Recommended distance (1) wall – outer edge of nozzle: ~1/6 of tank diameter. Nevertheless the device should not be installed closer than 15 cm (6“) to the tankwall.
  • Page 15 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting Measurement in a plastic tank If the outer wall of the tank is made of a non-conductive material (e.g. GRP), microwaves can also be reflected off interfering installations outside the signal beam (e.g. metallic pipes (1), ladders (2), grates (3), …).
  • Page 16 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus Beam angle The beam angle is defined as the angle a where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 17 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting Measuring conditions Note! • In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231. Depending on its consistence, foam can either absorb microwaves or reflect them off the foam surface.
  • Page 18 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus Measuring range The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the mounting location and eventual interference reflections. The maximum configurable range is: • 20 m (65 ft) for Micropilot M FMR23x, •...
  • Page 19 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting Measuring range depending on vessel type, conditions and product for Micropilot M FMR240 Standard: With additional option D (E): With additional option F (G): max. measuring range = 20 m (65 ft) max. measuring range = 40 m (131 ft) max.
  • Page 20 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus FMR240: 40 mm (1½") 50 mm (2") 80 mm (3") 100 mm (4") Process tank with agitator (10) (10) (10) (10) (10) (13) (16) (16) (16) (16) (16) (16) (23) (24) (27) (27)
  • Page 21 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting Installation instructions 3.4.1 Mounting kit In addition to the tool needed for flange mounting resp. a key AF60, you will require the following tool: • 4 mm/0.1" Allen wrench for turning the housing.
  • Page 22 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus Standard installation When mounting in a tank, please observe engineering hints on Page 14 and the following points: • Marker is aligned towards tank wall. • The marker is always exactly in the middle between two bolt-holes in the flange.
  • Page 23 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting 3.4.3 Installation in stilling well Optimum mounting position marker at instrument flange or threaded boss 1½” BSPT (R 1½”), G 1½" (FMR 244) DN50 DN80…150 1½ NPT ANSI 2” ANSI 3…6” L00-FMR244xx-17-00-00-en-004 Standard installation...
  • Page 24 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus Examples for the construction of stilling wells Micropilot M Micropilot M FMR 240 FMR 240 marker threaded connection marker e.g. welding neck flange 1½” BSPT ( R 1½”), DIN 2633 G 1½" (FMR 244) or 1½...
  • Page 25 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting 3.4.4 Installation in bypass Optimum mounting position L00-FMR230xx-17-00-00-en-007 Standard installation For installations in a stilling well, follow the engineering hints on Page 14 and note the following points: • Marker is aligned perpendicular (90°) to tank connectors.
  • Page 26 Mounting Micropilot M FMR240 with FOUNDATION Fieldbus Example for the construction of a bypass. Micropilot M FMR230, FMR240, FMR245 marker e.g. welding neck flange DIN 2633 full bore ball valve 20 cm 8” 100 % 20 cm 8” Diameter of...
  • Page 27 Micropilot M FMR240 with FOUNDATION Fieldbus Mounting 3.4.5 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...
  • Page 28 Wiring Micropilot M FMR240 with FOUNDATION Fieldbus Wiring Quick wiring guide Wiring in F12/F23 housing " Before connection please note the following: ENDRESS+HAUSER ● Foundation Fieldbus devices are marked on the nameplate MICROPILOT M (1). The voltage is determined by the Foundation Fieldbus...
  • Page 29 Micropilot M FMR240 with FOUNDATION Fieldbus Wiring Wiring in T12 housing " Before connection please note the following: ENDRESS+HAUSER ● Foundation Fieldbus devices are marked on the nameplate MICROPILOT M (1). The voltage is determined by the Foundation Fieldbus Caution!
  • Page 30 Wiring Micropilot M FMR240 with FOUNDATION Fieldbus Wiring with Foundation Fieldbus connector Before connection please note the following: " ENDRESS+HAUSER ● Foundation Fieldbus devices are marked on the nameplate MICROPILOT M (1). The voltage is determined by the Foundation Fieldbus...
  • Page 31 Micropilot M FMR240 with FOUNDATION Fieldbus Wiring Connecting the measuring unit Supply voltage The following values are the voltages across the terminals directly at the instrument: Type Terminal voltage minimum maximum standard 32 V EEx ia (FISCO model) 17, 5 V...
  • Page 32 This chapter contains the following sections: • 5.1 Operating options • 5.2 Operation with the display and operating module VU331 • 5.3 Operation with an Endress+Hauser operating software • 5.4 Operation with a FOUNDATION Fieldbus configuration software • 5.5 Operatin with the handhelt terminal DXR375/FC375...
  • Page 33 On-site operation Options for on-site operation • Display and operating module VU331 • Endress+Hauser operating software ("ToF Tool - FieldTool Package" or "FieldCare") Parameter access by on-site operation The following parameters can be accessed by on-site operation: • Parameters of the device specific blocks (Sensor Block, Diagnostic Block, Display Block) •...
  • Page 34 Operation Micropilot M FMR240 with FOUNDATION Fieldbus Operation with the display and operating module VU331 (liquid crystal display) Orde Orde Ser.- Ser.- r Cod r Cod No.: No.: sber surin sber surin eich eich g rang g rang U 16...
  • Page 35 Micropilot M FMR240 with FOUNDATION Fieldbus Operation 5.2.1 Display Liquid crystal display (LCD): Four lines with 20 characters each. Display contrast adjustable through key combination. Headline Position indicator ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Function groups -> Functions HOME F000 F001 F002 F003 F004 ...
  • Page 36 Operation Micropilot M FMR240 with FOUNDATION Fieldbus 5.2.3 Function of the keys Key(s) Meaning Navigate upwards in the selection list Edit numeric value within a function Navigate downwards in the selection list Edit numeric value within a function Navigate to the left within a function group Navigate to the right within a function group, confirmation.
  • Page 37 Micropilot M FMR240 with FOUNDATION Fieldbus Operation 5.2.4 The operating menu General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups.
  • Page 38 Operation Micropilot M FMR240 with FOUNDATION Fieldbus Navigation within the menu ENDRESS + HAUSER – >3 s media type basic setup Return to liquids tank shape medium property safety settings Group Selection solids dome ceiling unknown linearisation horizontal cyl DC: < 1.9 extended calibr.
  • Page 39 FieldCare FieldCare is an Endress+Hauser asset management tool based on FDT technology. With FieldCare, you can configure all Endress+Hauser devices as well as devices from other manufacturers that support the FDT standard. The following operating systems are supported: WinNT4.0, Win2000 and Windows XP.
  • Page 40 Operation Micropilot M FMR240 with FOUNDATION Fieldbus Connection with FXA193 (RS232C) ToF Tool-Fieldtool Package FieldCare FXA193 RS232C L00-FMxxxxxx-04-00-00-yy-023 For details refer to Technical Information TI063D (FXA193). Connection with FXA291 (USB) ToF Tool-Fieldtool Package FieldCare Commubox Adapter FXA291 FXA291 L00-FMxxxxxx-04-00-00-yy-024 For details refer to:...
  • Page 41 Micropilot M FMR240 with FOUNDATION Fieldbus Operation Signal analysis via envelope curve MicropilotM-en-306 Tank linearisation MicropilotM-en-307 Endress+Hauser...
  • Page 42 Operation Micropilot M FMR240 with FOUNDATION Fieldbus Operation with a FOUNDATION Fieldbus configuration program 5.4.1 FOUNDATION Fieldbus configuration programs The user can obtain special configuration and operating programs offered by different manufacturers for use in configuration. These can be used for configuring both the FOUNDATION Fieldbus functions and all the device-specific parameters.
  • Page 43 A FOUNDATION Fieldbus configuration tool offers two types of parameter representation: • Representation by parameter name Examples: "PAROPERATIONCODE", "PARRESET" • Representation by parameter label (identical to the labels on the display module VU331 and in an Endress+Hauser operation tool) Examples: "unlock parameter", "reset" Endress+Hauser...
  • Page 44 Operation Micropilot M FMR240 with FOUNDATION Fieldbus Operation with the handheld terminal DXR375/FC375 5.5.1 Connection The handheld terminal is directly connected to the FOUNDATION Fieldbus communication line. An additonal communication resistor is not required. 5.5.2 Device Descriptions Make sure you have loaded the valid Device Description files (DDs). DDs can be downloaded from the internet at "www.fieldcommunicator.com".
  • Page 45 Micropilot M FMR240 with FOUNDATION Fieldbus Operation 5.5.4 Example basic setup dsdmdm df das. asdas fa asas la. media type: liquids Fieldbus Live Device List Number of Devices found = 1 liquids Address solids E+H_MICROPILOT_M_XXXXXXX 247 375 Field Communicator NEXT...
  • Page 46 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning This chapter consists of the following sections: • 6.1 Function check • 6.2 Unlocking the device • 6.3 Parameter reset • 6.4 Commissioning with display and operating module VU331 • 6.5 Commissioning with Endress+Hauser operating software •...
  • Page 47 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning 6.2.2 Key combination (display and operating module VU331) Locking Press S, O and F simultaneously. Unlocking If you try to change a parameter, the following appears: L00-fmrxf0a4-20-00-00-de-001 Press S, O and F simultaneously. The "unlock parameter" (0A4) function appears.
  • Page 48 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Resetting the device It is advisable to reset the device parameters before the commissioning if you want to use a device with an unknown history. 6.3.1 Resetting the parameters of the FOUNDATION Fieldbus func-...
  • Page 49 – "inactive": deactivates the tank map but does not delete it. It can be re-activated when required. – "active": activates the tank map. Resetting the tank map with an Endress+Hauser operating program In the function group "extended calibr." select the "cust. tank map" (055) function. Select the required option ("reset", "inactive" or "active") Resetting the tank map with a FOUNDATION Fieldbus configuration tool In the Sensor Block select the parameter PARCUSTTANKMAP (cust tank map).
  • Page 50 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning by the display and operatig module VU331 6.4.1 Power up instrument After switching on the supply voltage, the instrument is first initialised. L00-fmp-fxxx-20-00-00-en-003 Then the following appear for approximately five seconds: • Device type •...
  • Page 51 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning 6.4.2 Application parameters Function "media type" (001) ⇒ ENDRESS + HAUSER – This function is used to select the media type. Selection: • liquid • solid With the selection "liquid" only the With the selection "solids" only the...
  • Page 52 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Function "tank shape" (002), liquids only ⇒ ENDRESS + HAUSER – This function is used to select the tank shape. Selection: • dome ceiling • horizontal cyl • bypass • stilling well • flat ceiling •...
  • Page 53 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning Function "medium property" (003), liquids only ⇒ ENDRESS + HAUSER – This function is used to select the dielectric constant. Selection: • unknown • DC: < 1.9 • DC: 1.9 ... 4 • DC: 4 ... 10 •...
  • Page 54 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Function "process cond." (004) , liquids only ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • calm surface • turb. surface • agitator • fast change •...
  • Page 55 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning Function "vessel / silo" (00A), solids only ⇒ ENDRESS + HAUSER – This function is used to select the vessel / silo. Selection: • unknown • metal silo • concrete silo • bin / bunker •...
  • Page 56 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Function "process cond." (00C), solids only ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • fast change • slow change • test:no filter Endress+Hauser...
  • Page 57 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero). L00-FMR2xxxx-14-00-06-en-008 " Caution! For dish bottoms or conical outlets, the zero point should be no lower than the point at which the radar beam hits the bottom of the tank.
  • Page 58 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Function "full calibr." (006) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the minimum level to the maximum level (=span). L00-FMR2xxxx-14-00-06-en-009 Note! If bypass or stilling well was selected in the "tank shape" (002) function, the pipe diameter is requested in the following step.
  • Page 59 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning Function "pipe diameter" (007) ⇒ ENDRESS + HAUSER – This function is used to enter the pipe diameter of the stilling well or bypass pipe. 100% 100% ø ø L00-FMR2xxxx-14-00-00-en-011 Microwaves propagate more slowly in pipes than in free space. This effect depends on the inside diameter of the pipe and is automatically taken into account by the Micropilot.
  • Page 60 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus display (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
  • Page 61 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning dist. too big • This error cannot be remedied by interference echo mapping • Check the application parameters (002), (003), (004) and "empty calibr." (005) dist. unknown If the actual distance is not known, no mapping can be carried out.
  • Page 62 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus display (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
  • Page 63 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning 6.4.3 Envelope curve After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) is recommended. Function "plot settings" (0E1) ⇒ ENDRESS + HAUSER –...
  • Page 64 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Function "envelope curve display" (0E3) The envelope curve is displayed in this function. You can use it to obtain the following information: quality of evaluated echo full calibr. evaluated echo is marked empty calibr.
  • Page 65 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning Move mode Then press to switch to Move mode. Either is displayed. • shifts the curve to the right. • shifts the curve to the left. L00-FMxxxxxx-07-00-00-yy-008 Vertical Zoom mode Press once more to switch to Vertical Zoom mode.
  • Page 66 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Basic Setup with the Endress+Hauser operating program To carry out the basic setup with the operating program, proceed as follows: • Start the operating program and establish a connection. • Select the "basic setup" function group in the navigation window.
  • Page 67 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning Basic Setup step 2/4: • Enter the application parameters: – tank shape – medium property – process cond. MicropilotM-en-302 Basic Setup step 3/4: If "dome ceiling", "horizontal cyl", "..." is selected in the "tank shape" function, the following display appears on the screen: •...
  • Page 68 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Basic Setup step 4/4: • This step starts the tank mapping • The measured distance and the current measured value are always displayed in the header MicropilotM-en-304 6.5.1 Signal analysis via envelope curve After the basic setup, an evaluation of the measurement using the envelope curve is recommended.
  • Page 69 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning 6.5.2 User-specific applications (operation) For details of setting the parameters of user-specific applications, see separate documentation BA291F/00/en "Micropilot M - Description of Instrument Functions" on the enclosed CD-ROM. Endress+Hauser...
  • Page 70 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning with a FOUNDATION Fieldbus configuration tool Note! For commissioning of the device with a FOUNDATION Fieldbus configuration tool you need to know the DEVICE_ID, which consists of the following parts: Device_ID = 452B48100F-XXXXXXXX...
  • Page 71 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning 6.6.2 Parametrization of the Resource Block (Start Index: 400) Enter the desired block name (optional). Factory setting: RESOURCE_XXXXXXXX Opern the Resource Block On delivery, write protection is disabled so that you can access the write parameters via FOUNDATION Fieldbus.
  • Page 72 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus FMR2xx-FF-Methode-in-NIConfig The method contains the following parameters a. Application parameters (see section 6.4.2) – PARMEDIATYPE (media type) With the selection "liquid" only the following application parameters can be adjusted: – PARTANKSHAPE (tank shape) –...
  • Page 73 This can be done in two different ways: – by the display and operating module VU331 (see section 6.4.5) – by an Endress+Hauser operating program (see section 6.5.1) 6.6.4 Parametrization of the Analog Input Blocks Prosonic M has two Analog Input Blocks that can be assigned to the various process variables.
  • Page 74 Commissioning Micropilot M FMR240 with FOUNDATION Fieldbus If required, use the following parameters to define the limit values for alarm and warning messages: – HI_HI_LIM -> Limit value for the upper alarm – HI_LIM -> Limit value for the upper warning –...
  • Page 75 Micropilot M FMR240 with FOUNDATION Fieldbus Commissioning Commissioning with the handheld terminal DXR375/ FC375 The steps of the commissioning procedure are the same as with a FOUNDATION Fieldbus configuration tool (see chapter 6.6). The blocks should be parametrized in the following order: •...
  • Page 76 They contain the related replacement instructions. All the spare parts kits which you can order from Endress+Hauser for repairs to the Micropilot M are listed with their order numbers on and . Please contact Endress+Hauser Service for further information on service and spare parts.
  • Page 77 L00-FMR2xxxx-00-00-06-en-001 Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or a notebook. For details refer to TI405C/07/en. Note! For the following Endress+Hauser instruments you need the "ToF Adapter FXA291" as an additional accessory: •...
  • Page 78 Micropilot M FMR240 with FOUNDATION Fieldbus ToF Adapter FXA291 The ToF Adapter FXA291 connects the Commubox FXA291 via the USB interface of a personal computer or a notebook to the following Endress+Hauser instruments: • Cerabar S PMC71, PMP7x • Deltabar S PMD7x, FMD7x •...
  • Page 79 Micropilot M FMR240 with FOUNDATION Fieldbus Accessories Technical data (cable and housing) and product structure: Max. cable length 20 m (65 ft) Temperature range -30 °C...+70 °C (-22 °F...158 °F) Degree of protection IP65 acc. to EN 60529 (NEMA 4) Materials Housing: AlSi12;...
  • Page 80 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting Trouble-shooting instructions Micropilot M FMR 2xx -Trouble Shooting Check voltage and Not ok Instrument does compare it with the Connect the Instrument works? Ready not respond specifications on the correct voltage nameplate.
  • Page 81 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting System error messages 9.2.1 Current error Errors which the Micropilot M detects during commissioning or operation are displayed: • VU331: error symbol in the "measured value" (000) function • VU331 or Endress+Hauser operating program: in the "diagnostics"...
  • Page 82 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus 9.2.3 Types of error Type of error Symbol Meaning The output signal assumes a value which can be set using the "output on alarm" (010) function: • MAX: 110% Alarm (A) • MIN: -10% •...
  • Page 83 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting Code Description Possible cause Remedy A164 electronics defect hardware problem reset; if alarm prevails after reset, exchange electronics A171 electronics defect hardware problem reset; if alarm prevails after reset, exchange electronics A231 sensor 1 defect...
  • Page 84 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus Code PV Status PV Substatus TV Status TV Substatus BLOCK_ER XD_ERROR SV Status SV Substatus A155 Device Failure Device Failure Device needs maintenace now Electronic Failure A160 Device Failure Device Failure Memory Failure/...
  • Page 85 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting Application errors in liquids Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error 1. See table of error messages () has occurred. messages () →...
  • Page 86 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus Error Output Possible cause Remedy → If the surface is not Signal is weakened by 1. Carry out tank mapping basic calm (e.g. filling, the rough surface – the setup emptying, agitator 100% interference echoes are 2.
  • Page 87 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting Application errors in solids Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error 1. See table of error messages () has occurred. messages () →...
  • Page 88 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus Error Output Possible cause Remedy → During filling or Signal is weakened (e.g. 1. Carry out tank mapping basic emptying the by fluidisation of the setup 100% measured value surface, extreme dust 2. Increase the output damping...
  • Page 89 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting Orientation of the Micropilot For orientation a marker is found on the flange or threaded boss of the Micropilot. During installation this must be oriented as follows (see Page 10): • In tanks: to the vessel wall •...
  • Page 90 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus L00-FMRxxxxx-19-00-00-en-004 Fig. 6: Vessel empty, no interference echo L00-FMRxxxxx-19-00-00-en-005 Fig. 7: Vessel empty, interference echo obtained Fix the flange or threaded boss in this position. If necessary, replace the seal. Carry out tank mapping, see Page 60.
  • Page 91 (see Page 6). The corresponding spare part number also appears on each spare part. Installation instructions are given on the instruction card that is also delivered. Spare parts Micropilot M FMR240, F12 housing with combined wiring and electronics compartment O rd d e : r.
  • Page 92 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus 10 Housing - for E+H service only! 11 Hood for terminal compartment 52006026 Cover terminal compartment F12 52019062 Hood terminal compartment F12, FHX40 12 Screw set 535720-9020 Set of screws housing F12/T12 20 Cover...
  • Page 93 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting 55 Horn antenna 52006035 Horn, 40 mm/1½", SS, 316L, with screws M4x10 and spring washers 52006036 Horn, 50 mm/2", SS, 316L, with screws M4x10 and spring washers 52006037 Horn, 80 mm/3", SS, 316L, with screws M4x10 and spring washers 52006038 Horn, 100 mm/4", SS, 316L, with screws M4x10 and spring washers...
  • Page 94 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus Spare parts Micropilot M FMR240, T12 housing with separate wiring and electronics compartment O rd d e : r. -N I L O o .: s s b e re a s u...
  • Page 95 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting 10 Housing 543180-0022 Housing T12, Aluminium, coated, G1/2, PAL 543180-0023 Housing T12, Aluminium, coated, NPT1/2, PAL 543180-0024 Housing T12, Aluminium, coated, M20, PAL 543180-1023 Housing T12, Aluminium, NPT1/2, PAL, cover, EEx d 52006204...
  • Page 96 Trouble-shooting Micropilot M FMR240 with FOUNDATION Fieldbus 50 Antenna assembly with process connection on request! 55 Horn antenna 52006035 Horn, 40 mm/1½", SS, 316L, with screws M4x10 and spring washers 52006036 Horn, 50 mm/2", SS, 316L, with screws M4x10 and spring washers 52006037 Horn, 80 mm/3", SS, 316L, with screws M4x10 and spring washers...
  • Page 97 Spare parts Micropilot M FMR240, F23 housing with combined wiring and electrinics compartment Stainless steel housing on request! 20 Cover 52018670 Cover F23, 316L, sight glass, gasket 52018671 DeCoverckel F23, 316L, gasket Note! Further spare parts please find on the pages of Micropilot M FMR240, F12 housing. Endress+Hauser...
  • Page 98 Micropilot M FMR240 with FOUNDATION Fieldbus Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present.
  • Page 99 Micropilot M FMR240 with FOUNDATION Fieldbus Trouble-shooting 9.10 Contact addresses of Endress+Hauser Contact addresses can be found on our homepage "www.endress.com/worldwide". If you have any questions, please do not hesitate to contact your Endress+Hauser representative. Endress+Hauser...
  • Page 100 Technical data Micropilot M FMR240 with FOUNDATION Fieldbus Technical data 10.1 Additional technical data 10.1.1 Input Measured variable The measured variable is the distance between a reference point and a reflective surface (i.e. medium surface). The level is calculated based on the tank height entered.
  • Page 101 Micropilot M FMR240 with FOUNDATION Fieldbus Technical data Virtual communication Permanent Entries references (VCRs) Client VCRs Server VCRs Source VCRs Sink VCRs Subscriber VCRs Publisher VCRs Link Settings Slot time Min. Inter PDU delay Max. response delay Transducer Blocks Block...
  • Page 102 Technical data Micropilot M FMR240 with FOUNDATION Fieldbus Block Content Execution time Functionality Integrator Block The Integrator Function Block integrates a variable as a 60 ms standard function of the time or accumulates the counts from a Pulse Input block. The block may be used as a totalizer...
  • Page 103 Micropilot M FMR240 with FOUNDATION Fieldbus Technical data Maximum measured error Typical statements for reference conditions, include linearity, repeatability, and hysteresis: FMR240, FMR244, FMR245: • not for max. measuring range = 70 m (229 ft) – to 1 m: ± 10 mm •...
  • Page 104 Technical data Micropilot M FMR240 with FOUNDATION Fieldbus 10.1.6 Operating conditions: Environment Ambient temperature range Ambient temperature for the transmitter: -40 °C ... +80 °C (-40 °F … +176 °F), -50 °C (-58 °F) on request. The functionality of the LCD display may be limited for temperatures Ta<-20 °C and Ta>+60 °C.
  • Page 105 • F23 housing: approx 7.4 kg + weight of flange 10.1.9 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. RF approvals R&TTE, FCC Overspill protection german WHG, see ZE 244F/0/de.see Page 6...
  • Page 106 Technical data Micropilot M FMR240 with FOUNDATION Fieldbus 10.1.10 Supplementary Documentation Note! This supplementary documentation can be found on our product pages on www.endress.com. Supplementary • Technical Information (TI345F/00/en) Documentation • Operating Instructions "Description of instrument functions" (BA291F/00/en) • Safety Manual "Functional Safety Manual" (SD150F/00/en).
  • Page 107 Micropilot M FMR240 with FOUNDATION Fieldbus Technical data Endress+Hauser...
  • Page 108 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus Appendix 11.1 Operating menu basic setup media type tank shape medium cond. process cond. empty calibr. full calibr. liquid dome ceiling unknown standard enter value enter value horizontal cyl. DK: < 1.9 calm surface solid DK: 1.9 …...
  • Page 109 Micropilot M FMR240 with FOUNDATION Fieldbus Appendix dist./meas.value check distance range of mapping start mapping dist./meas.value distance = ok input of D and L dist. too small mapping range are displayed manual D and L are displayed pipe diameter dist. unknown enter value dist.
  • Page 110 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus 11.2 Block model of the Micropilot M The Micropilot M contains the follwoing blocks: • Resource Block (RB2) s. Operating Instructions BA013S: "FOUNDATION Fieldbus - Overview" • Sensor Block (TBRL) contains the parameters relevant to the measurement •...
  • Page 111 Micropilot M FMR240 with FOUNDATION Fieldbus Appendix 11.3 Resource block The resource block contains the parameters used to describe physical resources of the device. It has no linkable inputs or outputs. 11.3.1 Operation The resource block is opened by a click on the resource line.
  • Page 112 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus 11.4 Sensor block The Sensor block contains the parameters required to calibrate the device. These parameters can also be addressed by using the VU331 display module. The calibration of the device is described in Chapter 6.
  • Page 113 Micropilot M FMR240 with FOUNDATION Fieldbus Appendix 11.4.5 Methods The FOUNDATION Fieldbus specification provides for the use of so-called methods to simplify the operation of the device. A method is an interactive sequence of steps that must be followed in order to obtain a particular function from the device.
  • Page 114 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus Parameter Position rel. Variable Name Size Type Access Storage Changeable Indicator Index [bytes] Class in Mode ackn. alarm PARACKNOWLEDGEALARM Unsigned8 dynamic Auto, OOS level/ullage PARLEVELULLAGEMODE Unsigned8 static linearisation PARLINEARISATION Unsigned8 static customer unit...
  • Page 115 Micropilot M FMR240 with FOUNDATION Fieldbus Appendix 11.5 Diagnostic Block 11.5.1 Operation The diagnostic block contains the error messages of the instrument. These parameters can also be addressed by using the VU331 display module. The diagnostic block is opened by clicking on the "diagnostic" line.
  • Page 116 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus 11.6 Display Block 11.6.1 Operation The display block contains the parameters required to parametrise the display module VU331 (which is contained in the remote display and operating unit FHX40). These parameters can also be addressed by using the VU331 display module.
  • Page 117 Micropilot M FMR240 with FOUNDATION Fieldbus Appendix 11.7 Analog input block The analog input block conditons the signal output by the Sensor block andoutputs signal to the PCL or other function blocks. L00-FMR2xxxx-05-00-00-en-008 11.7.1 Operation The resource block is opened by a click on the resource line.
  • Page 118 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus 11.7.3 Output values Parameter Description Either the primary/secondary Sensor block value used to execute the block or a process value associated with it. Comprises value and status. The primary value output as a result of executing the analog input block. Comprises value and status.
  • Page 119 Micropilot M FMR240 with FOUNDATION Fieldbus Appendix 11.7.5 Output response parameters Parameter Description LOW_CUT Not relevant to level measurement! Determines a threshold for square root linearization below which the output value is set to zero. PV_FTIME Sets the time constant for the output value.
  • Page 120 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus 11.7.9 Simulation The SIMULATE parameter allows the Sensor block output value to be simulated, provided simulation has also been enabled at the device DIP switch. The simulation must be enabled, a value and/or status entered and the block must be in AUTO mode. During simulation the Sensor output value is substituted by the simulated value.
  • Page 121 Micropilot M FMR240 with FOUNDATION Fieldbus Appendix 11.8 List of start indices The following list indicates the start indices for all blocks and objects: Object Start Index Object Dictionary Object Start Index Resource Block Analog Input 1 Function Block Analog Input 2 Function Block...
  • Page 122 Appendix Micropilot M FMR240 with FOUNDATION Fieldbus 11.9 Patents This product may be protected by at least one of the following patents. Further patents are pending. • US 5,387,918 i EP 0 535 196 • US 5,689,265 i EP 0 626 063 •...
  • Page 123 Micropilot M FMR240 with FOUNDATION Fieldbus Index Index accessories ........77 maintenance .
  • Page 124 Micropilot M FMR240 with FOUNDATION Fieldbus Index warning ........82 weather protection cover .
  • Page 125 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
  • Page 126 www.endress.com/worldwide BA230F/00/en/06.07 71030733 CCS/FM+SGML 6.0 ProMoDo 71030733...
