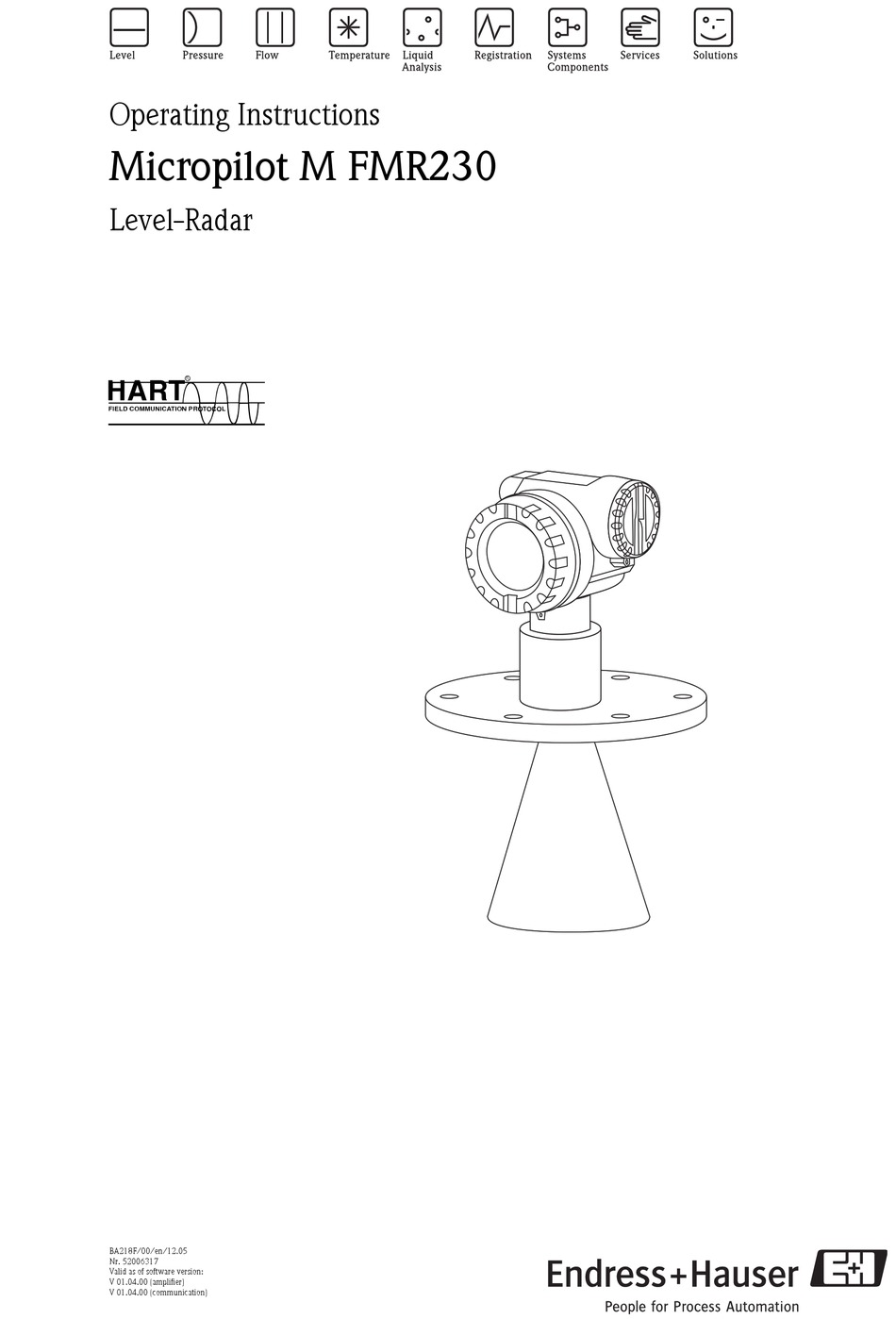

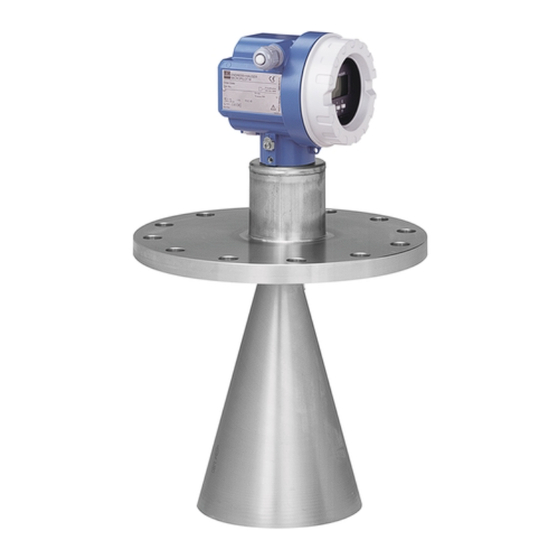

Operating Instructions

Micropilot M FMR230
Level-Radar
6
BA218F/00/en/12.05
Nr. 52006317
Valid as of software version:
V 01.04.00 (amplifier)
V 01.04.00 (communication)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot M FMR230

Summary of Contents for Endress+Hauser Micropilot M FMR230

  • Page 1: Operating Instructions

    Operating Instructions Micropilot M FMR230 Level-Radar BA218F/00/en/12.05 Nr. 52006317 Valid as of software version: V 01.04.00 (amplifier) V 01.04.00 (communication)
  • Page 2 Brief operating instructions Micropilot M FMR 230 with HART/4...20 mA Brief operating instructions KA 159F/00/a2/05.02 Micropilot M - Brief operating instructions 52006292 Contrast: measured value dist./ meas value Group selection basic setup tank shape medium process empty full pipe dist./ check range of start...
  • Page 3 Designated use ......4 Contact addresses of Endress+Hauser ... 84 Installation, commissioning and operation .

  • Page 4: Safety Instructions

    Safety instructions Micropilot M FMR 230 with HART/4...20 mA Safety instructions Designated use The Micropilot M FMR 230 is a compact radar level transmitter for the continuous, contactless measurement of liquids, pastes and sludge. The device can also be freely mounted outside closed metal vessels because of its operating frequency of about 6 GHz and a maximum radiated pulsed energy of 1mW (average power output 1 µW).

  • Page 5: Notes On Safety Conventions And Symbols

    Micropilot M FMR 230 with HART/4...20 mA Safety instructions Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin. Safety conventions Warning! A warning highlights actions or procedures which, if not performed correctly, will lead to personal...

  • Page 6: Identification

    Identification Micropilot M FMR 230 with HART/4...20 mA Identification Device designation 2.1.1 Nameplate The following technical data are given on the instrument nameplate: L00-FMR2xxxx-18-00-00-en-001 Fig. 1: Information on the nameplate of the Micropilot M (example) 2.1.2 Ordering structure Ordering structure Micropilot M FMR 230 Approval: A Non-hazardous area Non-hazardous area, WHG...
  • Page 7 Micropilot M FMR 230 with HART/4...20 mA Identification Ordering structure Micropilot M FMR 230 (continued) Antenna: w/o horn, for pipe installation 80mm/3" 100mm/4" 150mm/6" 200mm/8" 250mm/10" Antenna seal; Temperature: V FKM Viton; -40°C…200°C/-40°F…392°F, conductive media max 150°C/302°F EPDM; -40°C…150°C/-40°F…302°F K Kalrez; -20°C…200°C/-4°F…392°F, conductive media max 150°C/302°F Graphit;...
  • Page 8 Identification Micropilot M FMR 230 with HART/4...20 mA Ordering structure Micropilot M FMR 230 (continued) Output; Operation: A 4-20mA HART; 4-line display VU331, envelope curve display on site SIL2, IEC61508/IEC61511-1 4-20mA HART; w/o display, via communication SIL2, IEC61508/IEC61511-1 K 4-20mA HART; Prepared for FHX40, remote display (Accessory) SIL2, IEC61508/IEC61511-1 C PROFIBUS PA;...

  • Page 9: Scope Of Delivery

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 10: Mounting

    Mounting Micropilot M FMR 230 with HART/4...20 mA Mounting Quick installation guide Observe orientation when installing! Installation in tank (free space): Mark on process connector facing the nearest tank wall! Turn housing The housing can be turned 350° mark at instrument flange in order to simplify access to the display and the terminal compartment °...

  • Page 11: Incoming Acceptance, Transport, Storage

    Micropilot M FMR 230 with HART/4...20 mA Mounting Incoming acceptance, transport, storage 3.2.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order. 3.2.2 Transport "...

  • Page 12: Installation Conditions

    Mounting Micropilot M FMR 230 with HART/4...20 mA Installation conditions 3.3.1 Dimensions Housing dimensions max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing (Aluminium) L00-T12xxxx-06-00-00-en-001 max. 94 F23 housing (316L) L00-F23xxxx-06-00-00-en-001 Endress + Hauser...
  • Page 13 Micropilot M FMR 230 with HART/4...20 mA Mounting Micropilot M FMR 230 - process connection, type of antenna F12 / T12 / F23 housing High temperature version Enamel antenna Ext. temperature version Ø 60 Ø 60 Ø 70 Ø 70 Ø...
  • Page 14 • Stilling well: a stilling well respectively a Wave Guide antenna can always be used to avoid interference. • Metallic screens (3) mounted at a slope spread the radar signals and can, therefore, reduce interference echoes. Please contact Endress+Hauser for further information. L00-FMR2xxxx-17-00-00-xx-002 Endress + Hauser...
  • Page 15 ENDRESS MICROPIL +HAUSER Endre Endre ss+Ha ss+Ha Order Code: OT II Ser.-No.: Messbereich Measuring range U 16...36 max. 20 IP 65 4...20 mA V DC T >70°C t >85°C L00-FMR2xxxx-17-00-00-xx-013 Please contact Endress+Hauser for further information. Endress + Hauser...
  • Page 16 Mounting Micropilot M FMR 230 with HART/4...20 mA Beam angle The beam angle is defined as the angle a where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 17 Micropilot M FMR 230 with HART/4...20 mA Mounting Measuring conditions Note! • In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231. Depending on its consistence, foam can either absorb microwaves or reflect them off the foam surface.
  • Page 18 Mounting Micropilot M FMR 230 with HART/4...20 mA Measuring range The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the mounting location and eventual interference reflections. The maximum configurable range is: • 20 m (65 ft) for Micropilot M FMR23x/24x (larger ranges up to 35 m (114 ft) on request), •...

  • Page 19: Installation Instructions

    Micropilot M FMR 230 with HART/4...20 mA Mounting Installation instructions 3.4.1 Mounting kit In addition to the tool needed for flange mounting, you will require the following tool: • 4 mm/0.1" Allen wrench for turning the housing or mounting an FAR 10 antenna extension. 3.4.2 Installation in tank (free space) Optimum mounting position...
  • Page 20 Mounting Micropilot M FMR 230 with HART/4...20 mA Installation instructions for enamelled antenna FMR230 Bei Einbau einer Email-Antennen beachten Sie seal bitte folgende Punkte: • Refer to standard installation. • Attention! Do not hit or chip the enamelled antenna, the nozzle coating can be damaged.
  • Page 21 Micropilot M FMR 230 with HART/4...20 mA Mounting Antenna extension FAR 10 When mounting an antenna extension, please note the following points: FMR230 • The antenna extension has to be selected such that the horn extends below the nozzle. • If the horn diameter is greater than the ³...
  • Page 22 45° respectively 90° bend is available. • The smallest possible radius R for the bend is 300 mm (12”). Please contact Endress+Hauser for further information. L00-FMR230xx-17-00-00-yy-004 Measurement from the outside through plastic walls...
  • Page 23 Micropilot M FMR 230 with HART/4...20 mA Mounting Installation with heat insulation high temperature version (type of antenna M) extended temperature version (type of antenna L) tank insulation tank insulation max. 280° C (536° F) max. 400° C (752° F) L00-FMR230xx-17-00-00-en-019 •...
  • Page 24 Mounting Micropilot M FMR 230 with HART/4...20 mA 3.4.3 Installation in stilling well Optimum mounting position L00-FMR230xx-17-00-00-en-013 Standard installation For installations in a stilling well, follow the engineering hints on Page 14 and note the following points: • Marker is aligned toward slots. •...
  • Page 25 Micropilot M FMR 230 with HART/4...20 mA Mounting Examples for the construction of stilling wells Micropilot M FMR 230 marker e.g. welding neck flange DIN 2633 stilling well 100 % with slots hole <1/10 pipe diameter, < 1/10 Ø pipe single sided or drilled through inside of holes deburred...
  • Page 26 Mounting Micropilot M FMR 230 with HART/4...20 mA 3.4.4 Installation in bypass Optimum mounting position L00-FMR230xx-17-00-00-en-016 Standard installation For installations in a stilling well, follow the engineering hints on Page 14 and note the following points: • Marker is aligned perpendicular (90°) to tank connectors. •...
  • Page 27 Micropilot M FMR 230 with HART/4...20 mA Mounting Example for the construction of a bypass. Micropilot M FMR230, FMR240, FMR245 marker e.g. welding neck flange DIN 2633 full bore ball valve 20 cm 8” 100 % 20 cm 8” Diameter of the connection pipes as small as possible Do not weld...

  • Page 28: Post-Installation Check

    Mounting Micropilot M FMR 230 with HART/4...20 mA 3.4.5 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...

  • Page 29: Wiring

    Wiring in F12/F23 housing " Before connection please note the following: ● The power supply must be identical to the data on the Caution! ENDRESS+HAUSER nameplate (1). MICROPILOT M ● IP65 Switch off power supply before connecting up the device.
  • Page 30 " Before connection please note the following: ● The power supply must be identical to the data on the nameplate (1). Caution! ENDRESS+HAUSER MICROPILOT M ● Switch off power supply before connecting up the device. IP65 Order Code: if modification x x x x x x x x Ser.-No.:...

  • Page 31: Connecting The Measuring Unit

    Micropilot M FMR 230 with HART/4...20 mA Wiring Connecting the measuring unit Terminal compartment Three housings are available: • Aluminium housing F12 with additionally sealed terminal compartment for: – standard, – EEx ia. • Aluminium housing T12 with separate terminal compartment for: –...
  • Page 32 Wiring Micropilot M FMR 230 with HART/4...20 mA Supply voltage The following values are the voltages across the terminals directly at the instrument: Terminal voltage Current Communication consumption minimal maximal HART 4 mA 16 V 36 V standard 20 mA 7.5 V 36 V 4 mA...
  • Page 33 Micropilot M FMR 230 with HART/4...20 mA Wiring 4.2.1 HART connection with E+H RMA 422 / RN 221 N - ToF Tool - Fieldtool Package - FieldCare FXA193 4...20 mA RMA422 ENDRESS + HAUSER RMA 422 RN221N 1 2 3 4 - ToF Tool - dsdmdm df das.

  • Page 34: Recommended Connection

    Wiring Micropilot M FMR 230 with HART/4...20 mA Recommended connection 4.3.1 Equipotential bonding Connect the equipotential bonding to the external ground terminal of the transmitter. 4.3.2 Wiring screened cable " Caution! In Ex applications, the screen must only be grounded on the sensor side. Further safety instructions are given in the separate documentation for applications in explosion hazardous areas.

  • Page 35: Operation

    Micropilot M FMR 230 with HART/4...20 mA Operation Operation Quick operation guide ENDRESS + HAUSER – >3 s Return to basic setup tank shape medium property Group Selection dome ceiling unknown safety settings horizontal cyl DC: < 1.9 linearisation bypass DC: 1.9 ...
  • Page 36 Operation Micropilot M FMR 230 with HART/4...20 mA 5.1.1 General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups.

  • Page 37: Display And Operating Elements

    Micropilot M FMR 230 with HART/4...20 mA Operation Display and operating elements (liquid crystal display) Orde Orde Ser.- Ser.- r Cod r Cod No.: No.: sber surin sber surin eich eich g rang g rang U 16... U 16..20 .
  • Page 38 Operation Micropilot M FMR 230 with HART/4...20 mA 5.2.1 Display Liquid crystal display (LCD): Four lines with 20 characters each. Display contrast adjustable through key combination. Headline Position indicator ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Function groups ->...
  • Page 39 Micropilot M FMR 230 with HART/4...20 mA Operation 5.2.3 Key assignment The operating elements are located inside the housing and are accessible for operation by opening the lid of the housing. Function of the keys Key(s) Meaning Navigate upwards in the selection list Edit numeric value within a function Navigate downwards in the selection list Edit numeric value within a function...

  • Page 40: Local Operation

    Operation Micropilot M FMR 230 with HART/4...20 mA Local operation 5.3.1 Locking of the configuration mode The Micropilot can be protected in two ways against unauthorised changing of instrument data, numerical values or factory settings: "unlock parameter" (0A4): A value <> 100 (e.g. 99) must be entered in "unlock parameter" (0A4) in the "diagnostics"...
  • Page 41 There is no need to change these parameters under normal circumstances and consequently, they are protected by a special code known only to the E+H service organization. Please contact Endress+Hauser if you have any questions.
  • Page 42 Operation Micropilot M FMR 230 with HART/4...20 mA 5.3.3 Factory settings (Reset) " Caution! A reset sets the instrument back to the factory settings. This can lead to an impairment of the measurement. Generally, you should perform a basic setup again following a reset. A reset is only necessary: •...

  • Page 43: Display And Acknowledging Error Messages

    Micropilot M FMR 230 with HART/4...20 mA Operation Display and acknowledging error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local display. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 44: Hart Communication

    5.5.2 ToF Tool operating program The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle. It is used to support commissioning, securing of data, signal analysis and documentation of the instruments. It is compatible with the following operating systems: Win95, Win98, WinNT4.0 and Win2000.
  • Page 45 Micropilot M FMR 230 with HART/4...20 mA Operation Menu-guided commissioning L00-FMR2xxxx-20-00-00-en-002 Signal analysis via envelope curve: L00-FMR2xxxx-20-00-00-en-008 Connection options • Service-interface with adapter FXA193 (see Page 33) • HART with Commubox FXA191/195 (see Page 33) Endress + Hauser...

  • Page 46: Commissioning

    Commissioning Micropilot M FMR 230 with HART/4...20 mA Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist “Post installation check” (see Page 28). • Checklist “Post connection check” (see Page 34). Switching on the measuring device When the instrument is switched on for the first time, the following messages appear on the display: ⇒...

  • Page 47: Basic Setup

    Micropilot M FMR 230 with HART/4...20 mA Commissioning Basic Setup tank shape flange: dome ceiling reference point of measurement measuring cond. Unknown measuring cond. Standard empty calibr. full calibr. pipe diameter (for bypass/stilling well) mapping E = empty calibr. (= zero) setting in 005 F = full calibr.
  • Page 48 Commissioning Micropilot M FMR 230 with HART/4...20 mA The basic setup is sufficient for successful commissioning in most applications. Complex measuring operations necessitate additional functions that the user can use to customise the Micropilot as necessary to suit his specific requirements. The functions available to do this are described in detail in the BA 221F.

  • Page 49: Basic Setup With The Vu 331

    Micropilot M FMR 230 with HART/4...20 mA Commissioning Basic Setup with the VU 331 Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit" (042) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 50 Commissioning Micropilot M FMR 230 with HART/4...20 mA L00-FMR2xxxx-14-00-06-en-007 Function "medium property" (003) ⇒ ENDRESS + HAUSER – This function is used to select the dielectric constant. Selection: • unknown • DC: < 1.9 • DC: 1.9 ... 4 • DC: 4 ... 10 •...
  • Page 51 Micropilot M FMR 230 with HART/4...20 mA Commissioning Function "process cond." (004) ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • calm surface • turb. surface • agitator • fast change •...
  • Page 52 Commissioning Micropilot M FMR 230 with HART/4...20 mA Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero). L00-FMR2xxxx-14-00-06-en-008 " Caution! For dish bottoms or conical outlets, the zero point should be no lower than the point at which the radar beam hits the bottom of the tank.
  • Page 53 Micropilot M FMR 230 with HART/4...20 mA Commissioning Function "full calibr." (006) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the minimum level to the maximum level (=span). L00-FMR2xxxx-14-00-06-en-009 Note! If bypass or stilling well was selected in the "tank shape" (002) function, the pipe diameter is requested in the following step.
  • Page 54 Commissioning Micropilot M FMR 230 with HART/4...20 mA Function "pipe diameter" (007) ⇒ ENDRESS + HAUSER – This function is used to enter the pipe diameter of the stilling well or bypass pipe. L00-FMR2xxxx-14-00-00-en-011 Microwaves propagate more slowly in pipes than in free space. This effect depends on the inside diameter of the pipe and is automatically taken into account by the Micropilot.
  • Page 55 Micropilot M FMR 230 with HART/4...20 mA Commissioning display (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
  • Page 56 Commissioning Micropilot M FMR 230 with HART/4...20 mA dist. too big • This error cannot be remedied by interference echo mapping • Check the application parameters (002), (003), (004) and "empty calibr." (005) dist. unknown If the actual distance is not known, no mapping can be carried out. manual A mapping is also possible by manual entry of the range to be suppressed.
  • Page 57 Micropilot M FMR 230 with HART/4...20 mA Commissioning display (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
  • Page 58 Commissioning Micropilot M FMR 230 with HART/4...20 mA 6.4.2 Envelope curve with VU 331 After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) is recommended. Function "plot settings" (0E1) ⇒...
  • Page 59 Micropilot M FMR 230 with HART/4...20 mA Commissioning Function "envelope curve display" (0E3) The envelope curve is displayed in this function. You can use it to obtain the following information: quality of evaluated echo full calibr. evaluated echo is marked empty calibr.
  • Page 60 Commissioning Micropilot M FMR 230 with HART/4...20 mA Move mode Then press to switch to Move mode. Either is displayed. • shifts the curve to the right. • shifts the curve to the left. L00-FMxxxxxx-07-00-00-yy-008 Vertical Zoom mode Press once more to switch to Vertical Zoom mode. is displayed.

  • Page 61: Basic Setup With The Tof Tool

    Micropilot M FMR 230 with HART/4...20 mA Commissioning Basic Setup with the ToF Tool To carry out the basic setup with the ToF Tool operating program, proceed as follows: • Start the ToF Tool operating program and establish a connection •...
  • Page 62 Commissioning Micropilot M FMR 230 with HART/4...20 mA Basic Setup step 2/4: • Enter the application parameters: – tank shape (for a description, see Page 49) – medium property (for a description, see Page 50) – process cond. (for a description, see Page 51) L00-FMR2xxxx-20-00-00-en-002 Basic Setup step 3/4: If "dome ceiling"...
  • Page 63 Micropilot M FMR 230 with HART/4...20 mA Commissioning If "horizontal cyl" or "sphere" is selected in the "tank shape" function, the following display appears on the screen: • empty calibr. (for a description, see Page 52) • full calibr.(for a description, see Page 53) L00-FMR2xxxx-20-00-00-en-004 If "stilling well"...
  • Page 64 Commissioning Micropilot M FMR 230 with HART/4...20 mA If "flat ceiling" is selected in the "tank shape" function, the following display appears on the screen: • empty calibr. (for a description, see Page 52) • full calibr.(for a description, see Page 53) L00-FMR2xxxx-20-00--00-en-006 Basic Setup step 4/4: •...
  • Page 65 Micropilot M FMR 230 with HART/4...20 mA Commissioning 6.5.1 Envelope curve with the ToF Tool After the basic setup, an evaluation of the measurement using the envelope curve is recommended. L00-FMR2xxxx-20-00--00-en-008 Note! If the level of echo is very weak or there is a heavy interference echo, an orientation of the Micropilot can help optimise the measurement (increase of the useful echo/reduction of the interference echo) (see "Orientation of the Micropilot"...

  • Page 66: Maintenance

    They contain the related replacement instructions. All the spare parts kits which you can order from Endress+Hauser for repairs to the Micropilot M are listed with their order numbers on and . Please contact Endress+Hauser Service for further information on service and spare parts.

  • Page 67: Accessories

    Micropilot M FMR 230 with HART/4...20 mA Accessories Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the Micropilot M. Weather protection cover A Weather protection cover made of stainless steel is recommended for outdoor mounting (order code: 543199-0001).
  • Page 68 Accessories Micropilot M FMR 230 with HART/4...20 mA Commubox FXA195 HART For intrinsically safe communication with ToF Tool/FieldCare via the USB interface. For details refer to TI404F/00/en. Antenna extension FAR 10 (for FMR 230) Dimensions L00-FMRxxxxx-00-00-06-en-002 Ordering information: Material 316L 316L, 3.1.B material, Inspection Certificate EN 10204, acc.
  • Page 69 Micropilot M FMR 230 with HART/4...20 mA Accessories Remote display FHX40 Wall-mounting Pipe-mounting (without mounting bracket) (mounting bracket and plate supplied optionally, s. product structure) Separate housing FHX 40 (IP 65) Micropilot M Levelflex M Prosonic M O rd O rd r.

  • Page 70: Trouble-Shooting

    Trouble-shooting Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting Trouble-shooting instructions Micropilot M FMR 2xx -Trouble Shooting Check voltage and Not ok Instrument does compare it with the Connect the Instrument works? Ready not respond specifications on the correct voltage nameplate.

  • Page 71: System Error Messages

    Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting System error messages Code Description Possible cause Remedy A102 checksum error device has been powered off before data reset; general reset & new could be stored; avoid emc problem; calibr.required emc problem; if alarm prevails after reset, PROM defect exchange electronics...
  • Page 72 Trouble-shooting Micropilot M FMR 230 with HART/4...20 mA Code Description Possible cause Remedy E641 no usable echo echo lost due to application conditions or check installation; channel 1 built up on antenna optimize orientation of antenna; check calibr. clean antenna (cf. OM) E651 level in safety distance - risk level in safety distance...

  • Page 73: Application Errors

    Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting Application errors Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error mes- 1. See table of error messages has occurred. sages (see Page 71) (see Page 71) →...
  • Page 74 Trouble-shooting Micropilot M FMR 230 with HART/4...20 mA Error Output Possible cause Remedy → If the surface is not Signal is weakened by 1. Carry out tank mapping basic calm (e.g. filling, the rough surface – the setup emptying, agitator 100% interference echoes are 2.

  • Page 75: Orientation Of The Micropilot

    Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting Orientation of the Micropilot For orientation a marker is found on the flange or threaded boss of the Micropilot. During installation this must be oriented as follows (see Page 10s. Seite 10): •...
  • Page 76 Trouble-shooting Micropilot M FMR 230 with HART/4...20 mA L00-FMRxxxxx-19-00-00-en-004 Fig. 7: Vessel empty, no interference echo L00-FMRxxxxx-19-00-00-en-005 Fig. 8: Vessel empty, interference echo obtained Fix the flange or threaded boss in this position. If necessary, replace the seal. Carry out tank mapping, see Page 55. Endress + Hauser...

  • Page 77: Spare Parts

    Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting Spare parts Note! You can order spare parts directly from your E+H service organization by giving the serial number which is printed on the measuring transducer nameplate (see Page 6s. Seite 6 ff.). The corresponding spare part number also appears on each spare part.
  • Page 78 Trouble-shooting Micropilot M FMR 230 with HART/4...20 mA 10 Housing 543120-0022 Housing F12, Aluminium, G1/2 543120-0023 Housing F12, Aluminium, NPT1/2 543120-0024 Housing F12, Aluminium, M20 52001992 Housing F12, Aluminium, M20, PA-plug 52008556 Housing F12, Aluminium, M20, FF-plug 11 Hood for terminal compartment 52006026 Cover terminal compartment F12 52019062...
  • Page 79 Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting 55 Horn antenna 52021131 Horn, DN80/3", 316L, with allen screws and spring washers 52021132 Horn, DN100/4", 316L, with allen screws and spring washers 52021133 Horn, DN150/6", 316L, with allen screws and spring washers 52021134 Horn, DN200/8", 316L, with allen screws and spring washers 52021135...
  • Page 80 Trouble-shooting Micropilot M FMR 230 with HART/4...20 mA Spare parts Micropilot M FMR 230, T12 housing with separate wiring and electronics compartment O rd d e : r. -N I L O o .: s s b e re a s u ic h r in g ra n...
  • Page 81 Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting 10 Housing 543180-0022 Housing T12, Aluminium, coated, G1/2, PAL 543180-0023 Housing T12, Aluminium, coated, NPT1/2, PAL 543180-0024 Housing T12, Aluminium, coated, M20, PAL 543180-1023 Housing T12, Aluminium, NPT1/2, PAL, cover, EEx d 52006204 Housing T12, Aluminium, G1/2, PAL, cover, EEx d 52006205...
  • Page 82 Trouble-shooting Micropilot M FMR 230 with HART/4...20 mA 55 Horn antenna 52021131 Horn, DN80/3", 316L, with allen screws and spring washers 52021132 Horn, DN100/4", 316L, with allen screws and spring washers 52021133 Horn, DN150/6", 316L, with allen screws and spring washers 52021134 Horn, DN200/8", 316L, with allen screws and spring washers 52021135...
  • Page 83 Micropilot M FMR 230 with HART/4...20 mA Trouble-shooting Spare parts Micropilot M FMR 230, F23 housing with combined wiring and electrinics compartment Stainless steel housing on request! 20 Cover 52018670 Cover F23, 316L, sight glass, gasket 52018671 DeCoverckel F23, 316L, gasket Endress + Hauser...

  • Page 84: Return

    – HART-Communicator DXR 375 with Rev. 1, DD 1. Contact addresses of Endress+Hauser The addresses of Endress+Hauser are given on the back cover of this operating manual. If you have any questions, please do not hesitate to contact your E+H representative. Endress + Hauser...

  • Page 85: Technical Data

    Micropilot M FMR 230 with HART/4...20 mA Technical data Technical data 10.1 Additional technical data 10.1.1 Input Measured variable The measured variable is the distance between a reference point and a reflective surface (i.e. medium surface). The level is calculated based on the tank height entered. The level can be converted into other units (volume, mass) by means of a linearization.
  • Page 86 Technical data Micropilot M FMR 230 with HART/4...20 mA 10.1.4 Performance characteristics Reference operating • temperature = +20 °C (68 °F) ±5 °C (9 °F) conditions • pressure = 1013 mbar abs. (14.7 psia) ±20 mbar (0.3 psi) • relative humidity (air) = 65 % ±20% •...
  • Page 87 Micropilot M FMR 230 with HART/4...20 mA Technical data Effect of gas phase High pressures reduce the propagation velocity of the measuring signals in the gas/vapor above the fluid. This effect depends on the gas/vapor and is particularly large for low temperatures. This results in a measuring error that gets bigger as the distance increases between the device zero point (flange) and product surface.
  • Page 88 • F23 housing: approx 9.4 kg + weight of flange 10.1.8 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. RF approvals R&TTE, FCC...
  • Page 89 Micropilot M FMR 230 with HART/4...20 mA Technical data External standards and EN 60529 guidelines Protection class of housing (IP-code) EN 61010 Safety regulations for electrical devices for measurement, control, regulation and laboratory use. EN 61326 Emissions (equipment class B), compatibility (appendix A - industrial area) NAMUR Standards committee for measurement and control in the chemical industry Ex approval...
  • Page 90 Technical data Micropilot M FMR 230 with HART/4...20 mA 10.1.9 Supplementary Documentation Note! This supplementary documentation can be found on our product pages on www.endress.com. Supplementary • Technical Information (TI345F/00/en) Documentation • Operating Instructions "Description of instrument functions" (BA221F/00/en) • Safety Manual "Functional Safety Manual" (SD150F/00/en). •...
  • Page 91 Micropilot M FMR 230 with HART/4...20 mA Technical data Endress + Hauser...

  • Page 92: Appendix

    Appendix Micropilot M FMR 230 with HART/4...20 mA Appendix 11.1 Operating menu HART (display modul), ToF Tool basic setup tank shape medium cond. process cond. empty calibr. full calibr. dome ceiling unknown standard enter value enter value horizontal cyl. DK: < 1.9 calm surface DK: 1.9 …...
  • Page 93 Micropilot M FMR 230 with HART/4...20 mA Appendix dist./meas.value check distance range of mapping start mapping dist./meas.value distance = ok input of D and L dist. too small mapping range are displayed D and L manual are displayed dist. unknown dist.

  • Page 94: Description Of Functions

    Appendix Micropilot M FMR 230 with HART/4...20 mA 11.2 Description of functions Note! A detailed description of the function groups, functions and parameters is given in the documentation BA 221F/00/en "Description of the instrument functions of the Micropilot M" on the enclosed CD-ROM.

  • Page 95: Function And System Design

    Micropilot M FMR 230 with HART/4...20 mA Appendix 11.3 Function and system design 11.3.1 Function (Measuring principle) The Micropilot is a "downward-looking" measuring system, operating based on the time-of-flight method. It measures the distance from the reference point (process connection) to the product surface.
  • Page 96 Appendix Micropilot M FMR 230 with HART/4...20 mA Output The Micropilot is commissioned by entering an empty distance E (=zero), a full distance F (=span) and an application parameter. The application parameter automatically adapts the instrument to the process cond.. The data points “E” and “F” correspond with 4mA and 20mA for instruments with current output.
  • Page 97 • with display and operating module VU331, • with a Personal Computer, FXA193 and the operating software ToF Tool. The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle (radar, ultrasonic, guided micro-impulse). It assists with commissioning, securing data, signal analysis and documentation of the measuring point.

  • Page 98: Index

    Micropilot M FMR 230 with HART/4...20 mA Index Index accessories ........67 installation in bypass .
  • Page 99 Micropilot M FMR 230 with HART/4...20 mA Index safety instructions ....... . 4 service interface FXA193.
  • Page 100 Micropilot M FMR 230 with HART/4...20 mA Index Endress + Hauser...
  • Page 101 Declaration of Contamination Erklärung zur Kontamination Because of legal regulations and for the safety of our employees and operating equipment, we need the "declaration of contamination", with your signature, before your order can be handled. Please make absolutely sure to include it with the shipping documents, or - even better - attach it to the outside of the packaging.
  • Page 102 www.endress.com/worldwide BA218F/00/en/12.05 52006317 CCS/FM+SGML 6.0 ProMoDo 52006317...
