Kenwood DPX-U5130 Service Manual page 51

MODEL MARK MODEL
DPX500BT K0 DPX300U
DPX5130BTPT4 M3 KDPXU5130MM3
DPX-U5130 H1
Safe Symbol No. Parts No.

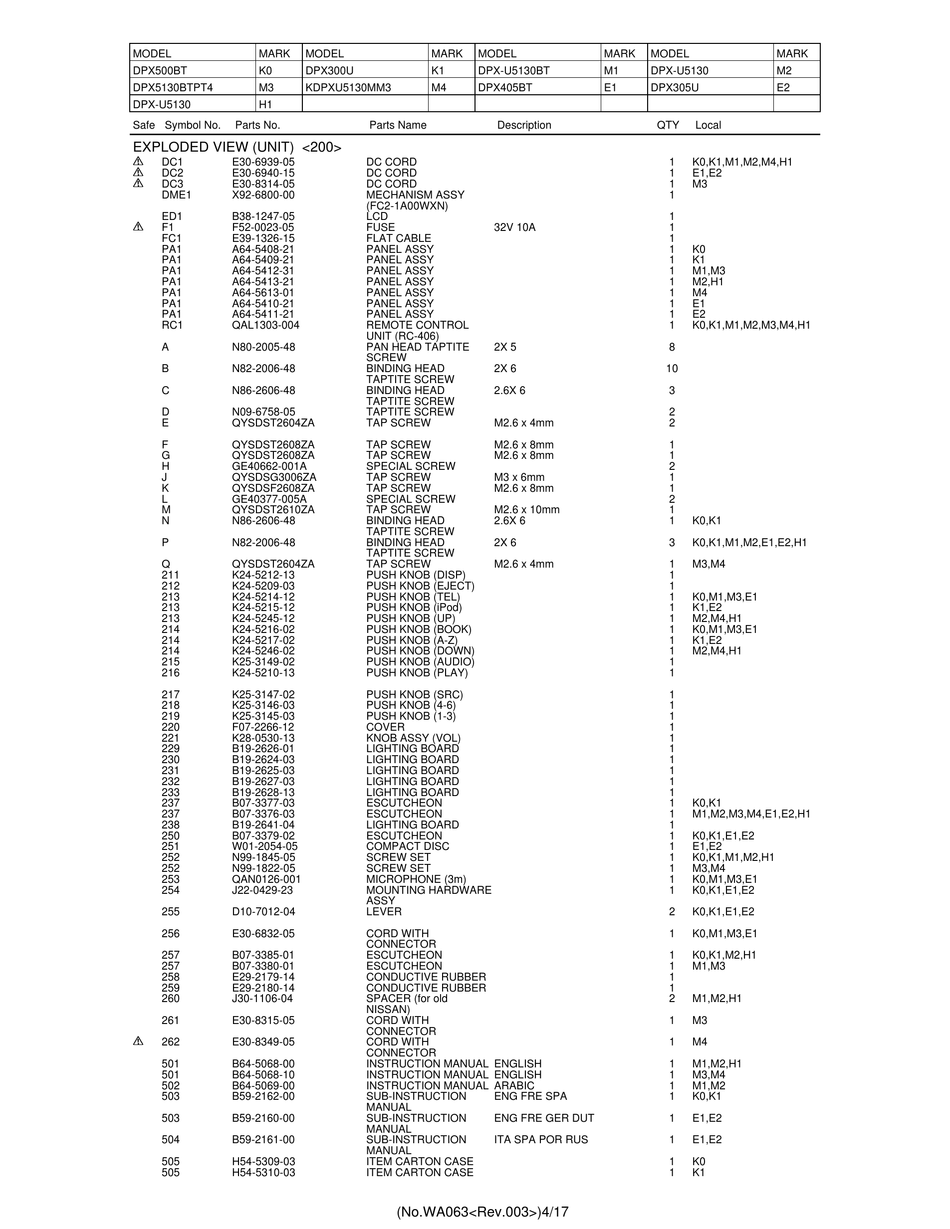

EXPLODED VIEW (UNIT) <200>
!
DC1 E30-6939-05
!
DC2 E30-6940-15
!
DC3 E30-8314-05
DME1 X92-6800-00
ED1 B38-1247-05
!
F1 F52-0023-05
FC1 E39-1326-15
PA1 A64-5408-21
PA1 A64-5409-21
PA1 A64-5412-31
PA1 A64-5413-21
PA1 A64-5613-01
PA1 A64-5410-21
PA1 A64-5411-21
RC1 QAL1303-004
A N80-2005-48
B N82-2006-48
C N86-2606-48
D N09-6758-05
E QYSDST2604ZA
F QYSDST2608ZA
G QYSDST2608ZA
H GE40662-001A
J QYSDSG3006ZA
K QYSDSF2608ZA
L GE40377-005A
M QYSDST2610ZA
N N86-2606-48
P N82-2006-48
Q QYSDST2604ZA
211 K24-5212-13
212 K24-5209-03
213 K24-5214-12
213 K24-5215-12
213 K24-5245-12
214 K24-5216-02
214 K24-5217-02
214 K24-5246-02
215 K25-3149-02
216 K24-5210-13
217 K25-3147-02
218 K25-3146-03
219 K25-3145-03
220 F07-2266-12
221 K28-0530-13
229 B19-2626-01
230 B19-2624-03
231 B19-2625-03
232 B19-2627-03
233 B19-2628-13
237 B07-3377-03
237 B07-3376-03
238 B19-2641-04
250 B07-3379-02
251 W01-2054-05
252 N99-1845-05
252 N99-1822-05
253 QAN0126-001
254 J22-0429-23
255 D10-7012-04
256 E30-6832-05
257 B07-3385-01
257 B07-3380-01
258 E29-2179-14
259 E29-2180-14
260 J30-1106-04
261 E30-8315-05
!
262 E30-8349-05
501 B64-5068-00
501 B64-5068-10
502 B64-5069-00
503 B59-2162-00
503 B59-2160-00
504 B59-2161-00
505 H54-5309-03
505 H54-5310-03
MARK MODEL
K1 DPX-U5130BT
M4 DPX405BT
Parts Name Description
DC CORD
DC CORD
DC CORD
MECHANISM ASSY
(FC2-1A00WXN)
LCD
FUSE 32V 10A
FLAT CABLE
PANEL ASSY
PANEL ASSY
PANEL ASSY
PANEL ASSY
PANEL ASSY
PANEL ASSY
PANEL ASSY
REMOTE CONTROL
UNIT (RC-406)
PAN HEAD TAPTITE 2X 5
SCREW
BINDING HEAD 2X 6
TAPTITE SCREW
BINDING HEAD 2.6X 6
TAPTITE SCREW
TAPTITE SCREW
TAP SCREW M2.6 x 4mm
TAP SCREW M2.6 x 8mm
TAP SCREW M2.6 x 8mm
SPECIAL SCREW
TAP SCREW M3 x 6mm
TAP SCREW M2.6 x 8mm
SPECIAL SCREW
TAP SCREW M2.6 x 10mm
BINDING HEAD 2.6X 6
TAPTITE SCREW
BINDING HEAD 2X 6
TAPTITE SCREW
TAP SCREW M2.6 x 4mm
PUSH KNOB (DISP)
PUSH KNOB (EJECT)
PUSH KNOB (TEL)
PUSH KNOB (iPod)
PUSH KNOB (UP)
PUSH KNOB (BOOK)
PUSH KNOB (A-Z)
PUSH KNOB (DOWN)
PUSH KNOB (AUDIO)
PUSH KNOB (PLAY)
PUSH KNOB (SRC)
PUSH KNOB (4-6)
PUSH KNOB (1-3)
COVER
KNOB ASSY (VOL)
LIGHTING BOARD
LIGHTING BOARD
LIGHTING BOARD
LIGHTING BOARD
LIGHTING BOARD
ESCUTCHEON
ESCUTCHEON
LIGHTING BOARD
ESCUTCHEON
COMPACT DISC
SCREW SET
SCREW SET
MICROPHONE (3m)
MOUNTING HARDWARE
ASSY
LEVER
CORD WITH
CONNECTOR
ESCUTCHEON
ESCUTCHEON
CONDUCTIVE RUBBER
CONDUCTIVE RUBBER
SPACER (for old
NISSAN)
CORD WITH
CONNECTOR
CORD WITH
CONNECTOR
INSTRUCTION MANUAL ENGLISH
INSTRUCTION MANUAL ENGLISH
INSTRUCTION MANUAL ARABIC
SUB-INSTRUCTION ENG FRE SPA
MANUAL
SUB-INSTRUCTION ENG FRE GER DUT
MANUAL
SUB-INSTRUCTION ITA SPA POR RUS
MANUAL
ITEM CARTON CASE
ITEM CARTON CASE
