Kenwood DPX-U5130 Service Manual page 11

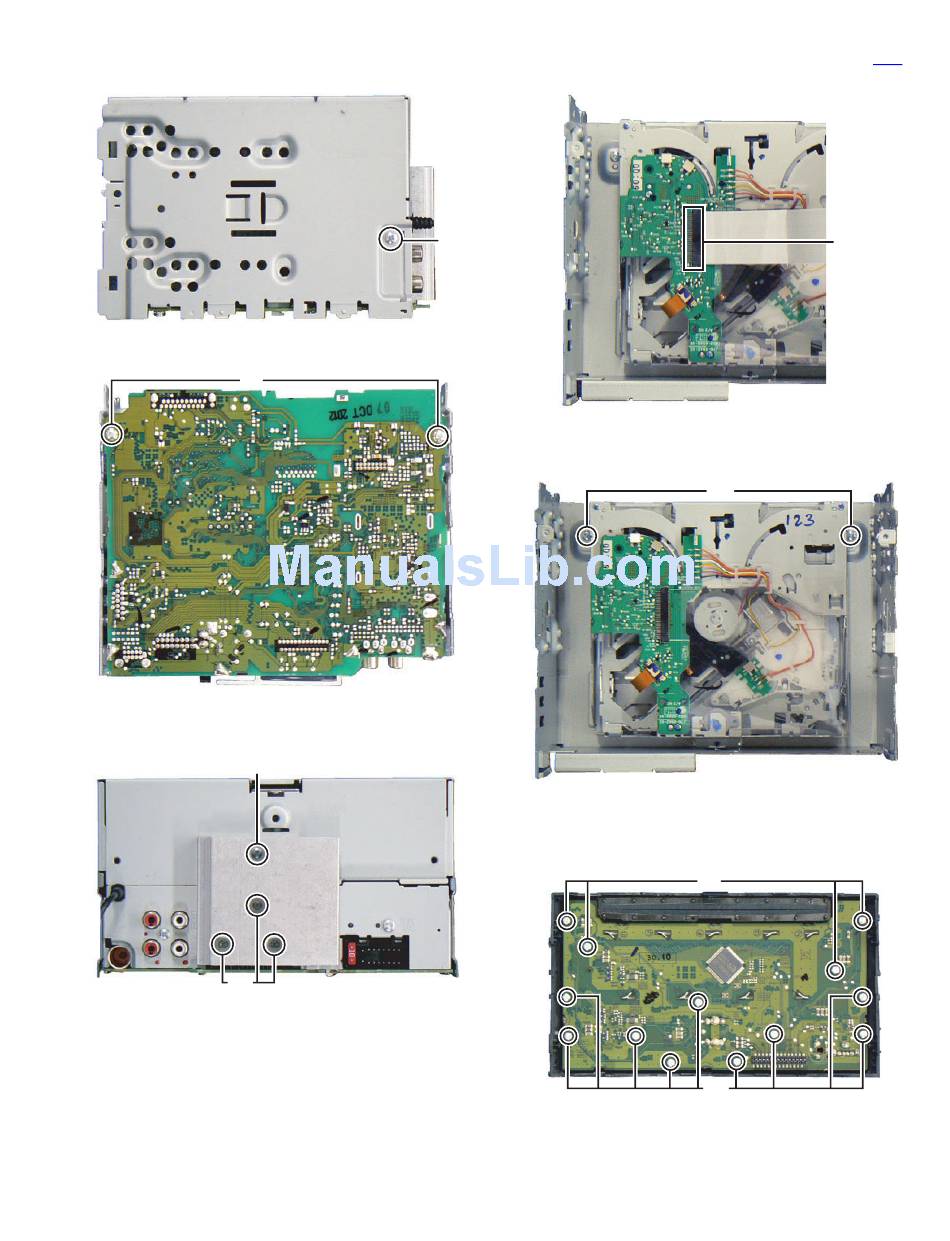

(2) Remove the 2 screw B attaching both sides of the Top
chassis. (See Fig.5)
Fig.5
(3) Remove the 2 screws C attaching the Electric unit. (See Fig.6)
C
Fig.6
(4) Remove the 1 screw D and 3 screws E attaching the Heat
sink. (See Fig.7)
D
E
Fig.7
(5) Disconnect the FFC wire connected to connector
the CD mechanism. (See Fig.8)
B
3.1.4 Removing the CD mechanism (See Fig.9)
(1) Remove the 2 screws F attaching the CD mechanism.
3.1.5 Removing the Switch unit (See Fig.10)
(1) Remove the Volume knob.
(2) Remove the 13 screws G attaching the Switch unit.
(No.WA063<Rev.003>)11/31
CN2
CN2
Fig.8
F
Fig.9
G
G
Fig.10
