Kenwood DPX-U5130 Service Manual page 13

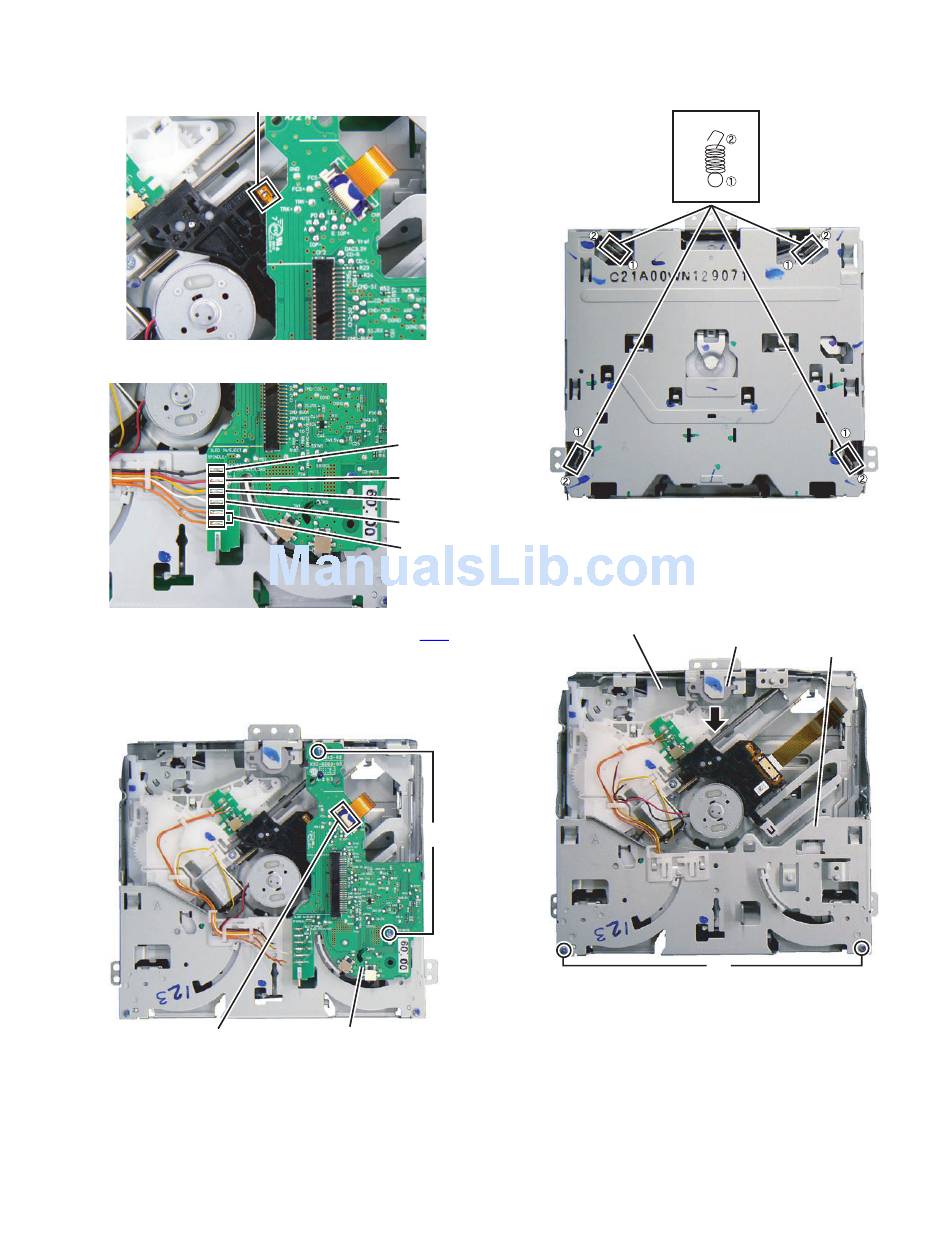

3.2.1 Removing the CD Player unit (See Fig.1 to 3)
(1) Solder the short land on the Pickup. (See Fig.1)
SOLDER
(2) Remove the 6 wires from the CD Player unit. (See Fig.2)
(3) Disconnect the FPC wire from the connector
Player unit). (See Fig.3)
(4) Remove the 2 screws A attaching the CD Player unit.
(See Fig.3)
(5) Remove the CD Player unit. (See Fig.3)
CN1
Fig.1
Black
Red
Yellow
Orange
White
Orange
Fig.2
CN1
A
CD Player unit
Fig.3
(No.WA063<Rev.003>)13/31
3.2.2 Removing the Traverse mechanism (See Fig.4, 5)
(1) Remove the 4 springs from the traverse mechanism.
(See Fig.4)
(2) Remove the 2 screws B attaching the Lower chassis.
(See Fig.5)
(3) Remove the Damper in the direction of the arrow.
(See Fig.5)
(4) Remove the Traverse mechanism. (See Fig.5)
Traverse mechanism
(CD
Spring
Fig.4
Damper
Lower chassis
B
Fig.5
