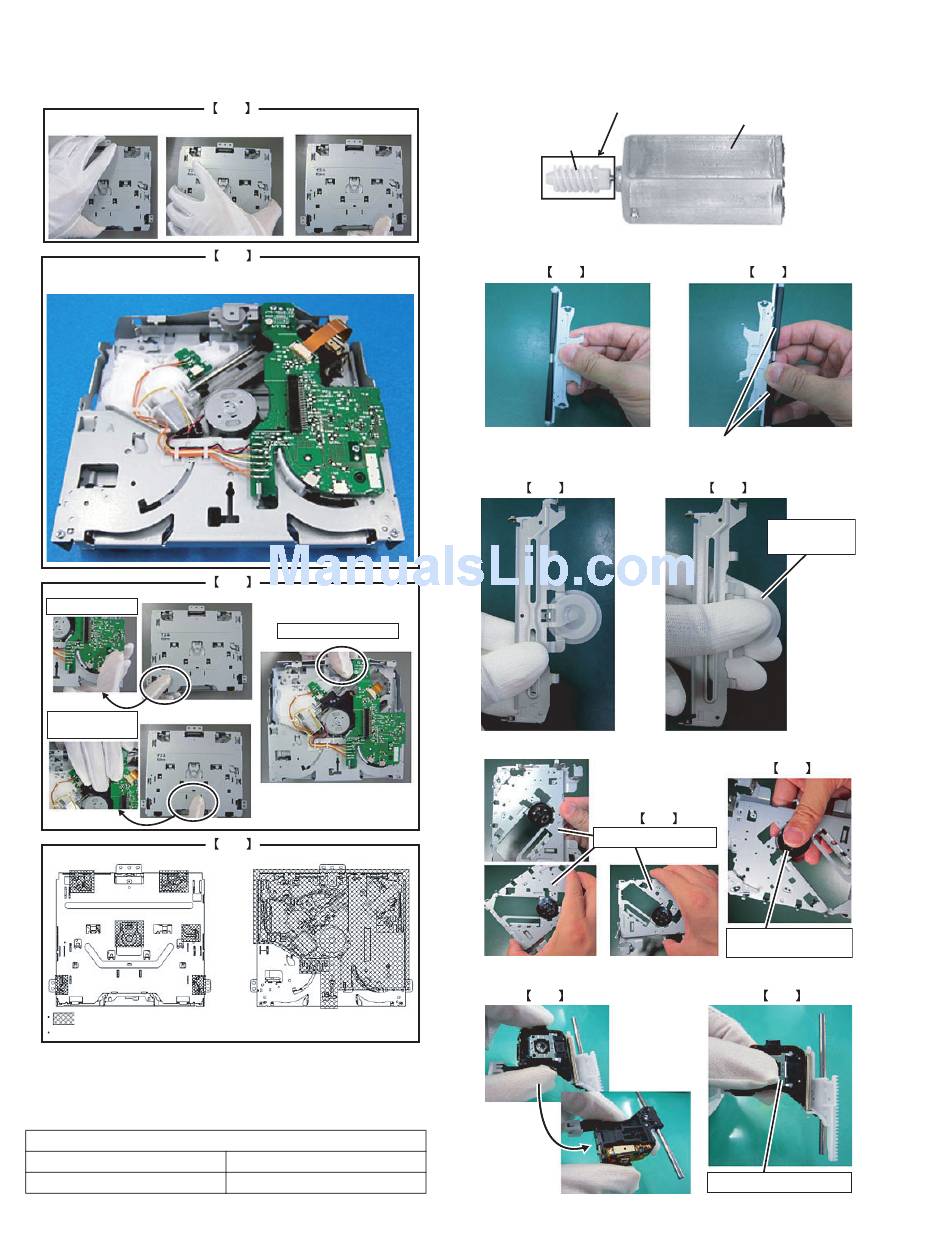

3.2 CD mechanism
• NOTICE FOR HANDRIG OF MECHANISM ASSY
Handle CHASSIS part.
Do not stay MECHANISM ASSY in upside-down condition
for 1 hour and more.
Do not touch P.C.B..
Do not touch
PICK UP ASSY.
TOP SIDE
DO NOT TOUCH AREA
DO NOT TOUCH HOLES, MOTOR, DAMPER, PCB, FFC, OPU AND WIRE.
• THESE PARTS NEED CAUTION OF HANDLING
CAUTION:
Don't touch the following parts in particular by the hand which
touched grease. (It becomes a cause of traction problem)
CAUTION PARTS
HC TURN TABLE
ROLLER
OK
NG
NG
Do not touch DAMPER.
NG
BOTTOM SIDE
TRIGGER ARM
DISC GUIDE
(No.WA063<Rev.003>)12/31
• NOTICE FOR HANDRIG OF FEED MOTR ASSY
CAUTION: For mounting FEEDMOTOR ASSY, DON'T bump this part.
Because handling may cause this part easily deformed.
WORM 1
• NOTICE FOR HANDRIG OF ROLLER LEVER ASSY
OK
• NOTICE FOR CLAMPER ASSY OF PICK UP ASSY
OK
• NOTICE FOR HANDRIG OF MD CHASSIS ASSY
Handle CHASSIS part.
• NOTICE FOR HANDRIG OF PICK UP ASSY
OK
FEED MOTOR
NG
Do not handle roller part.
NG
Do not handle
the clamper part.
NG
OK
Do not handle the
turn table part.
NG
Do not handle the lens part.
