RF Troubleshooting and Manual Tuning Guide
Remember to stop the RF before sending new data.
Alternative steps
• Measure the wide range levels normally and write down the levels that are possible to measure.
• Click Finish.
• Click Options.
• Change the first wide range DAC value to 573 and change the number of tuning steps to 21.
• Change the spectrum analyzer reference level to –20 dBm and adjust the input attenuator to the lowest
value possible.
• In the "Wide Range" pane, click Tune and fill in the rest of values starting from the 19th level.

Tx band response calibration (WCDMA)

Context
Tx band response calibration is required to get compensation parameters for DSP algorithm in order for it to
handle frequency response variations (caused by SAW filter, PA and duplexer unidealities) in open loop power
control and maximum power limitation situations.
Steps
1. From the "Operating mode" dropdown menu, set mode to "Local". NOTE! After tuning is done change
system mode back to Dual by choosing "Free" to Selected System Mode and click Write.'

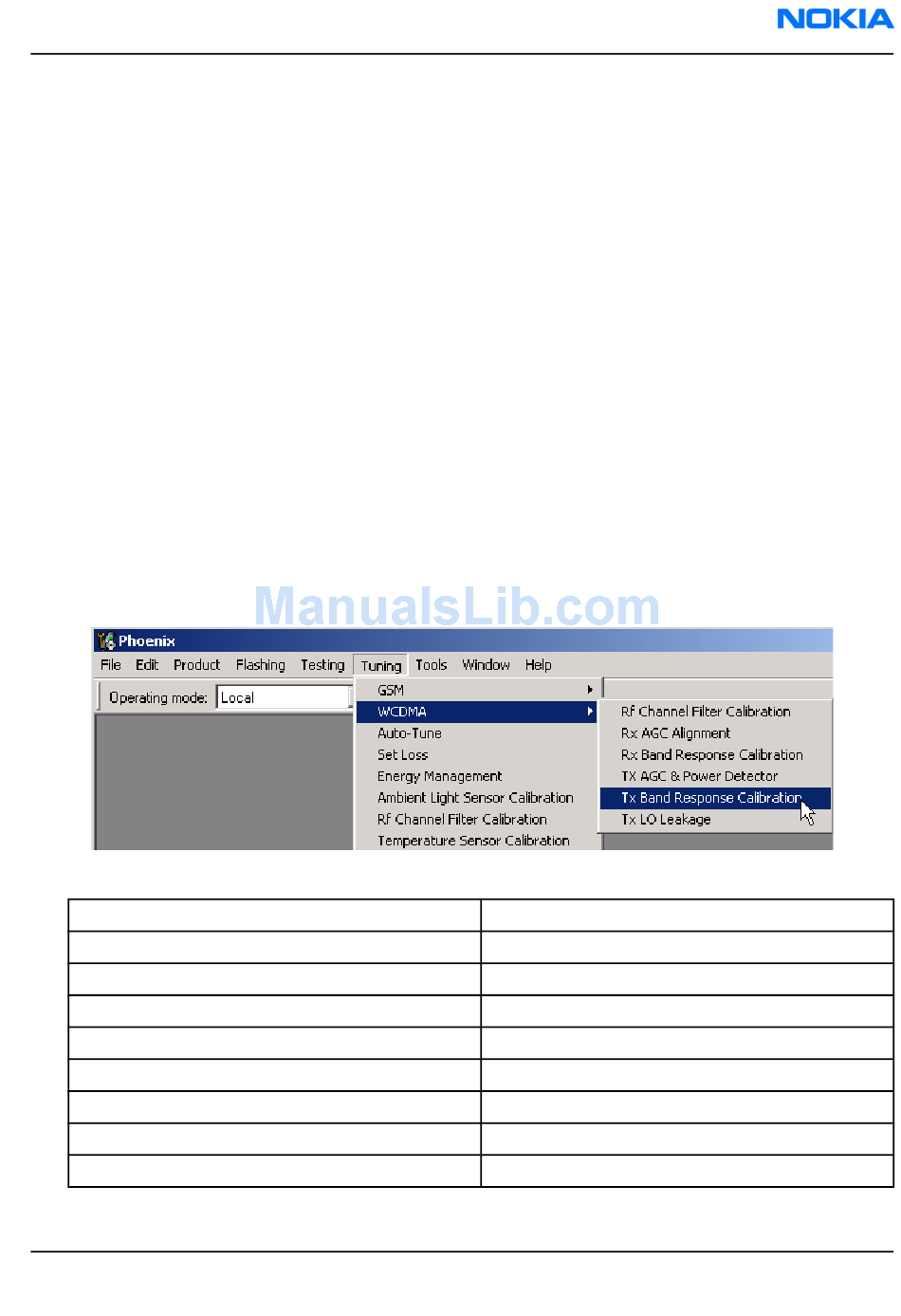

2. From the Tuning menu, choose WCDMA -> Tx Band Response Calibration.
3. Setup the spectrum analyzer according to the following settings:
Frequency:
Span:
Reference level offset:
Reference level:
Input attenuation:
Resolution bandwidth:
Video bandwidth:
Trigger:
Markers:
9241872 (Issue 1) Company Confidential
Copyright ©2005 Nokia. All Rights Reserved.
1950.3 MHz
100 MHz
Cable attenuations + adapter attenuation
30 dBm
Default
more than 4.7 MHz (i.e. 5MHz)
more than 4.7 MHz (i.e. 5MHz)
Free run
1922.4 MHz, 1950.0 MHz and 1977.6 MHz
