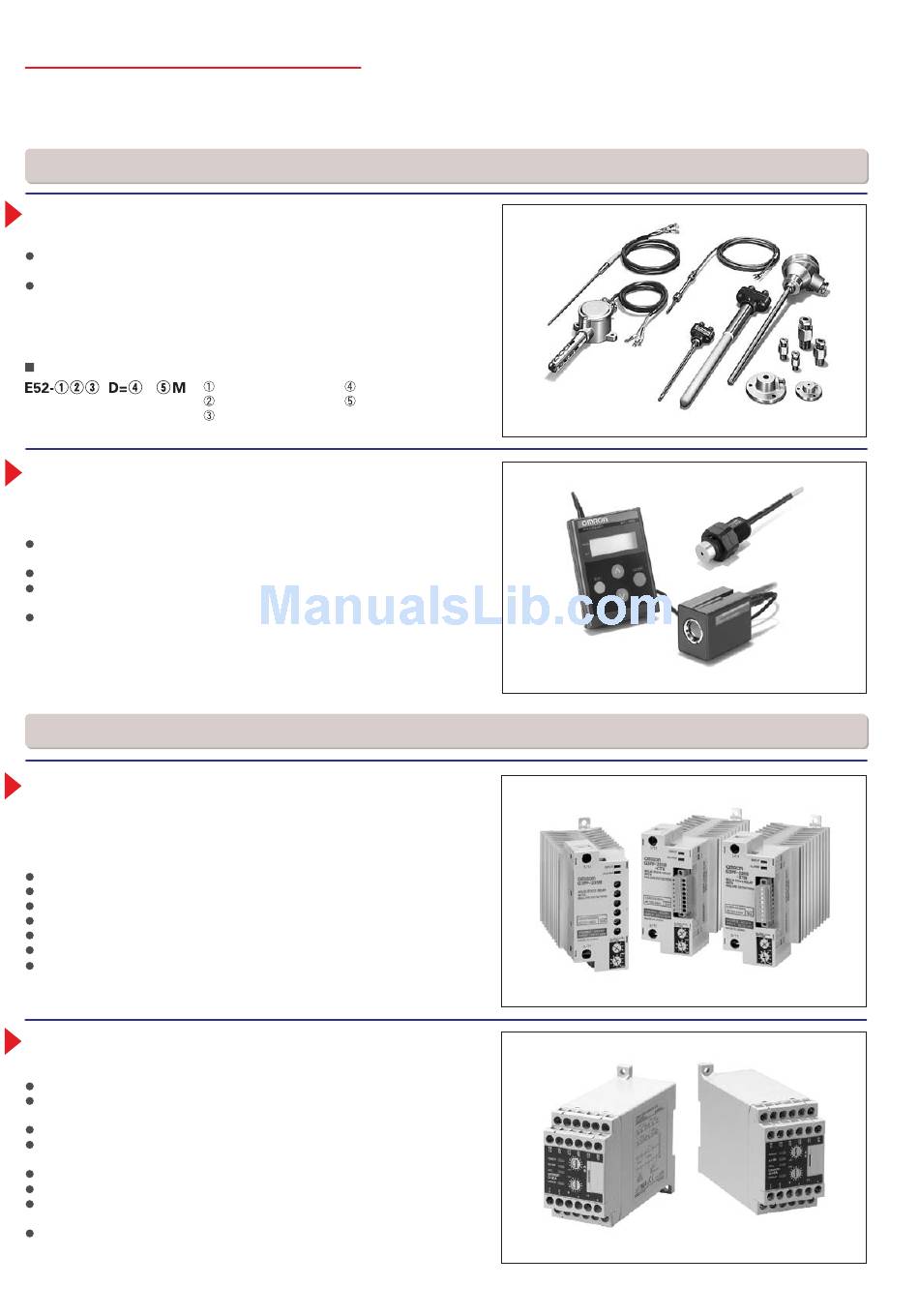

Peripheral Devices

Input Devices
Input Devices
E52-series

Temperature Controllers

Plenty of Variation to Suit an Extensive Range of Applications
Select from a variety of choices in number of elements, shape, protective
tubing length, and terminal type.
Economical models and special models are available as well as general-
purpose models. Select from a diverse range of models to suit the application:
Models for high temperatures, metal patterns, surface measurement, and
room temperatures, waterproof and anti-corrosive models, models for moving
parts, and models with double elements.
Model Structure
Example: E52-CA15A D:3.2 2M
ES1/ES1B-series
Hygienic temperature measurement without damaging the workpiece. Ideal for
workpieces on conveyors or other applications in which contact measurement is
difficult.
ES1 Series: Designed for high-precision, small-spot, high-temperature
measurements.
Two types of small spot: 3-mm dia. and 8-mm dia.
High-precision and high-speed measurement with a repeatability of ±0.5°C
and response speed of 0.4 s (95%).
Models are available for medium (–500 to 500°C), mid-low (–50 to 500°C),
and high (0 to 1000°C) temperature ranges.
Output Devices
Output Devices
G3PF Solid-state Relay with Built-in
Current Transformer (CT)
Built-in current transformer is provided and heater burnouts and SSR short-
circuits can be detected.
Built-in current transformer reduces wiring work.
Detects the burnout of any one of multiple heaters.
Detects burnouts in 3-phase heaters.
Detects SSR short-circuits.
Error detection level can be easily set with a switch.
Can be mounted to a DIN Track or with screws.
Three types of input terminals are available: M3 terminals, screwless clamp
terminals (detachable), or compact slotted terminals (detachable).
G3ZA Multi-channel Power Controller
Optimum Cycle Control for High-precision Control with Low Noise
Smaller than power conditioners.
Power control with little noise is enabled by combining the Power Controller
with zero-cross SSRs. (See note.)
One Controller can control up to 8 SSRs.
RS-485 communications can be used to set output values and heater burnout
detection.
The G3ZA Smart FB Library is also available.
A soft-start function that can be used for lamp heaters has been added. (See note.)
A 3-phase optimum cycle control function has been added for use with 3-cycle
heaters.
Detection of 150-A currents has been added along with a special current
transformer.
Note: Non-zero-cross SSRs must be used in combination with the soft-start function.
8
Element type Protective tubing model
Protective tubing length Lead wire length
Terminal type
Infrared Thermosensors
