Installation
Easy Installation Procedure
The following must be completed before powering on your new system:
3-1.
CPU Installation
3-2.
Jumper Settings
3-3.
System Memory Configuration
3-4.
Expansion Slots
3-5.
Device Connectors

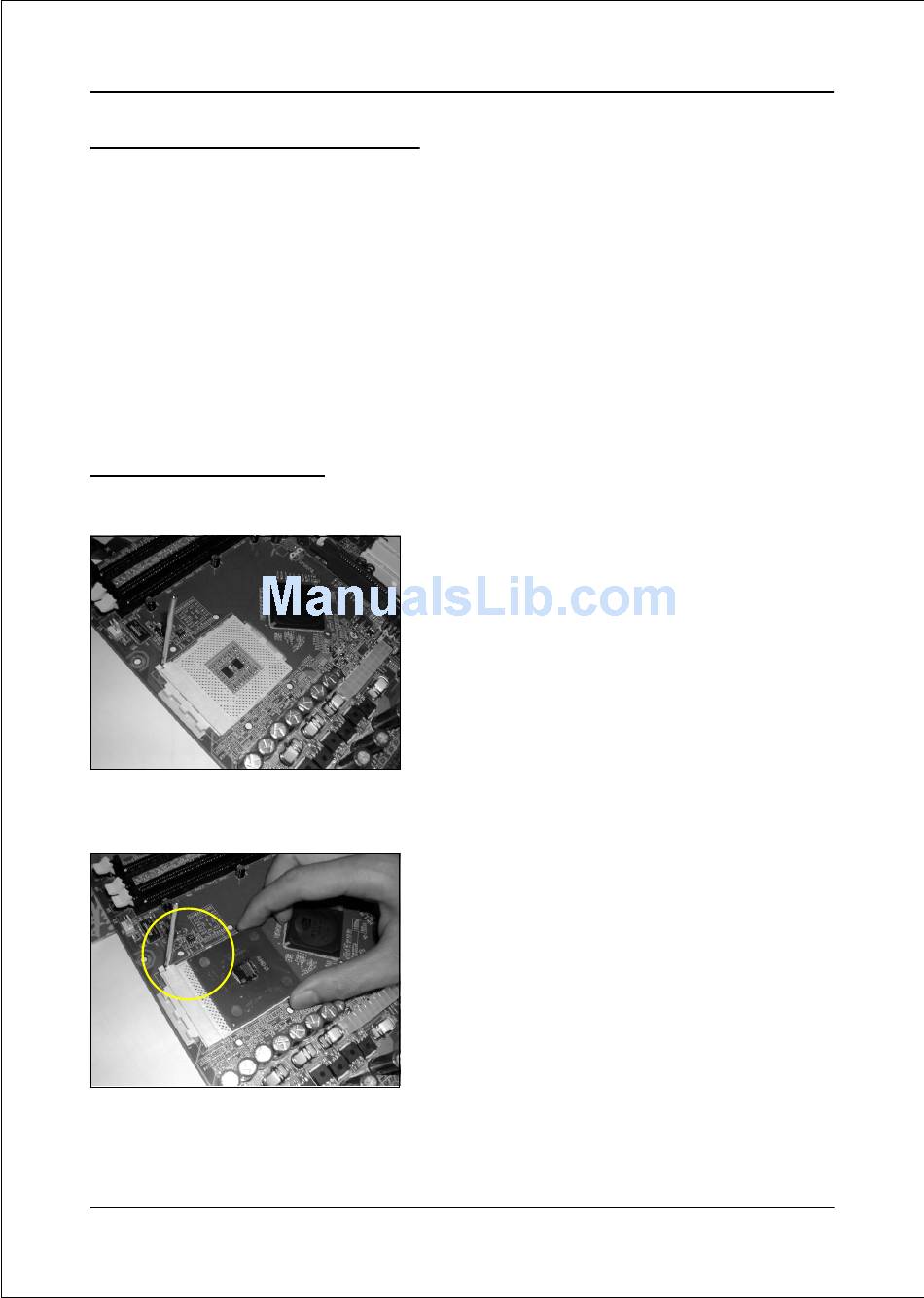

3-1 CPU Installation
CPU Insertion: (use AMD Athlon
<Figure 2>
<Figure 3>
Page 3-2
as reference)
TM
Step 1
Open the socket by raising the actuation
lever.
Step 2
Insert the processor.
Ensure proper pin 1 orientation by aligning
the FC-PGA corner marking with the
socket corner closest to the actuation arm
tip. The pin field is keyed to prevent mis-
oriented insertion.
Don't force processor into socket. If it does
not go in easily, check for mis-orientation
and debris.
Make sure the processor is fully inserted
into the socket on all sides.
