Snapshot and Recording View
Snapshot and Recording View displays the screen snapshots and recordings that are saved on
the optional-purchase microSD card installed in the control head. Use this view to review the
snapshot and recording file details, start recording, and adjust the recording settings.
NOTE: The recording feature is only available in Humminbird models with sonar. You can take screen
snapshots with the HELIX GPS, but the recording feature is not available on this model.
• Activate Screen Snapshot: Select Screen Snapshot from the Setup Menu Tab, and select
On. Also, install an optional-purchase microSD card in the control head, and make sure
Snapshot and Recording View is set to Visible on the Views Menu Tab.
• Scroll and View: Use the UP and DOWN Cursor keys to scroll through the saved Screen
Snapshots and Recordings. The active file is highlighted with arrows. Press the RIGHT
Cursor key to view the file.
• Snapshot and Recording X-Press Menu: Press the MENU key once in this view to open
the X-Press Menu. Use the X-Press Menu to Start Recording, Delete Images, or adjust
the Recording and Playback settings (see Recording and Playback or Snapshot and
Recording X-Press Menu).

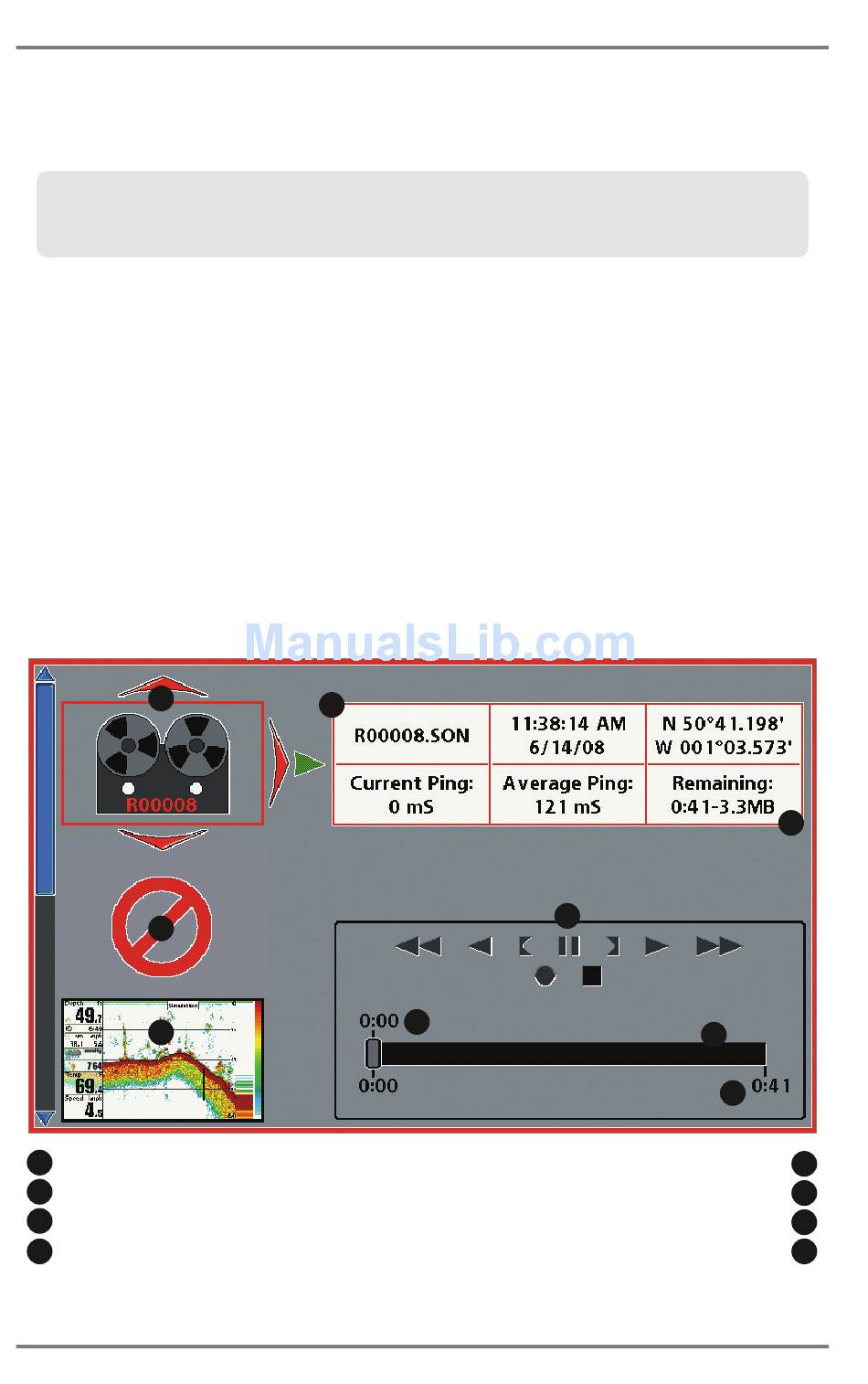

1
3
2
1
Recording icon
2 Snapshot thumbnail
3
Unavailable icon
4
Information box
Snapshot and Recording View
Snapshot and Recording View
4
7
42
(optional-purchase microSD Card required)
6
Amount of recording left to play
Recording mode icons
Amount of recording that has been played
Amount of space used for this recording
5
5
8
5
6
7
8
