Humminbird HELIX 5 SERIES Operation Manual page 39

Split Sonar View
Split Sonar View displays sonar returns from each down beam frequency on separate sides of
the screen. You can use the Split Sonar View to make side by side comparisons between the
sonar returns from both beams.
• DualBeam PLUS models (HELIX SONAR GPS) display sonar returns from the 83 kHz
wide beam on the left side of the screen and sonar returns from the 200 kHz narrow beam
on the right side of the screen.
• Down Imaging models (HELIX DI GPS) display traditional 2D sonar returns from the 455
kHz narrow beam on the left side of the screen and sonar returns from the 200 kHz wide
beam on the right side of the screen.
• Xtreme Depth models (HELIX XD GPS) display sonar returns from the 50 kHz wide beam
on the left side of the screen and sonar returns from the 200 kHz narrow beam on the right
side of the screen.
• Freeze Frame: Use the 4-WAY Cursor Control key to freeze the display and move the cursor
over a sonar return. The depth of the sonar return will be displayed in the cursor dialog
box.
1
2
3
4
1
Depth
2
Triplog
3
Temperature
4
Speed
(HELIX SONAR GPS, HELIX DI GPS, HELIX XD GPS only)

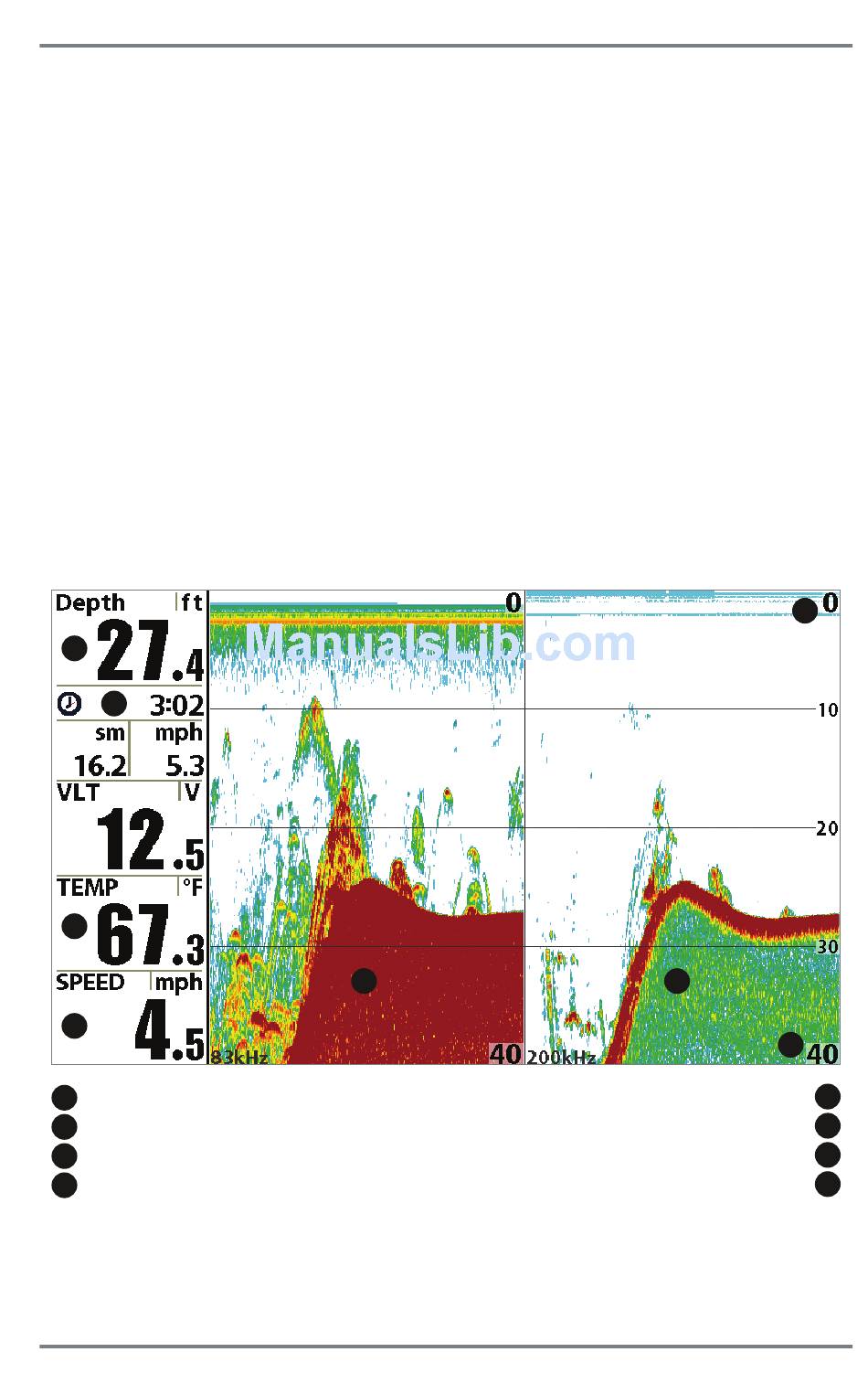

Split Sonar View (HELIX SONAR GPS)
8
33
7
6
Upper Depth Range
Lower Depth Range
200 kHz Sonar History Window
83 kHz Sonar History Window
Sonar Views
5
5
6
7
8
