Humminbird HELIX 5 SERIES Operation Manual page 38

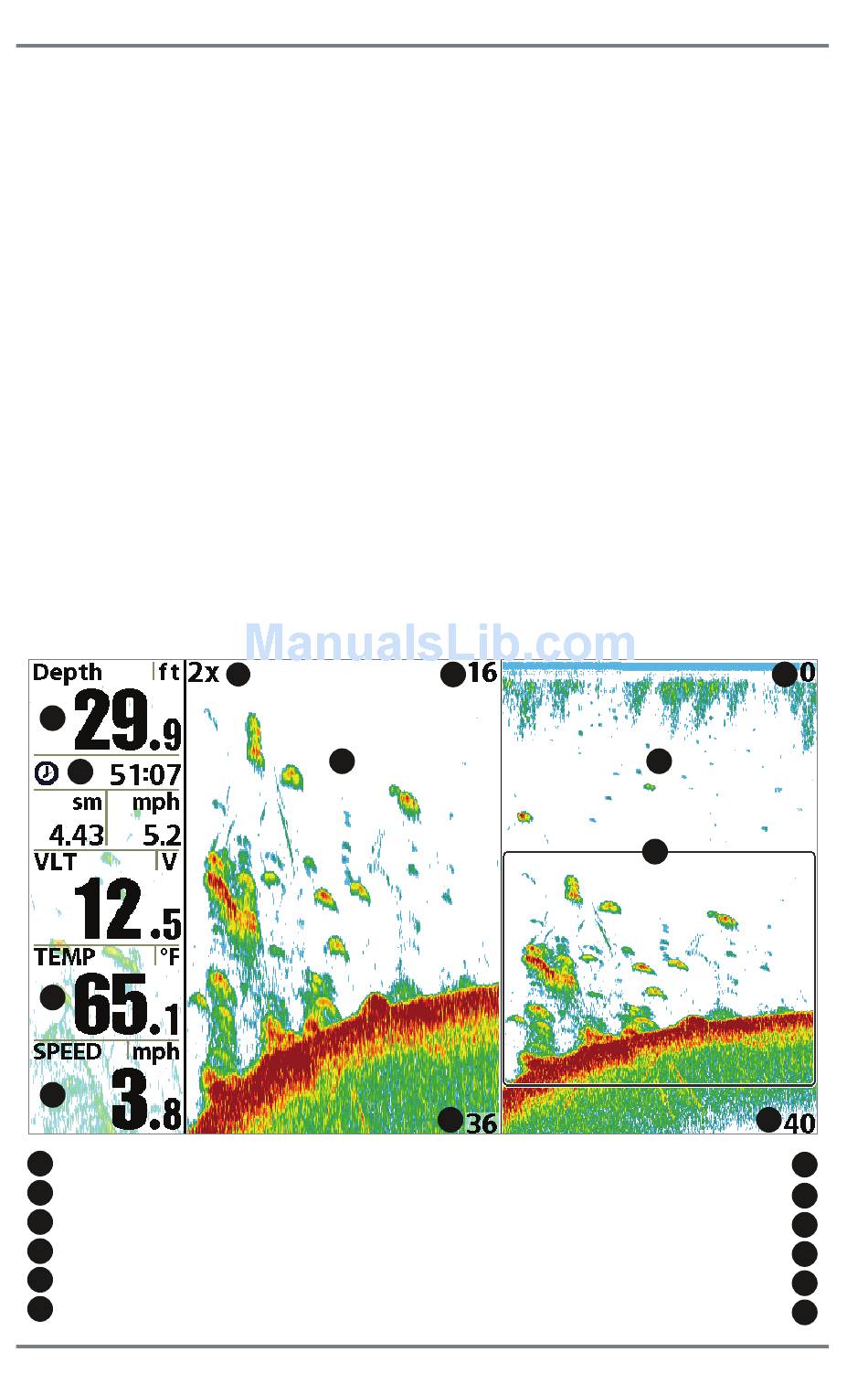

Sonar Zoom View
Sonar Zoom View provides a magnified view of the bottom and structure. The Sonar Zoom View
makes it easier to see separate sonar returns that would usually be displayed close together,
such as those caused by fish suspended close to the bottom or within structure.
• The Zoom Level, or magnification, is displayed in the top left corner of the display. Press
the + or - ZOOM keys to increase or decrease the zoom level.
• The Zoomed View is displayed on the left side of the screen. As the depth changes, the
zoomed view updates automatically.
• The Full Range View is displayed on the right side of the screen. The Full Range View
includes the Zoom Preview Box, which shows where the zoomed view is in relation to
the full range view.
• The Upper and Lower Depth Range numbers indicate the high and low range of the
water which is being viewed.
• Digital Readouts shown on the display will change based on the Select Readouts settings
or the optional-purchase accessories attached (see Views: Change Digital Readouts).
• Freeze Frame: Use the 4-WAY Cursor Control key to freeze the display and move the cursor
over a sonar return. The depth of the sonar return will be displayed in the cursor dialog
box.
1
2
3
4
1
Depth
2
Triplog
3 Temperature
4
Speed
5
Zoomed View
6
Zoom Level
Sonar Views
(HELIX SONAR GPS, HELIX DI GPS, HELIX XD GPS only)
Sonar Zoom View
6
5
8
12
Upper Depth Range, Full Range View
Lower Depth Range, Full Range View
32
10
9
11
Upper Depth Range, Zoom View
Zoom Preview Box
Full Range View
Lower Depth Range, Zoom View
7
7
8
9
10
11
12
