To activate the Depth Cursor:
Use the Depth Cursor to identify depth on the flasher display.
1. Set up: Press the VIEW key repeatedly until the Circular Flasher View is displayed on the
screen. Turn on the Ice Fishing Mode (see Sonar Menu Tab).
2. Activate: Press the DOWN Cursor key, and the purple cursor line will appear on the
display.
3. Adjust the Cursor: Press the UP or DOWN Cursor keys repeatedly until you reach the
chosen depth reading. The depth reading of the cursor is displayed in the top, right corner
of the view.
4. Close the Cursor: Press the EXIT key.
1
Depth Cursor Reading
NOTE: See Set the Digital Depth Source for more information.
Sonar Views

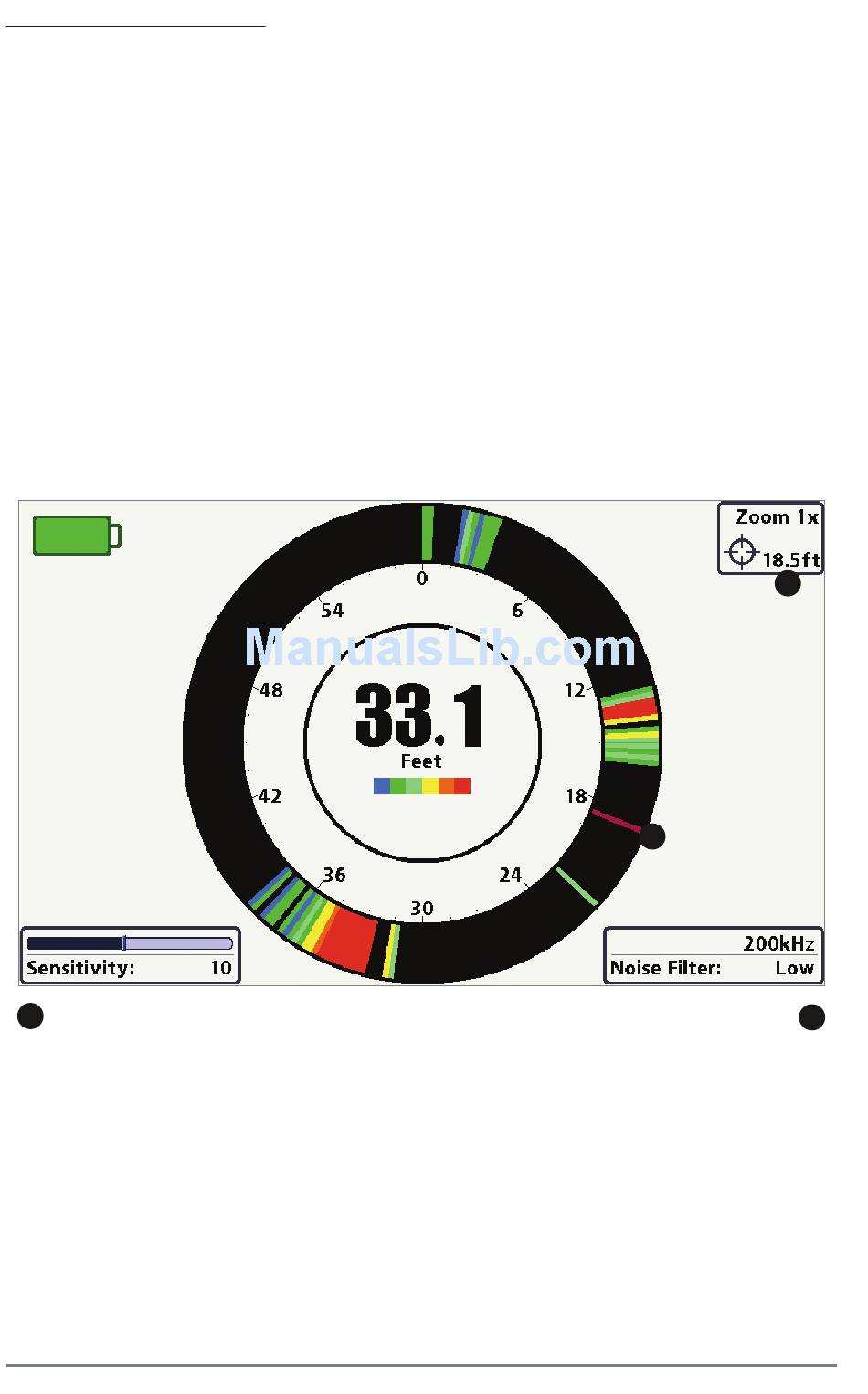

Circular Flasher View with Depth Cursor
38
1
2
Depth Cursor
2
