D Specifications - Omron CQM1H series Operation Manual

Standard Specifications
The standard specifications of the CQM1-LK501 I/O Link Unit conform to those of the CQM1H/CQM1 PC.
SYSMAC BUS Standard Specifications
Item
Transmission method
Communication method
Transmission path
Interface
Transmission speed
Transmission distance
Performance Specifications
Item
Name
Model
Current consumption
I/O delay
I/O points
External output
Diagnostic function
Weight
Dimensions

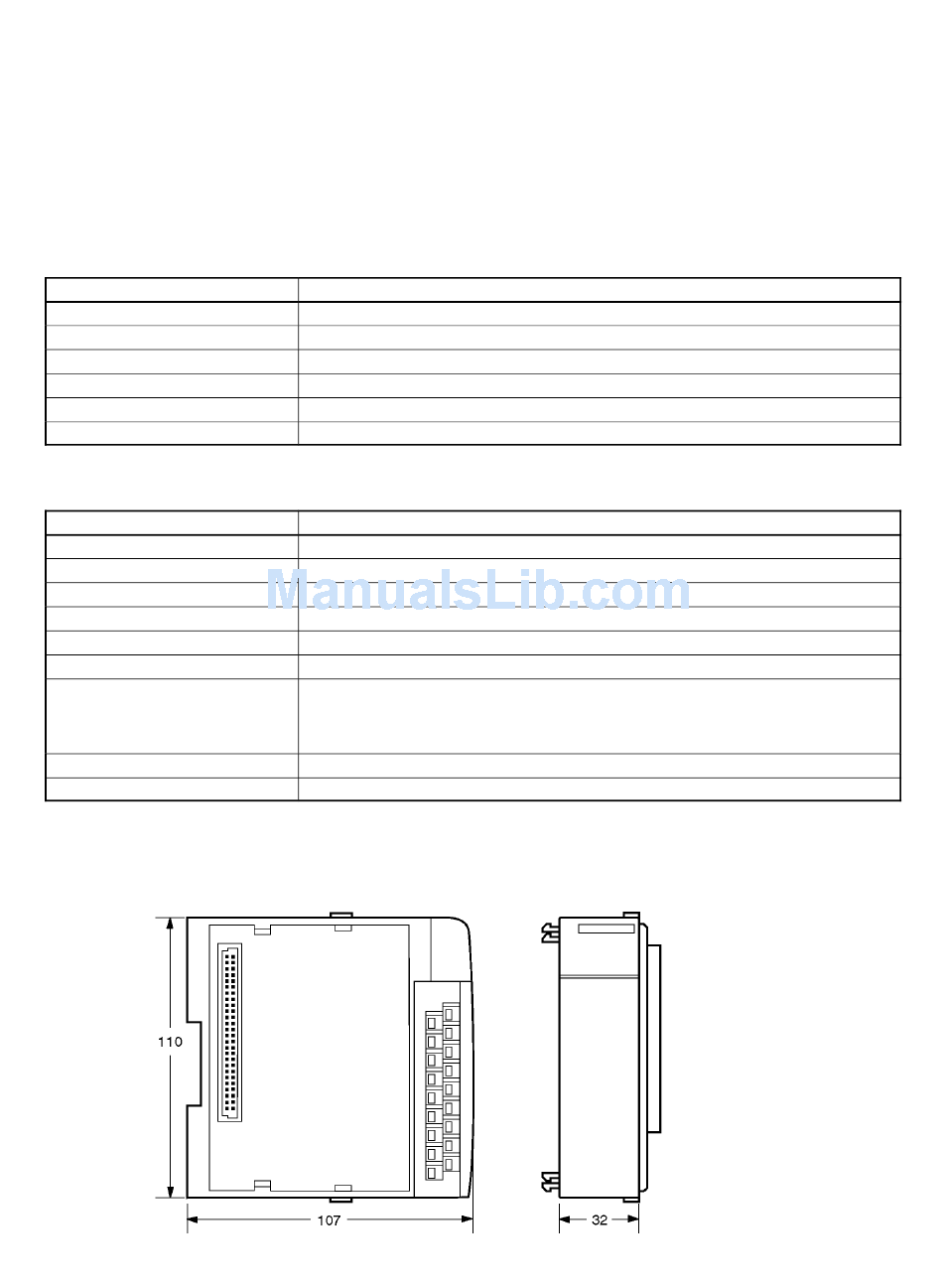

Dimensions
These dimensions are the same for all G730 Interface Unit models.
Appendix A
Specifications
Time-division multiplex cyclic
Two-wire semi-duplex
2-core cable (VCTF 0.75 x 2 C is recommended)
RS-485
187.5k bps
200 m max.
I/O Link Unit
CQM1-LK501
150 mA at 5 VDC
8 ms/64 points
64 points (32 input points and 32 output points)
Operating output: G6D, SPST-NO, 2 A max.
• Transmission error check (BCC + inverted double transmission collation)
• CPU error monitor
• Transmission path error check
220 g max.
32 x 110 x 107 (W x H x D)
Specification
Specification
(Unit: mm)
71
