12 Networking Services - IP
12.3.2

Static IP Address Configuration

Default STPro IP
address
In this subsection
Setting an IP address
via the 'Initial Setup'
page
142 / 238
In case you add the STPro to an existing LAN, it could be that you
must configure a User Defined" IP address, other than the Net
10" address, appropriate for the LAN's IP settings.
Setting an IP Address via the 'Initial Setup' Page
"
Setting an IP Address via the 'Routing' Page.
"
Proceed as follows:

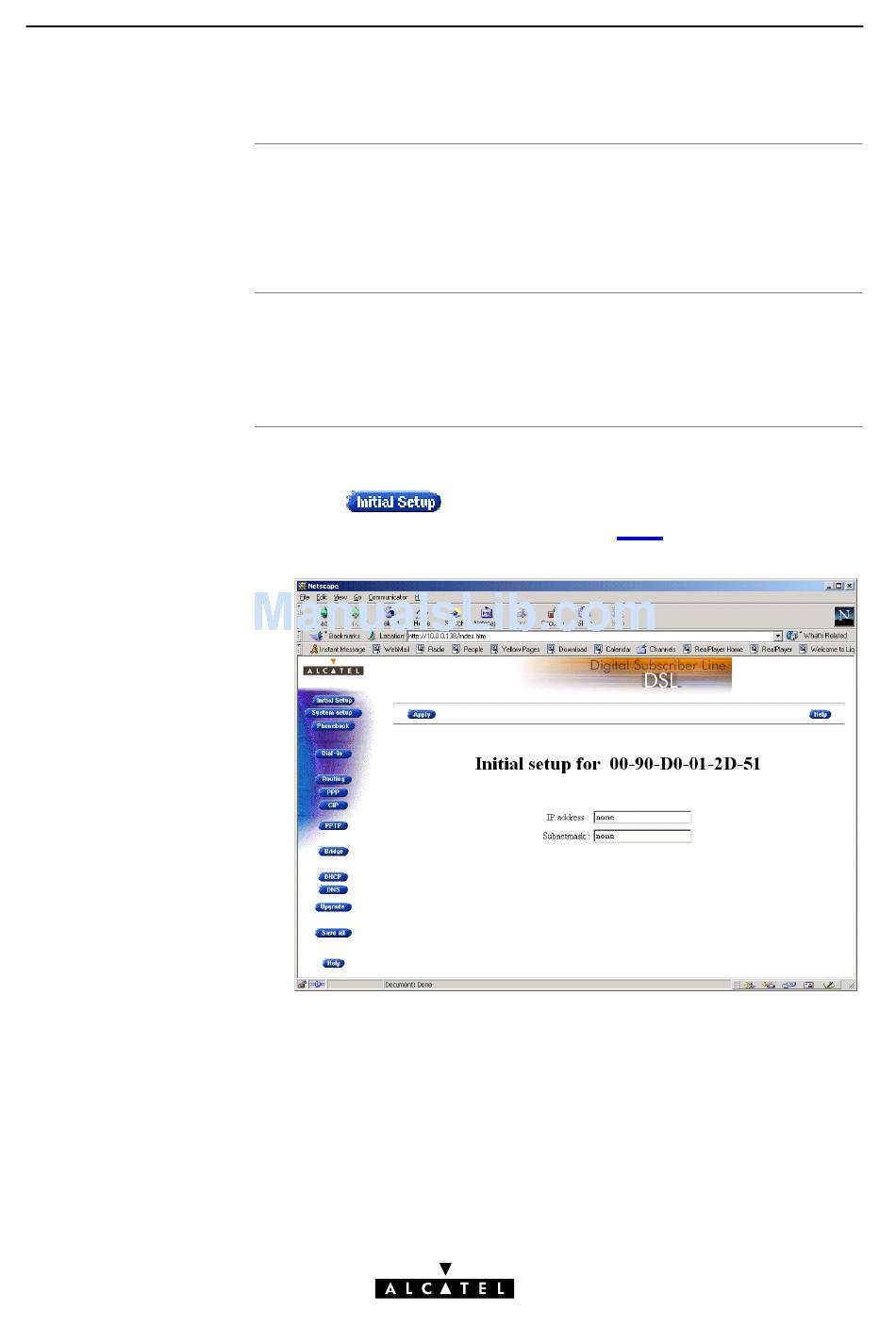

1. Click
the 'Initial Setup' page (See section 17.2 for more
information):
2. Enter an IP address in the 'IP Address' field.
3. Enter a netmask for applying subnetting in your network in the
'Subnetmask' field.
in the left pane of the STPro pages to pop up
3EC 17059 ABAA TCZZA Ed. 01
