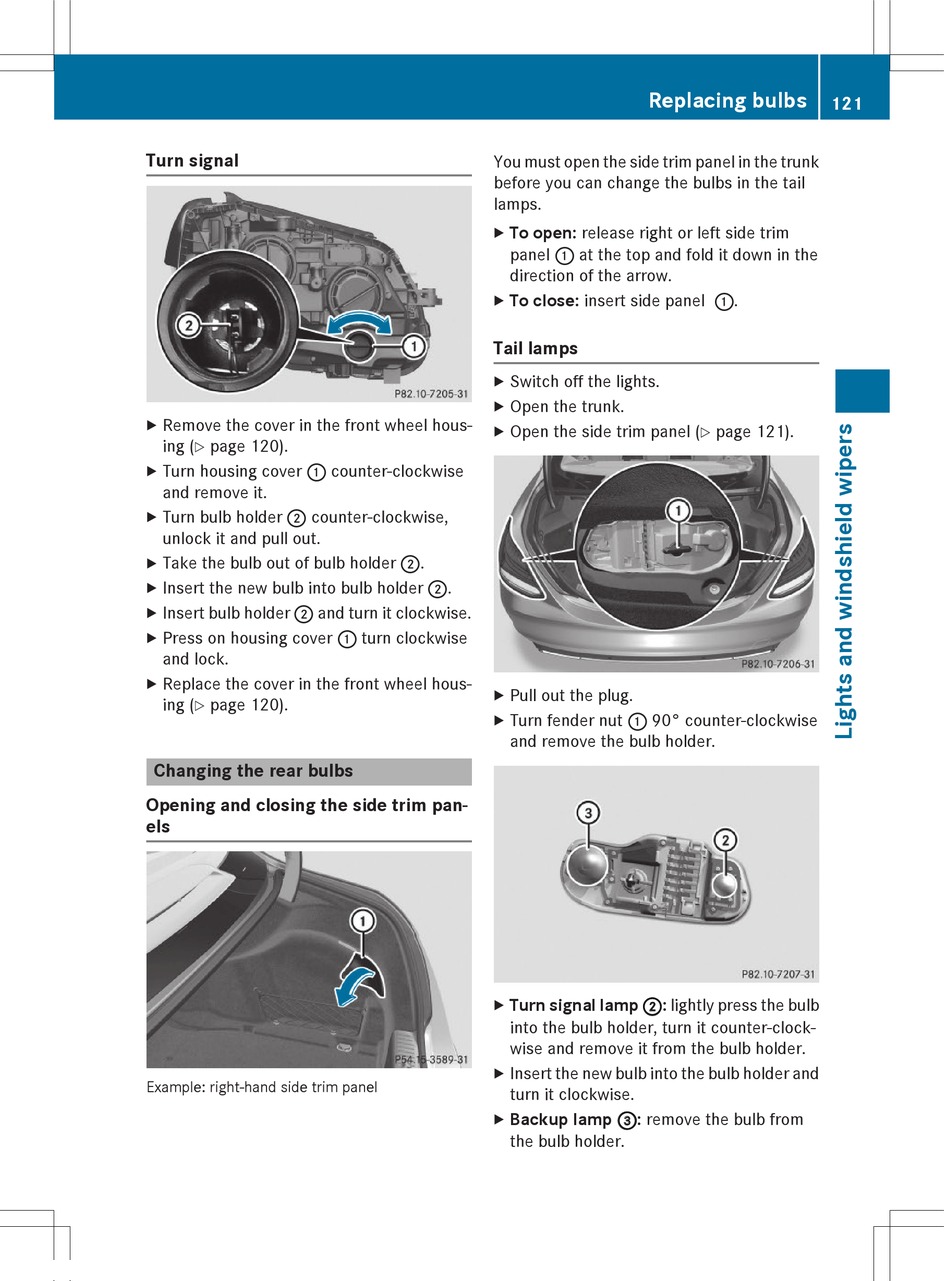

Mercedes-Benz C-Class Operator's Manual page 123

Turn signal
Remove the cover in the front wheel hous-
X
ing ( page 120).
Y
Turn housing cover : counter-clockwise
X
and remove it.
Turn bulb holder ; counter-clockwise,
X
unlock it and pull out.
Take the bulb out of bulb holder ;.
X
Insert the new bulb into bulb holder ;.
X
Insert bulb holder ; and turn it clockwise.
X
Press on housing cover : turn clockwise
X
and lock.
Replace the cover in the front wheel hous-
X
ing ( page 120).
Y
Changing the rear bulbs
Opening and closing the side trim pan-
els
Example: right-hand side trim panel
Replacing bulbs
You must open the side trim panel in the trunk
before you can change the bulbs in the tail
lamps.
To open: release right or left side trim
X
panel : at the top and fold it down in the
direction of the arrow.
To close: insert side panel :.
X
Tail lamps
Switch off the lights.
X
Open the trunk.
X
Open the side trim panel (
X
Pull out the plug.
X
Turn fender nut : 90° counter-clockwise
X
and remove the bulb holder.
Turn signal lamp ;: lightly press the bulb
X
into the bulb holder, turn it counter-clock-
wise and remove it from the bulb holder.
Insert the new bulb into the bulb holder and
X
turn it clockwise.
Backup lamp =: remove the bulb from
X
the bulb holder.
121
page 121).
