6.19.2 Registering a Base Position
The current object position can be registered as a base position in the following way. Before registering
the base position, check to make sure that the edges were detected by setting the horizontal/vertical
areas and performing a testing. When a live image is displayed, perform a test after importing a new
image. When a memory image is displayed, perform a test using the memory image currently displayed
without importing any images.
Registration Procedure
1. Highlight the "Base Position" tab.
The cursor moves to "Base Setting".
2. Press the ENTER key.

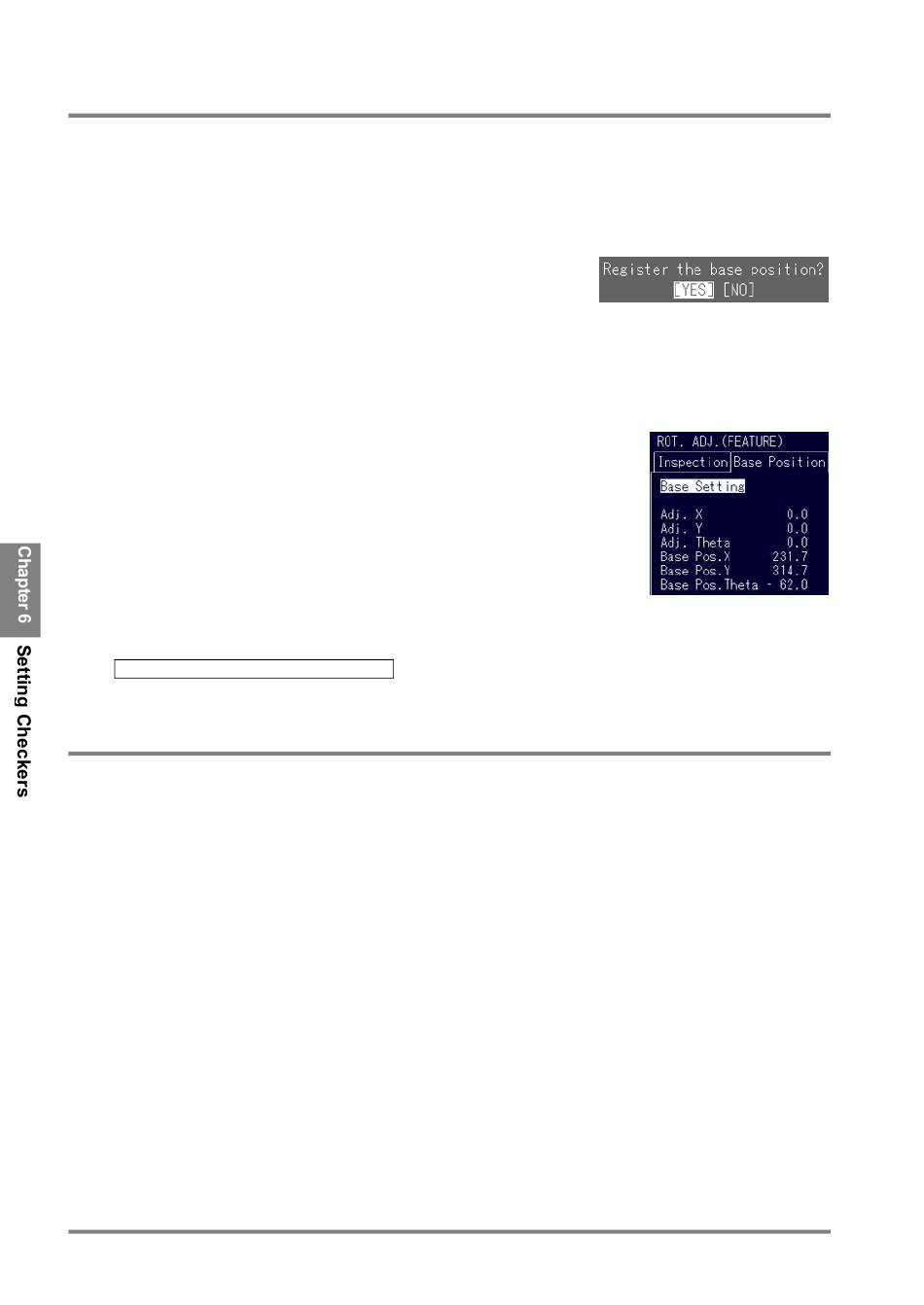

When the dialog message "Register the base position?" appears, choose "YES" to continue.
If the edges ware correctly detected and the base position was registered, the following data appear in the
message area
In the Base Position tab
Adj. X: 0.0
Adj. Y: 0.0
Base Pos. X: Gravity coordinate X of the current object
Base Pos. Y: Gravity coordinate Y of the current object
In the Message area
Judgement: OK
Adj. X: 0.0
Adj. Y: 0.0
If the following message appears, it means horizontal and vertical edges are not detected. Check the
setting values of areas (positions of start /end points) or the inspection objects.
E0042 Base position cannot be detected.
6.19.3 What To Do If You Faced a Trouble
Judgement result is always NG.
The following causes may be occurred.
• The object cannot be detected
Recheck and reconsider the area size and the inspection conditions (Target, Filter, Width, Labeling,
Boundary and Sorting).
• No base position is registered.
The error code "E0049" may be displayed.
Since any base position is not registered, AX40 cannot work properly. Note that if you change area position,
size and shape after registering it, you need to register the base position again.
• The memory you selected is set to extraction process
The error code "E0100" may be displayed.
The Position Adjustment (Gray edge) scans only a gray/differential image. Make sure that you do not
choose a memory that is set to extraction process.
• Position Adjustment that refers to adjustment amount cannot detect the object.
If Position Adjustment is set to the numbers except "0", the adjustment amount of Position Adjustment or
Rotation Adjustment that is registered to the number is referred. If the Position Adjustment or Rotation
Adjustment checker cannot detect the object, the adjustment amount cannot be referred. Therefore, AX40
does not function properly and outputs "NG" result.
