3.6-Inch Wall Mount Touchpanel
12 • 3.6-Inch Wall Mount Touchpanel: TPS-4L
Supplied Hardware for the TPS-4L
DESCRIPTION
Mounting Clip
Overlay Template Cutout
Conn, Plug, 4 Pin, SKT, Single Row
Screw, #06-AB, 2-1/2", Pan Head
NOTE: The following drawings are not to scale. Do not attempt to use them to
prepare the hole in the mounting surface.

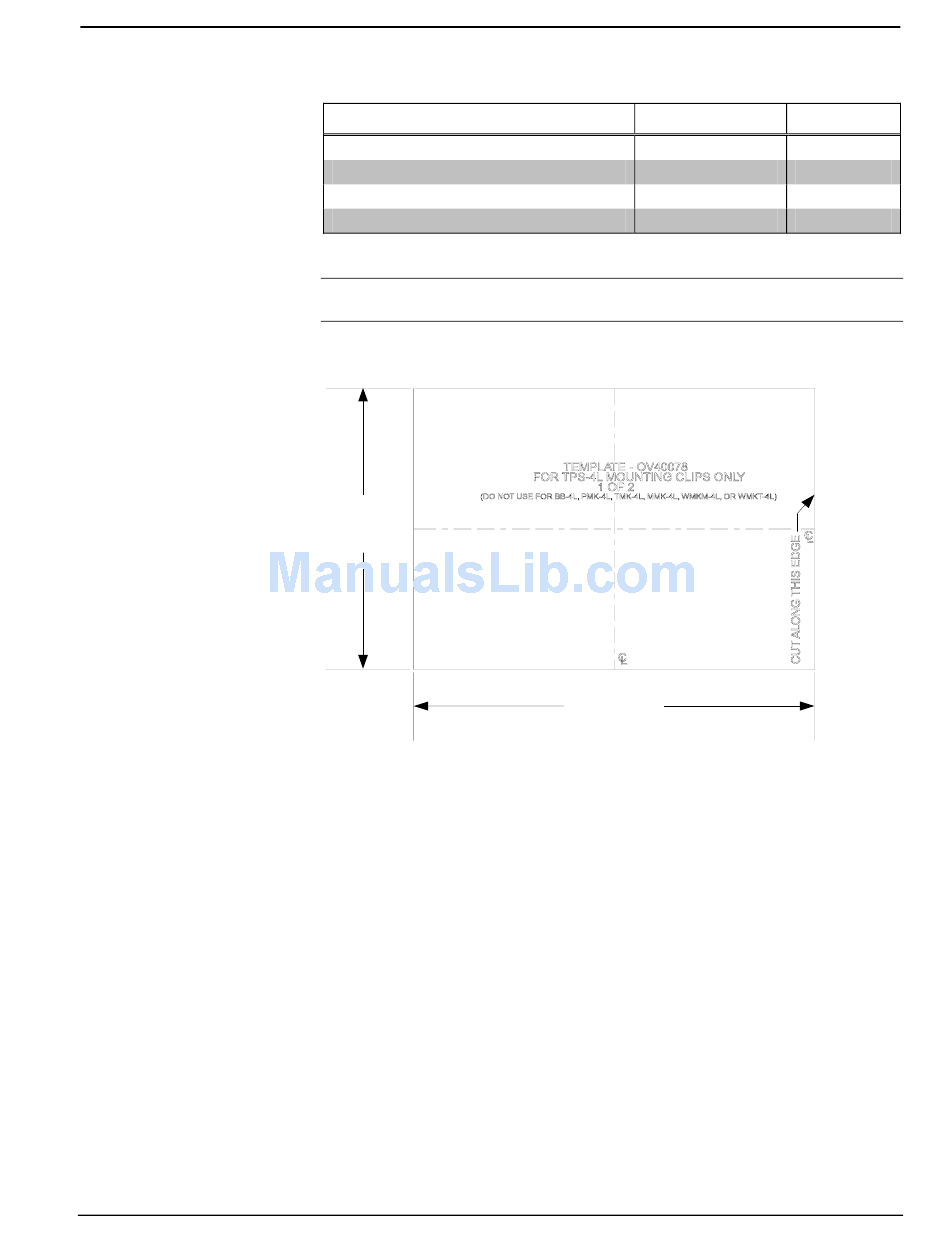

TPS-4L Cutout Dimensions (4007314, 1 of 2)
4 1/4 in
(105 mm)
Crestron Isys
PART NUMBER
2014237
4007314
2003576
2014276
5 1/2 in
(140 mm)
Operations & Installation Guide – DOC. 6449A
®
TPS-4L
QUANTITY
4
1
1
2
