Crestron Isys TPS-4500 Operation Manual

12 inch tilt and lectern touchpanels
Hide thumbs Also See for Isys TPS-4500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Crestron Isys™ TPS-4500 and TPS-4500L
12 Inch Tilt and Lectern Touchpanels
Operations Guide

Advertisement

Table of Contents
loading

Related Manuals for Crestron Isys TPS-4500

Summary of Contents for Crestron Isys TPS-4500

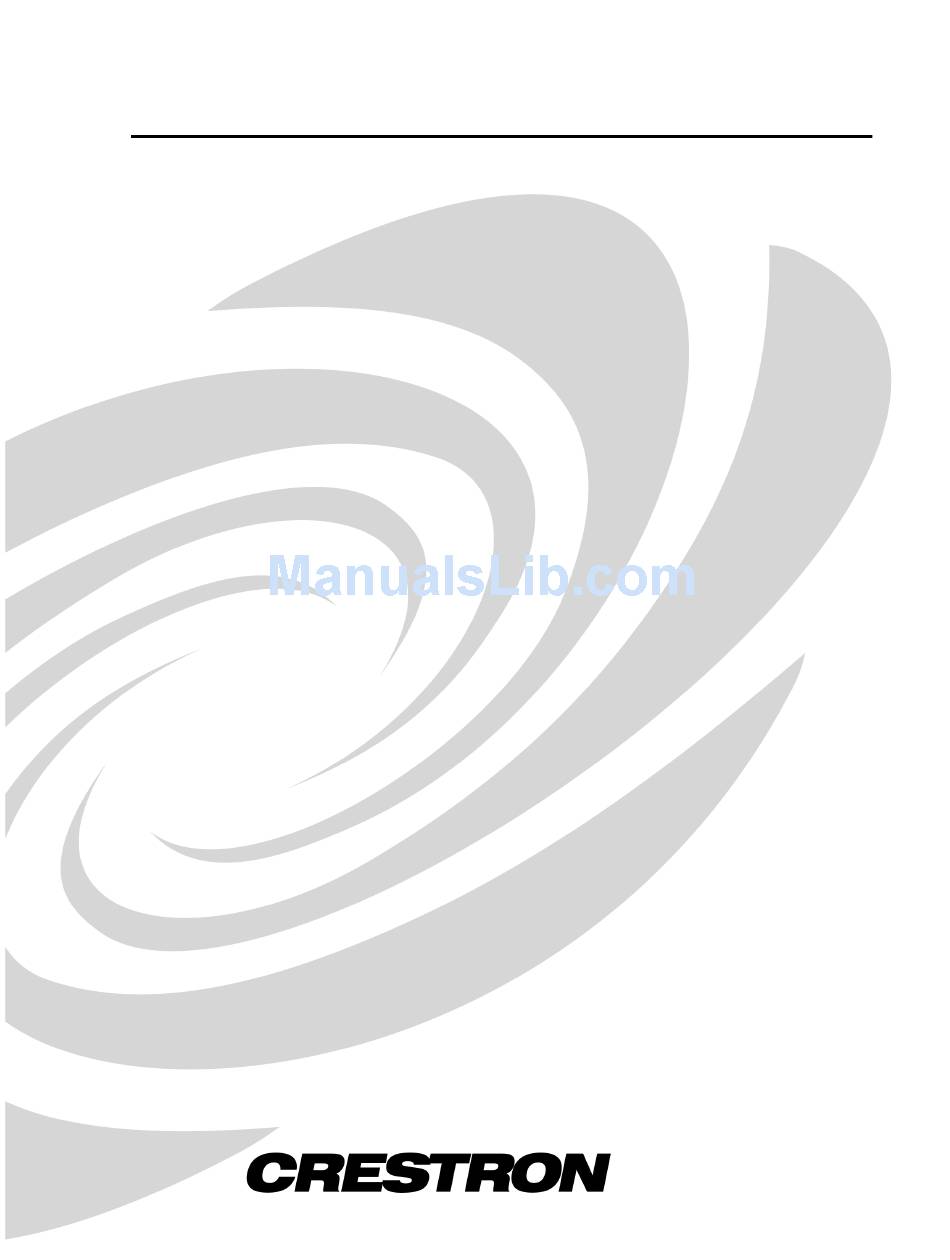

  • Page 1 Crestron Isys™ TPS-4500 and TPS-4500L 12 Inch Tilt and Lectern Touchpanels Operations Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2003 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Crestron TPS-4500 & TPS-4500L Contents 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Introduction ... 1 Features and Functions ... 1 Specifications ... 2 Physical Description... 4 Position Lock Buttons (TPS-4500 only)... 7 Industry Compliance ... 9 Setup ... 9 Network Wiring... 9 Identity Code ...

  • Page 5: Inch Tilt/Lectern Touchpanels: Tps-4500 & Tps-4500L

    Introduction Features and Functions The TPS-4500 and TPS-4500L series of touchpanels pack all the power and performance of a Crestron Isys™ touchpanel in a stylish tilt or lectern/wall-mounted model. These units are suitable for either tabletop mounting or a lectern/wall mount in any Crestron perfect for the conference room or home theater.

  • Page 6: Specifications

    12 Inch Tilt/Lectern Touchpanels TPS-4500/L Functional Summary (continued) Multiple graphics can be displayed on the TPS-4500/L without any shift in color depth or quality. The touchpanel can support real-time video with the optional TPS-VID-1/TPS-VIDL-1 or TPS-VID-2/TPS-VIDL-2 cards. The purpose of the TPS-4500/L touchpanel is to replace large, complicated hard- wired panels in either a Cresnet system or an RS-232 system with a series of simpler screens each specific to the control problem at hand.
  • Page 7 TPS-VID-1: 7 Watts (0.29 Amps @ 24 VDC) TPS-VID-2: 12 Watts (0.50 Amps @ 24 VDC) The latest versions can be obtained from the Downloads | Software Updates section of the Crestron website (www.crestron.com). Refer to NOTE after last footnote.

  • Page 8: Physical Description

    These control systems do not support loading of firmware or VT Pro-e files to the TPS-series panels through the RS-232 port of the control system. In order to load these files to the TPS-4500/L when using these control systems, use the RS-232 port on the TPS-4500/L.
  • Page 9 It possesses a hinged base, which can tilt from 30 to 80 degrees. Refer to “Position Lock Buttons (TPS-4500 only)” on page 7 for tilting details. All RS-232, video, network, and power connections are made at the rear panel on the base of the unit.
  • Page 10 Physical Views of the TPS-4500 Touchpanel (Front and Back) 11.86 in (30.12 cm) Physical Views of the TPS-4500 Touchpanel (Top and Bottom) Physical Views of the TPS-4500 Touchpanel (Side with Min. and Max. Angle) 11.17 in (28.36 cm) 6 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 &...

  • Page 11: Position Lock Buttons (Tps-4500 Only)

    Video Card Expansion Slot The TPS-4500L has a dedicated expansion slot for the optional TPS-VIDL-1 or TPS- VIDL-2 video digitizer card while the TPS-4500 has a dedicated expansion slot for the optional TPS-VID-1 or TPS-VID-2 video digitizer card. These cards allow NTSC/PAL composite and S-video signals to be displayed in a window on the touchpanel or full screen.
  • Page 12 The position lock button can then be held down and the touchscreen can be tilted to a more horizontal position. 8 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 & TPS-4500L Operations Guide - DOC. 5891A...

  • Page 13: Industry Compliance

    NOTE: When installing network wiring, refer to the latest revision of the wiring diagram(s) appropriate to your specific system configuration, available from the Downloads | Product Manuals | Wiring Diagrams section of the Crestron website (www.crestron.com). NOTE: Do not power up system until all wiring is verified. Care should be taken to ensure data (Y, Z) and power (24, G) connections are not crossed.

  • Page 14: Identity Code

    Configuring the Touchpanel NOTE: The only connection required to configure the touchpanel is power. Refer to “Hardware Hookup” on page 15 for details. 10 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 & TPS-4500L RESISTANCE (R) WIRE GAUGE...

  • Page 15: Calibration Menu

    Return button to return to the MAIN MENU. NOTE: The current CRESNET ID (a.k.a. Net ID) setting is displayed in the upper left corner of the SETUP MENU. Operations Guide - DOC. 5891A 12 Inch Tilt/Lectern Touchpanels 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L • 11...
  • Page 16 SIMPL Windows program of the Cresnet system. Matching IDs between touchpanel and SIMPL Windows program is required if data is to be successfully transferred. Net ID for the TPS-4500/L is factory set to 03, and no two devices in the same system can have the same ID.
  • Page 17 TPS-XTXRF Two-Way RF Transceiver Module Operations and Installation Guide (Doc. 5844). NOTE: If the TPS-4500 is to be used without an RF connection, the RF Disabled button must be selected. NOTE: If RF is enabled, the RS-232 communication settings cannot be adjusted.
  • Page 18 TP Composite, TP S-Video, BNC Composite, or BNC S-Video for each channel. Additionally, the appropriate inputs must be selected on the TPS-4500IMPC when using a TPS-4500. Refer to the TPS-4500IMPC Interface Module Operations Guide (Doc. 6163) for details.

  • Page 19: Hardware Hookup

    DIAGNOSTICS MENU The Diagnostics button from the MAIN MENU contains diagnostic tools. The diagnostic tools should only be used under supervision from a Crestron customer service representative during telephone support. The options available from the DIAGNOSTICS MENU, shown to the left, are numeric in nature and their interpretation is beyond the scope of this manual.
  • Page 20 This 4-pin Cresnet connector provides Cresnet network connection from the touchpanel as well as power to the touchpanel. A description of the pinouts is shown in the table after this paragraph. Refer to “Network Wiring” on page 9 for details.
  • Page 21 Crestron TPS-4500 & TPS-4500L TPS-4500 Hardware Connections for the TPS-4500 (Back of the Unit is Shown) RS-232 This 6-pin RJ-11 connector mates with a serial port of a PC. The connecting cable is not supplied. Prior to installation, use this port for direct connection between the touchpanel and a PC to load files to a touchpanel without a network connection.
  • Page 22 24 VDC, 2.0A (Power Supply for TPS-4500) This female connector is used to supply 24 VDC power to the TPS-4500 or the TPS-4500IMPC from an optional power pack (Crestron model PW-2420RU). When power is supplied to the TPS-4500IMPC through this connector, a Cresnet power connection is not required to display video on the touchpanel (if a video card is installed in the TPS-4500).

  • Page 23: Touchpanel Mounting Options For Tps-4500L

    6. Drill 12 holes marked “A” on template with #20 bit. Refer to “Appendix B: Cutout Detail of Supplied Template” on page 43 for an illustrative reference. 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L • 19 QUANTITY MTPL02553-1 MTPL02523-1 OV40049-1 #6-32 x 1"...
  • Page 24 12 Inch Tilt/Lectern Touchpanels 20 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 & TPS-4500L 7. Slide one large metal mounting plate through the opening and position it inside along the top horizontal edge. 8. Position one small metal mounting plate along the top horizontal edge so that it covers the two center holes marked “A”.

  • Page 25: Touchpanel Removal (Tps-4500L)

    3. Using equal pressure, carefully remove the touchpanel from the opening. 4. If necessary, secure and label the attached cables before disconnecting them from the back of the touchpanel. 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L • 21...

  • Page 26: Programming Software

    This custom template can then be used by Crestron AppBuilder to create the final project files to be loaded into the panels. Alternatively, VT Pro-e can be used to tweak projects created with Crestron AppBuilder or develop original touchpanel screen designs.

  • Page 27: Programming With The Crestron Appbuilder

    Windows This section describes a sample SIMPL Windows program that includes a TPS-4500/L touchpanel. A Join Number Remapping (JNR) program can be written to augment the functionality of the touchpanel by making some of the touchpanel’s internal functions available to the SIMPL Windows programmer.
  • Page 28 Expanded PRO2 System Tree C2Net-Device Slot in Configuration Manager To incorporate the TPS-4500/L touchpanel into the system, drag the TPS-4500 from the Touchpanels | Touchpanels (Cresnet) folder of the Device Library and drop it in the System Views. The PRO2 system tree displays the touchpanel in slot 9 with a default Net ID of 03 as shown in the following illustration.
  • Page 29 TPS-4500 Symbol in Programming Manager Programming Manager is where programmers “program” a Creston control system by assigning signals to symbols. The following diagram shows the TPS-4500 symbol in the SIMPL Windows’ Programming Manager. Detail View of the TPS-4500 in SIMPL Windows’ Programming Manager...
  • Page 30 TPS-4500 Input/Output Signals The TPS-4500 symbol provides up to 4000 digital input and output joins, 4000 analog input and output joins, and up to 999 serial input joins. The programmer selects the signal types by clicking on the appropriate button at the top of the Symbol Detail view when programming the panel.

  • Page 31: Programming With Visiontools ® Pro-E

    Crestron SIMPL Windows Symbol Guide (Doc. 6120), or the on-line help included with SIMPL Windows. Example Program An example program for the TPS-4500/L is available from the Crestron FTP site (ftp.crestron.com/Examples). Search for the file TPS- 4500_SIMPL_Windows_example_file.smw that contains the example program.

  • Page 32: Reserved Join Numbers

    12 Inch Tilt/Lectern Touchpanels be designed for each TPS-4500/L touchpanel application. Each page contains objects such as custom control graphics, two and three-dimensional buttons, sliders, and digital readouts which allow the user to interface with the control system via join numbers.
  • Page 33 Crestron TPS-4500 & TPS-4500L Video Analog Reserved Join Numbers for the TPS-4500/L Touchpanels Video Digital Reserved Join Numbers for TPS-4500/L Touchpanels continued on next page Operations Guide - DOC. 5891A 12 Inch Tilt/Lectern Touchpanels JOIN # FUNCTION 17100 Video 1...
  • Page 34 12 Inch Tilt/Lectern Touchpanels Video Digital Reserved Join Numbers for TPS-4500/L Touchpanels (continued) System Analog Reserved Join Numbers for TPS-4500/L Touchpanels System Digital Reserved Join Numbers for TPS-4500/L Touchpanels 30 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 & TPS-4500L...

  • Page 35: Multibyte International Characters

    SIMPL Windows. In other words, you cannot enter Chinese character interspersed with numbers. You can enter Chinese characters or numbers in separate strings. Crestron is scheduling time to fix this in the near future and the release notes for SIMPL Windows will mention it.

  • Page 36: Communication Settings

    12 Inch Tilt/Lectern Touchpanels Communication Settings Connection of a PC to the TPS-4500/L touchpanel can be direct via the RS-232 port on the touchpanel or through a control system (Cresnet). Both methods of connection provide setup for RS-232 communication. To prepare the TPS-4500/L for uploading or upgrading, refer to the following figure for a typical connection diagram.
  • Page 37 (COM 1 is shown after this step) is selected, and that all communication parameters and necessary options from the “Port Settings” window are selected as shown after this step. Click the OK button to save the settings and close the window. 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L • 33...

  • Page 38: Uploading A Simpl Windows Program

    NOTE: Refer to the respective Operations Guide for the control system for details about the other fields shown on the “Send Program” window. 34 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 & TPS-4500L 4. To verify communication, select Diagnostics | Establish Communications (Find Rack).

  • Page 39: Uploading A Vt Pro-E Project

    “Send Program” Window Uploading a VT Pro-e Project The TPS-4500/L touchpanel The VT Pro-e file can be uploaded to the touchpanel using VT Pro-e or via the source file has the extension Crestron Viewport. .vtp. A compiled VT Pro-e file has the extension .vtz.
  • Page 40 36 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 & TPS-4500L 3. As shown after this step, select the Net ID of the TPS-4500/L touchpanel and then click OK. The “Touch Panel Transfer” window appears (refer to the subsequent graphic).

  • Page 41: Firmware Upgrade

    Crestron TPS-4500 & TPS-4500L Firmware Upgrade A firmware upgrade file has the To take advantage of all the TPS-4500/L features, it is important that the unit contains extension .csf. the latest firmware available. Therefore, please check the Crestron website (http://www.crestron.com/downloads/software_updates.asp) for the latest version of firmware.
  • Page 42 12 Inch Tilt/Lectern Touchpanels “Select Network ID” Window Select CSF File 38 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Crestron TPS-4500 & TPS-4500L 4. Browse to the .csf file and click Open to begin the transfer. Check Send Direct to Wired Touchpanel if connected via RS-232 directly to touchpanel.

  • Page 43: Problem Solving

    Crestron TPS-4500 & TPS-4500L Problem Solving Troubleshooting The table after this paragraph provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. TPS-4500/L Touchpanel Troubleshooting Operations Guide - DOC. 5891A 12 Inch Tilt/Lectern Touchpanels...

  • Page 44: Further Inquiries

    Future Updates As Crestron improves functions, adds new features, and extends the capabilities of the TPS-4500 and TPS-4500L, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

  • Page 45: Appendix A: Rs-232 Protocol

    Crestron TPS-4500 & TPS-4500L Appendix A: RS-232 Protocol TPS-4500/L touchpanels support panel operation via a host computer through the RS-232 port. While in this mode, the touchpanel can be used as a stand-alone controller to a host computer running a third-party or custom program. Crestron recommends that the following serial data format is set.
  • Page 46 2400 baud. Obviously, ramping several objects at once requires a baud rate several times as high. Indirect Text – TPS-4500/L touchpanels support a feature that permits the text field in any user-defined button to be altered on the fly in RUN mode. This is accomplished by substituting a text pointer for the text in the button.

  • Page 47: Appendix B: Cutout Detail Of Supplied Template

    Use the alphanumeric codes in the illustration and table to obtain the cutout dimensions for the lectern mount models when mounting without the BB-5000. However, Crestron recommends that the supplied template be used to avoid error. Operations Guide - DOC. 5891A...

  • Page 48: Appendix C: Configuring The Rs-232 Port For Use

    12 Inch Tilt/Lectern Touchpanels Appendix C: Configuring the RS-232 Port for Use To configure the RS-232 port of the TPS-4500/L, a local PC that contains a Crestron Viewport is required. The Viewport is one of the development tools that is part of Crestron SIMPL Windows or VT Pro-e software.
  • Page 49 Crestron TPS-4500 & TPS-4500L At this point, the PC and the TPS-4500/L are no longer communicating. Assuming that the touchpanel is properly connected for use (as shown in the diagram for “Communication Settings” on page 32) and the control system is connected to the PC, the setup screens can be displayed to set the Net ID and other configurations.

  • Page 50: Software License Agreement

    This Agreement may only be modified by a writing signed by an authorized officer of Crestron. Updates may be licensed to You by Crestron with additional or different terms. This is the entire agreement between Crestron and You relating to the Software and it supersedes any prior representations, discussions, undertakings, communications or advertising relating to the Software.
  • Page 51 “applets” incorporated into the Software), the accompanying media and printed materials, and any copies of the Software are owned by Crestron or its suppliers. The Software is protected by copyright laws and international treaty provisions. Therefore, you must treat the Software like any other copyrighted material, subject to the provisions of this Agreement.

  • Page 52: Return And Warranty Policies

    CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures.
  • Page 53 Crestron TPS-4500 & TPS-4500L 12 Inch Tilt/Lectern Touchpanels This page intentionally left blank. 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L • 49 Operations Guide - DOC. 5891A...
  • Page 54 12 Inch Tilt/Lectern Touchpanels Crestron TPS-4500 & TPS-4500L This page intentionally left blank. 50 • 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L Operations Guide - DOC. 5891A...
  • Page 55 Crestron TPS-4500 & TPS-4500L 12 Inch Tilt/Lectern Touchpanel This page intentionally left blank. 12 Inch Tilt/Lectern Touchpanels: TPS-4500 & TPS-4500L • 51 Operations Guide - DOC. 5891A...
  • Page 56 Crestron Electronics, Inc. Operations Guide – DOC. 5891A 15 Volvo Drive Rockleigh, NJ 07647 09.03 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
