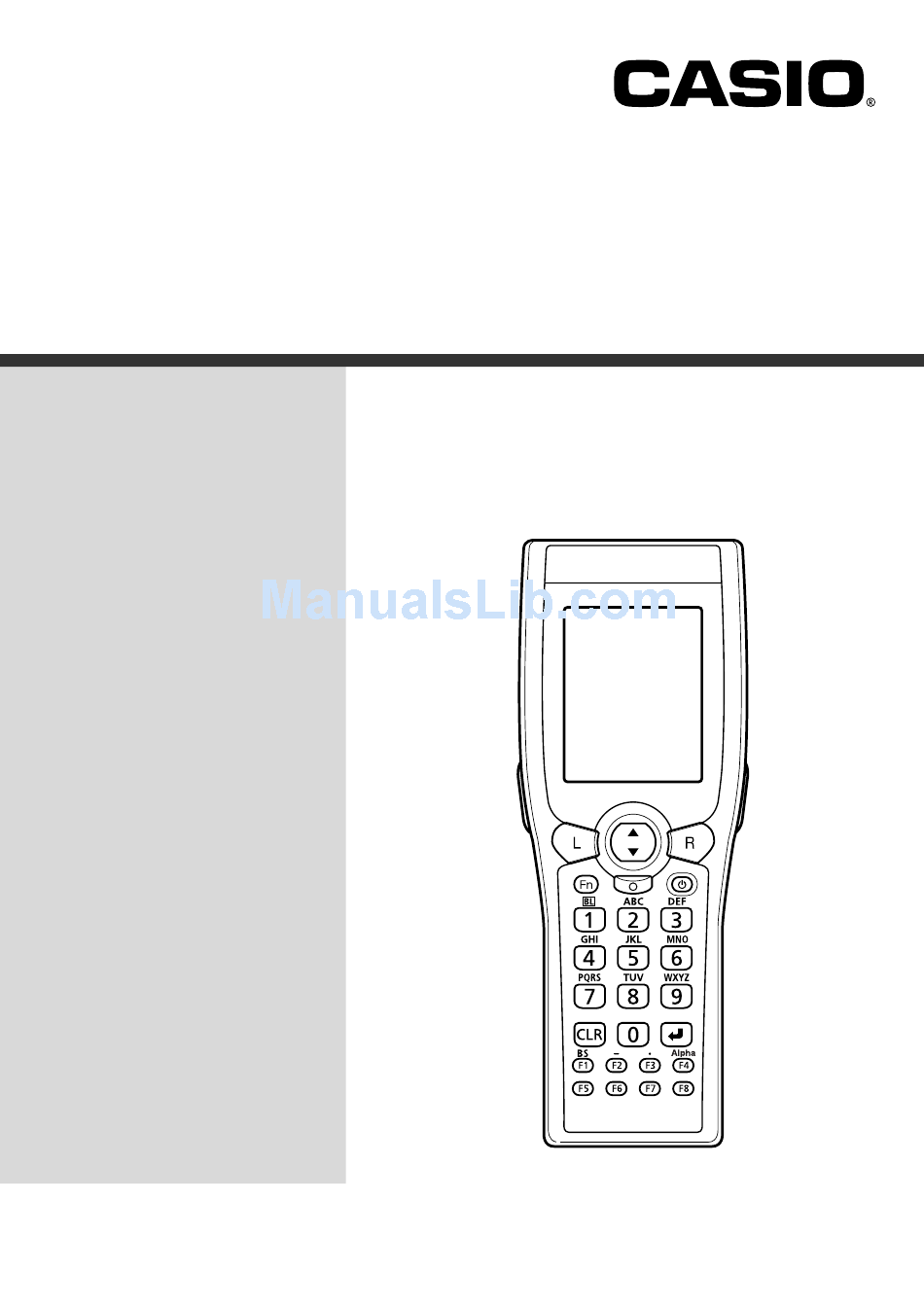

E
Handheld Terminal
DT-X5
Series
User's Guide
Be sure to read "Safety
Precautions" inside this
guide before trying to use
your Handheld Terminal.
After reading this guide,
keep it in a safe place for
future reference.
PN410388-002

Advertisement

Table of Contents
loading

Related Manuals for Casio DT-X5 Series

Summary of Contents for Casio DT-X5 Series

  • Page 1 Handheld Terminal DT-X5 Series User’s Guide Be sure to read “Safety Precautions” inside this guide before trying to use your Handheld Terminal. After reading this guide, keep it in a safe place for future reference. PN410388-002...
  • Page 2 • This product includes BRYCEN Co., Ltd’ s B-RAPPORE Stack, which use is governed by a licence granted by BRYCEN Co., Ltd. • BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CASIO COMPUTER CO., LTD. • Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

  • Page 3: Safety Precautions

    Safety Precautions Congratulations upon your selection of this CASIO product. Be sure to read the following Safety Precautions before trying to use it for the first time. Markings and Symbols The following are the meanings of the markings and symbols used in these Safety Precautions.
  • Page 4 • Should any foreign matter get into the Handheld Terminal and its options, immediately turn off the power and contact your original vendor or an authorized CASIO service provider. Continued use creates the danger of fire and electric shock. Dropping and Damage •...

  • Page 5: Lcd Screen

    Caution Foreign Objects • Take care to ensure that metals or combustible objects are not inserted into the openings of the Handheld Terminal and its options. Such the objects inside of the Handheld Terminal and its options create the danger of fire and electric shock.
  • Page 6 Safety Precautions Operation of Wireless Data Communication Function Warning Interference with the Operation of Other Equipment (Using Wireless Data Communication Function) • Please follow the instructions provided by health care facilities when using your Handheld Terminal in hospitals or other locations where medical equipment is in use.
  • Page 7 Alkaline Battery Handling Precautions Danger • Since there is the risk of blindness and other serious disorders when alkaline battery fluid enters the eyes, seek medical treatment immediately after adequately flushing the eyes with a large amount of tap water or other clean water without rubbing.
  • Page 8 Safety Precautions Caution • Promptly remove worn out batteries from the Handheld Terminal. Allowing worn out batteries to remain installed in the Handheld Terminal for a long period of time results in the risk of the generation of gas from the batteries causing the batteries to leak fluid, overheat or rupture.
  • Page 9 Optional Lithium-ion Battery Pack Danger • Never allow the battery pack to become wet. Water can create the danger of battery pack heat emission, explosion, and fire. • Never use or leave the battery pack next to open flame, near a stove, or any other area exposed to high heat.
  • Page 10 • Danger of explosion if the battery pack is incorrectly replaced. Replace only with same or equivalent type recommended by CASIO. Dispose of used batteries according to the CASIO instruction. • Should fluid from the battery pack accidentally get onto clothing or your skin, immediately rinse it off with clean tap water.
  • Page 11 • Should the power cord become severely damaged (to the point that wires are exposed or broken), contact your original vendor or an authorized CASIO service provider about repair or replacement. Use of a damaged electrical cord creates the danger of fire and electric shock.
  • Page 12 Backup Copies of All Important Data Caution • Note that CASIO Computer Co., Ltd. shall not be held liable to you or any third party for any damages or loss caused by deletion or corruption of data due to use of the Handheld Terminal, malfunction or repair of the Handheld Terminal or its peripherals, or due to the batteries going dead.

  • Page 13: Operating Precautions

    Operating Precautions Your Handheld Terminal and its options are precision digital instruments. Improper operation or rough handling can cause problems with data storage and other problems. Note and observe the following precautions to ensure proper operation. • Do not continue operating the Handheld Terminal when battery power is low. Doing so can cause data to be lost or altered.

  • Page 14: Important

    • The contents of this guide are subject to change without notice. • Note that CASIO COMPUTER CO., LTD. shall not be held liable to you or any third parties for any losses or damages arising from the use of this guide.
  • Page 15 Model Numbers: DT-X5M30U, DT-X5M30UR, HA-A61IO, HA-A60IO, HA-A30CHG Trade Name: CASIO Responsible party: CASIO, INC. Address: 570 Mt. Pleasant Avenue, Dover, New Jersey 07801 Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom EFTA: Switzerland, Iceland, Lichtenstein, Norway Member states with restrictive use NONE Manufacturer CASIO COMPUTER CO., LTD. Brand CASIO Type DT-X5M10E, DT-X5M10R, DT-X5M30E, DT-X5M30R, DT-X5M30U, DT-X5M30UR, are tested and found to conform with the essential requirements for protection of health and the safety of the...
  • Page 17 TELEFICATION B.V., Utrechtseweg 310 - P.O. Box 60004, NL-6800 JA ARNHEM, The Netherlands The technical documentation as required by the Conformity Assessment procedure is kept at the following address: Company CASIO Europe GmbH Address, City Bornbarch 10, D-22848 Norderstedt Country Germany...

  • Page 18: Table Of Contents

    Contents Safety Precautions .................... 1 Operating Precautions ..................11 Important ......................12 Warranty and After Service ................12 Before Getting Started ..................18 When unpacking, make sure that all items are included......18 Install the main battery.................. 19 When Using the AA size Alkaline Batteries ............
  • Page 19 Resetting the Handheld Terminal ..............44 Reset and Full Reset (Memory Initialization) ..........44 Reset ........................44 Performing a Full Reset (Initialization) ..............44 To perform a reset ..................44 If reset does not find a memory problem .............. 44 If reset finds a memory problem ................

  • Page 20: Before Getting Started

    Before Getting Started Be sure to perform the following steps before using the Handheld Terminal for the first time. Check the contents Install the main Turn on of the box battery the power • Using the AA size alkaline batteries •...

  • Page 21: Install The Main Battery

    Install the main battery When Using the AA size Alkaline Batteries (DT-X5M10E/DT-X5M30E/ DT-X5M30U only) 1. Install the AA size alkaline batteries. 1 Slide the two main battery cover lock switches on both sides of the Handheld Terminal to the “FREE” position, and remove the main battery cover.

  • Page 22: When Using The Battery Pack

    Before Getting Started When Using the Battery Pack Charging is required when using the battery pack (HA-A20BAT or DT-5025LBAT) sold separately. Use the Dual Battery Charger when charging the battery pack before installing in the Handheld Terminal, or use the Cradle-type Battery Charger or Cradle to charge after installing in the Handheld Terminal.

  • Page 23: Turning On The Power

    3 Return the main battery cover to its original position as shown in the illustration, and return the two main battery pack cover lock switches to the “LOCK” position. When loading a large-capacity battery pack, attach the large-capacity battery pack cover. •...

  • Page 24: Handheld Terminal System Configuration

    Handheld Terminal System Configuration Options Bridge Satellite Cradle (HA-A61IO) Bridge Basic Cradle (HA-A60IO) HA-A60IO HA-A61IO DT-X5 Series Cradle-type Battery Charger HA-A30CHG Laser Scanner models The laser scanner models are not available in the USA and Canada. • DT-X5M10E • DT-X5M10R...
  • Page 25 Wall Mount Unit Required DT-891WH Screws Battery Pack HA-A20BAT DT-5025LBAT (Battery Pack) (Large-capacity Battery Pack) Dual Battery Charger DT-5022CHG Required AC Adaptor (MPC-577ADP) E-23...
  • Page 26 Handheld Terminal System Configuration Cables Bridge Satellite Cradle Cable/RS-232C Dsub-9Pin (Female) DT-887AXA RS-422 Modular Cable DT-888RSC USB Cable DT-380USB E-24...

  • Page 27: General Guide

    General Guide Left Front Right Back Bottom *The illustration shows the Laser Scanner model. Indicator 1 This indicator is green when charging is completed, and red during charging. Indicator 2 This indicator is green when the bar code has been read successfully, and red when a reading error has occurred.
  • Page 28 General Guide Function Keys These can be assigned arbitrary functions other than functions for reading bar codes. They are initially assigned the following default settings. F1: Deletes one character to the left. F2: Inputs a hyphen (-). F3: Inputs a period (.). F4: Switches character input (between numbers and alphabets (upper case)).

  • Page 29: Replacing The Battery

    Replacing the Battery Your Handheld Terminal uses two types of battery: main battery and a memory backup battery. AA size alkaline batteries (DT-X5M10E/DT-X5M30E/DT-X5M30U) or the battery pack is used for the main battery. There are two types of battery packs that can be used, consisting of the battery pack (HA-A20BAT) and the large-capacity battery pack (DT- 5025LBAT).

  • Page 30: Replacing The Aa Size Alkaline Batteries

    Replacing the Battery Replacing the AA size Alkaline Batteries (DT-X5M10E/DT-X5M30E/ DT-X5M30U only) 1. Make sure the Handheld Terminal is turned off. If the power is on, press the power key to turn it off. 2. Turn over the Handheld Terminal. 3.

  • Page 31: To Replace The Battery Pack

    6. Return the main battery cover to its original position as shown in the illustration, and return the two main battery cover lock switches to the “LOCK” position. To replace the battery pack 1. Make sure that the Handheld Terminal is turned off. If the power is on, press the power key to turn it off.
  • Page 32 Replacing the Battery 4. Remove the battery pack by pulling up on the battery pack removal tape. 5. Install a charged battery pack in the Handheld Terminal. • Take care to ensure it is oriented correctly. • Install the battery pack so that the battery pack removal tape is on top of the battery pack.

  • Page 33: Loading The Large-Capacity Battery Pack Into The Handheld Terminal

    Loading the large-capacity battery pack into the Handheld Terminal After loading the large-capacity battery pack, you need to use the special large- capacity battery pack cover in place of the standard battery cover. Attachment and removal of the large- capacity battery pack cover are the same as those for the main battery cover.

  • Page 34: Removing And Installing The Alkaline Battery Holder

    Removing and Installing the Alkaline Battery Holder (DT-X5M10E/DT-X5M30E/DT-X5M30U only) Removal Procedure When using a battery pack, first remove the alkaline battery holder according to the following procedure. 1. Make sure the Handheld Terminal is turned off. If the power is on, press the power key to turn it off.

  • Page 35: Installation Procedure

    Installation Procedure When using AA size alkaline batteries, install the alkaline battery holder according to the following procedure. 1. Make sure the Handheld Terminal is turned off. If the power is on, press the power key to turn it off. 2.

  • Page 36: Attaching The Wrist Strap

    Attaching the Wrist Strap Be sure to attach the wrist strap and use it to protect against dropping the Handheld Terminal when carrying it around. Attach the wrist strap by following the procedure described below. 1. Pass the thin cord of the wrist strap through the wrist strap hole on the back of the Handheld Terminal.

  • Page 37: Configuring Handheld Terminal Settings

    Configuring Handheld Terminal Settings Adjusting Display Contrast Perform the following steps to adjust display contrast to make display more vivid and easier to see. • Press the “Fn” key and then press the “2” key or “3” key after confirming that “F”...

  • Page 38: Using The Laser Scanner

    Using the Laser Scanner (DT-X5M10E/DT-X5M10R only) 1. After turning on the power, position the laser scanner close to a bar code and then press the Trigger key (R or L). 2. The laser emits light and scans the bar code. If scanning is completed normally, Indicator 2 displays a green light and a buzzer sounds.

  • Page 39: Warning Label

    Warning Label Laser light is emitted from this port. • This label is a warning label for Class 2 laser products that comply with IEC60825-1+A2:2001 CAUTION • Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

  • Page 40: Using The C-Mos Imager

    Using the C-MOS Imager (DT-X5M30E/DT-X5M30R/DT-X5M30U/DT-X5M30UR only) 1. Turn on the Handheld Terminal, position its C-MOS Imager reader port near the bar code or stacked 2D code, and then press the Trigger Key (R or L). 2. The Handheld Terminal reads the code by emitting laser and red light. Indicator 2 (read operation indicator lamp) lights in green when the reading is successful.

  • Page 41: Warning Label

    Warning Label Laser light is emitted from this port. DT-X5M30U DT-X5M30UR DT-X5M30E DT-X5M30R • This label is a warning label for Class 2 laser products that comply with IEC60825-1+A2:2001 CAUTION • Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

  • Page 42: Adjusting Laser Emission Width

    Adjusting Laser Emission Width (DT-X5M10/DT-X5M10R only) This Handheld Terminal is able to adjust the emission width of laser light. Adjust the Handheld Terminal by following the procedure described below when the emission width of the laser light has become off the proper emission width. 1.

  • Page 43: Emission Width Adjustment Bar Code

    4. After checking that the laser light is at the proper position, depress the trigger key for about 1 second. • This completes adjustment of the emission width. Emission Width Adjustment Bar code Important! • An error message is displayed when emission width has not been adjusted properly.

  • Page 44: Performing Communication

    Performing Communication IR Communication IR communication can be used to transfer data between two Handheld Terminals. When performing IR communication, orient the IR ports of both Handheld Terminals so they are pointing directly at each other. The ports can be in direct contact with each other, or they can be separated by up to 30 cm ⁄...

  • Page 45: Bluetooth Tm Communication

    Bluetooth Communication Bluetooth protocol can also be used to transfer data between two Handheld Terminals. With Bluetooth , the two Handheld Terminals should be located within about five meters (19 ⁄ " ) from each other, as long as there is nothing blocking the path between them.

  • Page 46: Resetting The Handheld Terminal

    Resetting the Handheld Terminal Reset and Full Reset (Memory Initialization) Reset Resetting the Handheld Terminal is the same as restarting a computer. Performing a reset causes all unsaved inputs and edits to be lost, but data that is already stored in the memory as well as all settings should be unaffected.

  • Page 47: If Reset Finds A Memory Problem

    If reset finds a memory problem A message like the one shown below appears on the display when the reset operation discovers a memory problem. L trigger R trigger When this message appears, press the R trigger key to continue with the reset operation. Note, however, that reset may not be successful depending on the condition of the memory.

  • Page 48: Dt-X5 Specifications

    DT-X5 Specifications 1. Handheld Terminal Model: DT-X5M10E, DT-X5M10R, DT-X5M30E, DT-X5M30R, DT-X5M30U, DT-X5M30UR CPU: 32-bit RISC type Memory: 16MB RAM (user area: Approximately 7.5MB) 64MB Flash ROM (user area: Approximately 30MB) ® ® Microsoft Windows CE.NET operating system, English Version Display: 128 ×...
  • Page 49 7. Power Main power supply: Two AA size alkaline batteries HA-A20BAT battery pack DT-5025LBAT large-capacity battery pack Backup power supply: Rechargeable lithium battery (built-in) Power consumption: DC 1.1A/3~5V (DT-X5M10E) DC 1.3A/3~5V (DT-X5M30E/DT-X5M30U) DC 1.4A/3.7~5V (DT-X5M10R) DC 1.6A/3.7~5V (DT-X5M30R/DT-X5M30UR) Battery life: Main battery DT-X5M10E Approx.
  • Page 50 DT-X5 Specifications Weight DT-X5M10E/ Approx. 245 g (when HA-A20BAT battery pack is installed) DT-X5M30E/ DT-X5M30U DT-X5M10R/ Approx. 250 g (when HA-A20BAT battery pack is installed) DT-X5M30R/ DT-X5M30UR 10.Drop durability: 1.8 m 11.Dust and water resistance: Complies with IP54 * When all connectors and covers are closed 12.Other Clock function: Year, month, date, hour, minute, full-auto calendar, alarm...

  • Page 51: Using The Bridge Satellite Cradle (Ha-A61Io)/ Bridge Basic Cradle (Ha-A60Io)

    Using the Bridge Satellite Cradle (HA-A61IO)/ Bridge Basic Cradle (HA-A60IO) The optionally available Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) make it possible to transfer system data and file data between the Handheld Terminal and a computer over an RS-232C connection or USB connection (USB connection only for HA-A60IO).
  • Page 52 Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) USB Port This port accepts connection of a USB cable for connection to a computer for transfer of system data and file data. Use of the USB port requires installation of a special driver on the PC. RS-232C Port This port accepts connection of an RS-232C cable for connection (HA-A61IO only)

  • Page 53: Connecting The Ac Adaptor And Connecting To Computer

    Connecting the AC Adaptor and Connecting to Computer Use the AC adaptor sold separately from the Bridge Satellite Cradle/Bridge Basic Cradle for the power supply of the Bridge Satellite Cradle/Bridge Basic Cradle. Always make sure that the power is being supplied to the Bridge Satellite Cradle by the AC adaptor before performing any type of data communication operation with the Handheld Terminal.
  • Page 54 Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) 5. Making sure that their two IR ports come into contact with each other, place the Handheld Terminal onto the Bridge Satellite Cradle. This causes the Bridge Satellite Cradle power indicator lamp to light in green. •...

  • Page 55: Removing The Fall Protector

    Removing the Fall Protector The Bridge Satellite Cradle and Cradle-type Battery Charger Fall Protector can also be removed. However, it is recommended not to remove the Fall Protector if there is the risk of the Handheld Terminal being mistakenly tipped over and falling after having been placed in the Bridge Satellite Cradle.

  • Page 56: Configuring Dip Switch Settings (Ha-A61Io)

    Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) Configuring DIP Switch Settings (HA-A61IO) Dismounting the bottom cover of the Bridge Satellite Cradle exposes the DIP switches. You can change the ON/OFF settings of the DIP switches to set the configuration. Please set after first switching OFF the power.

  • Page 57: Using Wall Mount Unit

    Using Wall Mount Unit The following procedure explains how to use the optional wall mount unit (DT-891WH) to configure the Bridge Satellite Cradle/Bridge Basic Cradle for a wall-mounted configuration. Important! When mounting on a wall, always make sure to attach the Fall Protector. 1.

  • Page 58: To Remove The Bridge Satellite Cradle/Bridge Basic Cradle From The Wall

    Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) 4. Hook the upper wall mount unit hole onto the upper screw. 5. Drive the other screw into the wall at the location where the lower hole is located. 6. Drive the upper screw and lower screw into the wall the rest of the way.

  • Page 59: Connecting Multiple Bridge Satellite Cradles (Ha-A61Io)

    Connecting Multiple Bridge Satellite Cradles (HA-A61IO) Use the modular cable for the connections. You can daisy chain multiple Bridge Satellite Cradles by connecting the C-OUT RS-232C port of the first unit that is the nearest to the cable or host computer to the C-IN port of the next USB cable unit that is sitting to the first unit with DT- 888RSC cable (RS-422 Modular cable) as...

  • Page 60: Bridge Satellite Cradle (Ha-A61Io)/Bridge Basic Cradle (Ha-A60Io) Specifications

    Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) Specifications 1. IR Communication Interface: IR interface Protocol: IrDA Ver. 1.1 Standard Synchronization: Asynchronous, frame synchronization Transfer Rate: 9,600, 115,200, 4Mbps (4Mbps is possible during a USB connection with the host computer only.) 2.

  • Page 61: Using The Cradle-Type Battery Charger

    Using the Cradle-type Battery Charger The optionally available Cradle-type Battery Charger (HA-A30CHG) lets you charge the Handheld Terminal’s battery simply by placing the Handheld Terminal onto the charger. An optional wall mount unit (DT-891WH) lets you mount the Cradle-type Battery Charger on a wall.
  • Page 62 Using the Cradle-type Battery Charger AC Adaptor Jack Connect the AC adaptor (sold separately) here. Wall Mount Unit The holes in this plate accept screws that secure the wall mount Fastening Plate unit in place. Terminal Detect This switch detects when the Handled Terminal is not seated Switch correctly on the Cradle.

  • Page 63: Connecting The Ac Adaptor For Cradle-Type Battery Charger

    Connecting the AC Adaptor for Cradle-type Battery Charger Use the special AC adaptor (sold separately) for the Cradle-type Battery Charger to connect to a wall outlet. 1. After making sure that the Cradle-type Battery Charger power switch is turned off, plug the AC adaptor into the AC adaptor jack on the back of the charger.

  • Page 64: Using Wall Mount Unit

    Using the Cradle-type Battery Charger Using Wall Mount Unit To wall mount the Cradle-type Battery Charger, use the same procedure as that described for the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) on page Removing the Fall Protector The procedure is the same as that for the Bridge Satellite Cradle (HA-61IO)/Bridge Basic Cradle (HA-A60IO).

  • Page 65: Using The Dual Battery Charger

    Using the Dual Battery Charger The optionally available Dual Battery Charger (DT-5022CHG) allows for parallel charging of two rechargeable battery packs. General Guide Front Bottom Accessories Connection Bracket 2 screws E-63...
  • Page 66 Using the Dual Battery Charger Charge Indicator This lamp indicates the charge status of the battery pack(s). Lamp Off: Not charging Red: Charging Red Flashing: Battery pack problem Green: Charging complete AC Adaptor Jack Connect the AC adaptor here. Dual Battery Use this port to connect multiple Dual Battery Chargers to each Charger Connection other.

  • Page 67: Charging A Battery Pack

    Charging a Battery Pack 1. Plug the optional AC adaptor into the AC adaptor jack of the Dual Battery Charger. 2. Plug the other end of the AC adaptor into a wall outlet. 3. Taking care that the battery pack is oriented correctly, insert it into the Dual Battery Charger.

  • Page 68: Connecting Multiple Dual Battery Chargers

    Using the Dual Battery Charger Connecting Multiple Dual Battery Chargers You can connect up to three Dual Battery Chargers. Doing so makes it possible to supply power to all the Dual Battery Chargers using the AC adaptor. 1. As shown in the illustrations below, remove the connector covers of the Dual Battery Chargers you want to connect to each other.

  • Page 69: Dual Battery Charger (Dt-5022Chg) Specifications

    Dual Battery Charger (DT-5022CHG) Specifications 1. Model DT-5022CHG 2. Charging Charging System: Fixed-voltage (with current limiter) Charge Time: Approximately 2.5 hours for one HA-A20BAT battery pack Approximately 5.0 hours for one DT-5025LBAT large-capacity battery pack Charging Two Battery Packs Approximately 5.0 hours for two battery packs (HA-A20BAT×2) Approximately 10 hours for two large-capacity battery packs (DT-5025LBAT×2) 3.

  • Page 70: Using Rechargeable Battery Pack

    Using Rechargeable Battery Pack Your Handheld Terminal supports use of two battery pack types of different capacity. You can select the one that best suits your needs in terms of operating time, the type of options you need to use, etc. When using the large-capacity battery pack, you need to use the special large-capacity battery pack cover that comes with the Handheld Terminal.
  • Page 71 Memo E-69...
  • Page 72 Memo E-70...
