Mount the baby monitor
Pan or tilt to adjust the baby
unit angle.
Check for reception strength
and camera angle before drilling
the holes.
Drill two holes in the wall
(7/32" drill bit). If you drill
the holes into a stud, insert
the screws into the holes.
Tighten the screws until
only 1/4 inch of the screws
are exposed.
Specifications are subject to change without notice.
© 2014 VTech Communications, Inc.
All rights reserved. 05/14. VM312-X_IG_V1.0
Document order number: 96-009889-010-100
Use a pencil to mark two
holes in parallel. Make sure
they are the same distance
apart as the wall mount at
the bottom of the baby unit.
Align the holes on the wall
mount with the screws on
the wall.
Slide the wall mount down
until it locks into place.
Go to www.vtechphones.com
to register your product for
enhanced warranty support
and latest VTech product news.

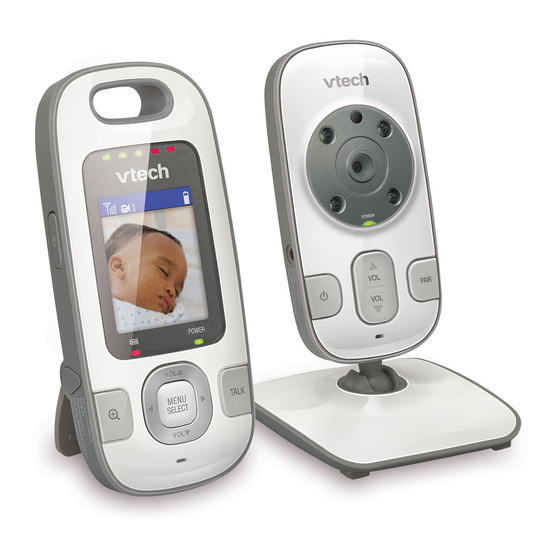

VM312
VM312-2
VM302
Installation guide
Advertisement
Related Manuals for VTech VM312
Summary of Contents for VTech VM312
-
Page 1: Installation Guide
Slide the wall mount down only 1/4 inch of the screws until it locks into place. Installation guide are exposed. Specifications are subject to change without notice. © 2014 VTech Communications, Inc. All rights reserved. 05/14. VM312-X_IG_V1.0 Document order number: 96-009889-010-100... -
Page 2: Parts Checklist
Parts checklist Place the baby monitor 1 set for VM302/VM312 1 set for VM312/VM312-2 2 sets for VM312-2 Required parts and tool Parts and tool are not included, and are required to purchase separately. Place the parent unit within the operating range of the baby unit.
