Gefen 4K ULTRAHD EXT-UHD-88 User Manual

8x8 matrix for hdmi w/ hdcp 2.2
Hide thumbs
Table of Contents

Advertisement

Quick Links

*Preferred

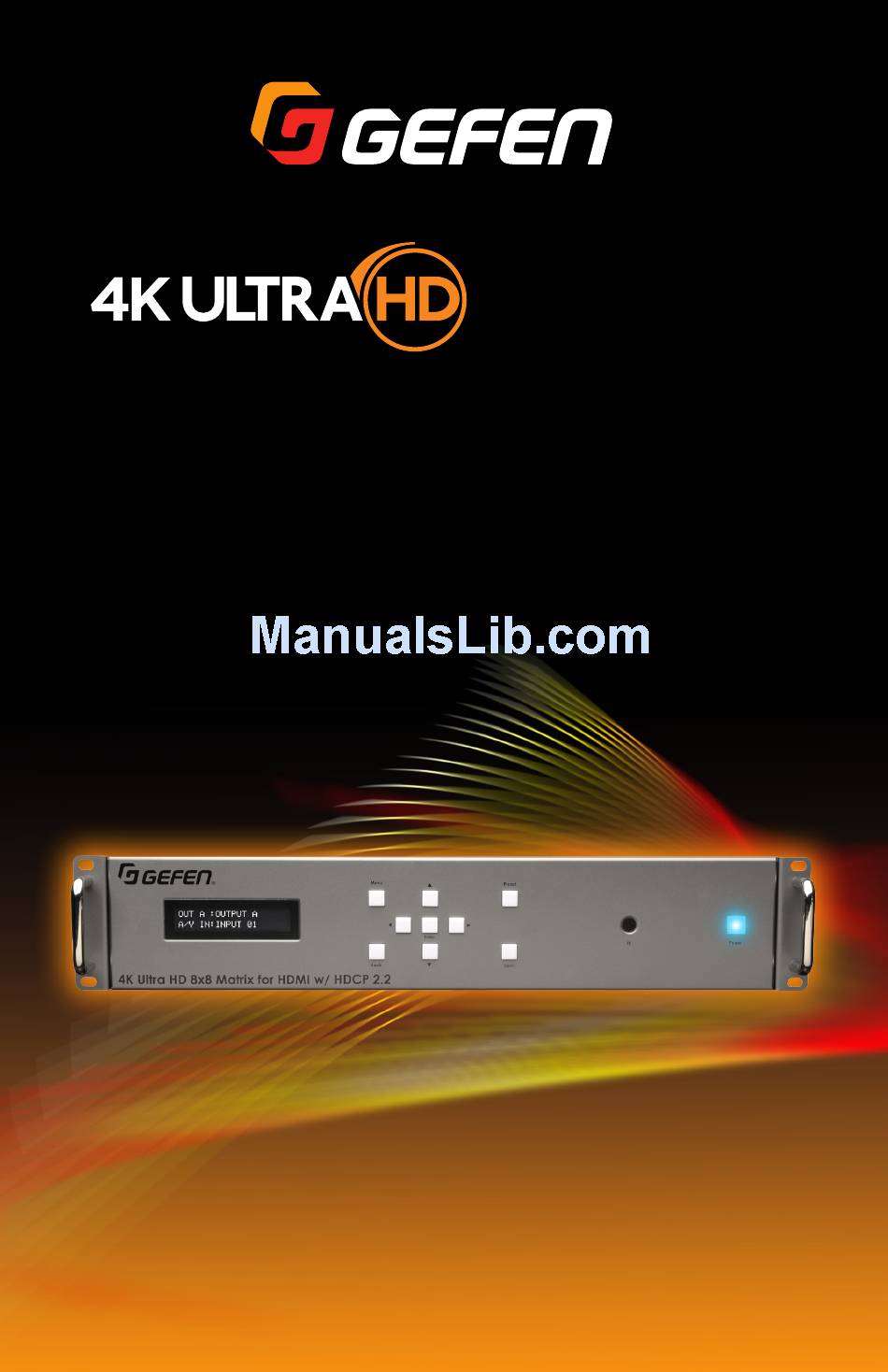

8x8 Matrix for HDMI
w/ HDCP 2.2
EXT-UHD-88
User Manual
Release A3

Advertisement

Table of Contents
loading

Related Manuals for Gefen 4K ULTRAHD EXT-UHD-88

Summary of Contents for Gefen 4K ULTRAHD EXT-UHD-88

  • Page 1 *Preferred 8x8 Matrix for HDMI w/ HDCP 2.2 EXT-UHD-88 User Manual Release A3...
  • Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.

  • Page 4: Technical Support

    Technical Support (818) 772-9100 (800) 545-6900 8:00 AM to 5:00 PM Monday - Friday, Pacific Time (818) 772-9120 Email support@gefen.com http://www.gefen.com Mailing Address Gefen, LLC c/o Customer Service 20600 Nordhoff St. Chatsworth, CA 91311 Product Registration Register your product here: http://www.gefen.com/kvm/Registry/Registration.jsp...
  • Page 5 4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2 is a trademark of Gefen, LLC. © 2015 Gefen, LLC. All Rights Reserved. All trademarks are the property of their respective owners. Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice.
  • Page 6 Licensing This product uses software that is subject to open source licenses, including one or more of the General Public License Version 2 and Version 2.1, Lesser General Public License Version 2.1 and Version 3, BSD, and BSD-style licenses. Distribution and use of this product is subject to the license terms and limitations of liability provided in those licenses.
  • Page 7 • IP control via Telnet, UDP, and the built-in web server interface • IR remote control • Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration • Field-upgradeable firmware via web server interface • Can be placed on a shelf or mounted in a standard 19-inch wide rack...

  • Page 8: Packing List

    The packing contents of the Sender and Receiver unit are listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen. • 1 x 4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2 (with detachable rack ears) •...

  • Page 9: Table Of Contents

    Table of Contents Getting Started Introduction......................2 Front Panel ....................2 Rear Panel ....................3 IR Remote Control ..................5 Installing the Batteries ................... 7 Setting the IR Channel .................. 8 Installation ......................9 Connection Instructions ................. 9 Application Diagram ..................10 Network Configuration using Syner-G ............
  • Page 10 Table of Contents Locking the Matrix ..................71 Viewing the Routing Status ................. 72 Routing Inputs and Masking Outputs ............73 Creating / Editing Routing Presets .............. 76 Input and Output Status ................79 Changing Input and Output Names ............. 80 HPD Control ....................
  • Page 11 This page left intentionally blank.
  • Page 12 This page left intentionally blank.

  • Page 13: Getting Started

    8x8 Matrix for HDMI w/ HDCP 2.2 Getting Started...

  • Page 14: Introduction

    Introduction Page Title Front Panel ® Menu Preset Enter Power Lock Back 4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2 EXT-UHD-88 IP Control IR In/Ext Out A Out B Out C Out D Out E Out F Out G Out H Name Description...

  • Page 15: Rear Panel

    Connect a grounding wire (16 AWG or greater) from this terminal to an approved ground path. IR In / Ext Connect an IR extender (Gefen part no. EXT-RMT-EXTIRN) or an electrical IR cable from an automation system to this port.
  • Page 16 Introduction Name Description Cooling fan assembly Provides active cooling for the matrix by expelling warm air from the enclosure. To prevent overheating, make sure this vent is not blocked. 24V DC Connect the included 24V DC power supply to this power connector. page | 4...

  • Page 17: Ir Remote Control

    Introduction IR Remote Control Power Power Mask Mask Output Output Menu Menu Preset Preset Back Back Lock Lock Input Input *Preferred *Preferred ® ® RMT-88 RMT-88 Name Description Output buttons (A - H) Press these buttons to select the desired input when performing routing operations.
  • Page 18 Introduction Name Description Input buttons (1 - 8) Press these buttons to select the desired input when performing routing operations. Each button corresponds to an In port (1 - 8) on the rear panel of the matrix. Press this button to block an input. Blocking Inputs (page 22) for more information.

  • Page 19: Installing The Batteries

    Introduction Installing the Batteries Remove the back cover the IR remote control unit. Insert two 1.5V AAA-type batteries, as shown, within the battery compartment. Power Mask Output Menu Preset Back Lock Input *Preferred ® RMT-88 Replace the back cover. Warning! Risk of explosion if battery is replaced by an incorrect type.

  • Page 20: Setting The Ir Channel

    Introduction Setting the IR Channel Use the following DIP switch settings to set the IR channel of the IR remote control. In order for the included IR remote control to communicate with the matrix, the IR remote control must be set to the same channel as the matrix. See Setting the Matrix IR Channel (page 58) for more information.

  • Page 21: Installation

    ► IR Control (Optional) Connect an IR extender (Gefen part no. EXT-RMT-EXTIRN) or an electrical IR cable from an automation system to the IR In / Ext port on the rear panel of the matrix. Connecting an IR extender is useful if the IR sensor on the front panel will be hidden from view.

  • Page 22: Application Diagram

    Installation Application Diagram CAT-5 CABLE HDMI CABLE RS-232 CABLE IR IN Automation Control Device EXT-RMT-EXTIRN IR Extender 4K Ultra HD Source Units (for IP Control) EXT-UHD-88 4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2 RS-232 Controller 4K Ultra HD Displays EXT-UHD-88 page | 10...

  • Page 23: Network Configuration Using Syner-G

    Installation Network Configuration using Syner-G Launch the Gefen Syner-G application. Download the application here: http://www.gefen.com/support/download.jsp Select the matrix (EXT-UHD-88) from the list of products. Under the Device Settings section, select either Static or DHCP from the IP Mode drop-down list.
  • Page 24 Installation Click the Save button at the bottom of the screen. The matrix will automatically reboot and use the new network settings. Use the IP address of the matrix to access the built-in web interface or start a Telnet session. See the following for more information: ►...
  • Page 25 This page left intentionally blank.
  • Page 26 This page left intentionally blank.

  • Page 27: Basic Operation

    8x8 Matrix for HDMI w/ HDCP 2.2 Basic Operation...

  • Page 28: Powering The Matrix

    4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2 The first piece of information that is displayed is the model and current firmware. As of this writing, the current firmware is 0.2B. Be sure to check the Gefen website for the latest version of firmware.

  • Page 29: Viewing The Routing Status

    Viewing the Routing Status Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed. ® Menu Preset out a :output a A/V In:input 01 Enter...

  • Page 30: Routing Inputs To Outputs

    Routing Inputs to Outputs When the matrix is shipped from the factory, the matrix is set to “one-to-one” routing mode. This means that Input 1 is routed to Output A, Input 2 is routed to Output B, Input 3 is routed to Output C, and so on. To change the routing state for any output, follow the instructions below.
  • Page 31 Routing Inputs to Output Press and release the ▲ or ▼ buttons to select the desired input. In this example, we will select Input 4. out G :output G >A/V In:input 04 Once the desired input is selected, press the Enter button. The arrow cursor, next to the input, will disappear indicating that the input can not be changed.

  • Page 32: Using The Ir Remote Control

    Routing Inputs to Output Using the IR Remote Control Information The front panel display will only show activity if a routing operation is being performed on the output that is displayed. Otherwise, the routing operation is performed in the background. To verify that the new routing state has been executed, you can view the current routing state for that output.

  • Page 33: Masking Outputs

    Masking Outputs Masking Outputs When masking outputs through the front panel, the IR remote control must be used. Outputs can also be masked by by using the built-in web interface. See Routing Inputs and Masking Outputs (page 73) for more information. When an output is masked, the signal is blocked at the output.

  • Page 34: Blocking Inputs

    Blocking Inputs Blocking an input disables the input, preventing the source signal from reaching any of the outputs. For example, if Input 02 is routed to Output A, Output B, and Output C, then “blocking” Input 02 will prevent the A/V signal from being displayed on Output A, Output B, and Output C.

  • Page 35: Locking The Matrix

    Locking the Matrix To prevent an accidental routing change or power-down (by pressing the Power button), the front-panel buttons on the matrix can be locked. Locking the matrix disables the front-panel controls, IR, and the built-in web interface. ► Locking the Matrix Starting from any screen, press and hold the Lock button.

  • Page 36: Using The Ir Remote Control

    Locking the Matrix Using the IR Remote Control Locking the Matrix ► Starting from any screen, press the Lock button on the IR remote control. The Lock button on the front panel will glow solid Power blue. The matrix is now locked. ®...

  • Page 37: Routing Presets

    Routing Presets Routing presets can be recalled using the front panel buttons or the IR remote control. For information on creating presets, see Creating / Editing Routing Presets (page 76). Using the Front Panel Start from any screen. Press the Preset button on the front panel. The Preset button, on the front panel, will flash blue when pressed.

  • Page 38: Using The Ir Remote Control

    Routing Presets Using the IR Remote Control Start from any screen. Press the Preset button on the IR remote control. Use the set of Input buttons, from the bottom- portion of the IR remote control to select the Power desired preset. Only Presets 1 - 8 can be selected, when using the IR remote control.

  • Page 39: Menu System

    Menu System Accessing the Menu System The front-panel menu system provides the ability to locally control many of the matrix features. However, we recommend using the built-in Web interface to control the matrix. For more information on accessing the web interface, see The Web Interface (page 64).
  • Page 40 Menu System The menu system has the following order: setup edid management network system To return to the routing screen, press the Back button on the front panel or on the IR remote control until the routing screen is displayed. ®...

  • Page 41: Hpd Control

    Menu System HPD Control This menu option allows an HPD (Hot-Plug Detect) pulse to be sent to the selected input. Sending an HPD pulse to an input is equivalent to disconnecting and reconnecting the video cable at the source. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 42 Menu System The input selection screen will be displayed. Input 01 will be displayed, by default. hdp control: pulse: input 01 Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired input. These buttons will glow blue when they are pressed on the front panel.

  • Page 43: Hdcp Control

    Menu System HDCP Control This menu option restricts the version of HDCP that is accepted by an input. This matrix supports up to HDCP 2.2. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 44 Menu System Press the Enter button on the front panel or on the IR remote control to display the input control screen. hdcp control: input input 01: 2.2 Press and release the ▲ or ▼ buttons on the front panel or on the included IR remote control, to select the desired input or output.
  • Page 45 Menu System 11. Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting. input 03 >1.4 and below 12. Press the Enter button on the front panel or the OK button on the IR remote control to save the setting.

  • Page 46: Setting The Edid Mode

    Menu System Setting the EDID Mode This menu option allows the EDID that will be used by the source that is connected to each input. Internal, external, or a custom EDID can be selected. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 47 Menu System Press the Enter button on the front panel or on the IR remote control to display the input control screen. Input 01 will be displayed by default. edid mode input 01 Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired input.
  • Page 48 Menu System 11. Once the desired EDID has been selected, press the Enter button on the front panel or the OK button on the IR remote control. The input selection screen will be displayed. edid mode input 05 12. To set the EDID on another input, repeat steps 7 - 11. 13.

  • Page 49: Ip Settings

    Menu System IP Settings Use this menu option to set the IP mode, IP address, subnet mask, gateway, and HTTP port of the matrix. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 50 Menu System Setting the IP Mode ► From the IP Mode screen, press the Enter button on the front panel or the OK button on the IR remote control. An arrow cursor will be displayed next to the current IP mode, indicating that it can be changed: ip mode: >static Press and release the ▲...
  • Page 51 Menu System Press the ▲ or ▼ buttons on the front panel or on the IR remote control, to change the numerical value of the digit (0 - 9). ip address: 092.168.001.072 Press the ◄ or ► buttons on the front panel or on the IR remote control to move between each digit in the IP address.
  • Page 52 Menu System Press the ▲ or ▼ buttons on the front panel or on the IR remote control, to change the numerical value of the digit (0 - 9). subnet mask: 255.255.055.000 After the desired address has been set, press the Enter button on the front panel or the OK button on the IR remote control to save the change.
  • Page 53 Menu System Press the ◄ or ► buttons on the front panel or on the IR remote control to move between each digit in the IP address. After the desired IP address has been set, press the Enter button on the front panel or the OK button on the IR remote control to save the change.

  • Page 54: Tcp / Telnet Settings

    Menu System TCP / Telnet Settings Use this menu option to set TCP access, the TCP port, Telnet welcome message state, and enabling / disabling of password credentials. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 55 Menu System Enabling / Disabling TCP (Telnet) Access ► From the TCP access screen, press the Enter button on the front panel or the OK button on the IR remote control. tcp access: enabled Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting.
  • Page 56 Menu System Setting the TCP Listening Port ► From the TCP access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the TCP Port option. The current TCP port will be displayed. tcp port: Press the Enter button on the front panel or the OK button on the IR remote control to edit the port number.
  • Page 57 Menu System Enabling / Disabling Telnet Welcome Message ► From the TCP access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the Login on Connect option. The current setting will be displayed. The default setting is enabled. login on connect: enabled Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 58 Menu System Enabling / Disabling Password ► From the TCP access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the Require Password option. The current setting will be displayed. require password: disabled Press the Enter button on the front panel or the OK button on the IR remote...

  • Page 59: Udp Settings

    Menu System UDP Settings Use this menu option to enable / disable UDP access, set the UDP port, UDP remote access, and setting the remote UDP IP address. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 60 Menu System Enabling / Disabling UDP Access ► From the UDP access screen, press the Enter button on the front panel or the OK button on the IR remote control. An arrow cursor will be displayed next to the current setting, indicating that it can be changed: UDP access: disabled Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 61 Menu System Setting the UDP Listening Port ► From the UDP Access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the UDP Port option. The current UDP port will be displayed. Udp port: 50007 Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 62 Menu System Enabling / Disabling Remote UDP Access ► From the UDP Access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the Remote UDP Access option. The current setting will be displayed. remote UDP access: disabled Press the Enter button on the front panel or the OK button on the IR remote...
  • Page 63 Menu System Setting the Remote UDP Address ► From the UDP Access screen, press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the Remote UDP Address option. The current UDP address will be displayed. remote UDP address: 192.168.001.255 Press the Enter button on the front panel or the OK button on the IR remote...

  • Page 64: Discovery Settings

    Menu System Discovery Settings Use this menu option to enable / disable the “discovery” feature. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 65 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting. The cursor will appear next to the current setting. discovery: >enabled Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting.

  • Page 66: Rs-232 Feedback

    Menu System RS-232 Feedback Use this menu option to enable / disable RS-232 feedback. When disabled, RS-232 commands will be executed but will not provide a response. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 67 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting. The cursor will appear next to the current setting. rs-232 feedback: )Enabled Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting.

  • Page 68: Adjust The Lcd Brightness

    Menu System Adjust the LCD Brightness Use this menu option to change the brightness of the front panel LCM display. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 69 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current setting. The cursor will appear next to the current setting. lcd brightness: Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired setting.

  • Page 70: Setting The Matrix Ir Channel

    Menu System Setting the Matrix IR Channel Use this menu option to set the IR channel of the matrix. In order for the included IR remote to work with the matrix, both the matrix and the IR remote control must be set to the same IR channel.
  • Page 71 Menu System Press the Enter button on the front panel or the OK button on the IR remote control to change the current IR channel. The cursor will appear next to the current IR channel. IR CHANNEL: Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select the desired IR channel.

  • Page 72: Resetting The Matrix

    Menu System Resetting the Matrix Use this menu option to reset the matrix to factory-default settings. See Default Settings (page 181) for more information on these settings. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 73 Menu System Press the Enter button on the front panel or the OK button on the IR remote control. The matrix will prompt to confirm the factory-reset operation. factory reset )yes Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select either Yes or No.

  • Page 74: Rebooting The Matrix

    Menu System Rebooting the Matrix Use this menu option to reboot the matrix. Go to the routing screen. If the routing screen is not displayed, then press the Back button on the front panel or on the IR remote control until the routing screen is displayed.
  • Page 75 Menu System Press the Enter button on the front panel or the OK button on the IR remote control. The matrix will prompt to confirm the factory-reset operation. reboot unit )yes Press and release the ▲ or ▼ buttons on the front panel or on the IR remote control, to select either Yes or No.

  • Page 76: The Web Interface

    The Web Interface Introduction to the Web Interface The 4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2 includes a built-in web interface. We recommend that the web interface be used to control the matrix as it provides easy management of all features used by the matrix.
  • Page 77 The Web Interface • Administrator The Administrator username provides full access to all features within the web interface. The default password for the Administrator user name is Admin. All passwords are case-sensitive. For information on changing the default password, see Configuring Network Settings (page 92).
  • Page 78 The Web Interface Tabs and Sub-tabs ► The web interface is organized into tabs, in the top-portion of the screen. Clicking on a tab will display a different screen. The Setup and Manage EDID tab have their own set of tabs, which we will refer to as “sub-tabs”, as shown below.
  • Page 79 The Web Interface • If a button is pale-yellow or pale-red (disabled), then this means that the setting is not available. This usually requires that another setting must be enabled before setting a “sub-set” of that feature. For example, note that both the Remote UDP Access button and the UDP Port field are disabled in the illustration, below: In order to change either of these settings, UDP Access must be enabled.
  • Page 80 The Web Interface Switch Audio / Video A dark blue square indicates which inputs are routed to which outputs. Although not illustrated in the legend, a cyan-colored square indicates that the input and output are not routed to one another. See Routing Inputs and Masking Outputs (page 73) for more information.

  • Page 81: Controlling Power

    The Web Interface Controlling Power The current power status (ON or OFF) of the matrix is indicated next to the Power Off / Power On button in web Interface. ► If the matrix is powered-on, then the indicator will read Unit powered on, as shown below.
  • Page 82 The Web Interface Click the Power Off button to “turn off” the matrix. The following message box will be displayed, as the matrix powers-down. After a few moments, the web interface will reappear. Click the Power On button to “turn on” the matrix. The “Please wait, processing...”...

  • Page 83: Locking The Matrix

    The Web Interface Locking the Matrix Locking the matrix disables the front-panel controls, IR routing, and the built-in web interface. This is useful in preventing an accidental change to matrix settings by inadvertently pressing any of the front-panel buttons. Click the Routing tab. Click the Lock button near the top of the screen.

  • Page 84: Viewing The Routing Status

    The Web Interface Viewing the Routing Status Click the Routing tab. Locate the desired output from the rows on the left, then read across until a routing indicator (dark-blue square) is encountered. Note the column where the dark-blue square is located. Each column identifies an input.

  • Page 85: Routing Inputs And Masking Outputs

    The Web Interface Routing Inputs and Masking Outputs Routing Inputs ► Click the Routing tab. Located the desired output, from the left side of the screen. For this example, we will select Output C. Move the mouse horizontally, within the selected output row. As the mouse moves, the current output row and input column will be highlighted in yellow: Current input Current output...
  • Page 86 The Web Interface Routing indicator To “turn-off” an input, click the dark-gray square in the same row where the routing indicator for the input is located. In the example, above, Input 05 is routed to Output C. The routing indicator for Input 05 is located in the same row as Output C.
  • Page 87 The Web Interface Masking Outputs ► Click the Routing tab. Mask the desired output by clicking the Mask button. The Mask button will turn red, indicating that the selected output is masked. To unmask the output, click the Mask button again. The button will turn black. ►...

  • Page 88: Creating / Editing Routing Presets

    The Web Interface Creating / Editing Routing Presets Click the Routing tab. Under the Presets section, click the Preset Edit button. The screen will change and the Preset Edit button will read “Choose One”. page | 76...
  • Page 89 The Web Interface Click the desired preset to edit. In this example, we will select Preset_07. The selected preset will be highlighted. Select the desired routing state for each input/output. See Routing Inputs and Mask- ing Outputs (page 73), if necessary. The preset selections for the selected preset, will be indicated by a green square, as shown below.
  • Page 90 The Web Interface After the desired routing states, for input/output have been assigned, provide a name for the preset in the Preset Name field. ► To clear the preset selections for the current preset, click the Clear All button. ► To use the current routing state (dark blue squares) as the preset selection, click the Select Current button.

  • Page 91: Input And Output Status

    The Web Interface Input and Output Status Provides video and audio information for all inputs and outputs. Click the Status tab within the built-in web interface. Information on each input is listed in the top portion of the screen. We have outlined this section in blue.

  • Page 92: Changing Input And Output Names

    The Web Interface Changing Input and Output Names By default, the names of each output are Output A - Output H. The names of each input are Input 1 - Input 8. Each of these names can be changed, as desired, to suit the type of device that is connected to the input or output.

  • Page 93: Hpd Control

    The Web Interface HPD Control HPD (Hot-Plug Detect) is an HDMI feature which senses if the HDMI cable is disconnected, from the source or sink device, and then re-initializes the HDMI link if necessary. Within the web interface, the HPD pulse can be sent to the selected input, and reset the HDMI connection without disconnecting any cables.

  • Page 94: Hdcp

    The Web Interface HDCP This feature allows HDCP content to either be passed-through or rejected on each input. Outputs can either follow the input status or can be set to always encode HDCP. Note that using the “Reject” feature, on an input, does not decrypt HDCP content. Click the Setup tab within the built-in web interface.
  • Page 95 The Web Interface For outputs, select the desired button next to the output. ► Follow Input - Click this button to have the output follow the setting used on the input. Click the Follow All button to set all outputs to Follow Input. ►...

  • Page 96: Setting The Edid Mode

    The Web Interface Setting the EDID Mode The EDID Mode tab allows the desired EDID mode (internal preset, external, or custom) to be set for each input. Click the Manage EDID tab within the built-in web interface. Click the EDID Mode sub-tab. Select the desired EDID mode for each input using the drop-down list.
  • Page 97 The Web Interface Using a Custom EDID ► The Custom - User-defined setting is used to store a custom EDID in the selected input. To use a custom EDID, follow the instructions below: Select Custom - User-defined from the drop-down list of the desired input. Copy or upload an EDID to the input that is using the Custom mode.

  • Page 98: Copying Edid Data

    The Web Interface Copying EDID Data The EDID Copy tab allows an EDID to be copied from an input or output (sink device) to any input. In order to copy an EDID to an input, the input must be set to Custom - User- defined mode and then unlocked.
  • Page 99 The Web Interface After the input or output is selected, click the button for the corresponding input where the EDID will be copied. One or more inputs can be selected at a time. Click the Copy button. The Copy can only be pressed when both an output or input (the source) and an input (destination) are selected.

  • Page 100: Getting Edid Information

    The Web Interface Getting EDID Information The EDID Info tab allows the EDID informatioin, from an input or sink device, to be displayed. Click the Manage EDID tab within the built-in web interface. Click the EDID Info sub-tab. Select the desired input or output from the Choose EDID drop-down list. The EDID information for the selected input or output will be displayed.

  • Page 101: Uploading And Downloading Edid Data

    The Web Interface Uploading and Downloading EDID Data The Upload / Download tab allows EDID data from an input, output, or one of the internal EDID presets, to be downloaded and saved as a file on your computer. An EDID file can also be uploaded to any (unlocked) input.
  • Page 102 The Web Interface The following dialog will be displayed: Click the Save File button to save the EDID file to your computer. • Mac OS X The file will automatically be saved under Macintosh HD\Users\[username]\Downloads. • Windows OS The file will be saved under C:\Users\[username]\Downloads.
  • Page 103 The Web Interface Uploading an EDID ► Set the input, where the EDID file will be uploaded, to Custom mode. Setting the EDID Mode (page 84) for more information. Click the Browse... button under Upload EDID section. The File Upload dialog will be displayed. Select the EDID file from your computer.

  • Page 104: Configuring Network Settings

    The Web Interface Configuring Network Settings Once the matrix is configured on the network using Gefen Syner-G, the network settings can be changed within the built-in web interface. To access the network settings, click the Network tab in the built-in web interface.
  • Page 105 The Web Interface TCP / Telnet Settings ► TCP Access: Click the Enable button to allow Telnet access to the matrix. Otherwise, click the Disable button. TCP Port: Enter the TCP listening port in this field. Login Message on Connect: Click the Show button to display the welcome message at the beginning of a Telnet session.
  • Page 106 The Web Interface UDP Settings ► UDP Access: Click the Enable button to use the UDP protocol with the matrix. Otherwise, click the Disable button. UDP Port: Enter the TCP listening port in this field. Remote UDP Access: Click the Enable button to set the remote UDP address and UDP listening port.
  • Page 107 The Web Interface Web Login Settings ► Username: To change the password for the Administrator, click the Administrator. Otherwise, click the Operator button. New Password: Enter password for the selected username (above), in this field. Old Password: Enter the old (current) password in this field. Confirm New Password: To confirm the new password, re-enter the new password in this field.
  • Page 108 IP settings from within Gefen Syner-G, click the Read / Write button. Product Description: EXT-UHD-88 is the default product description. This name will be used to identify the matrix when using the Gefen Syner-G software. page | 96...

  • Page 109: System Settings

    The Web Interface System Settings The System tab provides controls for various other matrix features. Each of these controls is described below. ► Main RS-232 Feedback Click the Off button to disable RS-232 feedback. Click the On button to enable RS-232 feedback. LCD Brightness ►...
  • Page 110 The Web Interface Download Current Configuration to PC ► Saves the current matrix configuration to a file on your computer. Click the Download button. The following dialog box will be displayed: page | 98...
  • Page 111 The Web Interface Click the Save File button to save the EDID file to your computer. • Mac OS X The file will automatically be saved under Macintosh HD\Users\[username]\Downloads • Windows OS The file will be saved under C:\Users\[username]\Downloads ► Restore / Upload Configuration File Uploads the selected matrix configuration, from a file on your computer, to the matrix.
  • Page 112 Firmware Update ► Uploads and applies the latest firmware file to the matrix. Download the latest firmware from the Gefen web site. Click the Browse... button. Select the firmware file on your computer. The firmware must be a .bin file and will have the following naming convention: EXT-UHD-88([version])(PACK).bin.
  • Page 113 The Web Interface After a few moments, the following message box will be displayed within the web interface: The Power button, on the front of the matrix, will flash red and blue and the update progress will be shown in the front-panel display: system updating After the update process completes, the matrix will automatically reboot.
  • Page 114 The Web Interface Setting the IR Channel ► Sets the IR channel for the matrix. The matrix must be set to the same IR channel as the included IR remote control, in order for the IR remote control to communicate with the matrix. Click the desired IR channel for the matrix by clicking one of the IR Channel buttons (1 - 4).
  • Page 115 The Web Interface Performing a Factory Reset ► This feature restores the matrix to original factory-default settings. Important Performing this function will erase all current setting in your matrix. IP settings will be retained. To save the configuration, before continuing, refer to the section Download Current Configuration to PC.
  • Page 116 The Web Interface Rebooting the matrix ► Clicking this button will reboot the matrix. Click the Reboot button. The following message box will be displayed: Click the OK button to continue with the reboot procedure. ► ► Click the Cancel button to abort the reboot procedure and return to the web interface.
  • Page 117 This page left intentionally blank.
  • Page 118 This page left intentionally blank.

  • Page 119: Advanced Operation

    8x8 Matrix for HDMI w/ HDCP 2.2 Advanced Operation...

  • Page 120: Using Telnet, Udp, And Rs-232

    Using Telnet, UDP, and RS-232 Telnet Configuration Launch the desired terminal application. For example, on the Windows operation system, we can use Hyperterminal; on Mac OS X, we can use the Terminal application. At the command prompt, type the following: telnet ip_address where ip_address is the IP address of the matrix.

  • Page 121: Rs-232 Configuration

    Using Telnet, UDP, and RS-232 RS-232 Configuration Launch the desired terminal application. Selected the desired COM port. Configure the RS-232 port to the following settings. Note that Only TxD, RxD, and GND pins are used. Description Setting 19200 Baud rate Data bits None Parity...

  • Page 122: Commands

    Commands Command Description #factory_reset Resets the matrix to factory-default settings #get_device_desc Returns the current device-description string #get_discovery Returns the current state of the discovery service #get_discovery_mode Returns the “discovery” mode #get_edid_lock Returns the EDID-lock status of the specified input #get_edid_mode Returns the EDID mode of the specified input #get_gateway Returns the gateway IP address of the matrix...
  • Page 123 Commands Command Description #set_edid_lock Sets the EDID lock setting on the specified input #set_edid_mode Sets the EDID mode on the specified input #set_feedback Enables or disables unsolicited RS-232 feedback #set_gateway Sets the gateway address #set_http_port Sets the HTTP listening port #set_input_hdcp Sets the HDCP setting on the specified input #set_io_name...
  • Page 124 Commands #factory_reset Resets the matrix to factory-default settings. If a factory reset is performed through the built-in web interface or Telnet, then IP settings will be preserved. To reset all, including IP settings, this command must be issued using RS-232. Syntax #factory_reset Parameters...
  • Page 125 Commands #get_device_desc Returns the description of the matrix. Syntax #get_device_desc Parameters None Example #get_device_desc DEVICE DESCRIPTION IS EXT-UHD-88 Related Commands #set_device_desc page | 113...
  • Page 126 Commands #get_discovery Returns the discovery mode setting. The value returned is one of the following: Value Description “Discovery” mode is disabled “Discovery” mode is enabled Syntax #get_discovery Parameters None Example #get_discovery DISCOVERY 1 Related Commands #set_discovery #set_showme page | 114...
  • Page 127 Commands #get_discovery_mode Returns the current “discovery” mode. The value returned is one of the following: Value Description Read only Read / Write Syntax #get_discovery_mode Parameters None Example #get_discovery_mode #get_discovery_mode 1 Related Commands #get_discovery #set_discovery #set_discovery_mode page | 115...
  • Page 128 Commands #get_edid_lock Returns the current “EDID Lock” state of the specified input. The value returned is one of the following: Value Description EDID unlocked EDID locked Syntax #get_edid_lock input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Example #get_edid_lock 1 EDID_LOCK 1 0...
  • Page 129 Commands #get_edid_mode Returns the EDID mode of the specified input. The value returned is one of the following: Value Description Internal 720p 2Ch Internal 720p Multi-Ch Internal 1080p 2Ch Internal 1080p Multi-Ch Internal UHD 2Ch Internal UHD Multi-Ch External (Output A) Custom Syntax #get_edid_mode input...
  • Page 130 Commands #get_gateway Returns the gateway address of the matrix. Syntax #get_gateway Parameters None Example #get_gateway GATEWAY 10.5.64.1 Related Commands #get_http_port #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_http_port #set_ip_address #set_ip_mode #set_netmask page | 118...
  • Page 131 Commands #get_http_port Returns the HTTP listening port of the matrix. Syntax #get_http_port Parameters None Example #get_http_port HTTP_PORT 80 Related Commands #get_gateway #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_http_port #set_ip_address #set_ip_mode #set_netmask page | 119...
  • Page 132 Commands #get_input_hdcp Returns the HDCP mode of the specified input. The value returned is one of the following: Value Description Reject HDCP 2.2 and below HDCP 1.4 and below Syntax #get_input_hdcp input Parameters input Type: INTEGER The number of the HDMI input (1 - 8) to query. Example #get_input_hdcp 1 INPUT_HDCP 1 0...
  • Page 133 Commands #get_io_name Returns the name given to the specified input or output. Syntax #get_io_name inout Parameters input Type: INTEGER or CHARACTER The number of the HDMI input (1 - 8) to query. Example #get_io_name 1 IO_NAME 1 Bluray Related Commands #set_io_name page | 121...
  • Page 134 Commands #get_ip_address Returns the current IP address of the matrix. Syntax #get_ip_address Parameters None Example #get_ip_address IP_ADDRESS 10.5.64.81 Related Commands #get_gateway #get_http_port #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_http_port #set_ip_address #set_ip_mode #set_netmask page | 122...
  • Page 135 Commands #get_ip_mode Returns the current IP mode of the matrix. The value returned is one of the following: Value Description Static mode DHCP mode Syntax #get_ip_mode Parameters None Example #get_ip_mode IP_MODE 0 Related Commands #get_gateway #get_http_port #get_ip_address #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_http_port #set_ip_address...
  • Page 136 Commands #get_ipconfig Returns the current IP configuration of the matrix. In addition to providing the MAC address and the broadcast IP address, this command also provides the same information as executing the #get_ip_address, #get_netmask, #get_gateway, #get_mac_addr ommands. Syntax #get_ipconfig Parameters None Example #get_ipconfig...
  • Page 137 Commands #get_ir_channel Returns the IR channel of the matrix. Syntax #get_ir_channel Parameters None Example #get_ir_channel IR_CHANNEL 1 Related Commands #set_ir_channel page | 125...
  • Page 138 Commands #get_lcd_brightness Returns the brightness level of the front-panel display. Syntax #get_lcd_brightness Parameters None Example #get_lcd_brightness LCD_BRIGHTNESS 60 Related Commands #set_lcd_brightness page | 126...
  • Page 139 Commands #get_mac_addr Returns the MAC address of the matrix. Syntax #get_mac_addr Parameters None Example #get_mac_addr MAC ADDRESS IS: 00:1C:91:04:90:03 Related Commands #get_gateway #get_http_port #get_ip_address #get_ip_mode #get_ipconfig #get_netmask #set_gateway #set_http_port #set_ip_address #set_ip_mode #set_netmask page | 127...
  • Page 140 Commands #get_netmask Returns the current subnet mask of the matrix. Syntax #get_netmask Parameters None Example #get_netmask NETMASK 255.255.255.0 Related Commands #get_gateway #get_http_port #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #set_gateway #set_http_port #set_ip_address #set_ip_mode #set_netmask page | 128...
  • Page 141 Commands #get_output_hdcp Returns the HDCP setting of the specified output. The value returned is one of the following: Value Description Follow input Always encode Syntax #get_output_hdcp output Parameters output Type: CHARACTER The identifier of the HDMI output (A - H) to query. Example #get_output_hdcp c OUTPUT_HDCP C 1...
  • Page 142 Commands #get_power Returns the current power state of the matrix. The value returned is one of the following: Value Description Power off Power on Syntax #get_power Parameters None Example #get_power POWER 1 Related Commands #power page | 130...
  • Page 143 Commands #get_preset_name Returns the name of the specified preset. Syntax #get_preset_name preset Parameters preset Type: INTEGER The identifier of the preset name (1 - 16) to query. Example #get_preset_name 5 PRESET_NAME 5 Kitchen Related Commands #set_preset_name page | 131...
  • Page 144 Commands #get_remote_udp_access Returns the remote UDP access state. The value returned is one of the following: Value Description Remote UDP access disabled Remote UDP access enabled Syntax #get_remote_udp_access Parameters None Example #get_remote_udp_access REMOTE_UDP_ACCESS 0 Related Commands #get_remote_udp_ip #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port...
  • Page 145 Commands #get_remote_udp_ip Returns the remote UDP IP address. Syntax #get_remote_udp_ip Parameters None Example #get_remote_udp_access REMOTE_UDP_IP 192.168.1.255 Related Commands #get_remote_udp_access #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access #set_udp_port page | 133...
  • Page 146 Commands #get_remote_udp_port Returns the remote UDP listening port. Syntax #get_remote_udp_port Parameters None Example #get_remote_udp_port REMOTE_UDP_PORT 50008 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access #set_udp_port page | 134...
  • Page 147 Commands #get_telnet_access Returns the Telnet access state. Use the #set_telnet_access command to enable or disable Telnet access. Syntax #get_telnet_access Parameters None Example #get_telnet_access TELNET_ACCESS 1 Related Commands #get_telnet_port #get_telnet_welcome #set_telnet_access #set_telnet_port #set_telnet_welcome #use_telnet_login page | 135...
  • Page 148 Commands #get_telnet_port Returns the Telnet listening port. Syntax #get_telnet_port Parameters None Example #get_telnet_port TELNET_PORT 23 Related Commands #get_telnet_access #get_telnet_welcome #set_telnet_access #set_telnet_port #set_telnet_welcome #use_telnet_login page | 136...
  • Page 149 Commands #get_telnet_welcome Returns the Telnet welcome message. Use the #set_telnet_welcome to create a custom welcome message. Syntax #get_telnet_welcome Parameters None Example #get_telnet_welcome TELNET WELCOME SCREEN IS ENABLED Related Commands #get_telnet_access #get_telnet_port #set_telnet_access #set_telnet_port #set_telnet_welcome #use_telnet_login page | 137...
  • Page 150 Commands #get_udp_access Returns the UDP access state. Use the #set_udp_access command to enable or disable UDP access. The value returned is one of the following: Value Description UDP access disabled UDP access enabled Syntax #get_udp_access Parameters None Example #get_udp_access UDP_ACCESS 0 Related Commands #get_remote_udp_access #get_remote_udp_ip...
  • Page 151 Commands #get_udp_port Returns the local UDP listening port. Syntax #get_udp_port Parameters None Example #get_udp_port UDP_PORT 50007 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port #get_udp_access #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access #set_udp_port page | 139...
  • Page 152 Commands #help Returns a list of available commands. The commands listed are specific to either the Sender or Receiver unit. Syntax #help Parameters None Example #help [Presets] #SET_PRESET_NAME #GET_PRESET_NAME [Setup] #SET_IO_NAME #GET_IO_NAME #SEND_HPD #SET_INPUT_HDCP #GET_INPUT_HDCP #SET_OUTPUT_HDCP #GET_OUTPUT_HDCP [MANAGE EDID] #SET_EDID_MODE #GET_EDID_MODE #SET_EDID_LOCK [SYSTEM SETTINGS]...
  • Page 153 Commands #lock_matrix Locks or unlocks the matrix. This command locks the front panel and the built-in web interface of the matrix. Note that if the matrix is locked, settings can still be changed using the command set. Syntax #lock_matrix state Parameters state Type: INTEGER...
  • Page 154 Commands #power Powers the unit ON or OFF. Syntax #power state Parameters state Type: INTEGER Accepts a number from the table below, specifying the desired state: state Description Power-OFF the matrix Power-ON the matrix Example #power 1 POWER 1 Related Commands #get_power page | 142...
  • Page 155 Commands #reboot Reboots the matrix. Syntax #reboot Parameters None Example #reboot UNIT WILL REBOOT SHORTLY Related Commands #factory_reset page | 143...
  • Page 156 Commands #send_hpd Sends an HPD (Hot-Plug Detect) pulse to the specified input. Syntax #send_hpd input Parameters input Type: INTEGER The identifier of the HDMI input (1 - 8) where the HPD pulse will be sent. Example #send_hpd 1 HPD SENT Related Commands page | 144...
  • Page 157 Commands #set_device_desc Sets the matrix identifier string. Syntax #set_device_desc name Parameters name Type: STRING The device description. This value cannot exceed 30 characters in length. Example #set_device_desc matrix202 DEVICE DESCRIPTION IS SET TO matrix202 Related Commands #get_device_desc page | 145...

  • Page 158: Related Commands

    Commands #set_discovery Enables or disables the “discovery” feature. This feature is enabled by default. Syntax #set_discovery state Parameters state Type: INTEGER Accepts a number from the table below, specifying the desired state: state Description Disables “Discovery” mode Enables “Discovery” mode If set to disabled, then the Syner-G Software Suite will be unable to detect the matrix on a network.
  • Page 159 Read / write mode When set to read-only mode, the IP settings for the matrix will be displayed within the Gefen Syner-G Software Suite but cannot be changed. In order to both display and allow changes to the IP settings within Gefen Syner-G, set this feature to read/write mode.
  • Page 160 Commands #set_edid_copy Copies the EDID from output or input to the selected input for use in custom EDID mode. In order for an EDID to be copied, the destination input port must be set to Custom mode and must not be locked. See Copying EDID Data (page 86) for more information.
  • Page 161 Commands #set_edid_lock Locks to unlocks the EDID when using Custom EDID mode. This command only works if the specified input is set to Custom. See the #set_edid_mode command. Syntax #set_edid_lock input state Parameters input Type: INTEGER This parameter must be the identifier of an HDMI input (1 - 8). state Type: INTEGER Accepts a number from the table below, specifying the desired state:...
  • Page 162 Commands #set_edid_mode Sets the EDID mode for the specified input. Syntax #set_edid_mode input mode Parameters input Type: INTEGER This parameter must be the identifier of an HDMI input (1 - 8). mode Type: INTEGER Accepts a number from the table below, corresponding to the desired EDID. mode Description Internal 720p 2Ch...
  • Page 163 Commands #set_feedback Enables or disables unsolicited RS-232 feedback. Syntax #set_feedback state Parameters state Type: INTEGER Accepts a number from the table below, specifying the desired state: state Description Disable RS-232 feedback Enable RS-232 feedback Example #set_feedback 1 SET_FEEDBACK 1 page | 151...
  • Page 164 Commands #set_gateway Sets the gateway address for the matrix. The gateway address will be changed only if the matrix is in static IP mode. If the matrix is using DHCP mode, then the gateway address is automatically assigned by the DHCP server. The matrix must be rebooted after executing this command.
  • Page 165 Commands #set_http_port Sets the HTTP listening port for the matrix. Syntax #set_gateway port Parameters port Type: INTEGER The desired HTTP listening port for the matrix. Example #set_gateway 192.168.1.1 GATEWAY 192.168.1.1 Related Commands #get_gateway #get_http_port #get_ip_address #get_ip_mode #get_ipconfig #get_mac_addr #get_netmask #set_gateway #set_ip_address #set_ip_mode #set_netmask...
  • Page 166 Commands #set_input_hdcp Sets the HDCP mode on the specified input. Syntax #set_input_hdcp input mode Parameters input Type: INTEGER Accepts the number of an HDMI input (1 - 8). mode Type: INTEGER Accepts a number from the table below, corresponding to the desired HDCP mode.
  • Page 167 Commands #set_io_name Sets the name of the specified input. Syntax #set_io_name inout name Parameters inout Type: INTEGER or CHARACTER This parameter can accept either the number of an HDMI input (1 - 8) or the identifier or an HDMI output (A - H). Only one input or output can be specified at one time.
  • Page 168 Commands #set_ip_address Sets the IP address of the matrix. The matrix must be rebooted after executing this command. Syntax #set_ip_address addr Parameters addr Type: IP ADDRESS The desired IP address of the matrix. This address must be entered in dot-decimal notation. Example #set_ip_address 10.5.64.81 IP_ADDRESS 10.5.64.81...
  • Page 169 Commands #set_ip_mode Sets the IP mode of the matrix. The matrix must be rebooted after executing this command. Syntax #set_ip_mode mode Parameters mode Type: INTEGER Accepts a number from the table below, corresponding to the desired IP mode. mode Description Static DHCP Auto...
  • Page 170 Commands #set_ir_channel Sets the IR channel of the matrix. In order to use the included IR remote control with the matrix, both the matrix and the IR remote control must be set to the same IR channel. Syntax #set_ir_channel irch Parameters irch Type: INTEGER...
  • Page 171 Commands #set_lcd_brightness Sets the brightness level of the display on the front panel of the matrix. Syntax #set_lcd_brightness level Parameters level Type: INTEGER Accepts a number within the range of 0 - 100. The value of 100 represents the brightest setting of the display. Example #set_lcd_brightness 75 LCD_BRIGHTNESS 75...
  • Page 172 Commands #set_netmask Sets the network mask address. The matrix must be rebooted after executing this command. Syntax #set_netmask addr Parameters addr Type: ADDRESS The desired subnet mask of the matrix. This address must be entered in dot-decimal notation. Example #set_netmask 255.255.255.0 NETMASK 255.255.255.0 REBOOT TO APPLY SETTINGS Related Commands...
  • Page 173 Commands #set_output_hdcp Sets the HDCP mode on the specified output. Syntax #set_output_hdcp output mode Parameters output Type: CHARACTER Accepts the identifier of an HDMI output (A - H). mode Type: INTEGER Accepts a number, from table below, corresponding to the desired HDCP mode. mode Description Follow Input...
  • Page 174 Commands #set_preset_name Assigns a name to the specified preset. Syntax #set_present_name preset name Parameters preset Type: INTEGER Accepts the identifier of a Preset (1 - 16). name Type: STRING The name of the preset. The name must not exceed 12 characters in length. No special characters (e.g.
  • Page 175 Commands #set_remote_udp_access Enables or disables remote UDP access. Syntax #set_remote_udp_access state Parameters state Type: INTEGER Accepts a number from the table below, corresponding to the desired state. state Description Disable remote UDP access Enable remote UDP access Example #set_remote_udp_access 0 REMOTE_UDP_ACCESS 0 Related Commands #get_remote_udp_access...
  • Page 176 Commands #set_remote_udp_ip Sets the remote UDP IP address of the matrix. Syntax #set_remote_udp_ip addr Parameters addr Type: IP ADDRESS The desired remote UDP IP address of the matrix. The address must be entered in dot-decimal notation. Example #set_remote_udp_ip 192.168.1.251 REMOTE_UDP_IP 192.168.1.251 Related Commands #get_remote_udp_access #get_remote_udp_ip...
  • Page 177 Commands #set_remote_udp_port Sets the remote UDP listening port for the matrix. Syntax #set_remote_udp_port port Parameters port Type: INTEGER The desired remote UDP port (0 - 65535) of the matrix. Example #set_remote_udp_port 50008 REMOTE_UDP_PORT 50008 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip...
  • Page 178 Commands #set_showme Enables or disables the “Show Me” feature. If the “Show Me” feature is enabled, then all the buttons (with the exception of the Power button), will flash slowly. This feature allows the matrix to be visually identified on the network and is useful when multiple matrix units are being used.
  • Page 179 Commands #set_telnet_access Enables or disables Telnet access on the matrix. Syntax #set_telnet_access state Parameters state Type: INTEGER Accepts a number from the table below, corresponding to the desired state. state Description Disable Telnet access Enable Telnet access Example #set_telnet_access 1 TELNET_ACCESS 1 Related Commands #get_telnet_access...
  • Page 180 Commands #set_telnet_port Sets the Telnet listening port on the matrix. Syntax #set_telnet_port port Parameters port Type: INTEGER The desired remote Telnet listening port (0 - 65535) of the matrix. Example #set_telnet_port 23 TELNET_PORT 23 Related Commands #get_telnet_access #get_telnet_port #get_telnet_welcome #set_telnet_access #set_telnet_welcome #use_telnet_login page | 168...
  • Page 181 Commands #set_telnet_welcome Enables or disables the Telnet welcome message. Syntax #set_telnet_welcome state Parameters state Type: INTEGER Accepts a number, from table below, corresponding to the desired state. state Description Disable welcome message Enable welcome message Example #set_telnet_welcome 1 TELNET WELCOME SCREEN IS ENABLED Related Commands #get_telnet_access #get_telnet_port...
  • Page 182 Commands #set_udp_access Enables or disables UDP access. Syntax #set_udp_access state Parameters state Type: INTEGER Accepts a number, from table below, corresponding to the desired state. state Description Disable UDP access Enable UDP access Example #set_udp_access 0 UDP_ACCESS 0 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port...
  • Page 183 Commands #set_udp_port Sets the local UDP listening port. Syntax #set_udp_port port Parameters port Type: INTEGER The desired UDP listening port (0 - 65535) of the matrix. Example #set_udp_port 50007 UDP_PORT 50007 Related Commands #get_remote_udp_access #get_remote_udp_ip #get_remote_udp_port #get_udp_access #get_udp_port #set_remote_udp_access #set_remote_udp_ip #set_remote_udp_port #set_udp_access page | 171...
  • Page 184 Commands #show_firmware_version Returns the firmware version of the matrix. The returned value will depend upon the version of firmware that is currently installed. Syntax #show_firmware_version Parameters None Example #show_firmware_version FIRWMARE VERSION IS V0.2B page | 172...
  • Page 185 Commands #use_telnet_login Enables or disables login credentials when starting a Telnet session. Syntax #use_telnet_login state Parameters state Type: INTEGER Accepts a number, from table below, corresponding to the desired state. state Description Disable Telnet login Enable Telnet login Example #use_telnet_login 0 USE_TELNET_LOGIN 0 Related Commands #get_telnet_access...
  • Page 186 Commands Enables or disables masking on the specified output(s). Syntax m state output [...output] Parameters state Type: INTEGER Accepts a number from the table below, corresponding to the desired state. state Description Disable masking Enable masking output Type: CHARACTER The identifier of an HDMI output (A - H). Example m 1 a b M 1 A B...
  • Page 187 Commands Recalls the specified routing preset. Syntax p preset Parameters preset Type: INTEGER The number of a preset (1 - 16). Example p 10 P 10 Related Commands page | 175...
  • Page 188 Commands Routes the specified input to the one or more specified outputs. Syntax r input output [...output] Parameters input Type: INTEGER / STRING The number of an HDMI input (1 - 8). This parameter also accepts a string argument of “OFF”. The “OFF” argument is not case-sensitive. If “OFF” is specified, then no input is selected.
  • Page 189 This page left intentionally blank.
  • Page 190 This page left intentionally blank.

  • Page 191: Appendix

    8x8 Matrix for HDMI w/ HDCP 2.2 Appendix page | 179...

  • Page 192: Network Cable Diagram

    Network Cable Diagram Front of RJ-45 Connector 1 2 3 4 5 6 7 8 Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when field-terminating cable for use with Gefen products. Color Description Orange / White TD+ (Transmit Data, positive differential signal)

  • Page 193: Default Settings

    Remote UDP IP Address 192.168.1.255 Remote UDP Port 50008 Remote UDP Access Disabled Gefen Syner-G Discovery Enabled Gefen Syner-G Discovery Mode Read / Write Gefen Syner-G Show Device Hide Me Description Setting Output Names Output A - Output H A/V Input Names...

  • Page 194: Internal Edid Profiles

    Internal EDID Profiles 720p 2-channel audio Video data block 1280x720p @ 60Hz (16:9) 1280x720p @ 50Hz (16:9) 640x480p @ 60Hz (4:3) 720x480p @ 60Hz (16:9) 720x480p @ 60Hz (4:3) 1440x480p @ 60Hz (4:3) 1440x480p @ 60Hz (16:9) 720x576p @ 50Hz (4:3) 1440x480i @ 60Hz (4:3) 1440x480i @ 60Hz (16:9) 720x576p...
  • Page 195 Internal EDID Profiles 1080p 2-channel audio Video data block 640x480p @ 60Hz (4:3) 720x480p @ 60Hz (16:9) 720x480p @ 60Hz (16:9) 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (4:3) 1440x480i @ 60Hz (16:9) 1440x480p @ 60Hz (4:3) 1440x480p @ 60Hz (16:9) 720x576p...
  • Page 196 Internal EDID Profiles 1080p Multichannel audio Video data block 640x480p @ 60Hz (4:3) 720x480p @ 60Hz (16:9) 720x480p @ 60Hz (16:9) 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (4:3) 1440x480i @ 60Hz (16:9) 1440x480p @ 60Hz (4:3) 1440x480p @ 60Hz (16:9) 720x576p...
  • Page 197 Internal EDID Profiles 4K 2-channel audio Video data block 720x480p @ 60Hz 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (16:9) 1920x1080p @ 60Hz (16:9) 720x576p @ 50Hz (16:9) 1280x720p @ 50Hz (16:9) 1920x1080i @ 50Hz (16:9) 1440x576i @ 50Hz (16:9) 1920x1080p @ 50Hz (16:9)
  • Page 198 Internal EDID Profiles 4K multichannel audio Video data block 720x480p @ 60Hz 1280x720p @ 60Hz (16:9) 1920x1080i @ 60Hz (16:9) 1440x480i @ 60Hz (16:9) 1920x1080p @ 60Hz (16:9) 720x576p @ 50Hz (16:9) 1280x720p @ 50Hz (16:9) 1920x1080i @ 50Hz (16:9) 1440x576i @ 50Hz (16:9) 1920x1080p @ 50Hz (16:9)

  • Page 199: Specifications

    Specifications Supported Formats Resolutions (max.) • 4096 x 2160 at 24 or 30 Hz • 3860 x 2160 at 60 Hz (4:2:0) • 1080p Full HD • 1920 x 1200 (WUXGA) Connectors, Controls, and Indicators HDMI In • 8 x Type A 19-pin female, locking HDMI Out •...

  • Page 200: Index

    Index #set_edid_mode #set_feedback Accessing the Menu System #set_gateway Application diagram #set_http_port #set_input_hdcp #set_io_name #set_ip_address #set_ip_mode Commands #set_ir_channel #factory_reset #set_lcd_brightness #get_device_desc #set_netmask #get_discovery #set_output_hdcp #get_discovery_mode #set_preset_name #get_edid_lock #set_remote_udp_access #get_edid_mode #set_remote_udp_ip #get_gateway #set_remote_udp_port #get_http_port #set_showme #get_input_hdcp #set_telnet_access #get_io_name #set_telnet_port #get_ip_address #set_telnet_welcome #get_ipconfig #set_udp_access #get_ip_mode #set_udp_port...
  • Page 201 Index Front Panel IR Remote Control description description Front Panel Controls installing batteries accessing the menu system setting the IR channel HPD control IP settings gateway HTTP port Licensing IP address Locking the Matrix IP mode using the IR remote control subnet mask IR channel LCD brightness...
  • Page 202 Index editing routing presets factory reset Rear Panel HDCP description HPD control Routing input and output status using the IR remote control introduction RS-232 buttons configuration logging in feedback tabs and sub-tabs LCD brightness locking the matrix masking outputs rebooting the matrix Safety Instructions Restoring configuration Selecting Routing Presets...
