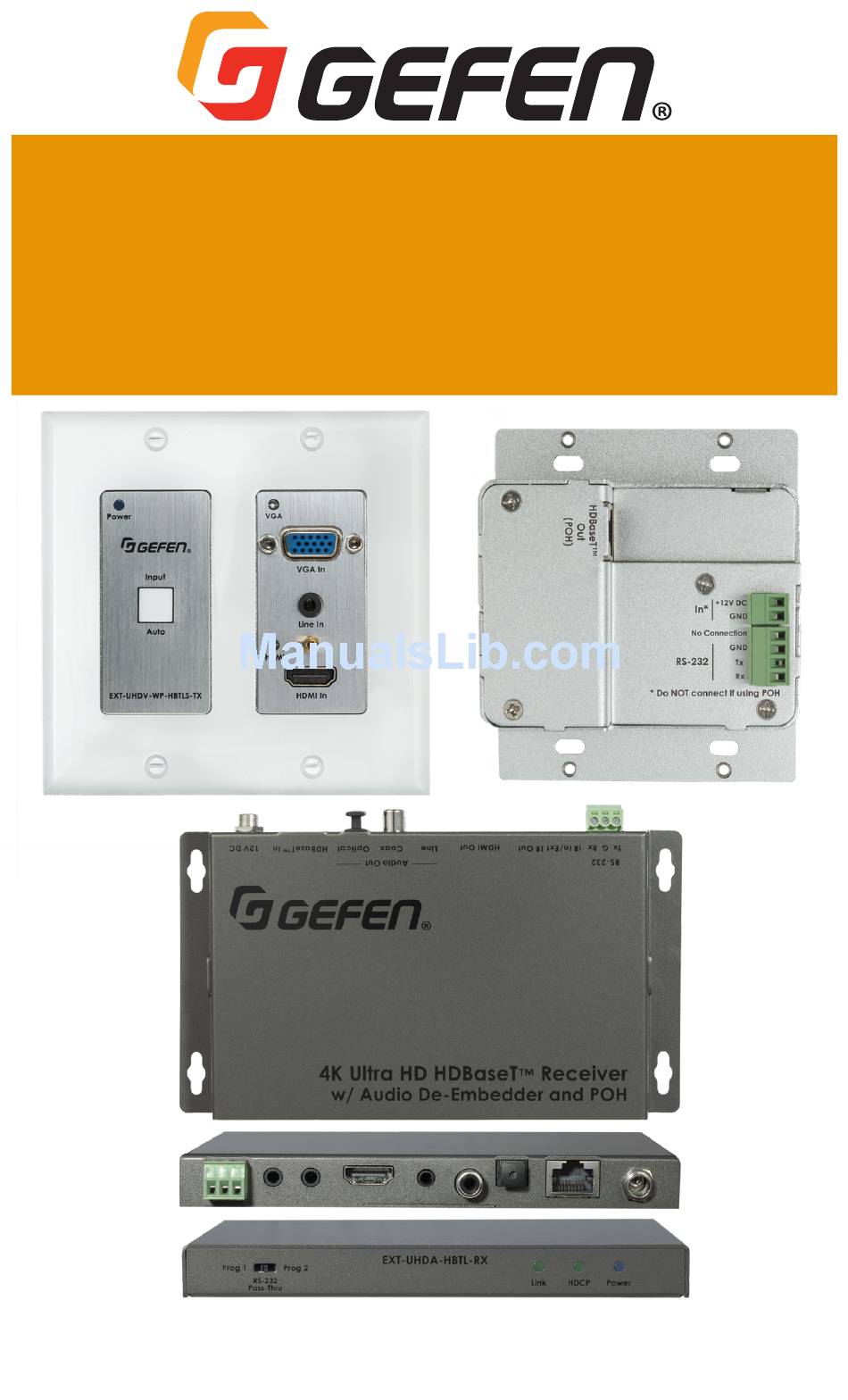

- Page 1 4K Ultra HD HDBaseT™ Multi-Format 2x1 Auto-Switching Wall-Plate Sender w/ Scaler Receiver w/ Audio De-Embedder and POH EXT-UHDV-WP-HBTLS-TX EXT-UHDA-HBTL-RX User Manual Version A1...
- Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 3 Warranty Information For the latest warranty coverage information, refer to the Warranty and Return Policy under the Connect section of the Gefen website at http://www.gefen.com/connect/warranty-and- return-policy...
- Page 4 © 2018 Noretk Security & Control, LLC. All Rights Reserved. All trademarks are the property of their respective owners. Gefen and Nortek Security & Control, LLC reserve the right to make changes in the hardware, packaging, and any accompanying documentation without prior notice.
- Page 5 However, Gefen and Core Brands, LLC assume no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen and Core Brands, LLC be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual.
- Page 6 Licensing This product may use software that is subject to open source licenses, including one or more of the General Public License Version 2 and Version 2.1, Lesser General Public License Version 2.1 and Version 3, BSD, and BSD-style licenses. Distribution and use of this product is subject to the license terms and limitations of liability provided in those licenses.
- Page 7 Uses Gefen’s implementation of HDBaseT™ technology with enhanced features • Advanced EDID Management for rapid integration of source and display • Field-updateable firmware via USB Micro-B and RS-232 ports, using the Gefen Syner-G™ software • North American standard 2-gang wall-plate form factor •...
- Page 8 • Provides Power over HDBaseT™ (POH) to a compatible Sender unit (such as EXT-UHDV- WP-HBTLS-TX) over the link cable • Uses Gefen’s implementation of HDBaseT™ technology with enhanced features • Locking power connector • Compact, ultra-low-profile enclosure is surface-mountable and can be hidden away...
- Page 9 EXT-UHDV-WP-HBTLS-TX* The following items are included in the EXT-UHDV-WP-HBTLS-TX package. If any of these items are not present in the box when you first open it, please contact Gefen Technical Support as soon as possible. (1) 4K Ultra HD Multi-Format 2x1 HDBaseT™ Sender unit...
-
Page 10: Table Of Contents
Table of Contents Controls, Connectors, and Indicators ................11 EXT-UHDV-WP-HBTLS-TX ....................11 EXT-UHDA-HBTL-RX ......................14 Installation ........................17 Physical Installation, EXT-UHDV-WP-HBTLS-TX .............. 17 Physical Installation, EXT-UHDA-HBTL-RX ............... 18 +12V Wiring, EXT-UHDV-WP-HBTLS-TX ................18 Sample Wiring Diagram ....................... 19 LED Status ........................20 Scaler Functions and Picture Adjustments ..............21 EDID Management .......................22... -
Page 11: Controls, Connectors, And Indicators
Controls, Connectors, and Indicators EXT-UHDV-WP-HBTLS-TX Power Link HDCP Reset VGA In Input Audio In Auto HDMI HDMI In EXT-UHDV-WP-HBTLS-TX Syner-G™... - Page 12 Connect a 3.5mm stereo audio cable from the analog stereo audio output of your source to be used with the VGA input. HDMI Input Connect a Gefen HDMI cable from your source to this input. Firmware Update Port To do a firmware update, attach a USB...
- Page 13 RS-232 Port RS-232 communications between the Sender and the Receiver, for local control of the Sender, and for Gefen Syner-G™ interface using an Rs-232 connection with a computer. Connect Tx, Rx, and Ground from an automation control device or an RS-232 device-to-be-controlled, using the removable 3-pin “Captive Screw”...
-
Page 14: Ext-Uhda-Hbtl-Rx
Controls, Connectors, and Indicators EXT-UHDA-HBTL-RX EXT-UHDA-HBTL-RX Prog 1 Prog 2 RS-232 Pass-Thru Link HDCP Powe r Audi o Ou t RS-23 2 Tx G Rx IR In/Ex t IR Out Line Coax Optical HDBaseT ™ In HDM I Ou t 12 V DC Name Description... - Page 15 TX: Connect an EXT-IREMIT IR Emitter (1 pc included) from this port to the IR sensor of the device to be controlled. HDMI Out Use a Gefen HDMI cable to connect an HDMI display to this port. Line Out This port provides analog Left and Right...
- Page 16 Sender unit. It can also receive power over the CAT-5 cable from a POH compatible Sender such as the EXT-UHDV-HBTLS-TX, but NOT the EXT-UHDV-WP-HBTLS-TX. 12V DC In This power receptacle is used to connect the included 12V DC power supply. As long as the connected Sender is POH-compliant, it can get power from this Receiver.
-
Page 17: Installation
Installation Physical Installation EXT-UHDV-WP-HBTLS-TX: While this wall-plate Sender is a low-voltage device and can usually be mounted in-wall without an electrical back-box, please check your local electrical code to ensure compli- ance. As long as installation without a back-box is acceptable, the unit can be mounted either directly onto the drywall or other sturdy hollow wall panel, or by using a standard North American 2-gang low-voltage installation bracket, available from most hardware stores. -
Page 18: Physical Installation, Ext-Uhda-Hbtl-Rx
This operation should only be performed by a professional and licensed low-voltage installer who has the proper tools and knowledge. Gefen will not assume any direct or indirect responsibility or liability for any damage or loss. When wiring a power supply to the Sender unit, please observe the polarity requirements. -
Page 19: Sample Wiring Diagram
Notes 1. The wiring diagram above shows cables and accessories that may not be included with the products. Select accessories (as identified by Gefen part numbers) are available for purchase from your Gefen distributor. 2. Power supply connections are not shown in the diagrams above. We highly recommend that the Power supply is connected to Receiver and the Sender is powered through the CAT-5 (HDBaseT™... -
Page 20: Led Status
LED Status The Power, Link, HDCP, HDMI, VGA and Auto/Input indicators on the Sender, and Power, Link, and HDCP indicators on the Receiver unit provide basic information on the current status of each unit. Power Description Solid blue • The unit is powered. •... -
Page 21: Scaler Functions And Picture Adjustments
All of the above scaler and picture adjustment parameters can be configured via RS-232 commands (Page 26) or Gefen Syner-G™ software. The HDMI input of the EXT-UHDV-WP-HBTLS-TX does not go through the scaler and is passed through directly to the Receiver via the HDBaseT™ link. -
Page 22: Edid Management
26) or using the Gefen Syner-G™ software. When using Gefen Syner-G™, Internal, External, and Custom EDIDs can be downloaded from the EXT-UHDV-WP-HBTLS-TX, modified via the advanced EDID Editor that is built into the Gefen Syner-G™ software, and uploaded back into the Sender. -
Page 23: Rs-232
Receiver’s RS-232 port. This can be done via an automation control device or the Gefen Syner-G™ software. c. Gefen Syner-G™ interface via RS-232 ports of Sender and Receiver. Gefen Syner-G™ software is used for firmware updates and EDID management of the Sender. - Page 24 Program your automation control decvice with the RS-232 control commands (Page 26) for the EXT-UHDV-WP-HBTLS-TX. All commands sent to the RS-232 port of the Receiver unit will be extended to the Sender unit via the HDBaseT™ Link cable. Please note that The Sender and Receiver’s Tx, Rx, and Ground pin-outs for their Phoenix connectors are different.
- Page 25 RS-232 c. Interface with Gefen Syner-G™ via RS-232 ports of Sender and Receiver.: Direct interface with the Sender: Connect RS-232 Tx, Rx, and Ground from a computer with a Serial (RS-232 port), or using a USB-to-RS-232 adaptor, to the removable 4-pin “Captive Screw”...
-
Page 26: Commands
RS-232 RS-232 Commands (EXT-UHDV-WP-HBTLS-TX) - Page 27 RS-232...
-
Page 28: Firmware Update
Over time, the Sender unit may require a firmware update to add functionality or fix issues. To perform a firmware update, a Windows PC that is running the Gefen Syner-G™ software needs to be connected to to the RS-232 port of the Sender. Use direct RS-232 connection if your PC has a serial port. -
Page 29: Specifications
Specifications* EXT-UHDV-WP-HBTLS-TX Supported Formats Maximum Video Resolution/Timing HDMI: • 4K Cinema - DCI (4096 x 2160 to 60Hz, 4:2:0) • 4K Ultra HD (3840 x 2160 to 60Hz, 4:2:0) VGA: • WUXGA (1920x1200 to 60 Hz 4:4:4) Audio (HDMI Pass-Thru) •... - Page 30 Specifications* Physical Dimensions • 3.5” x 4.2” x 1.74” (89mm x 104.5mm x 44mm) (W x H x D, not including connectors) Mounting Cavity Dimensions • 3.6” x 2.8” x 2” (92mm x 72mm x 50mm) (W x H x D, behind the mounting plate) Net Weight •...
- Page 31 Specifications* EXT-UHDA-HBTL-RX Supported Formats Maximum Video Resolution/Timing HDMI: • 4K Cinema - DCI (4096 x 2160 to 60Hz, 4:2:0) • 4K Ultra HD (3840 x 2160 to 60Hz, 4:2:0) VGA: • WUXGA (1920x1200 to 60 Hz 4:4:4) Audio (HDMI Pass-Thru) •...
- Page 32 0.6 lbs. (0.27 kg) * Features and specifications are subject to change without notice. ** IR Extension feature is NOT active when used with EXT-UHDV-WP-HBTLS-TX All trademarks and registered trademarks are properties of their respective owners. Copyright© 2018 Nortek Security & Control, LLC...
- Page 33 5919 Sea Otter Place, Suite 100 , Carlsbad, CA 92010, USA 1800 S McDowell Blvd, Petaluma, CA 94954, USA 1-707-283-5900 1-800-472-5555 Control, LLC Copyright© 2018 Nortek Security & Part Number: MAN-EXT-UHDV-WP-HBTLS Version A1...
