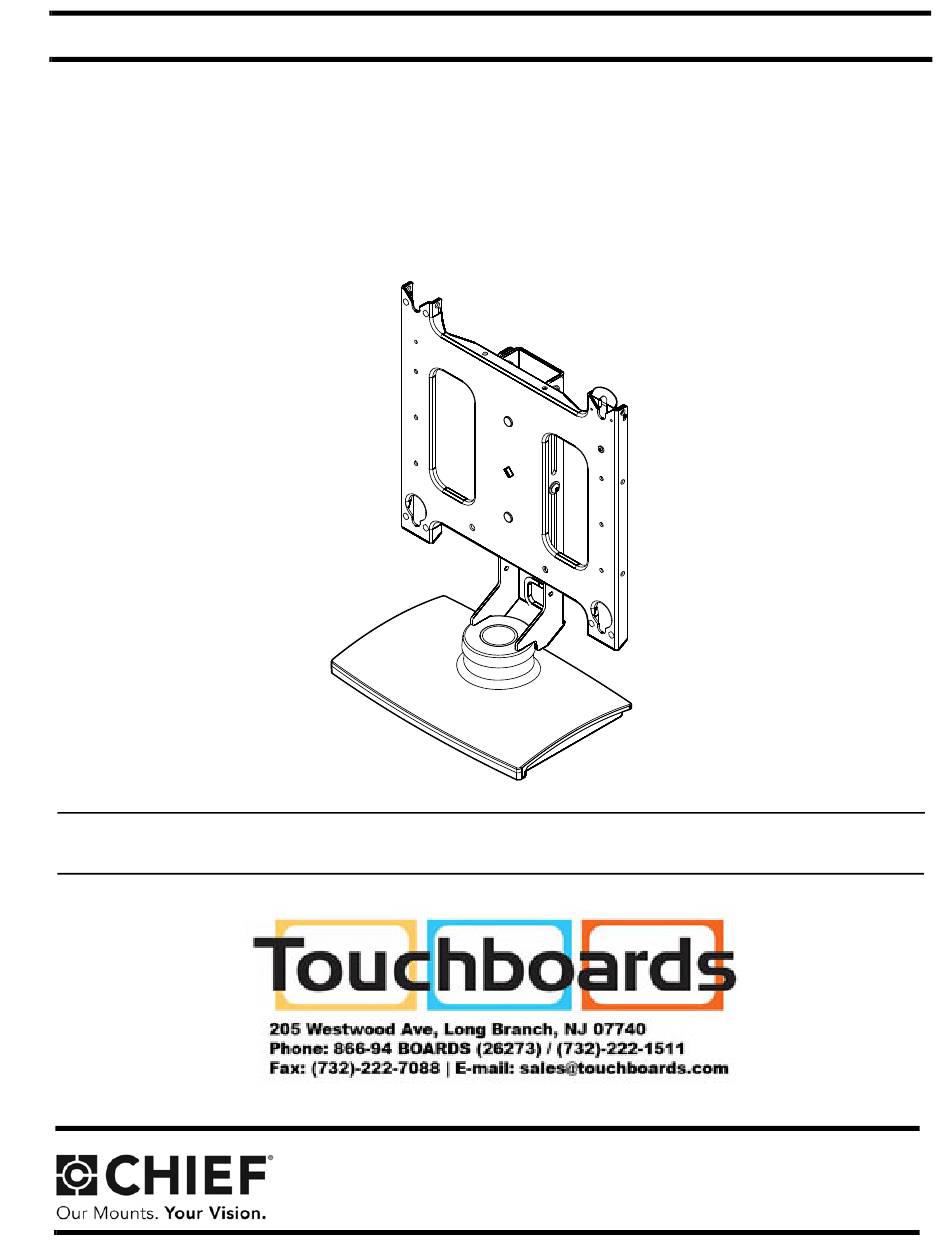

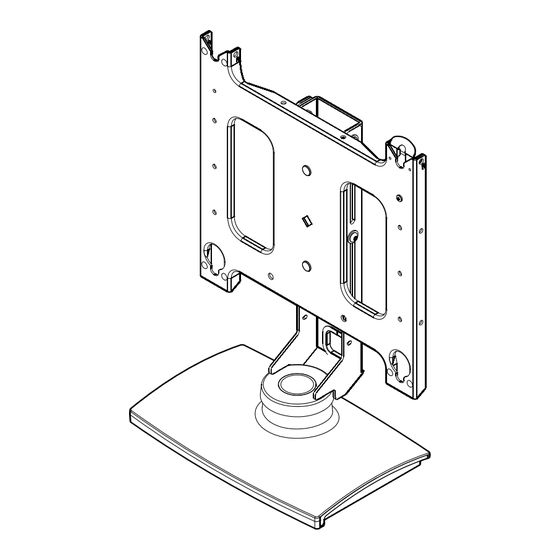

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S PLASMA SWIVEL STAND Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PSS2000...
- Page 2 WARNING: Failure to provide adequate structural strength Chief® and ClickConnect™ are registered trademarks of for this component can result in serious personal injury or Milestone AV Technologies. All rights reserved. damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment.
- Page 3 Installation Instructions PSS2000 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
- Page 4 PSS2000 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/2" (12.7mm) PARTS A (1) B (5) D (1) C (1) 5/32" 3/16"...
- Page 5 Installation Instructions PSS2000 INSTALLATION NOTE: For free-standing applications only, install five rubber bumpers (B) onto bottom of stand (A). (See Figure 1) (B) x 5 Figure 2 Figure 1 Display Height Greater Than 30 Inches Stand Assembly Remove slide from base by removing four button head cap NOTE: screws and four flat washers.
- Page 6 If an interface bracket for the display being mounted needs to TO EQUIPMENT! It is the installer’s responsibility to make be obtained, or additional assistance is required, contact Chief. sure the combined weight of all components does not exceed To install the display: 150 lbs (68.04 kg).
- Page 7 Installation Instructions PSS2000 Stand Adjustment Adjusting Display Roll Loosen upper and lower roll adjustment nuts.(See Figure 8) Adjusting Display Height Level display. TIghten roll adjustment nuts. CAUTION: DO NOT ALLOW DISPLAY TO DROP TO BOTTOM OF STAND. Displays are fragile and may be damaged.
- Page 8 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a division of Asia Pacific A Room 24F, Block D, Lily YinDu International Building Milestone AV Technologies LuoGang, BuJi Town, Shenzhen, CHINA.
