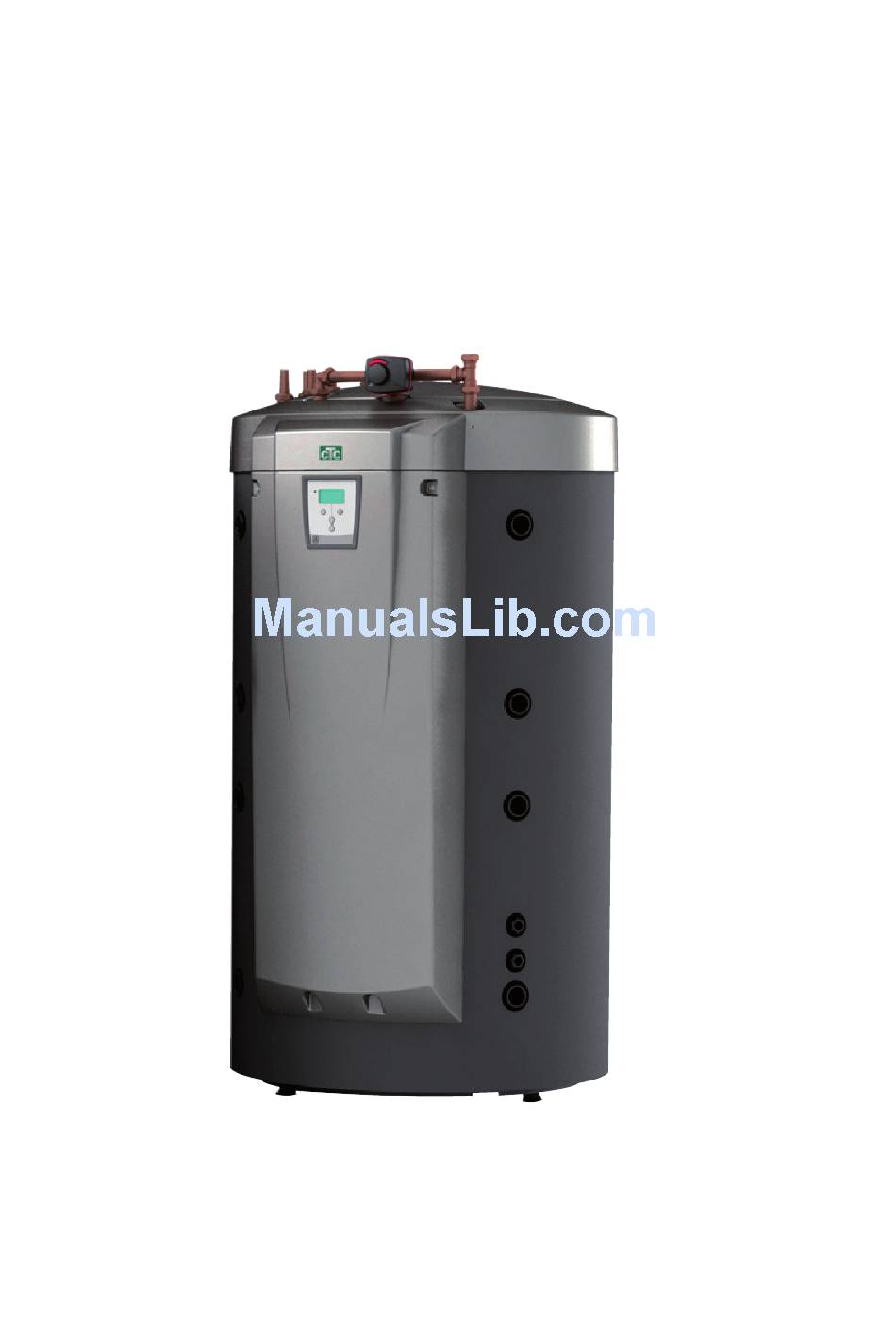

- Page 1 Installation and Maintenance Manual CTC EcoZenith I 550 for the property owner 161 505 71/1 2010-03-21...
-
Page 2: Table Of Contents
Contents For the property owner Welcome ................. 3 ..............41 Night reduction Important to remember! ............ 4 ............. 42 Week program Menu ................. 42 Block Menu Safety Instructions ............... 4 ..............43 Installer Menu The House Heating Curve ..........6 .............. -
Page 3: Welcome
On the following pages you can read how to take care of your CTC EcoZenith I 550. Some parts are aimed at you, the owner, and others at your installation engineer. Store this manual together, with the installation and maintenance instructions, which will provide you with the information you need to correctly maintain the CTC EcoZenith I 550 and provide many years of satisfaction. -
Page 4: Important To Remember
◗ Any work on the product should be done by authorised personnel only. ◗ Safety valve check: the safety valve for the boiler/system and warm tap water should be checked regularly. Refer to the Operation and Maintenance section. CTC EcoZenith I 550... - Page 5 CTC EcoZenith I 550...
-
Page 6: The House Heating Curve
-15°C (if the adjustment is set at 0). If the adjustment is set at +5, the temperature will be 55°C instead. At all temperatures out, the curve is increased with 5°C, i.e. the curve is displaced in parallel by 5°C. CTC EcoZenith I 550... - Page 7 Temperature Adjustment Primary Flow Inclination 50°C Temperature Adjustment 0°C Inclination 50°C Adjustment +5°C The curve can then be parallelly displaced (“Adjustment”) the desired number of degrees in order to be adapted to different systems/houses. Outside Temperature CTC EcoZenith I 550...
- Page 8 Then wait 24 hours before the next adjustment. ◗ If the inside temperature is too warm decrease the value at “Adjustment” by a couple of degrees. Then wait 24 hours before the next adjustment. CTC EcoZenith I 550...
-
Page 9: Hot Water
Hot water The CTC EcoZenith I 550 has a total of approx. 40 m finned copper coils for the heating of hot water. They preheat the water through the lower tank and thereafter run through the upper tank for the final temperature increase. It is two coils running parallel through the tanks, which allow for high flows with low pressure differential and provide great possibilities for good hot water capacity and comfort. - Page 10 ◗ Avoid running hot water with the highest capacity. If you run a bath somewhat slower instead, you get a higher temperature. ◗ Remember that a poor mixing valve by the EcoZenith or a poor shower mixer can affect the hot water temperature. CTC EcoZenith I 550...
-
Page 11: The Ctc Ecozenith I 550 Construction
The CTC EcoZenith I 550 Construction The illustration shows the construction of the product. Bivalent Mixing Valve The automatic mixing valve constantly supervises that even Fresh Water Connections Top Connection heat is delivered to the radiator The building’s fresh water supply For connection of expansion system. -
Page 12: Ctc Ecozenith I 550'S Function
CTC EcoZenith I 550’s Function CTC EcoZenith I 550 See also in the section Detail Description Menus Immersion heaters Menu Remember that menus “Installer/Settings/Elec. heater” which have not been defined cannot be seen. See also in the section Detail Description Menus Lower tank Menu “Installer/Settings/Lower tank”... -
Page 13: Heating System
550. Good operating economy for the system is thus obtained, and the upper tank stays warm to provide an abundance of hot water. Control of two heating systems is included in the CTC EcoZenith 550. Control of a third heating system implies circuit board expansion (option). CTC EcoZenith I 550... -
Page 14: Hot Water
HWC (hot water circulation) connection. This means that hot water is always available at the tap. The HWC pump can be scheduled to run for certain hours during a 24-hour period in order to save energy. CTC EcoZenith I 550... -
Page 15: Heat Pump
50°C within the factory-set 20 minutes of charging, the diverting valves reverse the direction and the heat pump charges the lower tank. This is done in order not to lose temperature in the heating system. CTC EcoZenith I 550... - Page 16 This saves compressor life and maximizes the operating economy. The immersion heater, which is factory installed in the lower tank, is blocked as long as the heat pump is operating. Thus, it starts only if the heat pump is blocked for any reason. CTC EcoZenith I 550...
- Page 17 An air/water heat pump could then be used to give the ground longer time to recover and give the system increased effect. Remember that only one heat pump can be connected via the diverting valves and charge hot water in the upper tank. CTC EcoZenith I 550...
-
Page 18: Wood Boiler
The wood boiler should have a charge equipment for best operation. In special cases, for instance, operation with a water-jacket heater, a charge pump controlled directly by the flue gas temperature can be used. CTC EcoZenith I 550... -
Page 19: Additional Boiler (Pellets, Oil, Gas, Electricity)
65°C. If needed, a minimum operating time (the time it has to be operating before it is turned off) for the external boiler can also be set. The CTC EcoZenith 550 handles the start and stop of the charge pump to the external boiler. CTC EcoZenith I 550... -
Page 20: Solar Energy
Factory set, the sun will heat the lower tank in the CTC EcoZenith 550 to 85°C before the charging is stopped. CTC EcoZenith I 550... -
Page 21: Recharging Bedrock/Ground
Safety measures for the collector/solar system are available. See also in the Detail Description Menus “Installer/Settings/ Protection Collector Menu Solar/Protection Function” section and also in the Detail Description Menus “Installer/Settings/Solar/ Calibration Sensor Menu Calibration sensors” section CTC EcoZenith I 550... -
Page 22: External Hot Water Tank
The factory setting is 22°C, and the temperature can fall 1 degree before the charge pump starts again. It is also possible to set the pool priority to high or low, which determines whether or not additional heat can be used for heating the pool. CTC EcoZenith I 550... -
Page 23: Extra Buffer Tank
CTC EcoZenith 550. In other words, both charging and recharging the energy back and forth can be done. CTC EcoZenith I 550... - Page 24 When a heating need is present, a maximum high temperature is thus not needed; instead the system strives for a maximum energy draw from the solar panels. The above-mentioned temperature levels can be adjusted. CTC EcoZenith I 550...
- Page 25 The charge from the buffer tank to both the upper and the lower tanks in the CTC EcoZenith 550 is stopped when the temperature difference has fallen to a 3-degree difference. The above-mentioned temperature levels are adjustable. CTC EcoZenith I 550...
-
Page 26: The Control Panel
With this button you increase or decrease a value. You can also move the cursor one line up or down. E. The “Reset Alarm” button With this button you reset the product after an alarm. It is displayed in an alarm situation only. CTC EcoZenith I 550... - Page 27 The arrow indicates that there are more lines upwards which are not visible. Push on the arrow to go up and see more lines. The arrow disappears when there are no more lines. 5. Information area Here information, temperatures, values, etc. are displayed. CTC EcoZenith I 550...
-
Page 28: Overview Menus Ctc Ecozenith I 550
Overview menus CTC EcoZenith I 550 Room temperat Fine a ● ● ● ● ● Time setting Week day Time 12:00 Room temperat Room temperature Room °C 1(2,3 Select rad circuit Displayed if room sens Radiator system 1 is set at Yes Radiator system 2 Week prog. - Page 29 °C Input voltage 3x400V ▲7▼8▲-▼- dT stop lower °C Electr. Tariff ▲7▼8▲-▼- dT setpoint low °C HP charging Week prog. tank Pool Pool temp °C Pool diff °C Pool priority High ing code CTC EcoZenith I 550...
- Page 30 Pool pump 41 Active Type EcoAir Charge pump 32 0-10V Cont. from previous page Def Heat pump 3 Heat pump 07 Type EcoAir Charge pump 33 0-10V Def Elec. heater Upper heater14 Upper heater15 Lower heater13 CTC EcoZenith I 550...
- Page 31 Pump heat ex. 42% 3-valve. Sol 58 Tank Test wood boiler Pump flue gas 40 Test ext. boiler Add 04 Pump boiler 34 Test Ext storage tank P. from tank 45 P. to tank 44 3-valve ext 56 Down CTC EcoZenith I 550...
-
Page 32: Main Menu/Standard Display Menu
Detail Description Menus The CTC EcoZenith I 550 shows menus for systems and functions selected in the menu “Installer/Define application” only. All other menus which are not defined for your system are hidden. If the heating system has been expanded or modified at a later stage, the menu Installer/Define application is used again to add new systems and functions. -
Page 33: Setting Time Menu
If more than one radiator system is defined, this menu is displayed. Here you Radiator system 2 Radiator system 3 select the radiator system for which the temperature is to be adjusted. Displayed if more than one radiator system is selected in the “Define system” menu CTC EcoZenith I 550... -
Page 34: Operation Without Room Sensor
When this line is selected, the time can be set for how long extra DHW is to be produced. Factory value is 120 min (setting 30-240 min). Week prog. Displayed if the “Week program” type is selected. In this menu, the schedule for extra DHW is set. See next paragraph. CTC EcoZenith I 550... -
Page 35: Week Program Menu
DHW capacity. At 07:00 the temperature is reduced to normal again. Example 2 Mon671617 At 06:00 the temperature is raised and at 07:00 the temperature is reduced until 16:00. Between 16:00 and 17:00 the DHW is increased, and thereafter the temperature is reduced. CTC EcoZenith I 550... -
Page 36: Current Operation Data
Ext DHW tank °C Ext DHW pump Till DHWcirc pump Pool temp °C 25(25) Charge pump pool Till Mixing valve delay Electric power kW 6/ 0 Current draw 4/ 5/ 4 Program Date 090610 CTC EcoZenith I 550... - Page 37 In/Out HP1 (2, 3) °C The temperature of the water going into and out from the heat pump. Discharge HP1 (2, 3) °C Current discharge temperature out from the compressor. The value varies depending on operating conditions. CTC EcoZenith I 550...
- Page 38 The operation condition of this pump is shown as “Off” or percentage of maximum capacity with which the pump is operated. Solar kW Indicates how much power the solar panels provide. The value is based on the incoming and outgoing temperatures and the flow through the solar panels. CTC EcoZenith I 550...
- Page 39 The set main fuse size is indicated in brackets. Prog. Date The date of the control program version. CTC EcoZenith I 550...
-
Page 40: Stored Operating Data Menu
Under this menu line, output energy from the solar panels over time is shown graphically. Energy kWh Total output from the solar panels. This value is calculated from incoming and outgoing temperatures from solar collectors, the operating time and set flow. This is thereby not an exact meter. CTC EcoZenith I 550... -
Page 41: Night Reduction
Rule of thumb: 3-4°C reduction of the primary flow temp equals approx. 1°C reduction of the room temp in a normal system. Week pr. or Block The scheduling is done in these menus; see next section. CTC EcoZenith I 550... -
Page 42: Week Program Menu
Set the day and time when the temperature should be raised again. If two reduction periods are required during the week, they are programmed in chronological order. Example: Decrease 18.00 Raise 16.00 Decrease 21.00 Increase 16.00 CTC EcoZenith I 550... -
Page 43: Installer Menu
Here you make settings which have to do with the immersion heaters of the CTC EcoZenith 550. Among other things you can set permissible power, temperatures in the lower part of the tank if the heat pumps should not be in operation, delay of the mixing valve, main fuse etc. CTC EcoZenith I 550... - Page 44 The stored settings can be recovered here. Can be useful if you want to test new settings, but change your mind and want to recover the old ones. Load factory setting The product is delivered with factory settings. These can be recovered by activating this function. CTC EcoZenith I 550...
-
Page 45: Radiator System Menu
While the inclination indicates by how much the temperature should increase up to the radiators when the outside temperature is falling, the adjustment means that the temperature level can be raised or reduced at a certain outside temperature. Factory value 0°C (setting -20 to 20°C). CTC EcoZenith I 550... -
Page 46: Heat Pump Menu
A temperature setting lower than the factory setting is possible, but not recommended, since wear and efficiency are affected negatively. Factory value (recommended setting) -10°C (setting -15/-20 to 0°C). CTC EcoZenith I 550... -
Page 47: Electric Heater Menu
Factory value 9 kW (setting 0-9 kW, in steps of 3 kW). El. boiler low °C Setting of the temperature for the lower immersion heater. The lower immersion heater is allowed to operate only when the heat pump is blocked. Factory value 50°C (setting 30-60°C). CTC EcoZenith I 550... -
Page 48: Upper Tank Menu
Maxtime low. tank Stop diff upper °C In the “Upper Tank” menu you make settings which affect the operation Min temp upper °C of the upper part of the CTC EcoZenith I 550 tank. Addheat upp.tank°C Addheat extraDHW °C Charge Pump Min% Charge pump max% Run time DHWcirc. - Page 49 The operating time the domestic hot water circulation should take place during each period. Factory value 4 minutes (setting 1-90 minutes). Time DHWcirc. The cyclic time for domestic hot water circulation. Factory value 15 minutes (setting 5-90 minutes). CTC EcoZenith I 550...
-
Page 50: Lower Tank Menu
The DHW circulation operates between 05:00 and 08:00 on Monday morning. Then it starts again at 16:00 and is stopped at 22:00.There is no domestic hot water circulation at other times. Example 2 Sat▲7▼-▲-▼22 The DHW circulation operates between 07:00 and 22:00 on Saturdays. CTC EcoZenith I 550... -
Page 51: Solar Menu
The test is carried out during set time intervals. If sufficient temperature is obtained, the tank charging continue; otherwise the system switches to charging the bedrock again. Factory value 4 min (setting 1-20 min). CTC EcoZenith I 550... -
Page 52: Protection Function Menu
“Yes” The cooling function is activated if the solar panels reach their maximum temperature. This means that the solar panels are cooled with water from the CTC EcoZenith 550, even if it has reached its maximum temperature. “No” The cooling function is deactivated Factory value Yes (setting Yes/No). CTC EcoZenith I 550... -
Page 53: Calibration Sensors Menu
Factory value 0°C (setting -3 to 3°C). Charge temp solar °C Correction of the solar panel’s charge temperature sensor (72). Used when the type is defined as “Heat exchanger”. Factory value 0°C (setting -3 to 3°C). CTC EcoZenith I 550... -
Page 54: Wood Boiler Menu
Factory value 120 minutes (setting 30-240 minutes). NOTE! Irrespective of the setting, the immersion heater in the upper tank is used for extra domestic hot water increase. CTC EcoZenith I 550... -
Page 55: External Storage Tank Menu
Settings for the external buffer tank are made in this menu. The buffer tank dT start lower °C is charged from the lower tank of the CTC EcoZenith I 550 but can be dT stop lower °C recharged in both the upper and the lower tanks. -
Page 56: Week Program Menu
“High” The pool is allowed to take so much heat that additional heat is activated. “Low” The pool is not heated when additional heat is activated. Factory value High (setting High/Low). The “Lower tank min” menu should not be set to a lower value that the “Pool temp” menu. CTC EcoZenith I 550... -
Page 57: Define Application Menu
Heat pump 1 In the “Define application” menu you and your installation engineer Heat pump 2 describe for the CTC EcoZenith I 550 how the heating system looks and Heat pump 3 Elec. heater what it consists of. The EcoZenith then sorts away menus which are not Solar current and shows only those which are of value to your heating system. - Page 58 2. Sensor 81 Indication that sensor (81) is activated. This is the return flow sensor which reads the temperature back to the CTC EcoZenith 550. Sensor 86 Indication that sensor (86), room sensor 2, is activated. CTC EcoZenith I 550...
- Page 59 CTC EcoZenith 550’s upper or lower tank. 3-way valve 55 Indication that 3-way valve (55) is activated. This 3-way valve retrieves radiator water from either CTC EcoZenith 550’s upper or lower tank. CTC EcoZenith I 550...
- Page 60 The factory setting is “No”. This immersion heater is optional. Lower heater 13 Here you select if the lower immersion heater (13) should be included in the operation. The factory setting is “Yes”. “Upper immersion heater 15” and the external boiler cannot be used together. CTC EcoZenith I 550...
- Page 61 550’s own solar coil is used. 3-way valve 58 Indication that 3-way valve (58) is activated. This 3-way valve can send solar energy to the bore hole and is not topical if “Brine recharge” is deselected. CTC EcoZenith I 550...
- Page 62 Indication that sensor (82) is activated. This sensor reads the temperature in the top of the external buffer tank. Sensor 89 Indication that sensor (89) is activated. This sensor reads the temperature in the bottom of the external buffer tank. CTC EcoZenith I 550...
- Page 63 Indication that sensor (78) is activated. This sensor reads the temperature in the external domestic hot water tank. Circ pump 38 Indication that circulating pump (38) is activated. This circulating pump charges the external domestic hot water tank. CTC EcoZenith I 550...
-
Page 64: Function Test Menu
When this menu Elec. heater Solar Energy is activated, all functions in the CTC EcoZenith I 550 are stopped. Only safety Wood Boiler functions are still activated. Return to normal operation occurs after 8 minutes Ext Boiler of inactivity. -
Page 65: Alarm Info Menu
Factory value 55°C (setting from 30°C up to between 55-65°C, depending on the heat pump type). HP1 (2, 3), max return °C The highest temperature allowed entering the heat pump type. Factory value 48°C (setting from 30°C up to between 48-54°C, depending on the heat pump type). CTC EcoZenith I 550... - Page 66 The delay which prevents compressor start earlier than 10 min after compressor stop. The delay is also activated at power failure or the first time the heat pump is started. Factory value 10 minutes (setting 10-60 minutes). Temp. Log Contains values intended for service personnel. CTC EcoZenith I 550...
-
Page 67: Operation And Maintenance
Operation and Maintenance When your new CTC EcoZenith I 550 has been installed, you and the installation engineer should check the system together. Let the installation engineer show you the switches, controls and fuses, so that you know how the system works and should be managed. - Page 68 The function can also be used for the floor heating in the bathroom, for warm floors during summer. Night reduction With night set back you have the possibility to automatically vary the temperature in the house 24/24, all weekdays. More information in the “Detail Description Menus/Night set back” section. CTC EcoZenith I 550...
-
Page 69: Fault Tracing/Appropriate Measures
Fault Tracing/Appropriate Measures The CTC EcoZenith I 550 is designed to provide reliable service and high comfort and also to have a long life length. Here are some tips that may be helpful if any operation errors occur. Should a fault occur, always contact the installation engineer who did the installation. - Page 70 The fault is not in the CTC EcoZenith I 550, and the problem can be easily rectified by replacing the mixer with a soft-closing one. In the case of noise from hard closing dishwashers and washing machines, this can be rectified with a pressure surge damper, which is also a viable alternative to soft closing taps/mixers.
-
Page 71: Information Text
High power demand (X) A The main fuses of the house are being overloaded, for instance when several power-demanding machines are used together. The product reduces the immersion heaters’ electric power during this time. CTC EcoZenith I 550... -
Page 72: Alarm Text
Communicat. error display This text is shown when the communication between the display board and relay board is not working. This text is shown when the CTC EcoZenith I 550 is unable Communicat. error HP to communicate with the CTC EcoAir/CTC Ecopart. - Page 73 Indicates a stop in the flow and the charging is halted. Can be caused by a fault on the charge pump or pump connection and a fault on the temperature sensor or that the system has started boiling. CTC EcoZenith I 550...
-
Page 74: Technical Data
Current monitor, built-in Current draw at different powers of immersion heaters 3 kW 6 kW 9 kW 13.0 12 kW 17.4 15 kW 21.7 18 kW 26.1 21 kW 30.4 24 kW 34.8 27 kW 39.1 CTC EcoZenith I 550... -
Page 75: Measurements
Cold water, Ø22 mm Domestic hot water, Ø22 mm Domestic hot water circulation, Ø22 mm Radiator primary flow, spring clip 28 mm Radiator return, spring clip 28 mm Connection elecric (behind the front) CTC EcoZenith I 550... -
Page 76: Declaration Of Conformity
EN 55014-1 /-2 EN 3834-2:2005 EN 61 000-3-2 EN 15614-1:2004 EN 60335-1, 2-21 EN 1418 EN 50366:2002, +A1 EN 287-1:2004 EN 10 204, 3.1B:2005 EN 10 025-1, -2, S 235 Jr-G2:2004 Ljungby 2009-11-20 Kent Karlsson Technical Manager CTC EcoZenith I 550...
