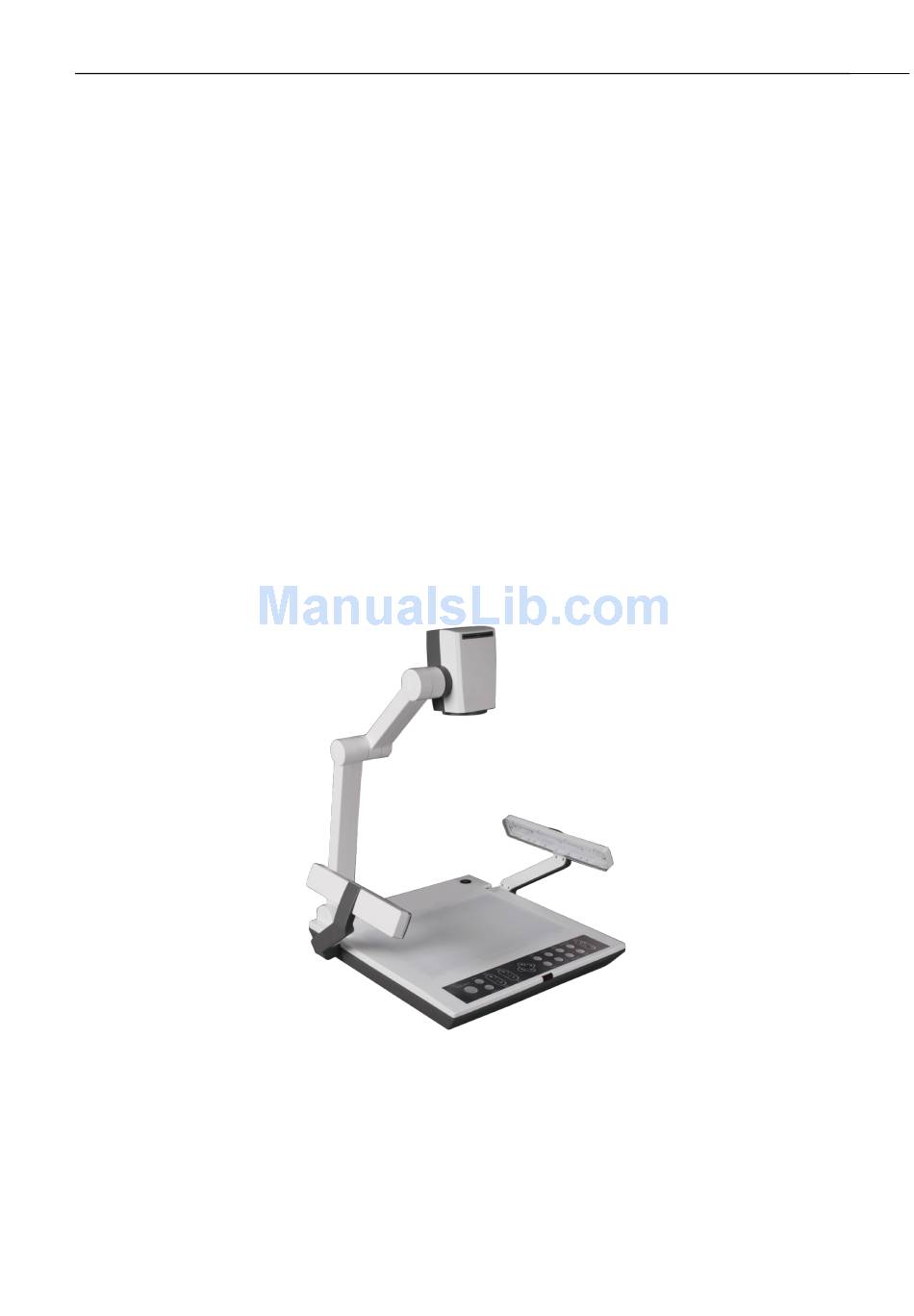

- Page 1 ® Vidifox Document Camera DV 485 USER GUIDE Please read this manual carefully before operating the camera and keep it for your reference.
- Page 2 PLEASE READ CAREFULLY BEFORE USE n Please be aware of the required power supply environment is 100-240V, 50/60Hz, 2A Max. n Do not place the equipment under sunlight, near heaters, near water, or on any unstable surface. n Keep the equipment away from acid or alkali gas. n...
-
Page 3: Table Of Contents
CONTENTS 1. PARTS A ND F UNCTION ................. 1 2.INPUTS A ND O UTPUTS ................ 2 3. C ontrol P anel .................. 3 ... -
Page 4: Parts A Nd F Unction
1. PARTS AND FUNCTIONS (1) camera head (2)camera lens (3) upper mechanical arm (4) main mechanical arm (5) side lamp (6) lighting arm (7) power switch (8)base light (9) control panel (10) base unit... -
Page 5: Inputs And Outputs
2.INPUTS AND OUTPUTS 1.DC 12V: Power input 2.VGA OUT： VGA Output 3.VGA IN: VGA Input 4.AUDIO: Audio Output 5.HDMI OUT: HDMI output 6.HDMI IN: HDMI input 7.USB-B: USB slave, for connecting with PC Firmware upgrading. 8.USB1/USB2: USB host, for connecting with USB mouse or USB memory stick. 9.LAN: Network connection 10.SD CARD: SD card slot. -
Page 6: Control Panel
2.RECORD： Start/stop video recording, the video clip recorded will be automatically saved to a USB memory stick, SD card, or built-in memory. DV 485 can detect an external storage media and put the last detected storage as a priority storage site. If there is no external storage detected, all video clips will be saved in the built-in memory. -
Page 7: Annotation
4.ANNOTATION The annotation function will be activated by connecting a USB mouse to the document camera. We will see the following icons by clicking the left button on a mouse: ：Clicking this icon, the whiteboard function is activated. The image captured is now subjected to annotation. - Page 8 ：Toggle arm light, back light and no light. ：Output the mirror image ：Switch the image mode between positive and negative. ：Image freeze ：Image split. ：Title freeze. In Title freeze mode, there are 4 buttons used to adjust the title function: : Enlarge the frozen title area : Reduce the frozen title area : Adjust the frozen title position.
-
Page 9: Multimedia System
5.MULTIMEDIA SYSTEM Under the main system interface user can find tips column and function column. 1. Tips column indicates no USB flash drive plugs in indicates USB flash drive plugs in indicates no SD card plugs in indicates SD card plugs in indicates document camera’s wireless function has been disabled indicates document camera’s wireless function has been enabled 2. - Page 10 ：Open the files saved in SD card or memory stick that connected to the document camera(see the screen shot below) ：Browse the webpage ：System settings...
- Page 11 Settings 1. Device Name :Define the SSID of the document camera. Factory Mode: Enter to adjust the parameters of document camera. Please contact the dealer for professional assistance. 2. Resolution Select the suitable output resolution of the document camera. Note: Document camera will be restarted after switches resolution.
- Page 12 Frame rate switching: Video mode: Frame rate: 30fps Stand mode: Frame rate: 22fps Visualizer mode: Frame rate: 12fps 3. Network Network: Wired network: Select to connect to a router with cable via LAN. Wireless network: Select to connect to an external Wi-Fi network. Device hotspot: Select to connect to the embedded Wi-Fi network.
- Page 13 IP: Select to configure the IP address automatically or manually. 4. Language Switch the system language between simplified Chinese and English. 5. System...
- Page 14 Please try restarting the device or restoring factory settings if there is a problem with the system. Click “firmware upgrade” to start upgrading system firmware. Note: There is risk involved in upgrading the firmware ,please upgrade under the guidance of professionals.
-
Page 15: Software
6.SOFTWARE Software I nstallation There are 3 types of software in CD for different operation systems, here we take the software of Windows system for example. Double click in CD to install the software to your PC, there will be a generated icon on the desktop Connection ... - Page 16 Wired network Wireless network Software S tart Note: Please go back to Visualizer mode before start the software. Double click the icon on the desktop. Left click on the left tool bar , or choose the “select” of “visualizer” in the menu bar.
- Page 17 There will be a window lists all connected devices. Double click the DocCamera icon to activate it, then the image from this camera will be displayed.
- Page 18 We also can choose to connect a device manually. 1) Tick the 2) Input the IP address of the device need to be selected 3) Click to activate. Please refer to the help for detailed information.
-
Page 19: Specifications
7.SPECIFICATIONS Model No. DV 485 Sensor 1/3" CMOS Zoom 9x optical, 20x digital Frame rate Shooting area Max: 13.5"x10.6", Min: 0.1"x0.1" Focus Auto/manual Native output signal SXGA(1280x1024@60Hz) Converted output signal XGA,720P, 1080P Resolution (Horizontal) ≥ 750 TV lines White balance... -
Page 20: Setting U
8.SETTING UP 1. Remove all the packing materials. Unfold the light arms to the end position. 2. Raise the camera arm completely. 3. Rotate the camera head until the lens face the center of the base unit. 4. Connect the VGA OUTPUT of the document camera to the VGA(RGB) INPUT of the display (monitor, television or projector) with... -
Page 21: Operation Procedures
9.OPERATION PROCEDURES 1. General: Turn on the power switch. Place the target object on the base unit surface. Adjust the image size according to the object size by pressing the ZOOM+, ZOOM－ buttons on the control panel. Press the AF button for automatic focus and white balance. Press Save/Record to capture and save the image/video clip to memory. -
Page 22: Trouble-Shooting
10.TROUBLE-SHOOTING Symptoms Possible causes/counter-measures No image 1. Check the power cord and adaptor. 2. Check the VGA/HDMI cables that connect the document camera and display device 3. Check the power switch. Can not get PC signal 1. Check the VGA/HDMI cables that connect the document camera and PC. -
Page 23: Packing List And Accessories
11.PACKING LIST AND ACCESSORIES Items Quantity Power cord & adaptor VGA Cable HDMI Cable USB Cable CD(Software and user manual)
