Vidifox GV 200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Vidifox
Document
Camera
GV 200
USER MANUAL
Please read this manual carefully before operating the document camera and keep it for reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Vidifox GV 200

Summary of Contents for Vidifox GV 200

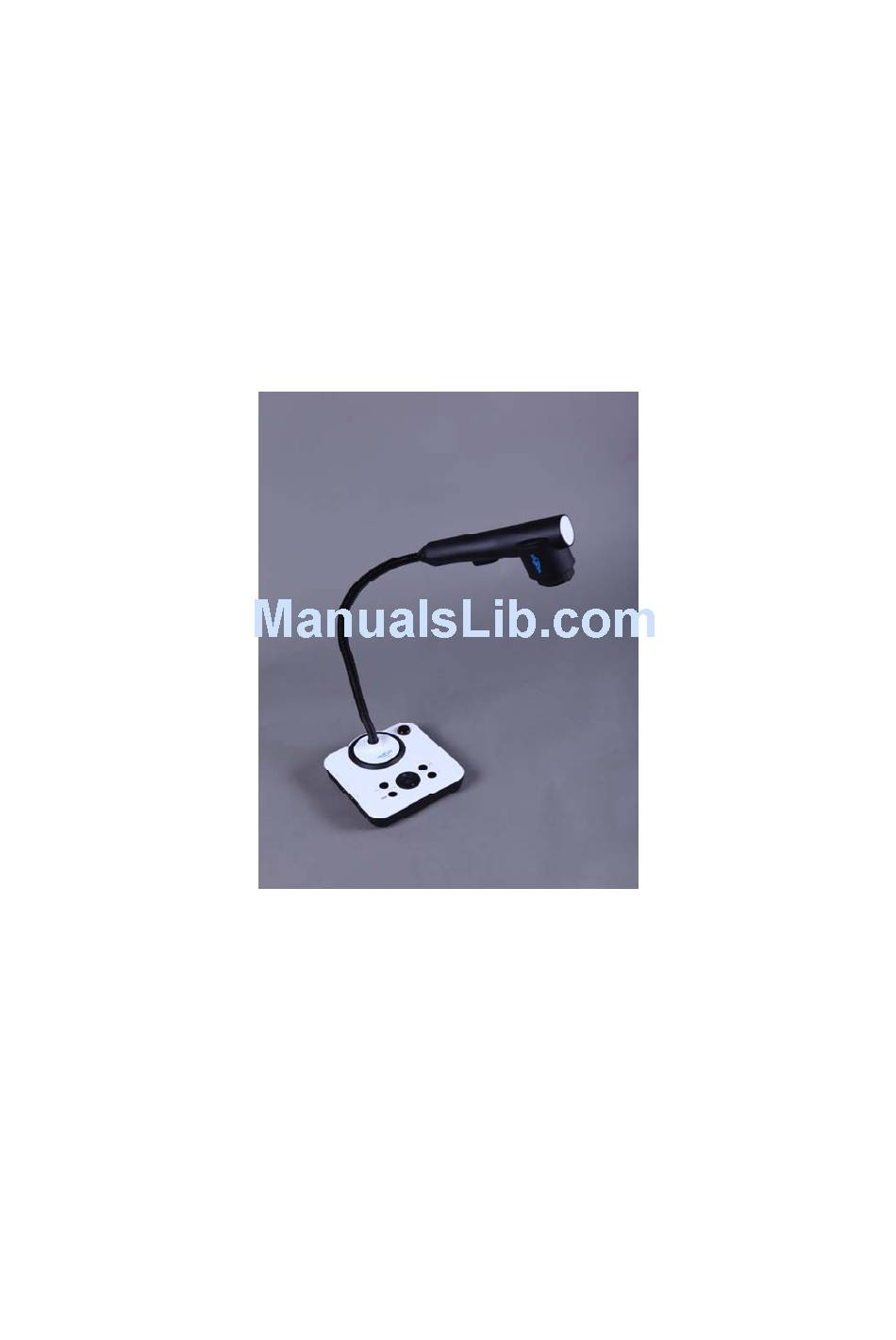

  • Page 1 ® Vidifox Document Camera GV 200 USER MANUAL Please read this manual carefully before operating the document camera and keep it for reference.
  • Page 2 PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE  Use the document camera under the rated electric conditions.  Do not place the document camera on any unstable surface. It may fall and cause injures or damages.  Do not place this device directly under sunlight or near heaters. ...

  • Page 3: Table Of Contents

    USER MANUAL..................1 1. PARTS IDENTIFICATION..............4 2. CONTROL PANEL ................5 3. INPUTS AND OUTPUTS ..............5 4. REMOTE CONTROL .................6 5. CONNECTIONS...................8 5.1. COMPUTER CONNECTION ...................8 5.2. VGA OUTPUT CONNECTION..................8 6. COMMUNICATE WITH COMPUTER ..........9 6.1. COMPUTER REQUIREMENTS ..................9 6.2. USB CAMERA........................9 7.

  • Page 4: Parts Identification

    1. PARTS IDENTIFICATION 1. Camera 2. LED light box 3. Goose neck 4. Remote control IR receiver 5. Side panel 6. Control panel...

  • Page 5: Control Panel

    2. CONTROL PANEL POWER: Turn the power on/off. 2. LAMP: Turn the LED light on/off. 3. AUTO: Carry out auto focus, color adjustment and white balance. 4. FOCUS+/-: Adjust focus manually, focus far and focus near. BRIGHT+/-: Adjust image brightness manually. ZOOM+/-: Image zoom in and zoom out.

  • Page 6: Remote Control

    4. REMOTE CONTROL : Turn the document camera on or off. 2. Save: Capture the image in display to internal memory. 3. Recall: Image recall mode enabled, display the saved images. Lamp: Turn the LED light on/off. 5. Split: Split screen, enable the comparison between the frozen image and live image. 6.
  • Page 7 9. Frz (Freeze): Freeze/unfreeze the image. 10. T/P: Switch the output image between text mode and picture mode. 11. Red+/-: Image chroma control (red). 12. Blue+/-: Image chroma control (blue). 13. SXGA/XGA: Switch the output signal between XGA and SXGA. 14.

  • Page 8: Connections

    5. CONNECTIONS 5.1. COMPUTER CONNECTION 5.2. VGA OUTPUT CONNECTION...

  • Page 9: Communicate With Computer

    6. COMMUNICATE WITH COMPUTER 6.1 COMPUTER REQUIREMENTS The PC's hardware and software configurations shall not be less than the following requirements： Operating system: Windows XP CPU: 1.8 GHz Physical memory: 512M Video memory: 64M 6.2 USB FUNCTION 、 1 SOFTWARE INSTALLATION Click to run the software installation package, the following dialogue appears, click "Next": Read the terms, Select "I accept the terms in the license agreement."...
  • Page 10 The following dialogue box appears, click "Next": The default installation directory is Program Files, C: \ Program Files \, you can select a different installation directory, as shown:...
  • Page 11 Click "Change" to change the directory, as shown: Click "OK", the following figure appears. Click "Next".
  • Page 12 Click "Install" to complete installation, as shown: Click "Finish” to complete the installation, as shown:...
  • Page 13 Then you will see the following interface, which is an installation package for 2005 environment. If your PC already has this installed, click "No" to exit, otherwise, click "Yes" to install it.
  • Page 14 2、SOFTWARE START Double click the short cut on the desktop, then click Device, select the right model number, see below: IMAGE CAPTURE AND VIDEO RECORDING： Left click to capture images. The captured images will be automatically saved into the default destination folder. The path and file name are displayed in software status bar on the bottom of the window.
  • Page 15 Left click to start recording. The setting button will changes to and does not work. The detailed information is displayed on the software status bar in the bottom of the window. The video is automatically saved in the default folder or pre-set folder. SETTING：...
  • Page 16 Save the captured images into a different folder Click the button next to the "select a folder to save picture files" text box to set the path for captured images. Save the recorded video into a different folder and set up parameters for videos Click the button next to the "Select a folder to save video files:"...
  • Page 17 IMAGE MODIFY： Click , you will see the interface: Graphic selection and move Click to choose a line, circle, rectangle or curve that placed in the image, then move to another place. Line Click to place a beeline in the image, shown as below:...
  • Page 18 Click to change the setting of the chosen line: Line width: change the width of the line. X, Y: change the position of the line. Color: change the color of the line. Width, Height: Change the angle of the line. Rectangle Click to place a rectangle in the image, shown as below:...
  • Page 19 Line width: change the line width of the rectangle. X, Y: change the position of the rectangle. Color: change the line color of the rectangle. Fill Color: Tick it to fill color in the rectangle. Width, Height: Change the shape of the rectangle by changing the angle of two adjacent lines of the rectangle.
  • Page 20 Line width: change the line width of the circle. X, Y: change the position of the circle. Color: change the line color of the circle. Fill Color: Tick it to fill color in the circle. Width, Height: change the size of the circle. Curve Click to place a curve in the image, shown as below:...
  • Page 21 Line width: change the line width of the curve. X, Y: change the position of the curve. Color: change the line color of the curve. Graphic default setting Click to change the setting of the graphic: Graphic delete Click to delete the chosen graphic. Delete al the graphic Click to delete all graphic that placed in the image.

  • Page 22: Features

    7. FEATURES LIGHT The GV200 is an environmentally friendly product, it is RoHS compliant and meets the rigorous European Union’s requirements for restriction of the use of certain hazardous substances in electrical and electronic equipment. The lighting box of GV200 adopts eco-friendly, low power consumption and long lasting LED lamps, which is cool to the touch and mercury free.

  • Page 23: Text/Picture Mode

    Press the “AUTO” button to adjust the white balance automatically. TEXT/PICTURE MODE The Text enhancement feature provides the option to improve the readability of the text by improve the contrast of the text image via pressing the “T/P” button. IMAGE FREEZE The freeze function allows you to discretely prepare the next image without interrupting current presentation.

  • Page 24: Usb Image Capture And Video Recording

    USB cable. The Visualizer Software is available on the supplied CD-ROM. USB IMAGE CAPTURE AND VIDEO RECORDING The GV200 is the document camera equipped with a USB 2.0 image capture and video recording system. Simply connect the GV200 to a computer, with the software and driver provided, you can easily preview, capture and save any images on your PC and Mac.

  • Page 25: Specification

    8. SPECIFICATION Model GV200 Sensor 1/3" CMOS Pixels 2 Megapixel Zoom 8x optical, 12x digital Frame rate Shooting area Max:16.5"x11.7", Min: 0.1"x0.1" Focus Auto/manual Output resolution XGA, SXGA ≥750 TV lines Resolution(Horizontal) White balance Auto/manual Color adjustment Brightness adjustment Image capture Yes,12 images Video recording Yes(via USB)

  • Page 26: Trouble-Shooting

    9. TROUBLE-SHOOTING: Symptoms Possible causes/counter-measures No image 1. Power cord is not properly connected. 2. Cables are not properly connected. 3. Power switch is not turned on. 4. The built-in fuse is broken: Change fuse. 5. Change the output resolution. Image bending Camera not in right position, adjust the camera.

  • Page 27: Packing List

    10. PACKING LIST Item Quantity Power cord Power adaptor(12V/2A) VGA cable USB cable(2.0) Remote control User manual(CD)

  • Page 28: Technical Support

    11. TECHNICAL SUPPORT Wanin USA is committed to providing highest possible stand of customer service. We can be reached: By Phone Call us at 1-877-369-3130. Our technical support staff provides technical assistance from 9:00AM through 5:00PM Pacific Standard Time, Monday through Friday. Please gather the following information before calling: - Product model name(s) and numbers - Product serial number(s)
