Vidifox PV 360 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Vidifox
Document Camera
PV 360
USER MANUAL
Please read this User Manual thoroughly before you use the document camera. Keep the CD-ROM in
a convenient place so you can use it quickly if you need to.
Please visit us at http://www.waninusa.com where you can get product support, the latest driver
updates, and answers to frequently asked questions (FAQs) and technical questions.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV 360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vidifox PV 360

Summary of Contents for Vidifox PV 360

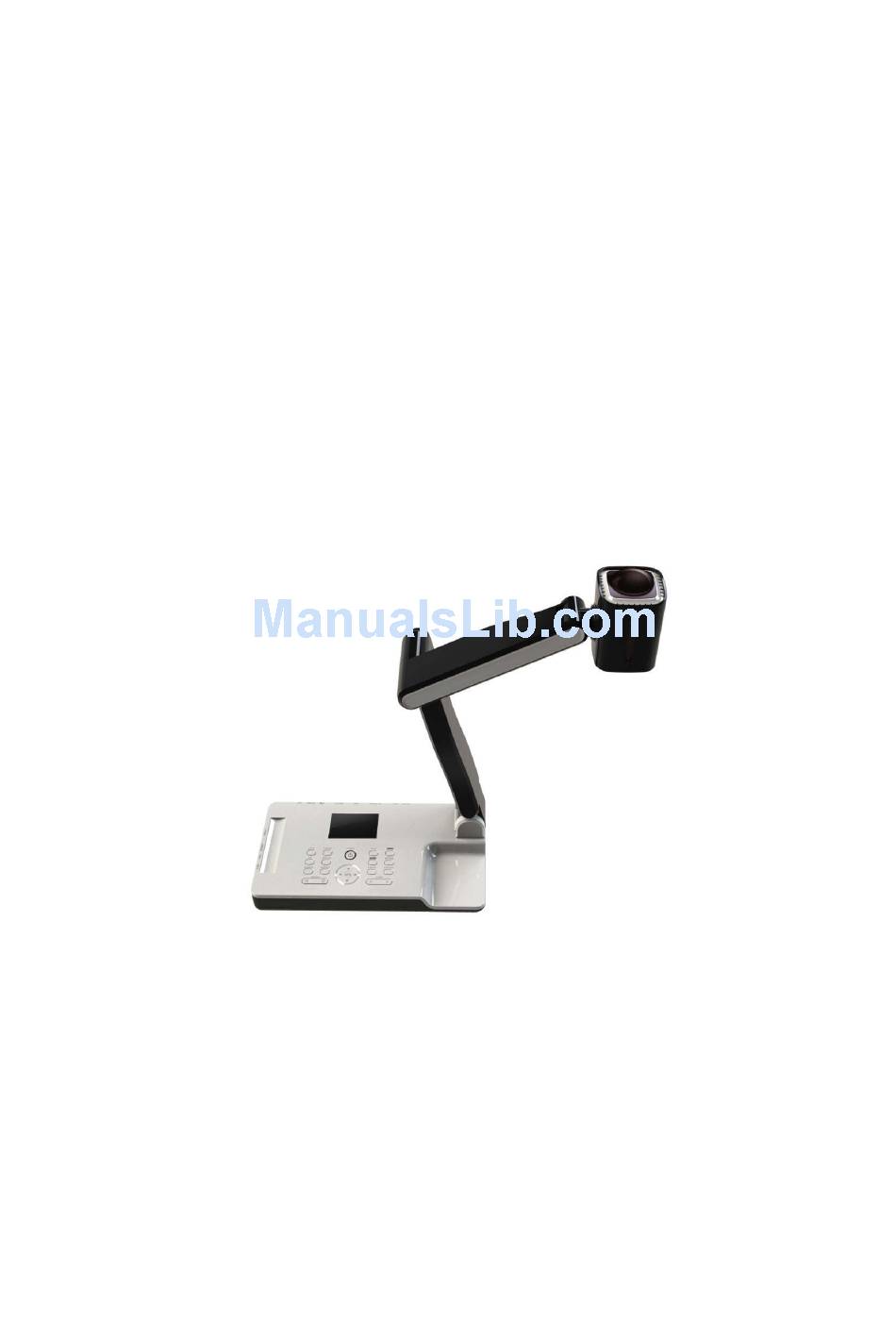

  • Page 1 ® Vidifox Document Camera PV 360 USER MANUAL Please read this User Manual thoroughly before you use the document camera. Keep the CD-ROM in a convenient place so you can use it quickly if you need to. Please visit us at http://www.waninusa.com where you can get product support, the latest driver...
  • Page 2 PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE  Use the document camera under the rated electric conditions.  Do not place the document camera on any unstable surface. It may fall and cause injuries or damages.  Do not place this device directly under sunlight or near heaters. ...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. PARTS IDENTIFICATION..............4 2. CONTROL PANEL ................5 3. INPUTS AND OUTPUTS ..............6 4. REMOTE CONTROL .................7 5. CONNECTIONS...................8 5.1. USB CONNECTION ......................8 5.2. VGA OUTPUT CONNECTION..................9 6. USB CAMERA ………………………………………………………10 7. FEATURES ..................23 LIGHT.............................23 ZOOM IN AND ZOOM OUT ....................23 FOCUS ADJUSTMENT ......................23 BRIGHTNESS ADJUSTMENT .....................23 WHITE BALANCE ADJUSTMENT ..................23...

  • Page 4: Parts Identification

    1. PARTS IDENTIFICATION Remote control IR receiver Camera LED light box Upper mechanical arm Main mechanical arm Side panel Back panel Base unit Control panel...

  • Page 5: Control Panel

    2. CONTROL PANEL 1. POWER: Turn on/off the power. 2. AUTO: Carry out auto focus, color adjustment and white balance. 3. SPLIT: Split screen, enable the comparison between the frozen image and live image. 4. FREEZE: Freeze/unfreeze the image. 5. LAMP: Switch the input source. 6.

  • Page 6: Inputs And Outputs

    3. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. VGA OUT: VGA (RGB) signal output (15 pin D-SUB). 3. USB: Capture image into a connected computer via the software provided.

  • Page 7: Remote Control

    4. REMOTE CONTROL 1. Lamp: Turn on/off the LED light. 2. Neg: Switch the image mode between positive and negative. 3. Split: Split screen, enable the comparison between the frozen image and live image. 4. Freeze: Freeze/unfreeze the image.

  • Page 8: Connections

    5. B/W: Switch the output image between color and monochrome. 6. Mirror: Output right-and-left mirror image. 7. FLIP: Output up-and-down mirror image. 8. ROTATE: Rotate the image by180 9. Sharp+/-: Image sharpness control. 10. Page +/-: Page up and page down in image recall mode. 11.

  • Page 9: Vga Output Connection

    5.2. VGA OUTPUT CONNECTION...

  • Page 10: Usb Camera

    6. USB CAMERA 1、SOFTWARE INSTALLATION Click to run the software installation package, the following dialogue appears, click "Next": Read the terms, Select "I accept the terms in the license agreement." Click "Next", as the following figure. The following dialogue box appears, click "Next":...
  • Page 11 The default installation directory is Program Files, C: \ Program Files \, you can select a different installation directory, as shown: Click "Change" to change the directory, as shown:...
  • Page 12 Click "OK", the following figure appears. Click "Next". Click "Install" to complete installation, as shown:...
  • Page 13 Click "Finish” to complete the installation, as shown: Then you will see the following interface, which is an installation package for 2005 environment. If your PC already has this installed, click "No" to exit, otherwise, click "Yes" to install it.
  • Page 15 2、SOFTWARE START Double click the short cut on the desktop, then click Device, select the right model number, see below: IMAGE CAPTURE AND VIDEO RECORDING： Left click to capture images. The captured images will be automatically saved into the default destination folder.
  • Page 16 Left click to start recording. The setting button will changes to and does not work. The detailed information is displayed on the software status bar in the bottom of the window. The video is automatically saved in the default folder or pre-set folder. SETTING：...

  • Page 17: Image Modify

    Save the captured images into a different folder Click the button next to the "select a folder to save picture files" text box to set the path for captured images. Save the recorded video into a different folder and set up parameters for videos Click the button next to the "Select a folder to save video files:"...
  • Page 18 Graphic selection and move Click to choose a line, circle, rectangle or curve that placed in the image, then move to another place. Line Click to place a beeline in the image, shown as below: Click to change the setting of the chosen line:...
  • Page 19 Line width: change the width of the line. X, Y: change the position of the line. Color: change the color of the line. Width, Height: Change the angle of the line. Rectangle Click to place a rectangle in the image, shown as below: Click to change the setting of the chosen rectangle:...
  • Page 20 Line width: change the line width of the rectangle. X, Y: change the position of the rectangle. Color: change the line color of the rectangle. Fill Color: Tick it to fill color in the rectangle. Width, Height: Change the shape of the rectangle by changing the angle of two adjacent lines of the rectangle.
  • Page 21 Line width: change the line width of the circle. X, Y: change the position of the circle. Color: change the line color of the circle. Fill Color: Tick it to fill color in the circle. Width, Height: change the size of the circle. Curve Click to place a curve in the image, shown as below:...
  • Page 22 Line width: change the line width of the curve. X, Y: change the position of the curve. Color: change the line color of the curve. Graphic default setting Click to change the setting of the graphic: Graphic delete Click to delete the chosen graphic. Delete al the graphic Click to delete all graphic that placed in the image.

  • Page 23: Features

    Press "ZOOM+"or "ZOOM-" FOCUS ADJUSTMENT When the PV 360 is turned on, the focus automatically adjusts to the stage. It may not be necessary to re-adjust the focus if you are only working with flat materials (text, photos, etc.). Only 3D objects require a focus adjustment. Press the “AUTO”...

  • Page 24: Image Rotate

    USB IMAGE CAPTURE AND VIDEO RECORDING The USB port can be used to capture still images from the PV 360 into a computer. In this way, the PV 360 can be used as a 3-D scanner for your computer.

  • Page 25: Specification

    8. SPECIFICATION Model PV 360 Sensor 1/3" CMOS Pixels 0.85 Megapixel Zoom 3x optical, 8x digital Frame rate Shooting area Max: 13.5"x10.6", Min: 0.1"x0.1" Focus Auto/manual Output resolution XGA（1024 x768） Resolution(Horizontal) ≥650 TV lines White balance Auto/manual Color adjustment Brightness adjustment...

  • Page 26: Trouble-Shooting

    9. TROUBLE-SHOOTING: Symptoms Possible causes/counter-measures No image 1. Power cord is not properly connected. 2. Cables are not properly connected. 3. Power switch is not turned on. Image bending 1. Camera not in right position, adjust the camera. 2. Distortion of LCD display, press the “Auto adjust” of the LCD.

  • Page 27: Technical Support

    11. TECHNICAL SUPPORT Wanin USA is committed to providing highest possible stand of customer service. We can be reached: By Phone Call us at 1-877-369-3130. Our technical support staff provides technical assistance from 9:00AM through 5:00PM Pacific Standard Time, Monday through Friday. Please gather the following information before calling: - Product model name(s) and numbers - Product serial number(s)
