Vidifox PV 700ST User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

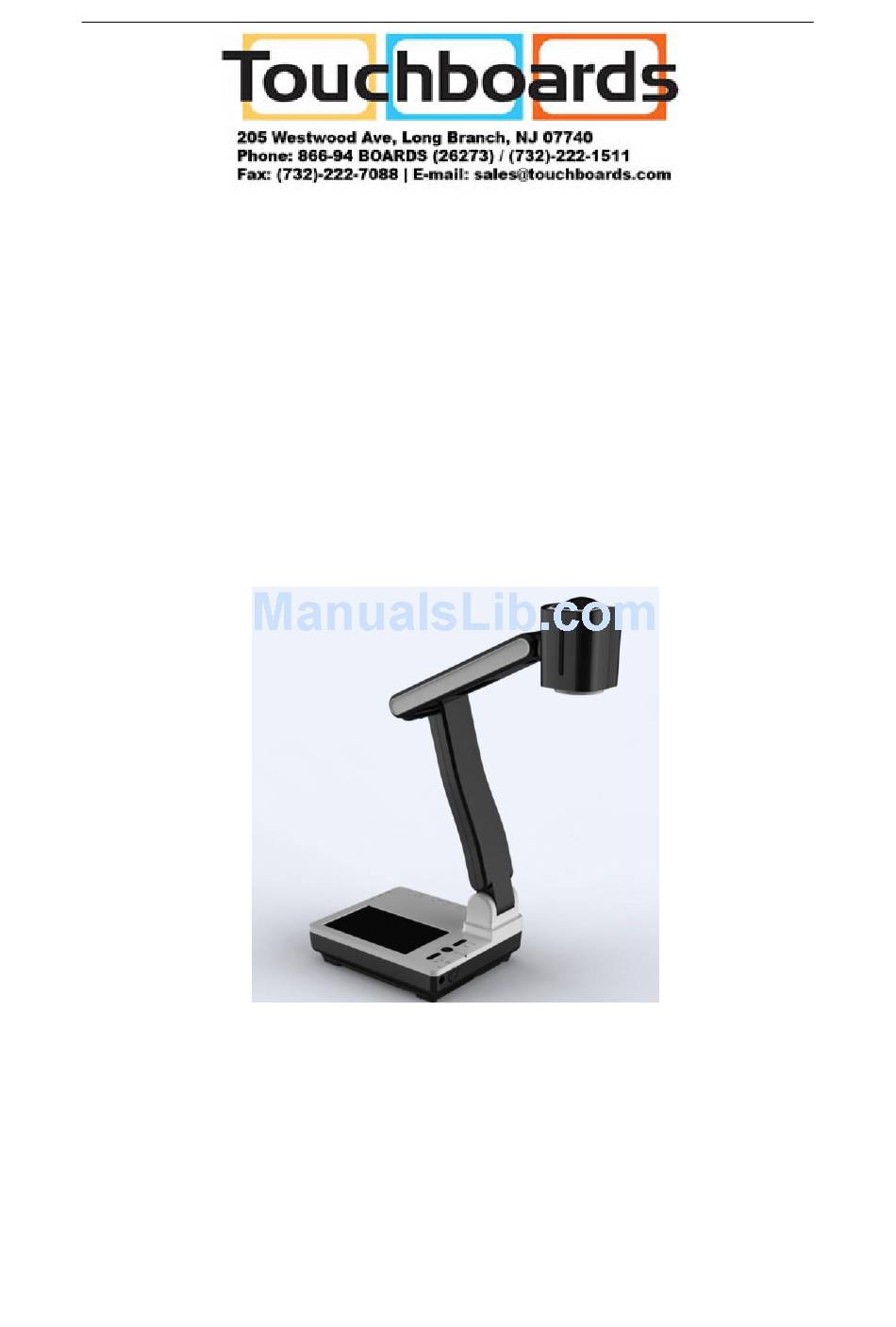

Vidifox
Document Camera
PV 700ST
USER MANUAL
Please read this User Manual thoroughly before you use the document camera. Keep the CD-ROM in
a convenient place so you can use it quickly if you need to.
Please visit us at http://www.waninusa.com where you can get product support, the latest driver
updates, and answers to frequently asked questions (FAQs) and technical questions.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV 700ST and is the answer not in the manual?

Questions and answers

Related Manuals for Vidifox PV 700ST

Summary of Contents for Vidifox PV 700ST

  • Page 1 ® Vidifox Document Camera PV 700ST USER MANUAL Please read this User Manual thoroughly before you use the document camera. Keep the CD-ROM in a convenient place so you can use it quickly if you need to. Please visit us at http://www.waninusa.com where you can get product support, the latest driver...
  • Page 2 PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE  Use the document camera under the rated electric conditions.  Do not place the document camera on any unstable surface. It may fall and cause injuries or damages.  Do not place this device directly under sunlight or near heaters. ...

  • Page 3: Table Of Contents

    Table of Contents 1. PARTS IDENTIFICATION..............5 2. CONTROL PANEL ................6 3. Annotation Functions on Touch Screen..………………….……….8 4. INPUTS AND OUTPUTS ..............9 5. REMOTE CONTROL ................10 6. CONNECTIONS..................13 6.1. COMPUTER CONNECTION ..................13 6.2. USB-A CONNECTION ....................14 6.3. VGA OUTPUT CONNECTION..................15 6.4. C-VIDEO OUTPUT CONNECTION................15 6.5.
  • Page 4 SPLIT SCREEN........................42 TITLE FUNCTION ........................42 PICTURE IN PICTURE FUNCTION ..................42 IMAGE SAVE.........................42 IMAGE RECALL ........................42 RGB INPUT SWITCH ......................43 OUTPUT SWITCH.........................43 USB IMAGE CAPTURE AND VIDEO RECORDING............43 RS232 CONTROL ........................43 9. SPECIFICATION ................43 10. TROUBLE-SHOOTING..............44 11. PACKING LIST................45 12. TECHNICAL SUPPORT ..............46...

  • Page 5: Parts Identification

    1. PARTS IDENTIFICATION Remote control IR receiver Camera LED light box Upper mechanical arm Main mechanical arm Side panel Back panel Control panel...

  • Page 6: Control Panel

    2. CONTROL PANEL 1. POWER: Turn on/off the power. 2. MENU ENTER: a. Activate the on screen menu. b. Display the selected image in Image Recall mode. 3. PC | CAM : Press this button to toggle between the image from the Camera and the VGA input. 4.

  • Page 7: Annotation Functions On Touch Screen

    3. Annotation Functions on Touch Screen 1、 : Enter to the setting menu ：Active the function menu 2、 ：Image split 1、 ：Title function 2、 ：Brightness+ 3、 ：Brightness- 4、 ：Image freeze 5、 ：Image rotate 6、 ：Focus+ 7、 ：Focus- 8、 ：Image capture 9、...
  • Page 8 ：Select the pen's color:Yellow 7、 ：Select the pen's color:Blue 8、 ：Select the thickness of writing 9、 ：Select the thickness of writing 10、 ：Select the thickness of writing 11、...

  • Page 9: Inputs And Outputs

    4. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. RS 232: Serial port, to control the document camera from a computer via this port. 3. DVI: DVI-A signal output. 4. AUDIO OUT: Audio output. 5. VGA OUT: VGA (RGB) signal output (15 pin D-SUB). 6.

  • Page 10: Remote Control

    5. REMOTE CONTROL : Turn the document camera on or off. 2. PC/CAM: Press this button to toggle the output image between the document camera and VGA-IN.
  • Page 11 3. MIR: Output right-and-left, up-and-down mirror image 4. Output Format: Press this button to activate the Output Format selection menu on screen. Use Up and Down arrows to select a desired output format, press MENU ENTER button to confirm. 5. Arrow Buttons: a.
  • Page 12 15. Split: Split screen, enable the comparison between the frozen image and live image. 16. Bri+/-: Image brightness adjustment. 17. Frz: Freeze/unfreeze the image 18. Fc+/-: Adjust focus manually, focus far and focus near. : Rotate the image by 90 , 180 , 270 20.

  • Page 13: Connections

    6. CONNECTIONS 6.1. COMPUTER CONNECTION...

  • Page 14: Usb-A Connection

    6.2. USB-A CONNECTION...

  • Page 15: Vga Output Connection

    6.3. VGA OUTPUT CONNECTION...

  • Page 16: Dvi Output Connection

    6.4. DVI OUTPUT CONNECTION...

  • Page 17: Communicate With Computer

    Video memory: 64M 7.2. CONTROL VIA RS232 PV 700ST can be controlled from a computer via RS232. 1. Double click the RS232 software in provided CD to run the install shield wizard. Then you will see the software setup window:...
  • Page 18 Click Change to change the installation directory if needed, then click Next: Click Install to install the software to the computer:...
  • Page 19 Click Finish, the software installation is complete: 2. Connect the computer to the PV 700ST with a RS232 cable, turn on the power of PV 700ST. 3. Double click on or click start->All Programs->Visualizer_RS232-> Visualizer_RS232.exe to run the RS232 software, you will see the icon...
  • Page 20 : Zoom- : Auto : Display all functions : Minimize : Close 4. Click on , you will see the following control panel. 5. Properly set the software. Select the corresponding model number Select the right COM port...
  • Page 21 Note: * If the selected model does not have certain functions, the corresponding buttons in the software interface are displayed in light gray and are not clickable. * All models require 15 seconds start-up time to start the software. 6. Button instruction Button Function Power on the unit...
  • Page 22 Increase the blue hue Blue+ Decrease the blue hue Blue- Increase the sharpness harpness+ Decrease the sharpness harpness- Auto focus, brightness and color Save image Recall saved images Recall Switch between negative and positive image modes Switch between color and black/white modes Split screen plit Mirror image...

  • Page 23: Usb Function

    700ST, you can use it to annotate on the image. 2. USB Drive  Connect a USB drive to PV 700ST, then press Recall button to access the USB drive.  Use the left and right arrows to exit or enter a folder.

  • Page 24: Preparation For Installation

    7.3.2.2. PREPARATION FOR INSTALLATION To install and uninstall, please login in as system administrator, otherwise, the install/uninstall will fail. Please connect the unit to the PC before starting installation. Please select the right software to install: Visualizer_USB(x32): Windows XP, 32bit. Visualizer_USB(Windows7 x64): Windows 7, 64bit.
  • Page 25 3. Do not tick the option “Use User Account Control (UAC) to help protect your computer”: For Windows 7, please change the User account control setting to Never Notify. Follow the step to complete the setting: 1. Click on the right key of the mouse, choose properties:...
  • Page 26 2. Click on Action center: 3. Click on Change User Account Control Setting, then choose Never notify.

  • Page 27: Software Installation

    7.3.2.3. SOFTWARE INSTALLATION Double click to run the software installation package, the following dialogue appears, click "Next": Read the terms, select "I accept the terms in the license agreement." Click "Next", as the following figure.
  • Page 28 The following dialogue box appears, click "Next": The default installation directory is Program Files, C: \ Program Files \, you can select a different installation directory, as shown:...
  • Page 29 Click on "Change" to change the directory, as shown: Click on "OK", the following figure appears. Click "Next".
  • Page 30 Click on "Install" to complete installation, as shown: Click on "Finish” to complete the installation, as shown:...

  • Page 31: Start The Software

    Then you will see the following interface, which is an installation package for 2005 environment. If your PC already has this installed, click on "No" to exit, otherwise, click on "Yes" to install it. 7.3.2.4. START THE SOFTWARE Note: To use the software, the document camera’s USB mode has to be set to USB Video mode. Please follow the instruction below: A.

  • Page 32: Image Control

    Then click on , or select Video->Play, you will see the interface: 7.3.2.5 IMAGE CONTROL  Zoom in and Zoom out Zoom In （ Ctrl+I）: Left-click the Zoom In command button to enlarge the image. Zoom Out（ Ctrl+O）: Left-click the Zoom Out command button to shrink the image.
  • Page 33  Focus adjustment ocus Far（ Ctrl+R）: Left click the Focus Far command button to focus far. Focus Near（ Ctrl+N） : Left click the Focus Near command button focus near.  Image Brightness adjustment Bright More （ Ctrl+B） : Left click the Bright More button to increase the brightness. Bright Less （...

  • Page 34: Image Capture And Video Recording

     Image black and white/ color adjustment Mono/Color（ Ctrl+K） : Left click Mono/color button toggle between black-white and color modes.  Positive and negative film images Neg（ Ctrl+G） : Left click the Neg button to toggle between the positive and negative modes.

  • Page 35: Setting

    7.3.2.7. SETTING The captured images and recorded videos will be saved into the folders of Images and Videos respectively, which are created by the system automatically. To set a different path to which the image/video is be to saved, click on on the left side of the window, a pop up dialog box appears below.

  • Page 36: Image Modify

    7.3.2.8. IMAGE MODIFY Click on , you will see the interface:  Grapic selection and move Click on to choose a line, circle, rectangle or curve that placed in the image, then move to another place.  Line Click on to place a beeline in the image, shown as below:...
  • Page 37 Click on to change the setting of the chosen line: Line width: change the width of the line. X, Y: change the position of the line. Color: change the color of the line. Width, Height: Change the angle of the line. ...
  • Page 38 Line width: change the line width of the rectangle. X, Y: change the position of the rectangle. Color: change the line color of the rectangle. Fill Color: Tick it to fill color in the rectangle. Width, Height: Change the shape of the rectangle by changing the angle of two adjacent lines of the rectangle.
  • Page 39 Click on to change the setting of the chosen circle: Line width: change the line width of the circle. X, Y: change the position of the circle. Color: change the line color of the circle. Fill Color: Tick it to fill color in the circle. Width, Height: change the size of the circle.
  • Page 40 Click on to change the setting of the chosen curve: Line width: change the line width of the curve. X, Y: change the position of the curve. Color: change the line color of the curve.  Graphic default setting Click on to change the setting of the graphic: ...

  • Page 41: Features

    Press it again, the output image will be converted back to original color. FOCUS ADJUSTMENT When the PV 700ST is turned on the focus automatically adjusts to the stage, it is usually not necessary to re-adjust the focus if you are only working with flat...

  • Page 42: Brightness Adjustment

    Press “TITLE” to enable the title function. PICTURE IN PICTURE FUNCTION Press “PIP” on remote control to active the picture in picture function. IMAGE SAVE The PV 700ST offers the opportunity of storing 400 images on board. You can recall them by just pressing numerical buttons...

  • Page 43: Rgb Input Switch

    Use “OUTPUT” to select DVI signals output instead of VGA signal. USB IMAGE CAPTURE AND VIDEO RECORDING The USB port can be used to capture still images from the PV 700ST into a computer. In this way, the PV 700ST can be used as a 3-D scanner for your computer.

  • Page 44: Trouble-Shooting

    Image rotation Image split Image freeze Picture in picture Title Menu Inputs VGA ×1, AUDIO ×1 DVI×1,VGA ×2, AUDIO ×1 Outputs USB2.0 Slave×1(USB camera), Host×1 RS232 x1(computer controllable) Remote control Yes(360°controllable) Light source LED light box Kensington lock Operating temperature 32°F ~113°F Dimensions Folded:12.6"×7.5"×5.6", Setup:15.7"×7.5"×19.7"...

  • Page 45: Packing List

    If the problem still remains after checking the above, consult your dealer or authorized service personnel. 11. PACKING LIST Item Quantity Power cord Power adaptor(12V/2A) VGA cable Mini jack audio cable Switch cable USB cable(2.0) Remote control User manual(CD) Stylus...

  • Page 46: Technical Support

    12. TECHNICAL SUPPORT Wanin USA is committed to providing highest possible stand of customer service. We can be reached: By Phone Call us at 1-877-369-3130. Our technical support staff provides technical assistance from 9:00AM through 5:00PM Pacific Standard Time, Monday through Friday. Please gather the following information before calling: - Product model name(s) and numbers - Product serial number(s)
