  • Page 1: User Manual

    Document Camera USER MANUAL...
  • Page 2 Please read this manual carefully before operating the document camera and keep it for reference PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE Use the document camera under the rated electric conditions. Do not place the document camera on any unstable surface. It may fall and cause injures or damages.

  • Page 3: Table Of Contents

    USER MANUAL...................1 1. PARTS IDENTIFICATION..............5 2. CONTROL PANEL .................6 3. TOUCH FUNCTION ................7 4. INPUTS AND OUTPUTS................9 5. REMOTE CONTROL ................10 6. CONNECTIONS ..................12 6.1. COMPUTER CONNECTION....................13 6.2. USB-A CONNECTION......................14 6.3. VGA OUTPUT CONNECTION ................... 15 6.4. DVI OUTPUT CONNECTION ..................... 16 7.
  • Page 4 OUTPUT SWITCH........................37 USB IMAGE CAPTURE AND VIDEO RECORDING .............. 37 USB HOST PORT ........................37 RS232 CONTROL........................37 9. SPECIFICATION ..................38 10. TROUBLE-SHOOTING: ..............38 11. PACKING LIST ...................39...

  • Page 5: Parts Identification

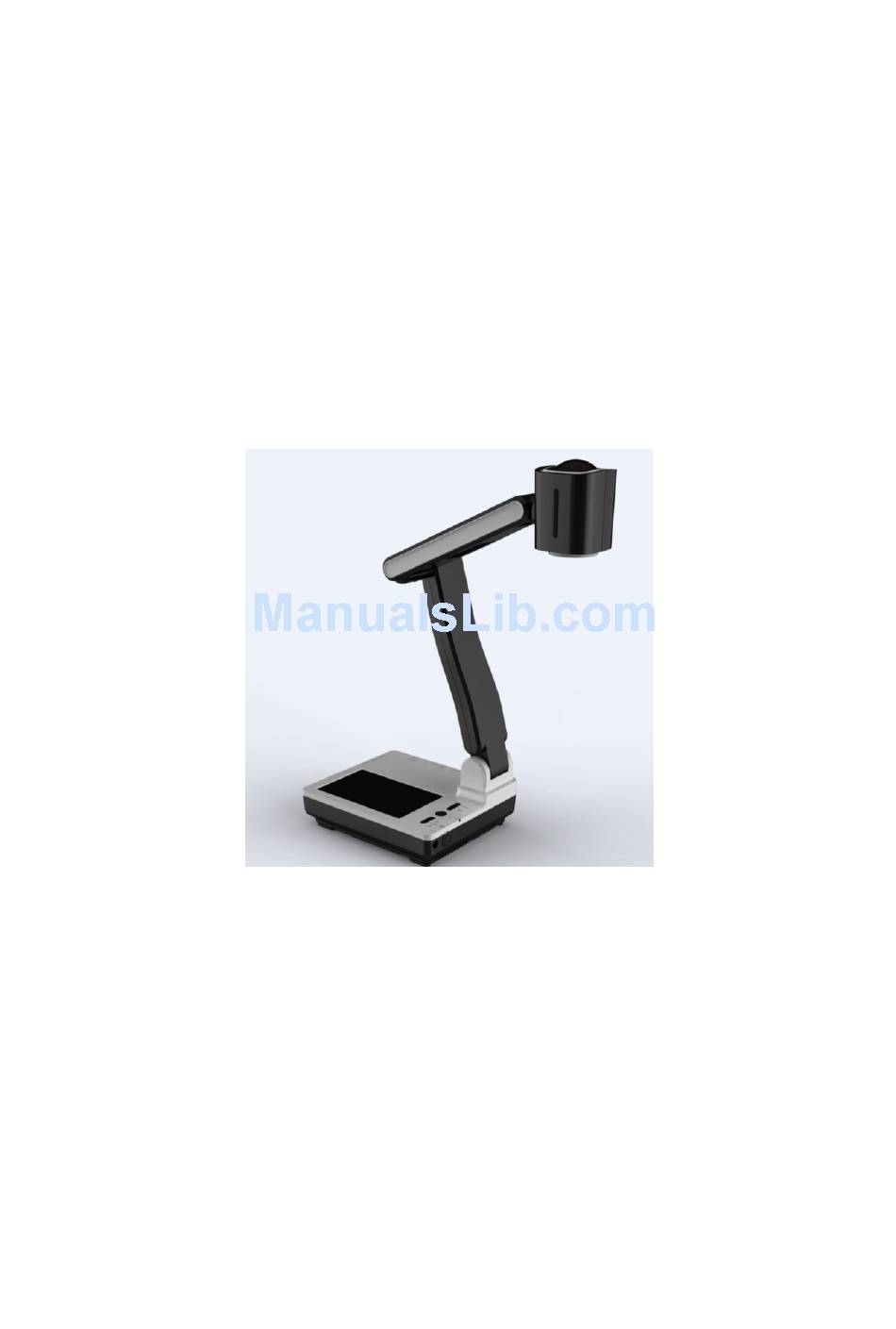

    1. PARTS IDENTIFICATION Remote control IR receiver Camera LED light box Upper mechanical arm Main mechanical arm Side panel Back panel Control panel Touch LCD Panel...

  • Page 6: Control Panel

    2. CONTROL PANEL 1. POWER: Turn on/off the power. 2. MENU ENTER: a. Activate the on screen menu. b. Display the selected image in Image Recall mode. 3. PC | CAM : Press this button to toggle between the image from the Camera and the VGA input. 4.

  • Page 7: Touch Function

    3. TOUCH FUNCTION : Enter to the setting menu Active the function menu Image split Title function Brightness+ Brightness- Image freeze Image rotate Focus+ Focus- Image capture Text/Picture function Lamp on/off Image mirror Picture-in-picture function Negative/positive conversion Image recall...
  • Page 8 Exit Annotation function Select writing pen Select clear pen Rubber Delete all annotation Cursor Select the pen's color: Red Select the pen's color:Yellow Select the pen's color:Blue Select the thickness of writing Select the thickness of writing Select the thickness of writing...

  • Page 9: Inputs And Outputs

    4. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. RS 232: Serial port, to control the document camera from a computer via this port. 3. DVI: DVI-A signal output. 4. AUDIO OUT: Audio output. 5. VGA OUT: VGA (RGB) signal output (15 pin D-SUB). 6.

  • Page 10: Remote Control

    5. REMOTE CONTROL...
  • Page 11 : Turn the document camera on or off. 2. PC/CAM: Press this button to toggle the output image between the document camera and VGA-IN. 3. MIR: Output right-and-left, up-and-down mirror image 4. Output Format: Press this button to activate the Output Format selection menu on screen. Use Up and Down arrows to select a desired output format, press MENU ENTER button to confirm.

  • Page 12: Connections

    arrow keys to select a thumbnail; Press MENU ENTER button to display the selected image. (2) When a USB drive is connected to the document camera, contents of the USB drive will be displayed on screen. Use up and down arrows to select a folder or image file; Press MENU ENTER button to enter the selected folder or display the selected image.

  • Page 13: Computer Connection

    6.1.COMPUTER CONNECTION...

  • Page 14: Usb-A Connection

    6.2. USB-A CONNECTION...

  • Page 15: Vga Output Connection

    6.3. VGA OUTPUT CONNECTION...

  • Page 16: Dvi Output Connection

    6.4. DVI OUTPUT CONNECTION...

  • Page 17: Usb Function

    2. Memory stick * Connect the memory stick with i3780T, then press Recall button to access the memory stick. * Use the left and right arrow to exit/enter a folder.

  • Page 18: Preparation For Installation

    7.2.2 PREPARATION FOR INSTALLATION To install and uninstall, please login in as system administrator, otherwise, the install/uninstall will fail. Please connect the unit to the PC before starting installation. Please select the right software to install: Visualizer_USB(x32): Windows XP, Windows 7, 32bit. Visualizer_USB(Windows7 x64): Windows 7, 64bit.
  • Page 19 3. Make sure do not tick the option “Use User Account Control (UAC) to help protect your computer”: For Windows 7, please change the User account control setting to Never Notify. Follow the step to complete the setting: 1. Click the right key of the mouse, choose properties:...
  • Page 20 2. Click Action center: 3. Click Change User Account Control Setting, then choose Never notify.

  • Page 21: Software Installation

    7.2.3 SOFTWARE INSTALLATION Click to run the software installation package, the following dialogue appears, click "Next": Read the terms, Select "I accept the terms in the license agreement." Click "Next", as the following figure.
  • Page 22 The following dialogue box appears, click "Next": The default installation directory is Program Files, C: \ Program Files \, you can select a different installation directory, as shown:...
  • Page 23 Click "Change" to change the directory, as shown: Click "OK", the following figure appears. Click "Next".
  • Page 24 Click "Install" to complete installation, as shown: Click "Finish” to complete the installation, as shown:...

  • Page 25: Software Start

    Then you will see the following interface, which is an installation package for 2005 environment. If your PC already has this installed, click "No" to exit, otherwise, click "Yes" to install it. 7.2.4 SOFTWARE START Note: To use the software, the document camera’s USB mode has to be set to USB Video mode. Please follow the instruction below: A.
  • Page 26 The remote and the front panel are inactive while the software is in use. Double click the short cut on the desktop, then click Device, select the right model number, see below: Then Click , or select Video->Play, you will see the interface:...

  • Page 27: Image Control

    7.2.5 IMAGE CONTROL Zoom in and zoom out Zoom In Ctrl+I : Left-click the Zoom In command button to enlarge the image. Keep holding the button until it reaches the maximum zooming point. Zoom Out Ctrl+O : Left-click the Zoom Out command button to shrink the image. Keep holding the button until it goes back to its original size.

  • Page 28: Image Capture And Video Recording

    Blue Less: Left click the Blue Less button to reduce the blue hue. Image black and white/ color adjustment Mono/Color Ctrl+K : Left click the Mono/color button to toggle between the black-white and color modes. Positive and negative film images Neg Ctrl+G : Left click the Neg button to toggle between the positive and negative modes.

  • Page 29: Setting

    7.2.7 SETTING The captured images and recorded videos will be saved into the folders of Images and Videos respectively, which are created by the system automatically. To set a different path to which the image/video is be to saved, click on the left side of the window, a pop up dialog box appears below.

  • Page 30: Image Modify

    7.2.8 IMAGE MODIFY Click , you will see the interface: Grapic selection and move Click to choose a line, circle, rectangle or curve that placed in the image, then move to another place. Line Click to place a beeline in the image, shown as below:...
  • Page 31 Click to change the setting of the chosen line: Line width: change the width of the line. X, Y: change the position of the line. Color: change the color of the line. Width, Height: Change the angle of the line. Rectangle Click to place a rectangle in the image, shown as below:...
  • Page 32 Line width: change the line width of the rectangle. X, Y: change the position of the rectangle. Color: change the line color of the rectangle. Fill Color: Tick it to fill color in the rectangle. Width, Height: Change the shape of the rectangle by changing the angle of two adjacent lines of the rectangle.
  • Page 33 Line width: change the line width of the circle. X, Y: change the position of the circle. Color: change the line color of the circle. Fill Color: Tick it to fill color in the circle. Width, Height: change the size of the circle. Curve Click to place a curve in the image, shown as below:...
  • Page 34 Line width: change the line width of the curve. X, Y: change the position of the curve. Color: change the line color of the curve. Graphic default setting Click to change the setting of the graphic: Graphic delete Click to delete the chosen graphic. Delete all the graphic Click to delete all graphic that placed in the image.

  • Page 35: Features

    Press "ZOOM+"or "ZOOM-" POSITIVE/NEGATIVE CONVERSION The i3780T is automatically set to display normal materials on the screen when the power is on. To display negatives, simply laying any film negative on the platform and press the Neg button on remote control, the negative image is converted to a positive picture instantly.

  • Page 36: Image Freeze

    Press “PIP” on remote control to active the picture in picture function. IMAGE SAVE The i3780T offers the opportunity of storing 400 images on board. You can recall them by just pressing one of the numerical buttons on the front panel or remote control. Press "SAVE" to capture the current displaying image.

  • Page 37: Rgb Input Switch

    Use “OUTPUT” to select DVI signals output instead of VGA signal. USB IMAGE CAPTURE AND VIDEO RECORDING The USB port can be used to capture still images from the i3780T into a computer. In this way, the i3780T can be used as a 3-D scanner for your computer.

  • Page 38: Specification

    9. SPECIFICATION Model i3780T Sensor 1/3" CMOS Pixels 2 Megapixel Zoom 9x optical, 12x digital Frame rate Shooting area Max: 13.5" x 10.6" /34.3 cm x 26.9 cm Min: 0.1" x 0.1"/0.3 cm x 0.3 cm Focus Auto/manual Output resolution...

  • Page 39: Packing List

    10. TROUBLE-SHOOTING: Symptoms Possible causes/counter-measures No image 1. Power cord is not properly connected. 2. Cables are not properly connected. 3. Power switch is not turned on. 4. The built-in fuse is broken: Change fuse. 5. Change the output resolution. Image bending Camera not in right position, adjust the camera.
