Vidifox i3030 User Manual

Vidifox i3030 document camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

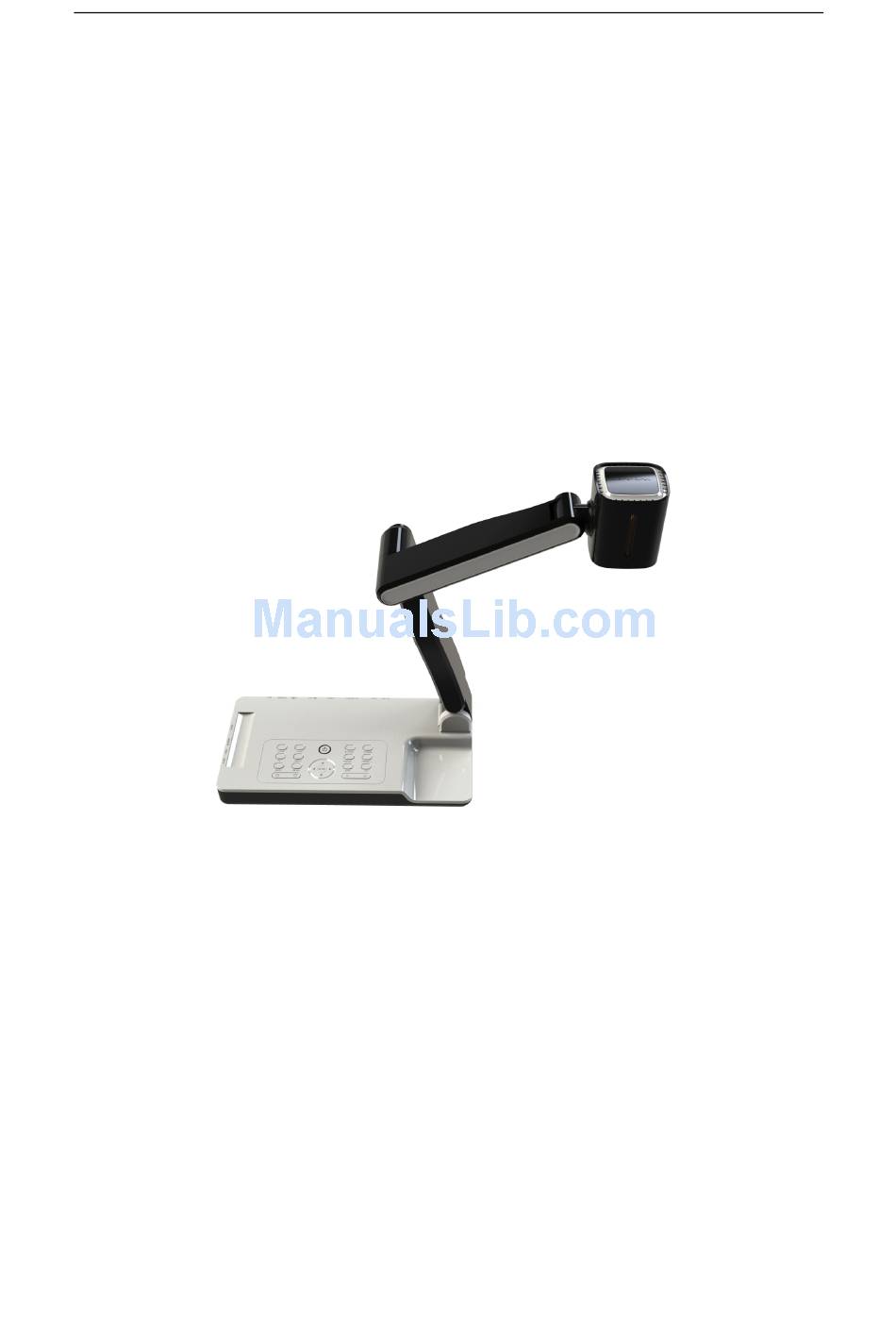

i3030

Document Camera

USER MANUAL

Please read this manual carefully before operating the document camera and keep it for reference
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vidifox i3030

Summary of Contents for Vidifox i3030

  • Page 1: User Manual

    Document Camera USER MANUAL Please read this manual carefully before operating the document camera and keep it for reference...
  • Page 2 PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE u Use the document camera under the rated electric conditions. u Do not place the document camera on any unstable surface. It may fall and cause injures or damages. u Do not place this device directly under sunlight or near heaters. u Do not place this device near water.

  • Page 3: Table Of Contents

    CONTENTS: USER MANUAL..................1 1. PARTS IDENTIFICATION ..............5 2. CONTROL PANEL ................6 3. INPUTS AND OUTPUTS..............7 4. REMOTE CONTROL...............8 5. CONNECTIONS................9 5.1. COMPUTER CONNECTION...................9 5.2. VGA OUTPUT CONNECTION..................10 5.3. C-VIDEO OUTPUT CONNECTION................10 5.4. S-VIDEO OUTPUT CONNECTION ................11 6. RS232 SOFTWARE ................. 11 6.1 COMPUTER REQUIREMENTS ..................
  • Page 4 IMAGE RECALL........................29 MULTIPLE INPUTS AND OUTPUTS..................30 USB 2.0 PORT........................30 USB IMAGE CAPTURE AND VIDEO RECORDING............30 RS232 CONTROL........................30 9. SPECIFICATION ................31 10. TROUBLE-SHOOTING: ..............32 11. PACKING LIST ................32...

  • Page 5: Parts Identification

    1. PARTS IDENTIFICATION 1. Remote control IR receiver 2. Camera 3. LED light box 4. Upper mechanical arm 5. Main mechanical arm 6. Side panel 7. Back panel 8. Base unit 9. Control panel...

  • Page 6: Control Panel

    2. CONTROL PANEL 1. POWER: Turn on/off the power. 2. HOME: Activate VGA output terminal, providing the image from camera. 3. LAMP: Turn on/off the LED light. 4. FREEZE: Freeze/unfreeze the image. 5.T/P: Switch the output image between text mode and picture mode. 6.

  • Page 7: Inputs And Outputs

    3. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. RS 232: Serial port, to control the document camera by computer via this port. 3. AUDIO OUT: Audio output. 4. VGA OUT: VGA(RGB) signal output(15 pin D-SUB). 5. C-VIDEO: Composite video output. 6.

  • Page 8: Remote Control

    4. REMOTE CONTROL 1. Save: Capture the image in display. 2. Recall: Image recall mode enabled, display the saved images. 3. Lamp: Toggle arm light, back light & no light. 4. Split: Split screen, enable the comparison between the frozen image and live image. 5.

  • Page 9: Connections

    14. Auto: Carry out auto focus, color adjustment and white balance. 15. Computer: Activate the VGA input. 16. Video: Activate the VIDEO&S-VIDEO output, providing the image from camera. 17. Zoom+/-: Image zoom in and zoom out control. 18. Focus+/-: Adjust focus manually, focus far and focus near. 19.

  • Page 10: Vga Output Connection

    5.2. VGA OUTPUT CONNECTION To RGB Input To Audio Input 5.3. C-VIDEO OUTPUT CONNECTION...

  • Page 11: S-Video Output Connection

    5.4. S-VIDEO OUTPUT CONNECTION 6. RS232 SOFTWARE 6.1 COMPUTER REQUIREMENTS The PC's hardware and software configurations shall not be less than the following requirements： Operating system: Windows XP CPU: PIV1.8G Physical memory: 512M Video memory: 64M 6.2. SOFTWARE INSTALLATION Double click the RS232 software that in provided CD to run the install shield wizard. Then you will see the software setup window:...
  • Page 12 Read terms, select "I accept the terms in the license agreement" Click Next: Click Change to change the installation directory if needed, then click Next:...
  • Page 13 Click Install to install the software to the computer: Click Finish, the software installation is complete:...

  • Page 14: Software Start And Setting

    6.3 SOFTWARE START AND SETTING Connect the computer and the i3030 with a RS232 cable, turn on the power of i3030, then double click or click start->All Programs->Visualizer_RS232-> Visualizer_RS232.exe to run the RS232 software, you will see the Icon on the task bar and the control interface on the top right...
  • Page 15 Set the software properly: : Select corresponding model number. : Select the right COM port. Note: * If the selected model does not have certain functions, the corresponding buttons in the software interface are displayed in light gray and are not clickable. * All models require 15 seconds start-up time to start the software.

  • Page 16: Button Instruction

    6.4. BUTTON INSTRUCTION Button Function Power on the unit Power On Standby Power Off Switch to visualize mode Home Video output Video Out PC input PC In Image freeze Freeze Toggle between arm light and no light Light Increase the brightness Brightness+ Decrease the brightness Brightness-...

  • Page 17: Usb Function

    Increase the sharpness Sharpness+ Decrease the sharpness Sharpness- Auto focus, brightness, and color Auto Save image Save Recall saved images Recall Split screen Split Mirror image Mirror Switch between text and image modes Switch between SXGA, XGA, and SVGA output modes Resolution Recall image #1 Recall image #2...

  • Page 18: Preparation For Installation

    Physical memory: 512M Video memory: 64M 7.2 PREPARATION FOR INSTALLATION To install and uninstall, please login in as system administrator, otherwise, the install/uninstall will fail. Please connect the unit to the PC before starting installation. Please select the right software to install: Visualizer_USB(x32): Windows XP, 32bit.
  • Page 19 3. Make sure do not tick the option “Use User Account Control (UAC) to help protect your computer”: For Windows 7, please change the User account control setting to Never Notify. Follow the step to complete the setting: 1. Click the right key of the mouse, choose properties:...
  • Page 20 2. Click Action center: 3. Click Change User Account Control Setting, then choose Never notify.

  • Page 21: Software Installation

    7.3 SOFTWARE INSTALLATION Click to run the software installation package , the following dialogue appears, click "Next": Read the terms, Select "I accept the terms in the license agreement." Click "Next", as the following figure.
  • Page 22 The following dialogue box appears, click "Next": The default installation directory is Program Files, C: \ Program Files \, you can select a different installation directory, as shown:...
  • Page 23 Click "Change" to change the directory, as shown: Click "OK", the following figure appears. Click "Next".
  • Page 24 Click "Install" to complete installation, as shown: Click "Finish” to complete the installation, as shown:...

  • Page 25: Software Start

    Then you will see the following interface, which is an installation package for 2005 environment. If your PC already has this installed, click "No" to exit, otherwise, click "Yes" to install it. 7.4 SOFTWARE START Note: The remote and the front panel are inactive while the software is in use. Double click the short cut on the desktop, then click Device, select the right model number, see below:...

  • Page 26: Image Capture And Video Recording

    Then Click , or select Video->Play you will see the image from the camera. 7.5 IMAGE CAPTURE AND VIDEO RECORDING Left click to capture images. The captured images will be automatically saved into the default destination folder. The path and file name are displayed in software status bar on the bottom of the window.

  • Page 27: Setting

    Left click to start recording. The setting button will changes to and does not work. The detailed information is displayed on the software status bar in the bottom of the window. The video is automatically saved in the default folder or pre-set folder. 7.6 SETTING The captured images and recorded videos will be saved into the folders of Images and Videos respectively, which are created by the system automatically.

  • Page 28: Features

    LED lamps, which is cool to the touch and mercury content free. ZOOM IN AND ZOOM OUT 9x optical zoom combined with 8x seamless digital zoom, the i3030 enables you to view the finest details of any objects that are impossible to see with your naked eyes. The i3030’s advanced optical system features high speed auto focus capability that ensures instant auto focus when you quickly zoom in and out of any object.

  • Page 29: White Balance Adjustment

    IMAGE SAVE The i3030 offers the opportunity of storing 12 images on board. You can recall them by just pressing one of the numerical buttons on the front panel or remote control. IMAGE RECALL By pressing the “Recall”...

  • Page 30: Multiple Inputs And Outputs

    The i3030 is the document camera equipped with a USB 2.0 image capture and video recording system. Simply connect the i3030 to a computer, with the software and driver we provided, you can easily preview, capture and save any images on your PC and Mac.

  • Page 31: Specification

    9. SPECIFICATION Model i3030 Sensor 1/3" CMOS Pixels 2 Megapixel Zoom 9x optical, 8x digital Frame rate Shooting area Max: 13.5"x10.6", Min: 0.1"x0.1" Focus Auto/manual Output resolution ≥650 TV lines Resolution(Horizontal) White balance Auto/manual Color adjustment Brightness adjustment Image capture...

  • Page 32: Trouble-Shooting

    10. TROUBLE-SHOOTING: Symptoms Possible causes/counter-measures No image 1. Power cord is not properly connected. 2. Cables are not properly connected. 3. Power switch is not turned on. 4. The built-in fuse is broken: Change fuse. 5. Change the output resolution. Image bending Camera not in right position, adjust the camera.
