Vidifox PV 380 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Vidifox
Document Camera
PV 380

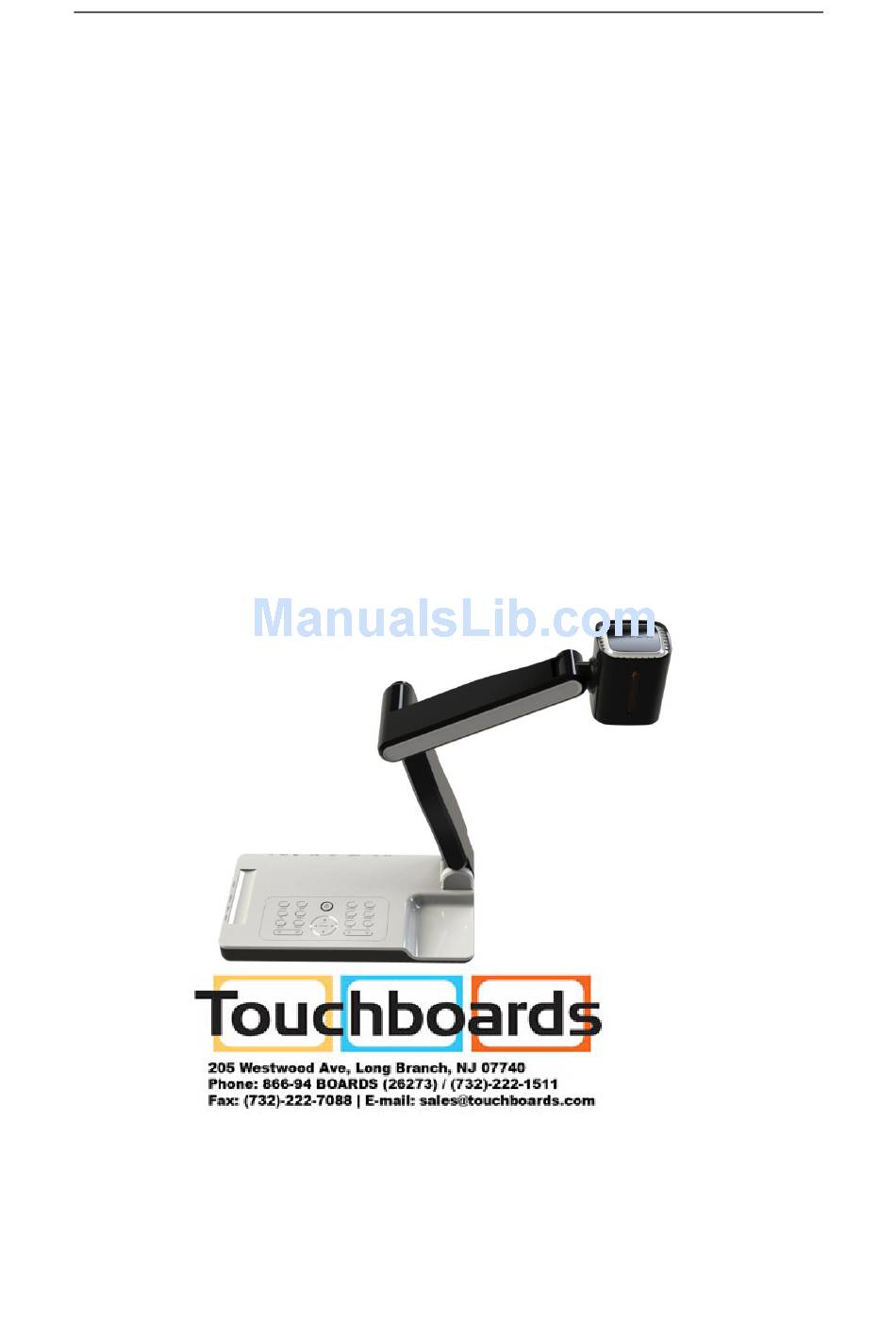

USER MANUAL
Please read this User Manual thoroughly before you use the document camera. Keep the CD-ROM in
a convenient place so you can use it quickly if you need to.
Please visit us at http://www.waninusa.com where you can get product support, the latest driver
updates, and answers to frequently asked questions (FAQs) and technical questions.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV 380 and is the answer not in the manual?

Questions and answers

Related Manuals for Vidifox PV 380

Summary of Contents for Vidifox PV 380

  • Page 1 ® Vidifox Document Camera PV 380 USER MANUAL Please read this User Manual thoroughly before you use the document camera. Keep the CD-ROM in a convenient place so you can use it quickly if you need to. Please visit us at http://www.waninusa.com where you can get product support, the latest driver...
  • Page 2 The contents of this manual and the specifications of this product are subject to change without notice. Wanin USA reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. PARTS IDENTIFICATION ..............4 2. CONTROL PANEL ................5 3. INPUTS AND OUTPUTS ..............6 4. REMOTE CONTROL ................. 7 5. CONNECTIONS ................... 9 5.1. COMPUTER CONNECTION ................... 9 5.2. VGA OUTPUT CONNECTION ..................10 5.3. C-VIDEO OUTPUT CONNECTION ................10 5.4.

  • Page 4: Parts Identification

    1. PARTS IDENTIFICATION 1. Remote control IR receiver 2. Camera 3. LED light box 4. Upper mechanical arm 5. Main mechanical arm 6. Side panel 7. Back panel 8. Base unit 9. Control panel...

  • Page 5: Control Panel

    2. CONTROL PANEL 1. POWER: Turn on/off the power. 2. HOME: Activate VGA output terminal, providing the image from camera. 3. LAMP: Turn on/off the LED light. 4. FREEZE: Freeze/unfreeze the image. 5. T/P: Switch the output image between text mode and picture mode. 6.

  • Page 6: Inputs And Outputs

    3. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. RS 232: Serial port, to control the document camera from a computer via this port. 3. AUDIO OUT: Audio output. 4. VGA OUT: VGA (RGB) signal output (15 pin D-SUB). 5.

  • Page 7: Remote Control

    4. REMOTE CONTROL...
  • Page 8 : Turn the document camera on or off. 2. Computer: Press this button to output signals from VGA-IN. 3. Video: Activate the VIDEO&S-VIDEO output, providing the image from camera. 4. XGA/SXGA: Toggle the output format between XGA and SXGA. 5. Home: Output the image from the document camera. 6.

  • Page 9: Connections

    5. CONNECTIONS 5.1. COMPUTER CONNECTION RS232 cable To RS232 To Audio Output Audio Cable To RGB Output...

  • Page 10: Vga Output Connection

    5.2. VGA OUTPUT CONNECTION 5.3. C-VIDEO OUTPUT CONNECTION Audio Cable To Audio Input To Video Input Video Cable...

  • Page 11: S-Video Output Connection

    Operating system: Windows XP CPU: 1.8 GHz Physical memory: 512M Video memory: 64M 6.2. CONTROL VIA RS232 PV 380 can be controlled from a computer via RS232. 1. Double click on the RS232 software in provided CD to run the install shield wizard.
  • Page 12 Then you will see the software setup window: Read terms, select "I accept the terms in the license agreement" Click on Next: Click on Change to change the installation directory if needed, then click on Next:...
  • Page 13 Click on Install to install the software to the computer: Click on Finish, the software installation is complete:...
  • Page 14 2. Connect the computer to the PV 380 with a RS232 cable, turn on the power of PV 380. 3. Double click on or click on start->All Programs->Visualizer_RS232-> Visualizer_RS232.exe to run the RS232 software, You will see the icon on the task bar and the...
  • Page 15 5. Properly set the software. : Select corresponding model number. : Select the right COM port. Note: * If the selected model does not have certain functions, the corresponding buttons in the software interface are displayed in light gray and are not clickable. * All models require 15 seconds start-up time to start the software.
  • Page 16 6. Button instruction Button Function Power on the unit Power On Standby Power Off Switch to visualize mode Home Switch to Video/S-Video output Video Out Active PC input PC In Image freeze Freeze Toggle between arm light and no light Light Brightness+ Increase the brightness Brightness- Decrease the brightness...

  • Page 17: Usb Camera

    You can capture images and videos on the PV 380 from a computer via USB. 1. Connect the computer and the PV 380 with a USB cable, turn on the power of PV 380. 2. Open My Computer, you will see a USB Video Device:...
  • Page 18 3. Double click on USB Video Device, you will see the following image capture window: To capture the video, please see the following steps: 1. Copy the USB software that in the provided CD into the folder PV 380. 2. Open the USB folder, double click to run the USB capture application:...
  • Page 19 2. Please make sure the software is in properly setting. Make sure to select Devices->USB video device and Options->Preview.
  • Page 20 3. Click on File->Set Capture File to set the capture file. A. Set the location and file name. B. Set the file size. 4. Click on OK to finish the setup, then click on Capture->Start capture to capture video.
  • Page 21 4. You will see the following window, click on OK to start capture. 6. Click on Capture->Stop Capture to stop...

  • Page 22: Features

    ZOOM IN AND ZOOM OUT 9x optical zoom combined with 8x seamless digital zoom, the PV 380 enables you to view the finest details of any objects that are impossible to see with your naked eyes. The PV 380’s advanced optical system features high speed auto focus capability that ensures instant auto focus when you quickly zoom in and out of any object.

  • Page 23: Brightness Adjustment

    IMAGE SAVE The PV 380 offers the opportunity of storing 12 images on board. You can recall them by just pressing one of the numerical buttons on the front panel or remote control. IMAGE RECALL By pressing the “Recall”...

  • Page 24: Multiple Inputs And Outputs

    USB IMAGE CAPTURE AND VIDEO RECORDING The PV 380 is the document camera equipped with a USB 2.0 image capture and video recording system. Simply connect the PV 380 to a computer, with the software and driver we provided, you can easily preview, capture and save any images on your PC and Mac.

  • Page 25: Trouble-Shooting

    Color adjustment Brightness adjustment Image capture Yes,12 images Video recording Yes(via USB) Image mirror Image split Image freeze Text mode VGA ×1, AUDIO ×1 Inputs Outputs VGA ×1, C-VIDEO ×1, S-VIDEO ×1, AUDIO ×1 USB2.0 Slave×1(USB camera) RS232 x1(computer controllable) Remote control Yes(360°controllable) Light source...

  • Page 26: Packing List

    image 2. Focus is on the top point of zoom, press ZOOM-. 3. Auto-focus is not on: press AUTO again. 4. Fog on the lens in damp climate. It will disappear gradually when the equipment warms up. If the problem still remains after checking the above, consult your dealer or authorized service personally.

  • Page 27: Technical Support

    11. TECHNICAL SUPPORT Wanin USA is committed to providing highest possible stand of customer service. We can be reached: By Phone Call us at 1-877-369-3130. Our technical support staff provides technical assistance from 9:00AM through 5:00PM Pacific Standard Time, Monday through Friday. Please gather the following...
