Chapter 1 Introduction

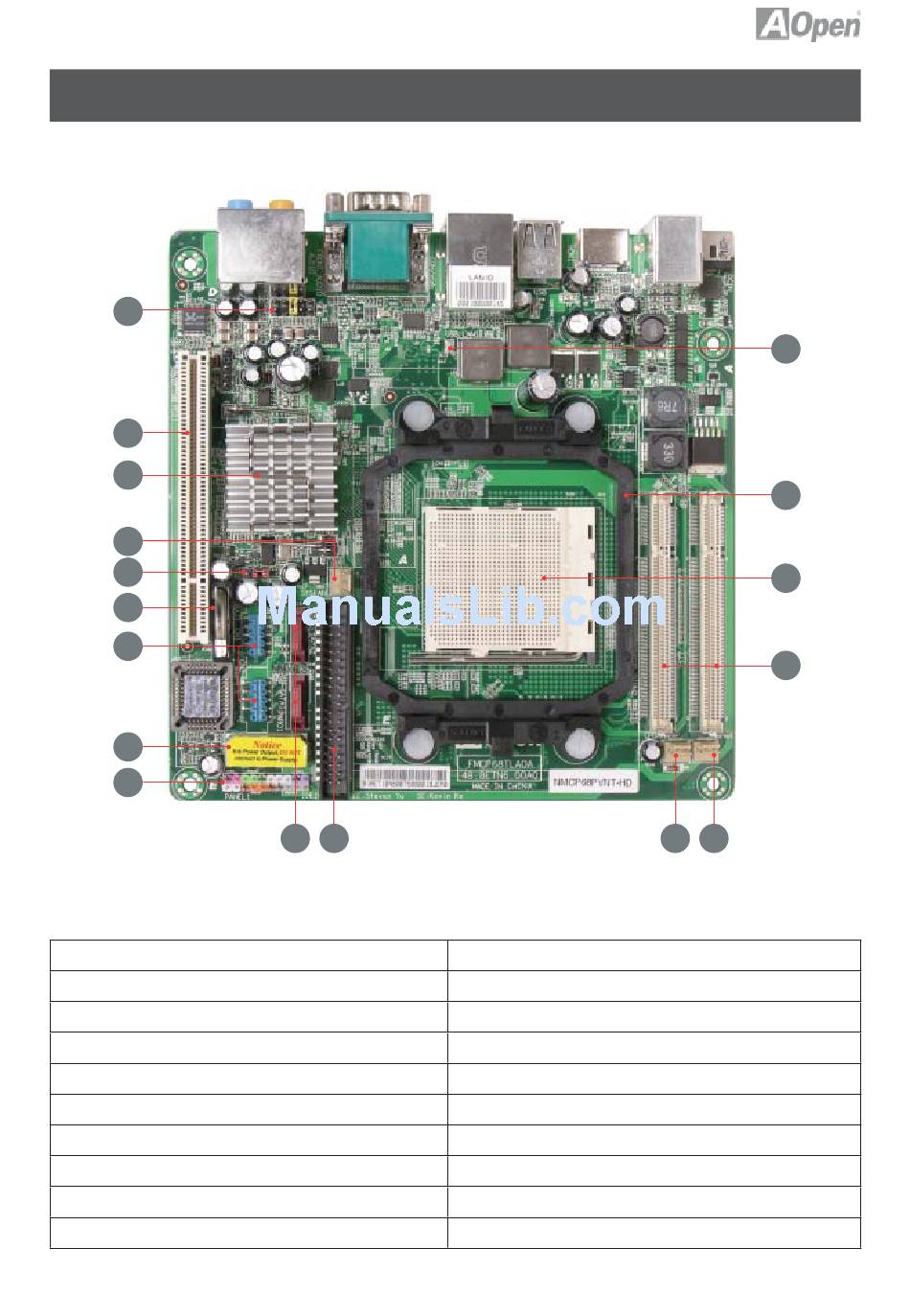

1.1 Board and I/O Layout

1
2
3
4
5
6
7
8
9
Table 1.1 Board Components
Item
01. Front Audio Connector
02. PCI slot
03. nVIDIA MCP68S
04. System Fan
05. JP14 CMOS clear jumper
06. Battery
07. USB 2.0 Connector x 2
08. 4-pin DC Power Output Connector
09. Front Panel Connector
10 11
3
Item
10. SATA II Connector
11. IDE Connector
12. CPU Fan
13. NB Fan
14. SO DIMM Slot x 2
15. LGA 775 CPU Socket P
16. Retention modules
17. Standby LED
17
16
15
14
12 13
